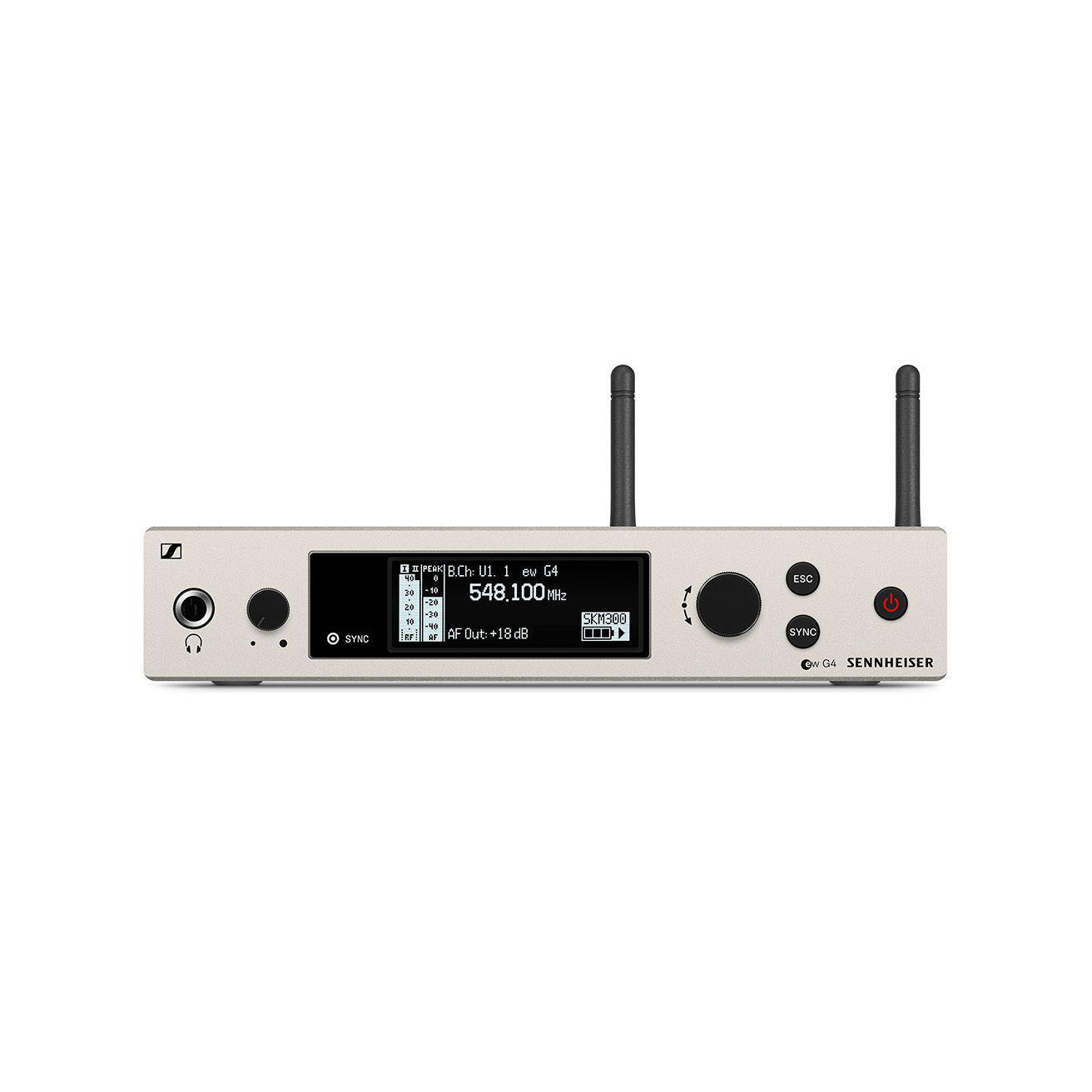

• Sennheiser EM 300-500 G4 True Diversity Half-Rack Receiver

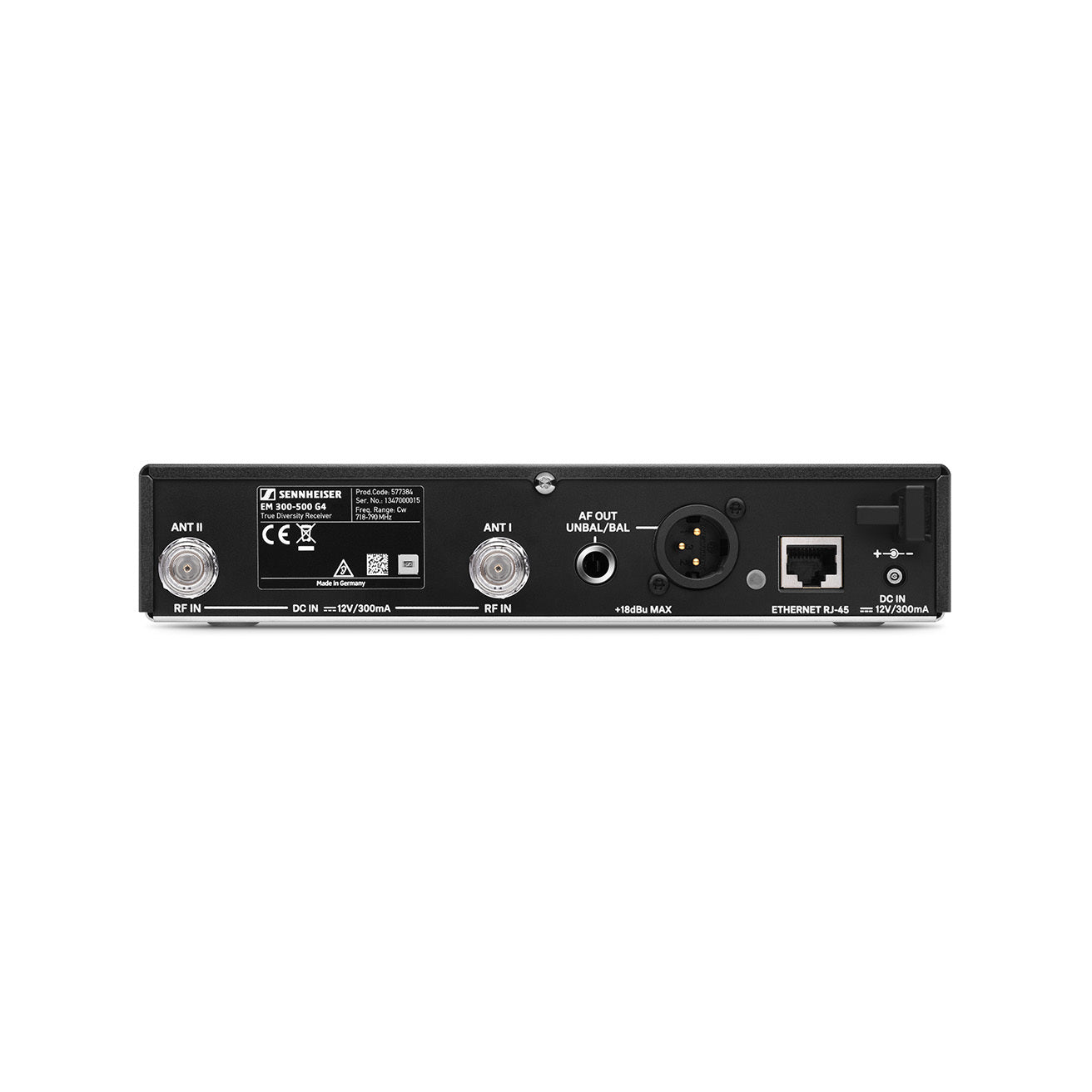

  • Sennheiser EM 300-500 G4 True Diversity Half-Rack Receiver back
1 2

Sennheiser EM 300-500 G4 True Diversity Half-Rack Receiver | Frequency: AW+ (470-558 MHz)

Sennheiser EM 300-500 G4 True Diversity Half-Rack Receiver | Frequency: AW+ (470-558 MHz)

SoundPro Item: 118337 | Part Number: EM 300-500 G4-AW+

$639.00
$639.00 $639.00
Your Price Sold out
MSRP: $639.00 | MAP: $639.00

Usually ships in 5-7 business days

  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display
  • Easy to use, fast setup time
  • Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
  • Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
  • Up to 88 MHz bandwidth, up to 32 channels
  • Increased RF output power (10/30/50 mW)
  • Transmission Range: up to 100 meters / 330 feet
  • Compatible with wireless speaker system LSP 500 PRO
  • RC (remote control) switch available for the bodypack transmitter
Log in or register for YOUR best price

Take on the world’s biggest stages with the EM 300-500 G4 from Sennheiser. This true diversity, half-rack receiver is designed to meet the rigorous expectations of live sound professionals. Boasting an all-metal build and an intuitive OLED display, you can exercise full control, enjoy increased bandwidth and transmission power, and fully round out your wireless G4 300/500 system. The EM 300-500 receiver comes with 2 rod antennas, a power supply, and GA3 rackmount set, as well as a quick guide, safety guide, and manufacturer declaration sheet.

View full details
  • Frequency range
    • AS: 520 - 558 MHz
    • Aw+: 470 - 558 MHz
    • Bw: 626 - 698 MHz
    • Cw: 718 - 790 MHz
    • Dw: 790 - 865 MHz
    • GBw: 606 - 678 MHz
    • Gw: 558 - 626 MHz
    • Gw1: 558 - 608 MHz
    • JB: 806 - 810 MHz
    • K+: 925 - 937,5 MHz
  • DimensionsApprox. 202 x 212 x 43 mm
  • CompanderSennheiser HDX
  • THD, total harmonic distortion≤ 0.9 %
  • WeightApprox. 980 g
  • Audio output
    • 6.3 mm jack socket (unbalanced): +12 dBu
    • XLR socket (balanced): +18 dBu
  • Signal-to-noise ratio ≥ 115 dBA
  • Switching bandwidth up to 88 MHz
  • Peak deviation ±48 kHz
  • Nominal deviation ±24 kHz
  • Modulation Wideband FM
  • Power supply 12 V DC
  • Antenna connector 2 BNC sockets
  • Current consumption 350 mA
  • Adjacent channel rejection Typically ≥ 75 dB
  • Intermodulation attenuation Typically ≥ 70 dB
  • Receiving frequency Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
  • RF sensitivity < 2.5 μV for 52 dBA eff S/N
  • Squelch 5 to 25 dBμV in steps of 2 dB
  • Equalizer
    • Preset 1: Flat
    • Preset 2: Low Cut (-3 dB at 180 Hz)
    • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
  • Preset 4 High Boost (+6 dB at 10 kHz)
  • Temperature Range -10 °C to +55 °C
  • Receiver Principle True diversity
  • Blocking ≥ 75 dB
