Sennheiser ew 500-G4-945 Wireless Handheld Microphone System | Frequency: GW1 (558-608 MHz)
Sennheiser ew 500-G4-945 Wireless Handheld Microphone System | Frequency: GW1 (558-608 MHz)
SoundPro Item: 118386
Usually ships in 5-7 business days

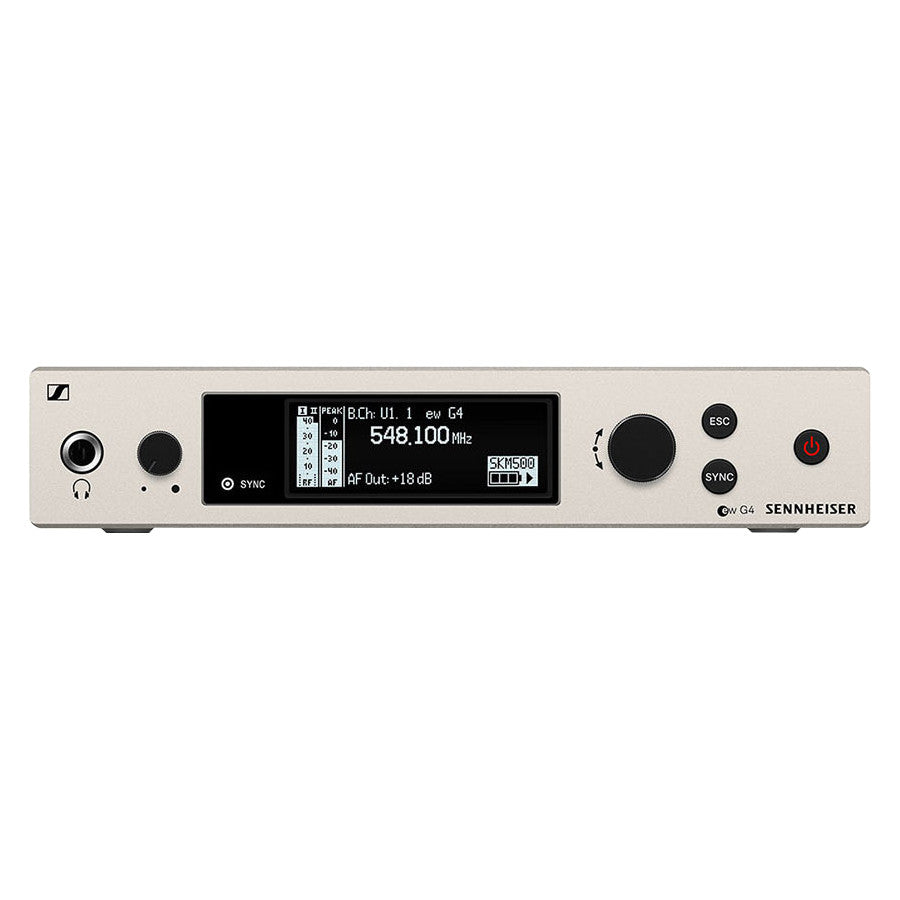

- True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

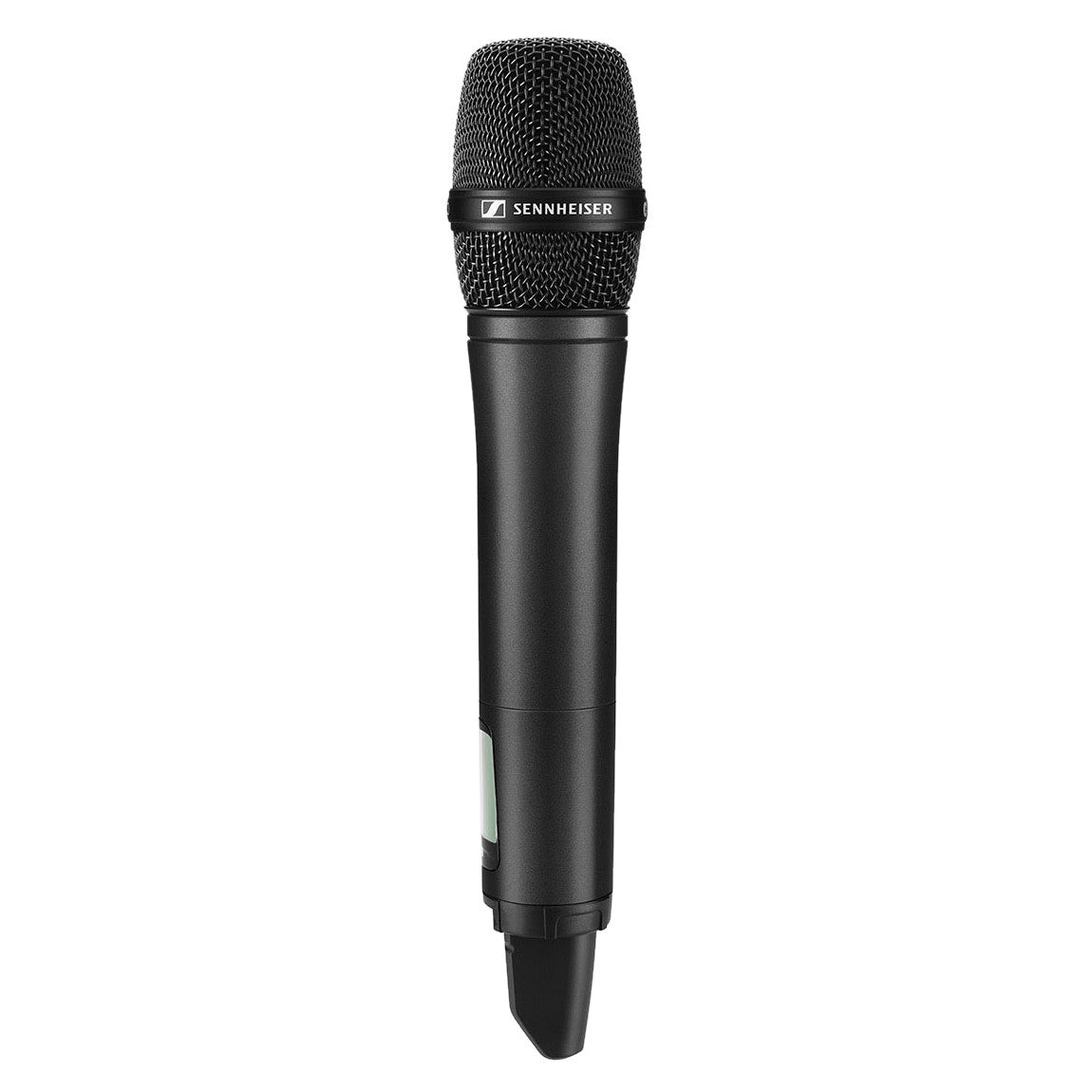

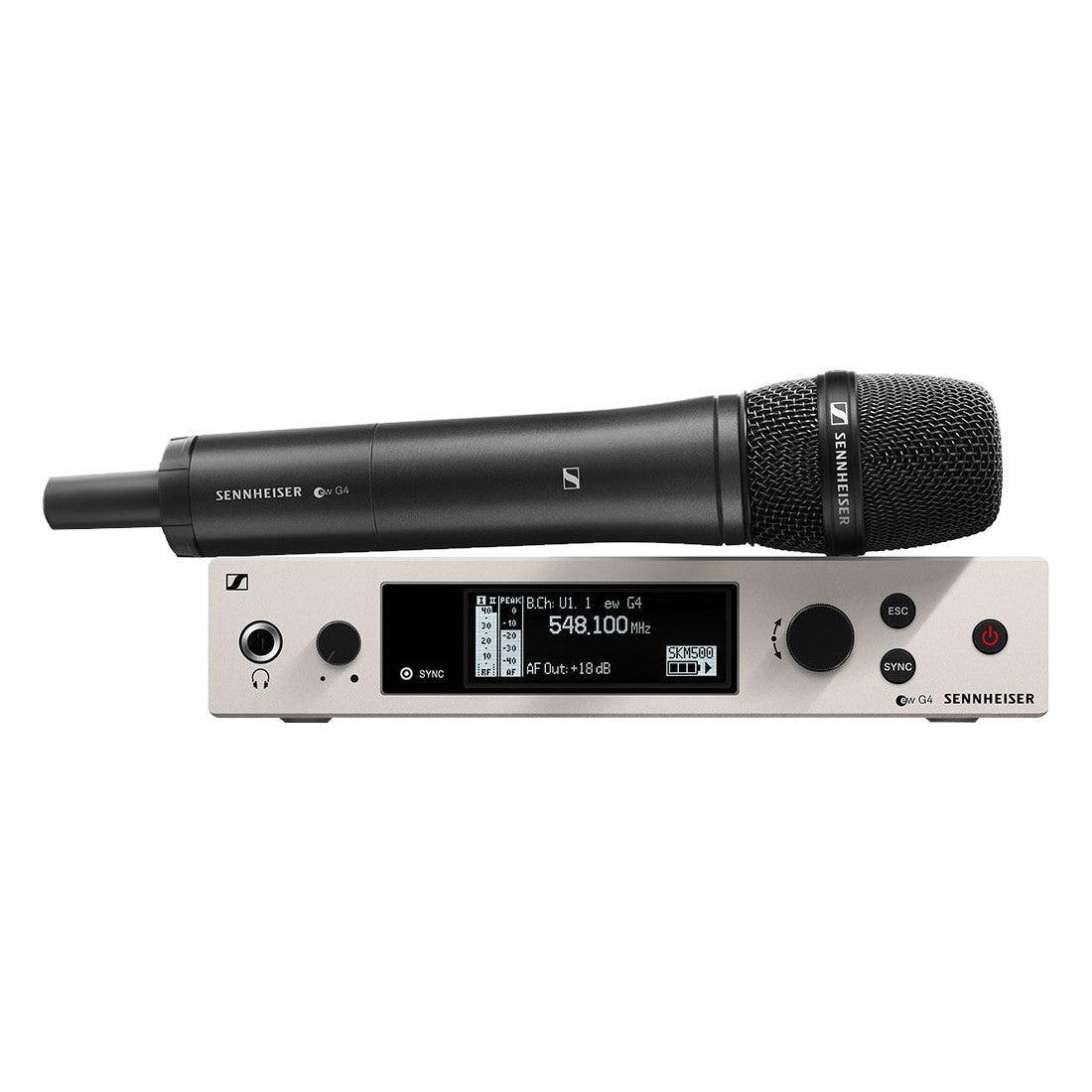

The ew 500-G4-945 Wireless Handheld Microphone System from Sennheiser is ideal for professional performances live on stage. Included in the box is a rugged SKM 500 G4 handheld transmitter, MMD 945 supercardioid dynamic capsule, EM 300-500 G4 rackmount receiver, GA3 rack kit, and mic clip.
Achieve more natural sound on a larger scale. Ideal for large scale PA systems or performance spaces, the included handheld transmitter is a great wireless solution for singers and presenters. The 945-1 capsule’s supercardioid polar pattern rejects unwanted stage noise from the sides and rear, so you can capture your vocals while minimizing pick-up of sound sources or feedback on a louder stage. The handheld transmitter’s dynamic design is great for stage performances.
- EM 300-500 G4
- Frequency range
- AS: 520 - 558 MHz
- Aw+: 470 - 558 MHz
- Bw: 626 - 698 MHz
- Cw: 718 - 790 MHz
- Dw: 790 - 865 MHz
- GBw: 606 - 678 MHz
- Gw: 558 - 626 MHz
- Gw1: 558 - 608 MHz
- K+: 925 - 937,5 MHz
- Dimensions: Approx. 202x212x43mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: ≤ 0.9%
- Weight: Approx. 980g
- Audio output
- 6.3 mm jack socket (unbalanced): +12 dBu
- XLR socket (balanced): +18 dBu
- Signal-to-noise ratio: ≥ 115 dBA
- Switching bandwidth: up to 88 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Modulation: Wideband FM
- Power supply: 12 V DC
- Antenna connector: 2 BNC sockets
- Current consumption: 350 mA
- Adjacent channel rejection: Typically ≥ 75 dB
- Intermodulation attenuation: Typically ≥ 70 dB
- Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- RF sensitivity: < 2.5 μV for 52 dBA eff S/N
- Squelch: 5 to 25 dBμV in steps of 2 dB
- Equalizer
- Preset 1: Flat
- Preset 2: Low Cut (-3 dB at 180 Hz)
- Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
- Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range: -10 °C to +55 °C
- Receiver Principle: True diversity
- Blocking: ≥ 75 dB
- Frequency range
- SKM 500 G4
- Dimensions: Approx. Ø 50x265mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: ≤ 0.9%
- Weight (incl. batteries): approx. 450g
- Signal-to-noise ratio: ≥ 115 dBA
- RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidth: up to 88 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5V or BA 2015 accupack
- Current consumption
- at nominal voltage: typ. 180 mA
- with transmitter switched off: ≤ 25 µA
- Powering: 3V battery / 2.4V rechargeable battery
- Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- AF frequency response: 80 – 18,000 Hz
- Temperature Range: -10 °C to +55 °C
- Frequency stability: ≤ ±15 ppm

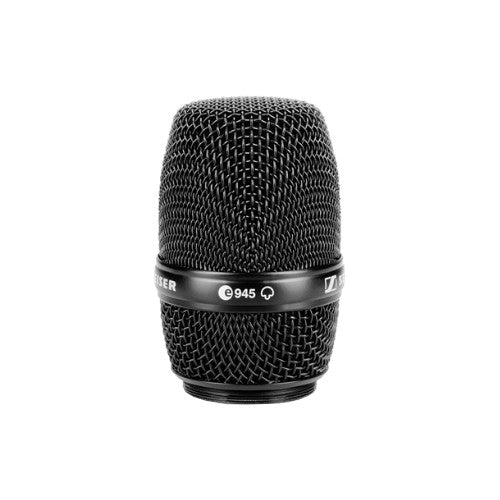

- MMD 945-1
- Sound pressure level (SPL): 154 dB SPL
- Transducer principle: dynamic
- Pick-up pattern: supercardioid
- Sensitivity: 1.8 mV/Pa
