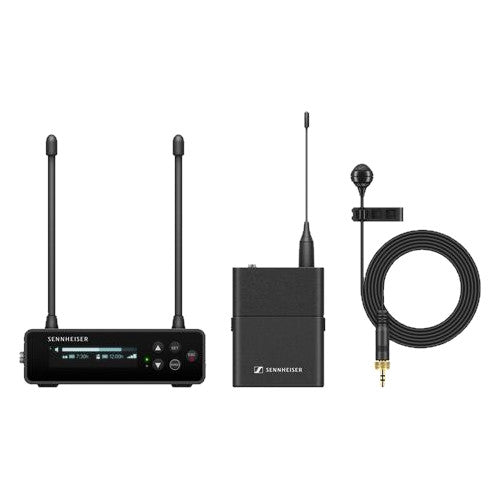

• Sennheiser EW-DP ME-4 SET Wireless Lavalier Microphone System

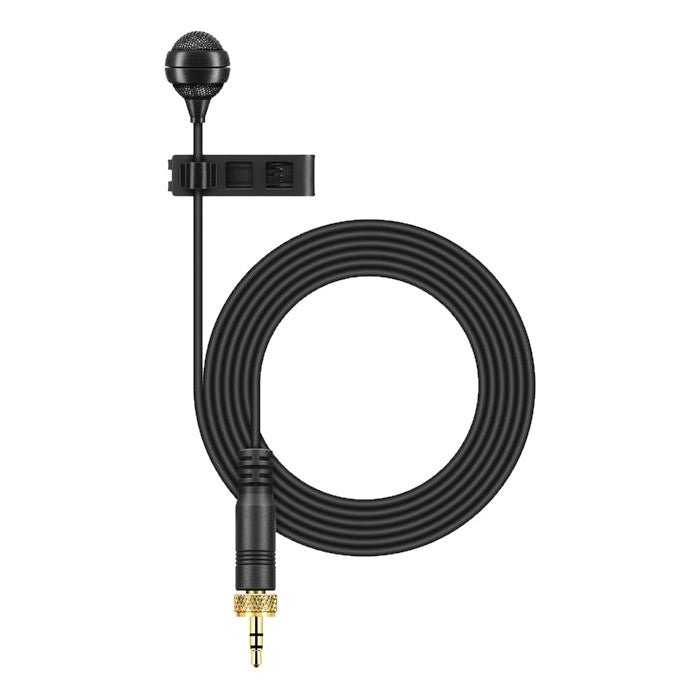

  • Sennheiser EW-DP ME-4 Wireless Lavalier Microphone

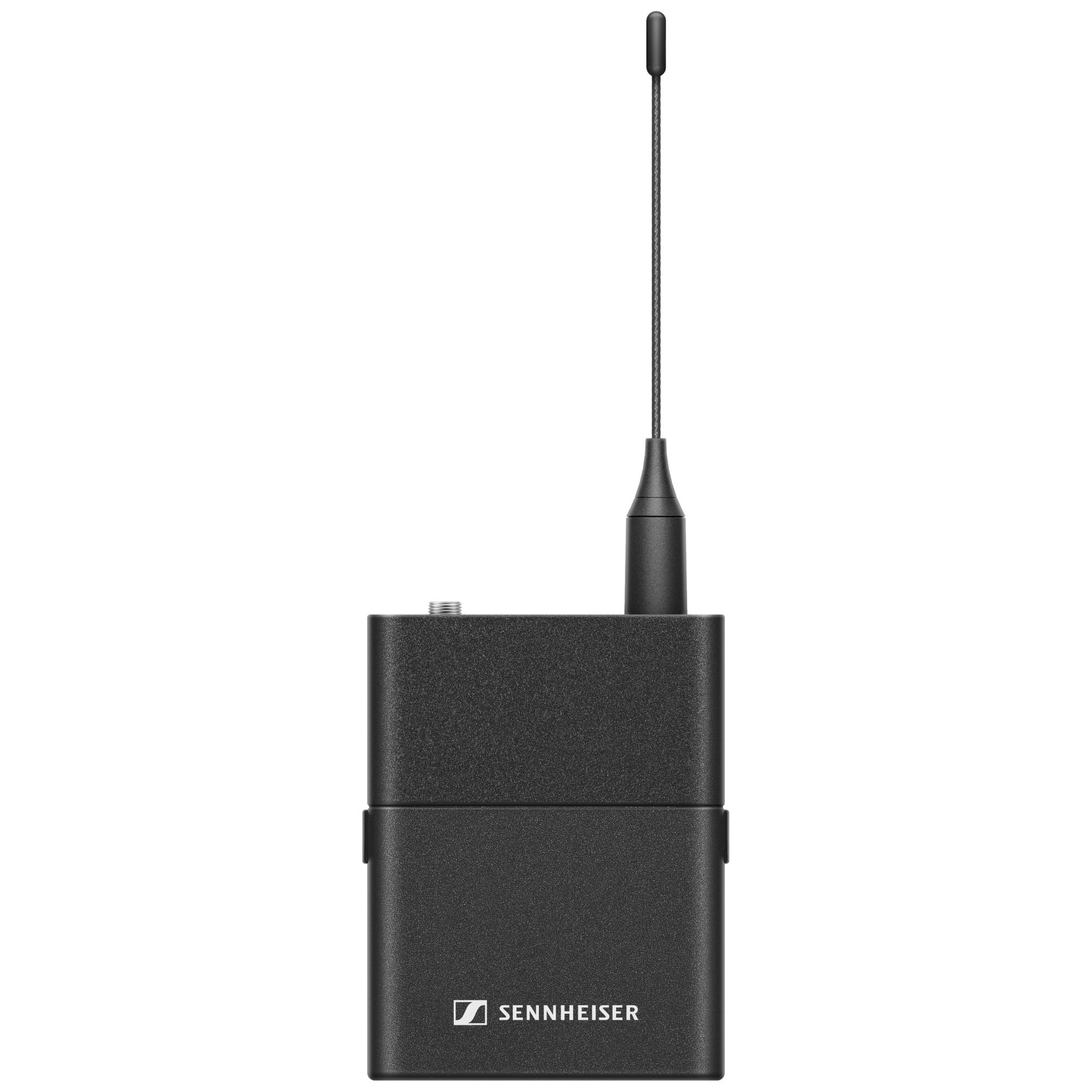

  • Sennheiser EW-DP Bodypack

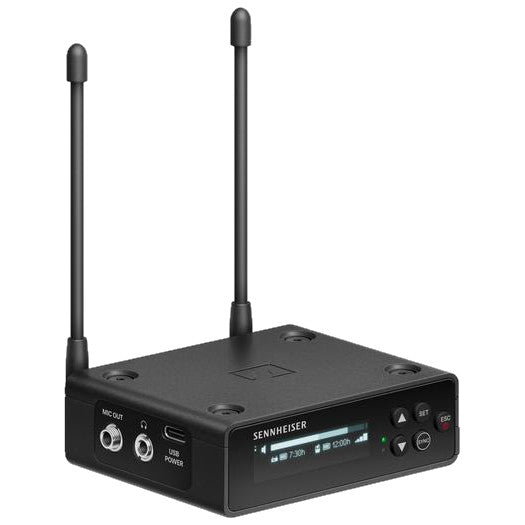

  • Sennheiser EW-DP EK receiver

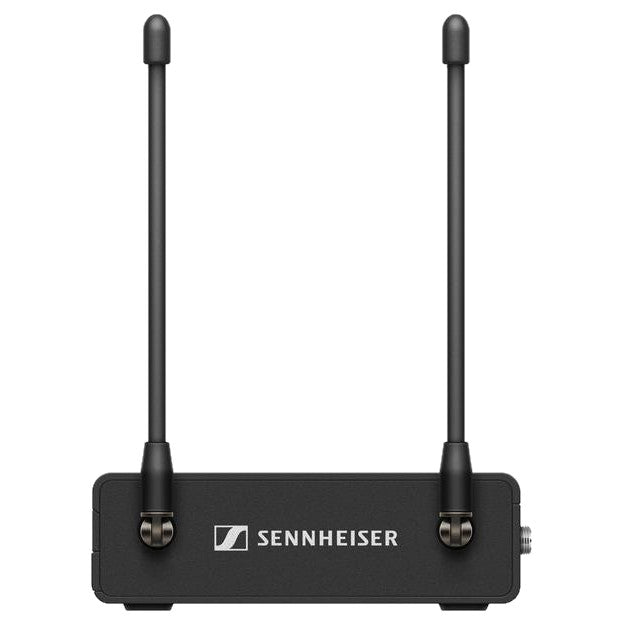

  • Sennheiser EW-DP EK receiver with antenna back

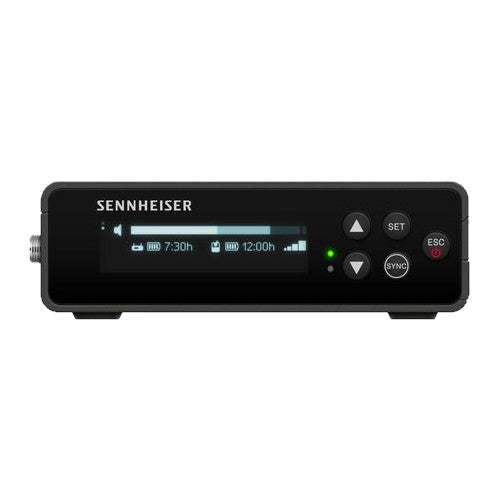

  • Sennheiser EW-DP EK receiver front

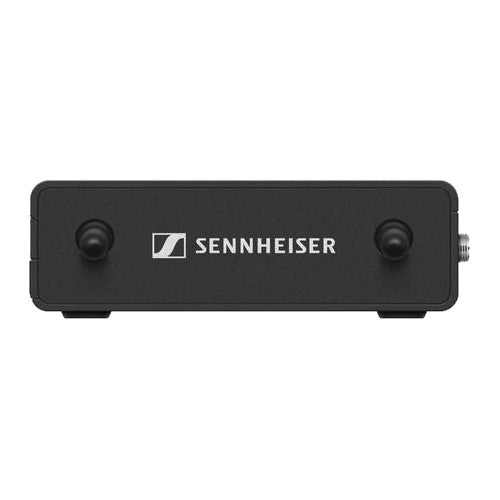

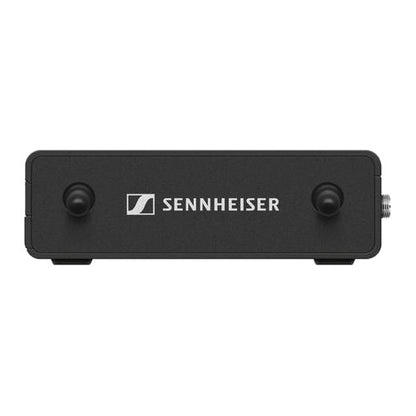

  • Sennheiser EW-DP EK receiver back

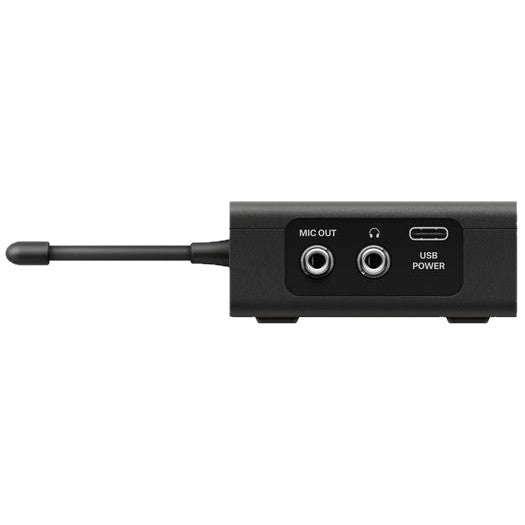

  • Sennheiser EW-DP EK receiver profile

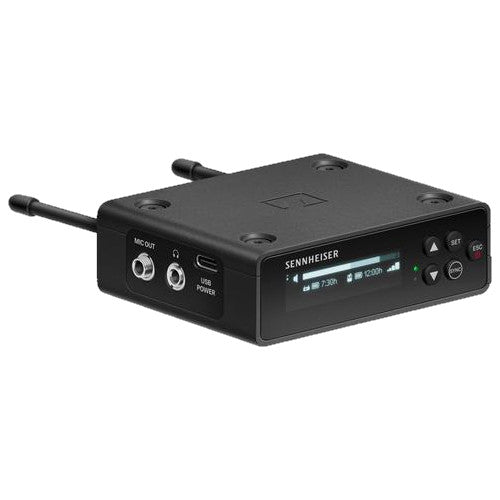

  • Sennheiser EW-DP EK receiver with antenna
  • Sennheiser EW-DP ME-4 SET Wireless Lavalier Microphone System lifestyle
1 10

Sennheiser EW-DP ME-4 SET Wireless Lavalier Microphone System | Frequency: Q1-6 (470 to 526 MHz)

Sennheiser EW-DP ME-4 SET Wireless Lavalier Microphone System | Frequency: Q1-6 (470 to 526 MHz)

SoundPro Item: 138989 | Part Number: EW-DP ME 4 SET (Q1-6)

$749.00
$879.00 $749.00
Your Price Sold out
MSRP: $879.00 | MAP: $749.00

Usually ships in 5-7 business days

  • Fully digital UHF wireless microphone system for video applications
  • Integrated Bluetooth for synchronization and control
  • Smart Notifications for troubleshooting and system guidance
  • Intelligent battery management provides operating time (hours:minutes)
  • Extended battery life: up to 12h on transmitter, 7h on receiver
  • Magnetically stackable components for versatile mounting
  • Industry leading 134 dB dynamic range for distortion free transmission
  • Up to 56 MHz bandwidth for flexibility in any RF environment
  • Exceptionally low latency (1.9 ms)
  • External charging and powering via USB-C (receiver only)
  • Smart Assist app for monitor & control
Log in or register for YOUR best price

The Sennheiser EW-DP ME-4 SET Wireless Lavalier Microphone System blends best-in-class tech with an ergonomic build to change the way you think of sound on set.

Designed with filmmakers, content creators, and broadcasters in mind, the EW-DP ME-4 SET from Sennheiser is a portable digital UHF wireless microphone system with a ME 4 cardioid lavalier microphone. It includes an EW-DP EK digital portable single channel receiver, an EW-D SK digital bodypack transmitter, as well as all the accessories you need to get started on your project right out of the box: a BA 70 lithium-ion battery, two AA batteries, a locking 3.5 mm TRS plug to 3.5 mm TRS plug cable, a locking 3.5 mm TRS plug to XLR plug cable, and a USB-C charging cable. The EW-DP ME-4 SET also comes with a mounting kit for easy installation, comprised of a mounting plate, cold shoe, belt clip, and screws.

Choose from a variety of available frequency range options:

  • Q1-6 (470 to 526 MHz)
  • R1-6 (520 to 576 MHz)
  • R4-9 (552 to 607 MHz)
View full details

Specifications

Dimensions
Dimensions
3.39x2.64x1.1" (86x67x28mm)
Dimensions (without antenna)
2.48x3.15x0.79" (63x80x20mm)
Weight
Weight (without Antennas and Power supply)
approx. 140g (0.31 lbs)
Weight (without batteries)
approx. 120 g (0.26 lbs)
Electrical
Audio THD
≤ -60 dB for 1 kHz @ -3 dBfs input level
Input Current
< 300 mA
Supply Voltage
7.5V
Audio
Audio Frequency Response
20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio Output Power
< 2 dBV max. (high level) / < 4dBU max (high level)
Headphone Output
< 50 mW into 16 Ohms
Transmit Power (radiated) Audio Link
10 mW ERP (Range Y1-3: 12 mW ERP)BLE: max. 10 mW EIRP
Sensitivity (free Field, No load) (1 kHz)
40 mV/Pa
Max. SPL at 1 Khz
120 dB
Frequency Response
50 to 18,000 Hz
Connectivity
Bluetooth® Low Energy (BLE) Frequency Range
2402 - 2480 MHz
Connector
3.5 mm jack
Construction
Pick-up Pattern
cardioid
Cable Length
approx. 1.6m (62.99")
Environmental
Operating Temperature
14°F - 131°F (-10°C - +55°C)
Relative Humidity
5 - 95% (non-condensing)
General
Q1-6
470.2 - 526
MHzR1-6
520 - 576
MHzR4-9
552 - 607.8
MHzS1-7
606.2 - 662
MHzS4-7
630 - 662
MHzS7-10
662 - 693.8
MHzU1/5
823.2 - 831.8 MHz & 863.2 - 864.8
MHzV3-4
925.2 - 937.3
MHzY1-3
1785.2 - 1799.8 MHz
Dynamic Range
134 dB
System Latency
1.9 ms
EW-DP EK
Input voltage ~ 1.8 - 4.35 V, Input current Typ. < 250 mA / Max. < 400mA (BA 70)Typ. < 400 mA / Max. < 750mA (2x AA batteries)< 300 mA@5 V (USB-C standalone), Power Supply 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.): 5V / 1500mA9V / 900mA12V / 700mA
Transmit Power (radiated)
BLE: max. 10 mW EIRP
Power Supply
2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied Bandwidth
200 kHz
Transducer Principle
pre-polarized condensor microphone
Equivalent Noise Level (A-weighted)
31 dB
Power
Input Voltage
2.0 - 4.35V
