Sennheiser EW-DP ME-4 SET Wireless Lavalier Microphone System | Frequency: R1-6 (520 to 576 MHz)
Sennheiser EW-DP ME-4 SET Wireless Lavalier Microphone System | Frequency: R1-6 (520 to 576 MHz)
SoundPro Item: 138990 | Part Number: EW-DP ME4 SET (R1-6)
Usually ships in 5-7 business days
- Fully digital UHF wireless microphone system for video applications
- Integrated Bluetooth for synchronization and control
- Smart Notifications for troubleshooting and system guidance
- Intelligent battery management provides operating time (hours:minutes)
- Extended battery life: up to 12h on transmitter, 7h on receiver
- Magnetically stackable components for versatile mounting
- Industry leading 134 dB dynamic range for distortion free transmission
- Up to 56 MHz bandwidth for flexibility in any RF environment
- Exceptionally low latency (1.9 ms)
- External charging and powering via USB-C (receiver only)
- Smart Assist app for monitor & control
The Sennheiser EW-DP ME-4 SET Wireless Lavalier Microphone System blends best-in-class tech with an ergonomic build to change the way you think of sound on set.

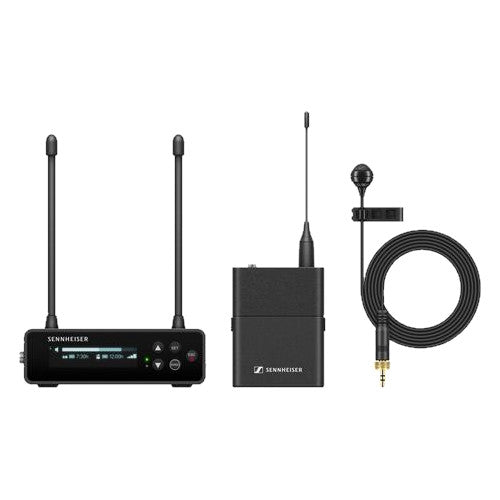

Designed with filmmakers, content creators, and broadcasters in mind, the EW-DP ME-4 SET from Sennheiser is a portable digital UHF wireless microphone system with a ME 4 cardioid lavalier microphone. It includes an EW-DP EK digital portable single channel receiver, an EW-D SK digital bodypack transmitter, as well as all the accessories you need to get started on your project right out of the box: a BA 70 lithium-ion battery, two AA batteries, a locking 3.5 mm TRS plug to 3.5 mm TRS plug cable, a locking 3.5 mm TRS plug to XLR plug cable, and a USB-C charging cable. The EW-DP ME-4 SET also comes with a mounting kit for easy installation, comprised of a mounting plate, cold shoe, belt clip, and screws.
Choose from a variety of available frequency range options:
- Q1-6 (470 to 526 MHz)
- R1-6 (520 to 576 MHz)
- R4-9 (552 to 607 MHz)
- System
- Audio link frequency ranges
- Q1-6: 470.2 - 526 MHz
- R1-6: 520 - 576 MHz
- R4-9: 552 - 607.8 MHz
- S1-7: 606.2 - 662 MHz
- S4-7: 630 - 662 MHz
- S7-10: 662 - 693.8 MHz
- U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
- V3-4: 925.2 - 937.3 MHz
- Y1-3: 1785.2 - 1799.8 MHz
- Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
- Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
- Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Dynamic range: 134 dB
- System latency: 1.9 ms
- Operating temperature: 14°F - 131°F (-10°C - +55°C)
- Relative humidity: 5 - 95% (non-condensing)
- Audio link frequency ranges

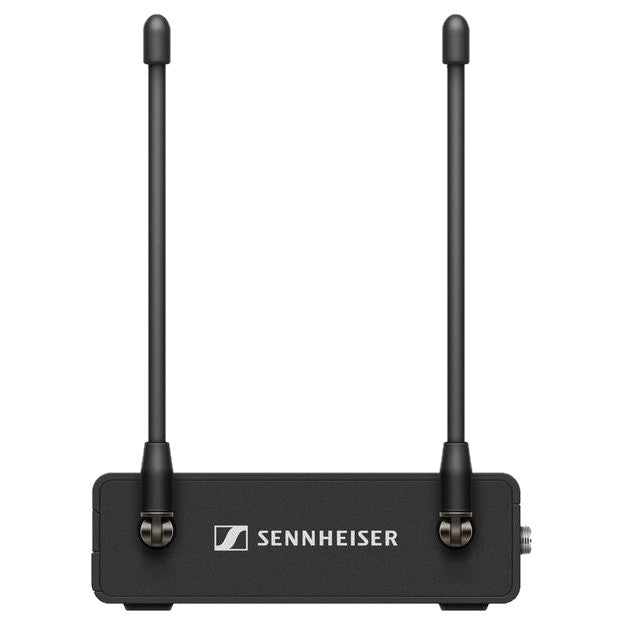

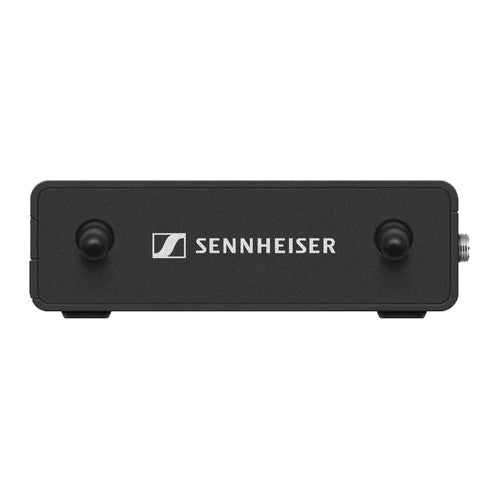

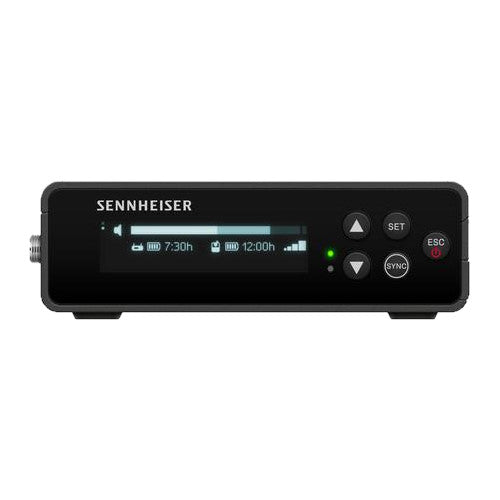

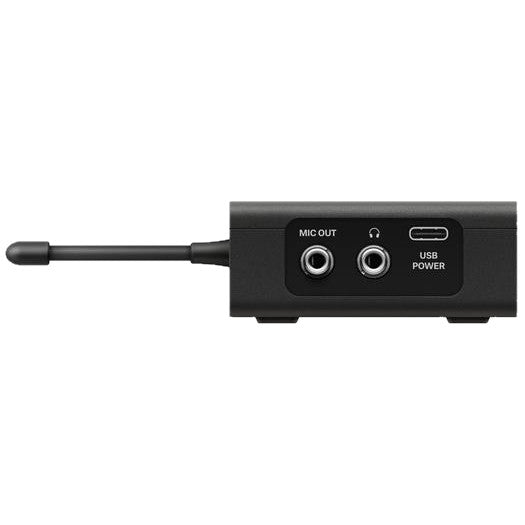

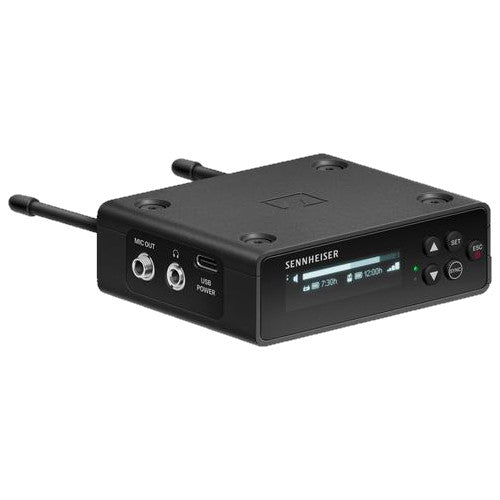

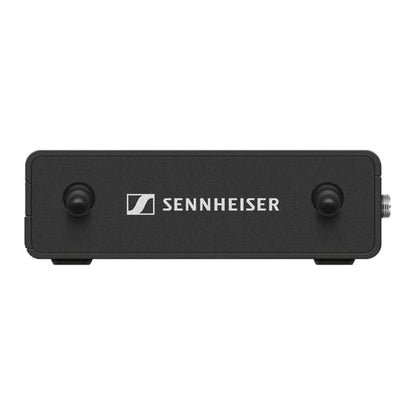

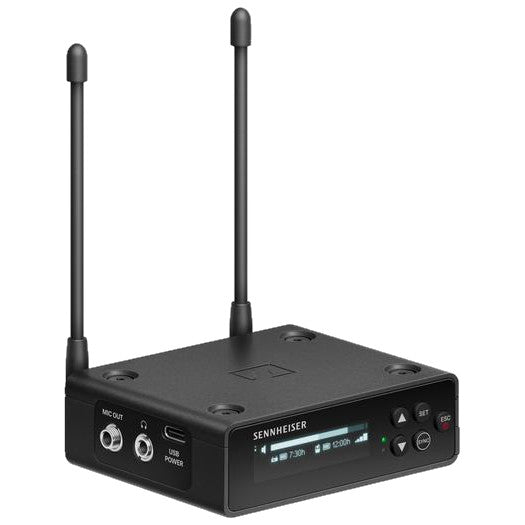

- EW-DP EK
- Input voltage ~ 1.8 - 4.35 V
- Input current
- Typ. < 250 mA / Max. < 400
- mA (BA 70)
- Typ. < 400 mA / Max. < 750
- mA (2x AA batteries)
- < 300 mA@5 V (USB-C standalone)
- Power Supply
- 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.):
- 5V / 1500mA
- 9V / 900mA
- 12V / 700mA
- 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.):
- Transmit power (radiated): BLE: max. 10 mW EIRP
- Audio output power: < 2 dBV max. (high level) / < 4dBU max (high level)
- Headphone Output: < 50 mW into 16 Ohms
- Dimensions: 3.39x2.64x1.1" (86x67x28mm)
- Weight (without antennas and power supply): approx. 140g (0.31 lbs)

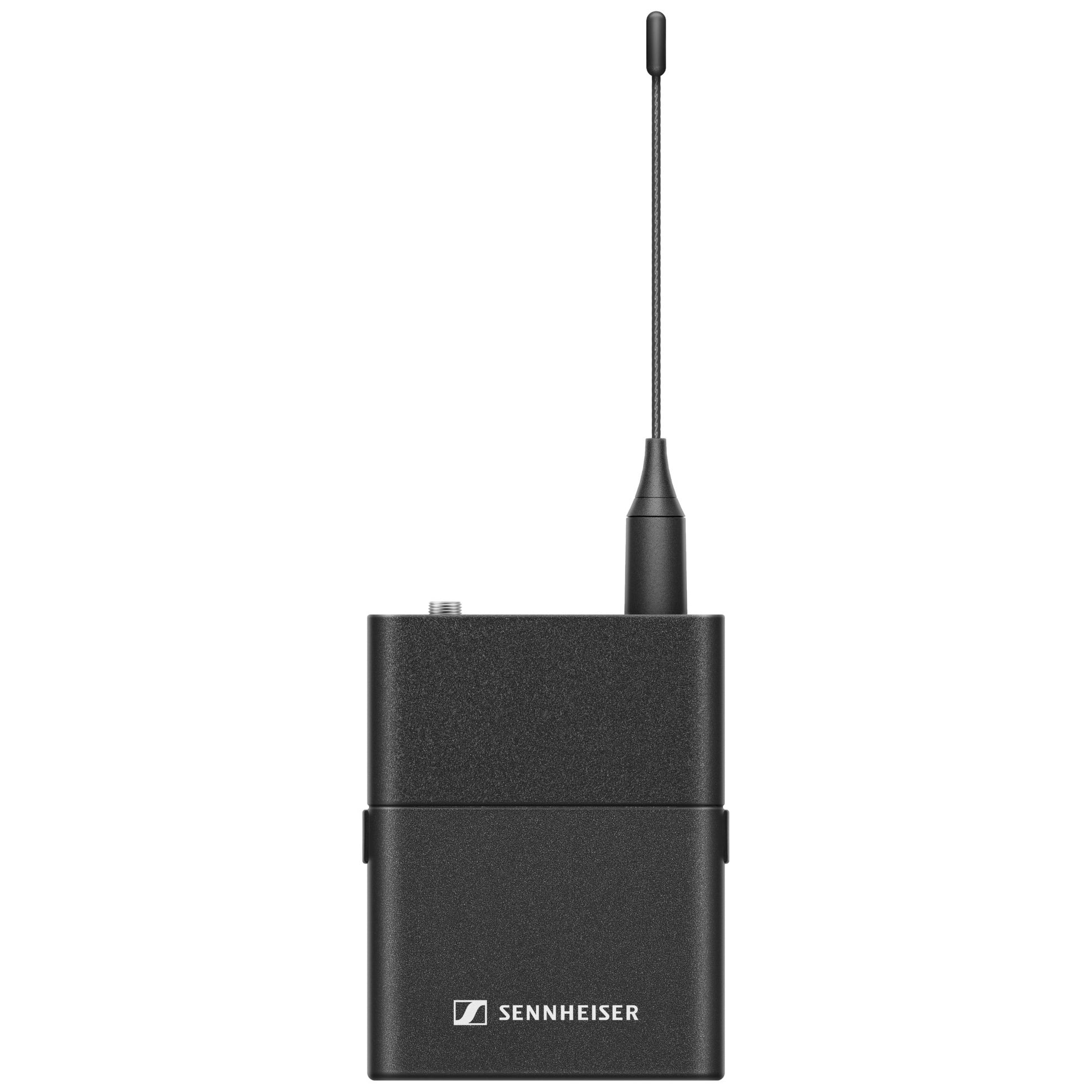

- EW-D SK (Bodypack Transmitter)
- Input voltage: 2.0 - 4.35V
- Input current: < 300 mA
- Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
- Occupied bandwidth: 200 kHz
- Transmit power (radiated)
- Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
- BLE: max. 10 mW EIRP
- Dimensions (without antenna): 2.48x3.15x0.79" (63x80x20mm)
- Weight (without batteries): approx. 120 g (0.26 lbs)

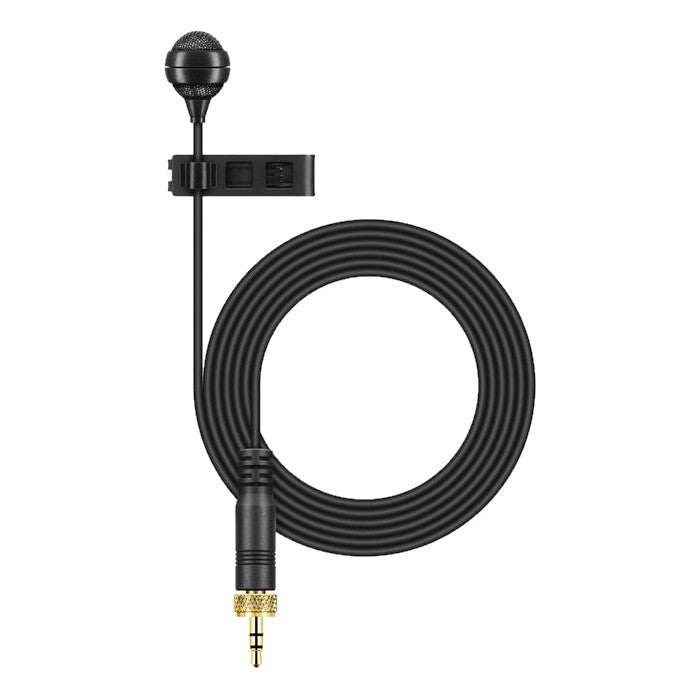

- ME 4 (Lavalier Microphone)
- Transducer principle: pre-polarized condensor microphone
- Pick-up pattern: cardioid
- Sensitivity (free field, no load) (1 kHz): 40 mV/Pa
- Max. SPL at 1 kHz: 120 dB
- Frequency response: 50 to 18,000 Hz
- Equivalent noise level (A-weighted): 31 dB
- Connector: 3.5 mm jack
- Cable length: approx. 1.6m (62.99")
- Supply voltage: 7.5V
