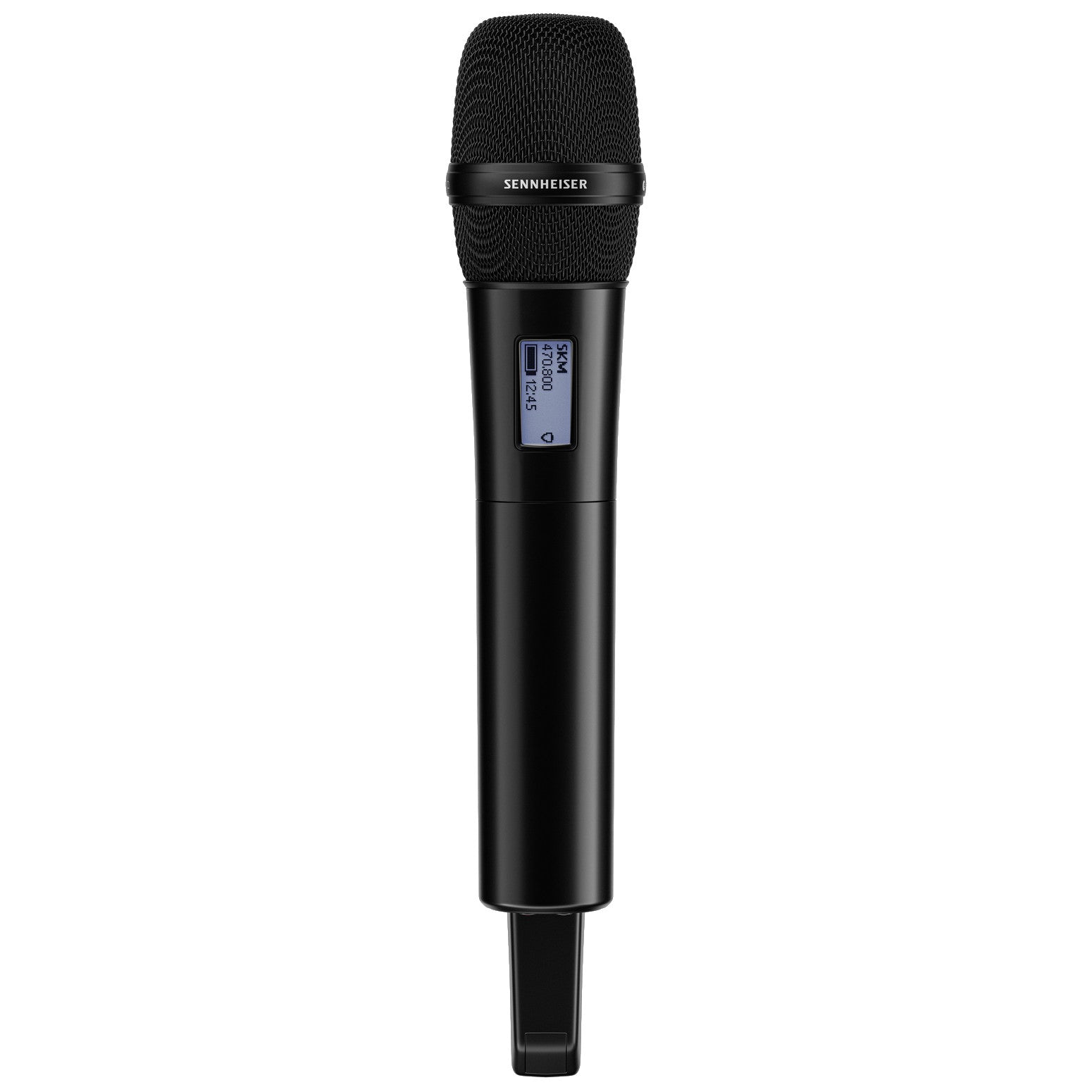

  • Sennheiser EW-DX 835-S SET Wireless Microphone front
  • Sennheiser EW-DX 835-S SET Wireless Microphone side
  • Sennheiser EW-DX 835-S SET Wireless receiver
  • Sennheiser EW-DX 835-S SET Wireless transmitter
  • Sennheiser EW-DX 835-S SET Wireless transmitter back
1 7

Sennheiser EW-DX 835-S SET Wireless Microphone Handheld System | Frequency: R1-9

Sennheiser EW-DX 835-S SET Wireless Microphone Handheld System | Frequency: R1-9

SoundPro Item: 133282 | Part Number: EW-DX 835-S SET (R1-9)

$2,499.00
$2,949.00 $2,499.00
Your Price Sold out
MSRP: $2,949.00 | MAP: $2,499.00

Usually ships in 5-7 business days

  • This wireless microphone handheld system is great for performances and presentations of all kinds
  • Programmable mute switch on EW-DX SKM-S lets you customize the device depending on your professional needs
  • Function buttons control all the transmitter settings directly from handheld microphone
  • Clear and easy focused user interface with OLED display enable at-a-glance settings monitoring
  • Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
  • 2 channel half rack (9.5’)
  • Up to 88 MHz switching bandwidth
  • PoE IEEE 802.3af Class 3
  • Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
  • Ethernet connectivity (IPv4 and IPv6)
  • Secure AES 256 encryption
  • External PSU 12V/1A
  • All-metal housing
  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Extended runtime with lithium-ion batteries - up to 12 hours operation time
  • Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
  • Mic input trim control
Log in or register for YOUR best price

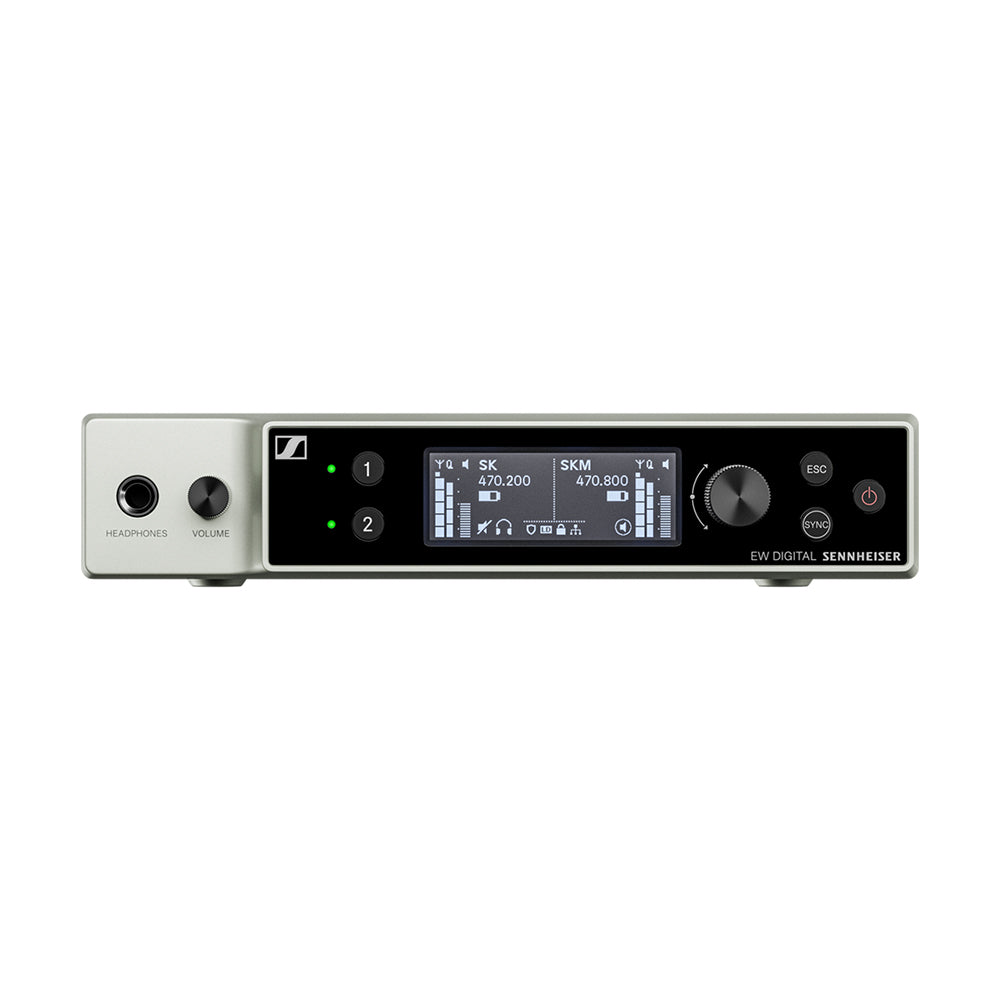

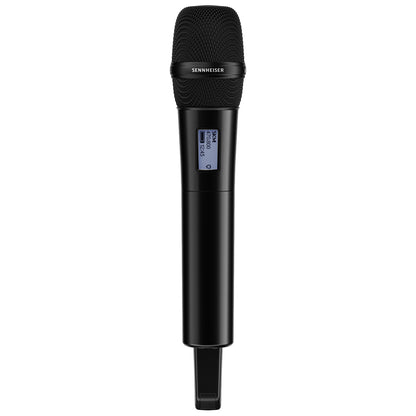

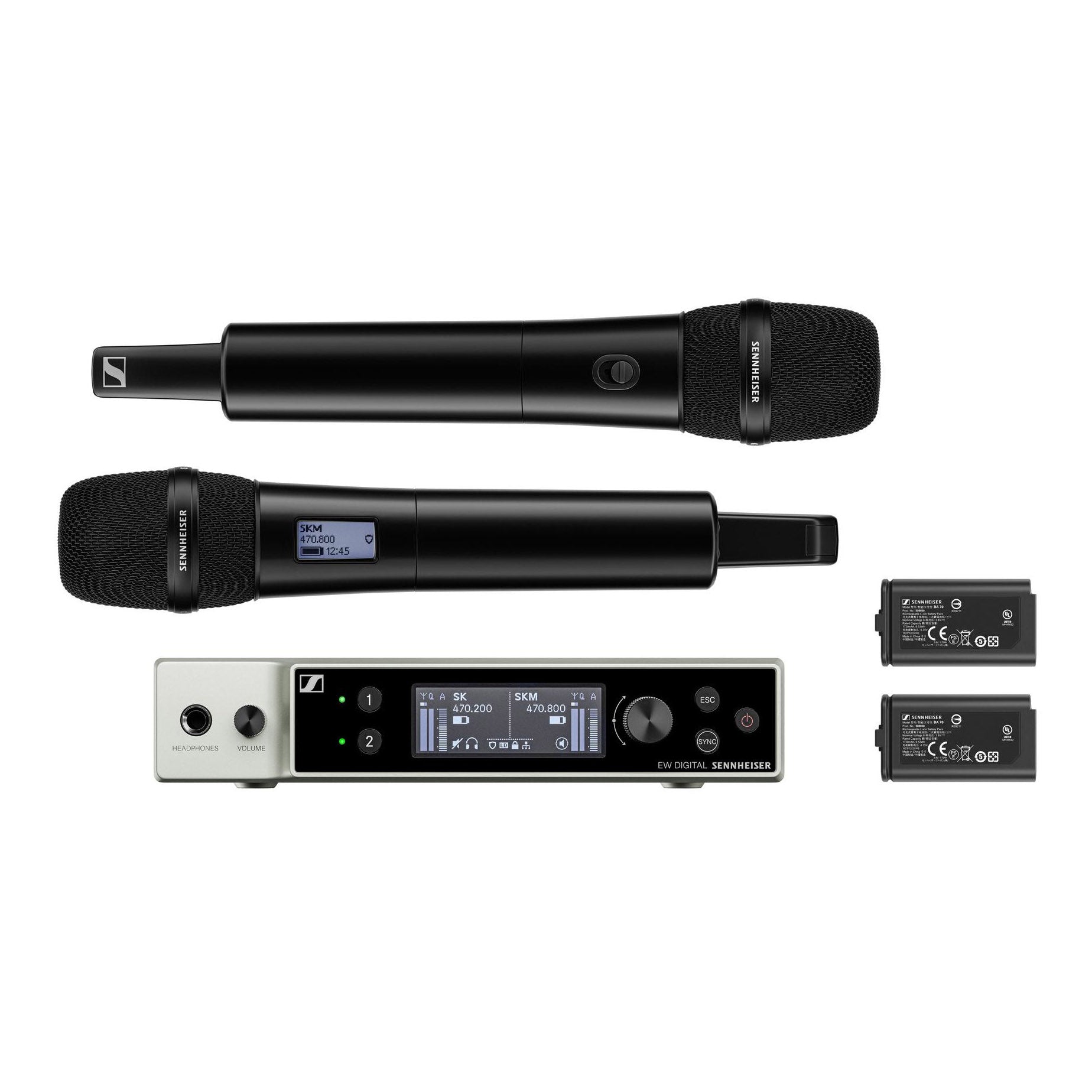

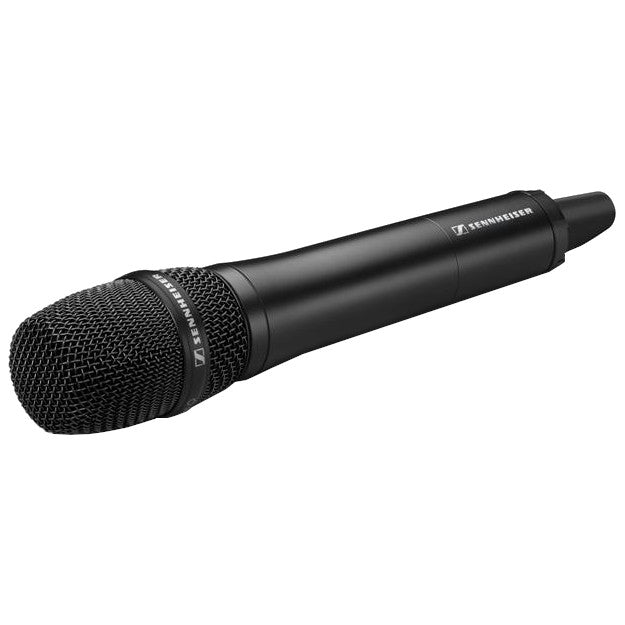

Ideal for vocals, the EW-DX 835-S SET from Sennheiser is a wireless handheld microphone system. This set includes two EW-DX SKM-S handheld transmitters, two MMD 835 cardioid dynamic microphone capsules, one EW-DX EM 2 two-channel rackmount receiver, and two BA 70 rechargeable batteries.

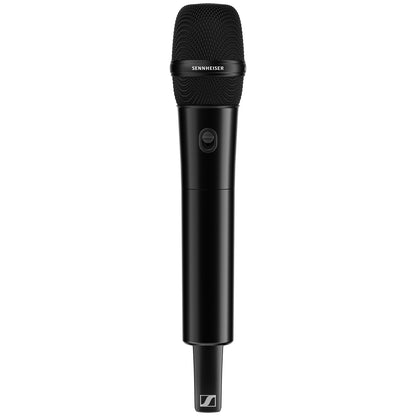

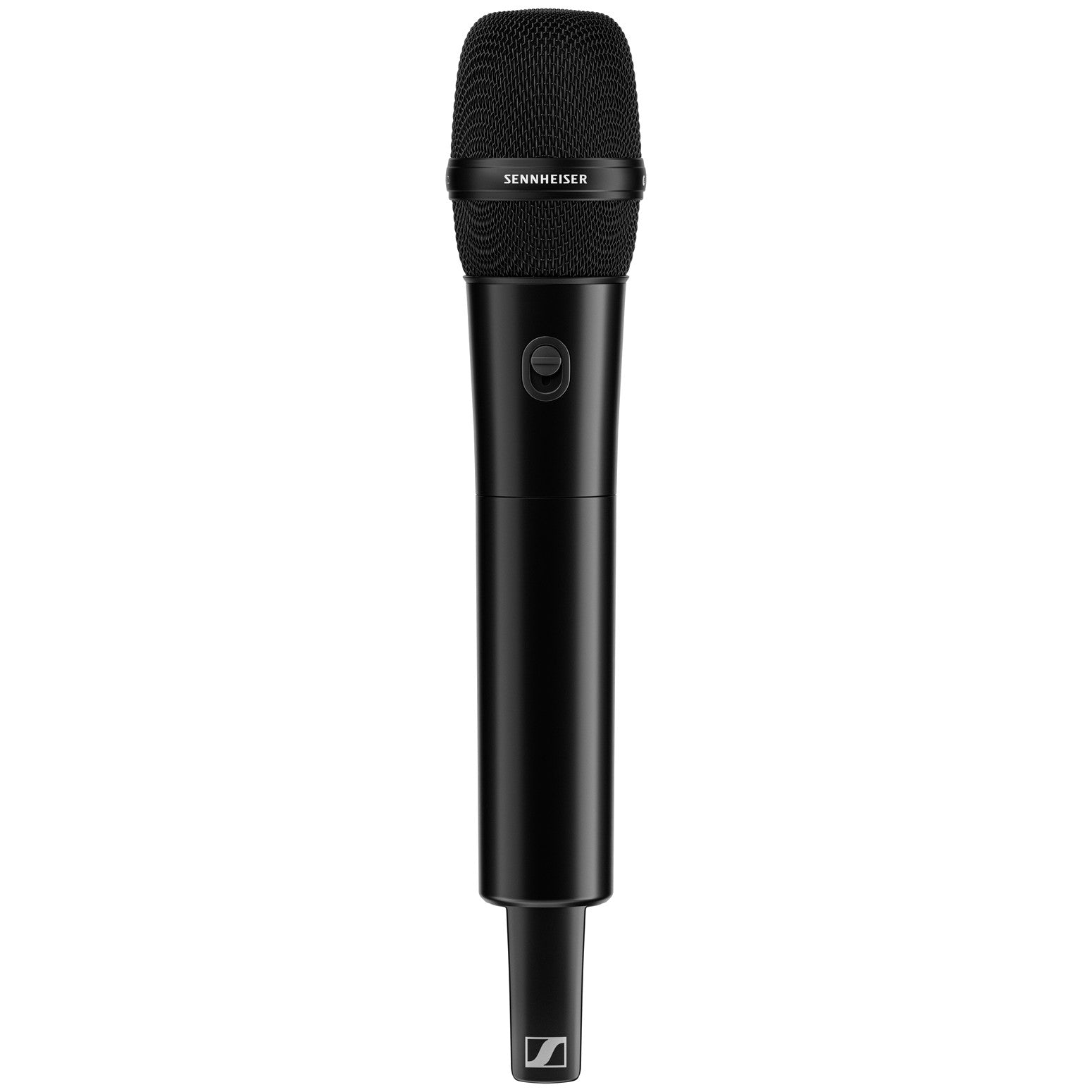

The handheld transmitters include built-in mute switches.

View full details

Specifications

Dimensions
Dimensions
8.35" x 1.73" x 7.44"
Dimensions (ø X l)
1.97" x 10.55"
Electrical
Audio THD
≤ -60 dB for 1 kHz @ -3 dBfs input level
Input Current
≤ 1 A
Audio
Audio Frequency Response
20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio Output Power
18 dBu max
Headphone Output
2x 70 mW @ 32Ω
Sensitivity
2.1 mV/Pa
Connectivity
Bluetooth® Low Energy (BLE) Frequency Range
2402 - 2480 MHz
Construction
Pick Up Pattern
cardioid
Environmental
Operating Temperature
14°F to 131°F (-10°C to 55°C)
Relative Humidity
5 - 95% (non-condensing)
Shipping
Weight
approx. 2.2 pounds (without antennas and power supply)
General
System
Audio Link Frequency Ranges
Dynamic Range
134 dB
System Latency
1.9 ms
Transmit Power (radiated)
BLE: max. 10 mW EIRP
EW-DX EM 2 (Rack Receiver)
Ethernet
Power Supply
2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied Bandwidth
200 kHz

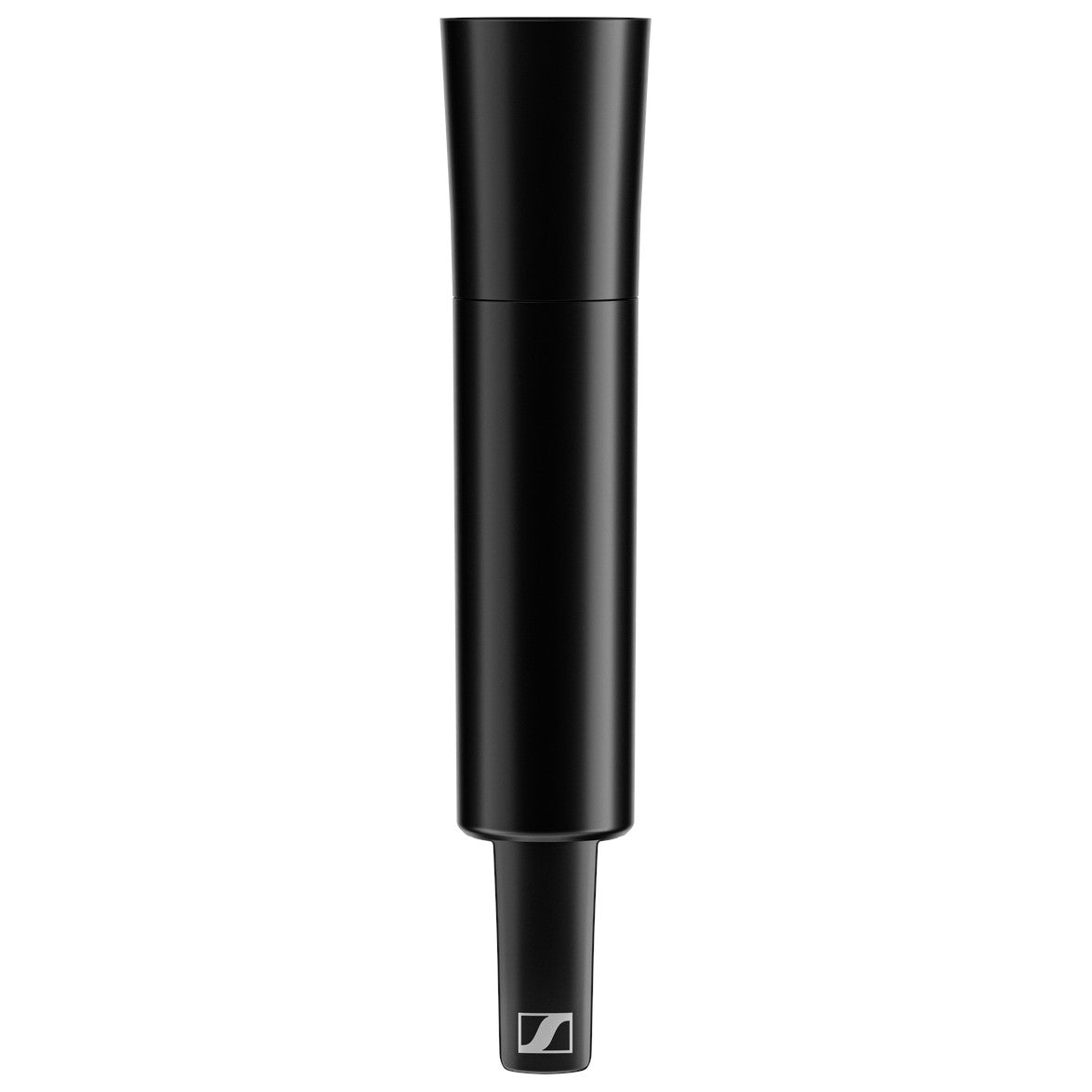

EW-DX SKM-S (handheld transmitter)
Transmit Power (radiated)
Transducer Principle
dynamic
Sound Pressure Level
154 dB SPL
Power
Input Voltage
11 - 13 V &9107; or PoE IEEE 802.3af Class 0 (CAT5e or higher)
