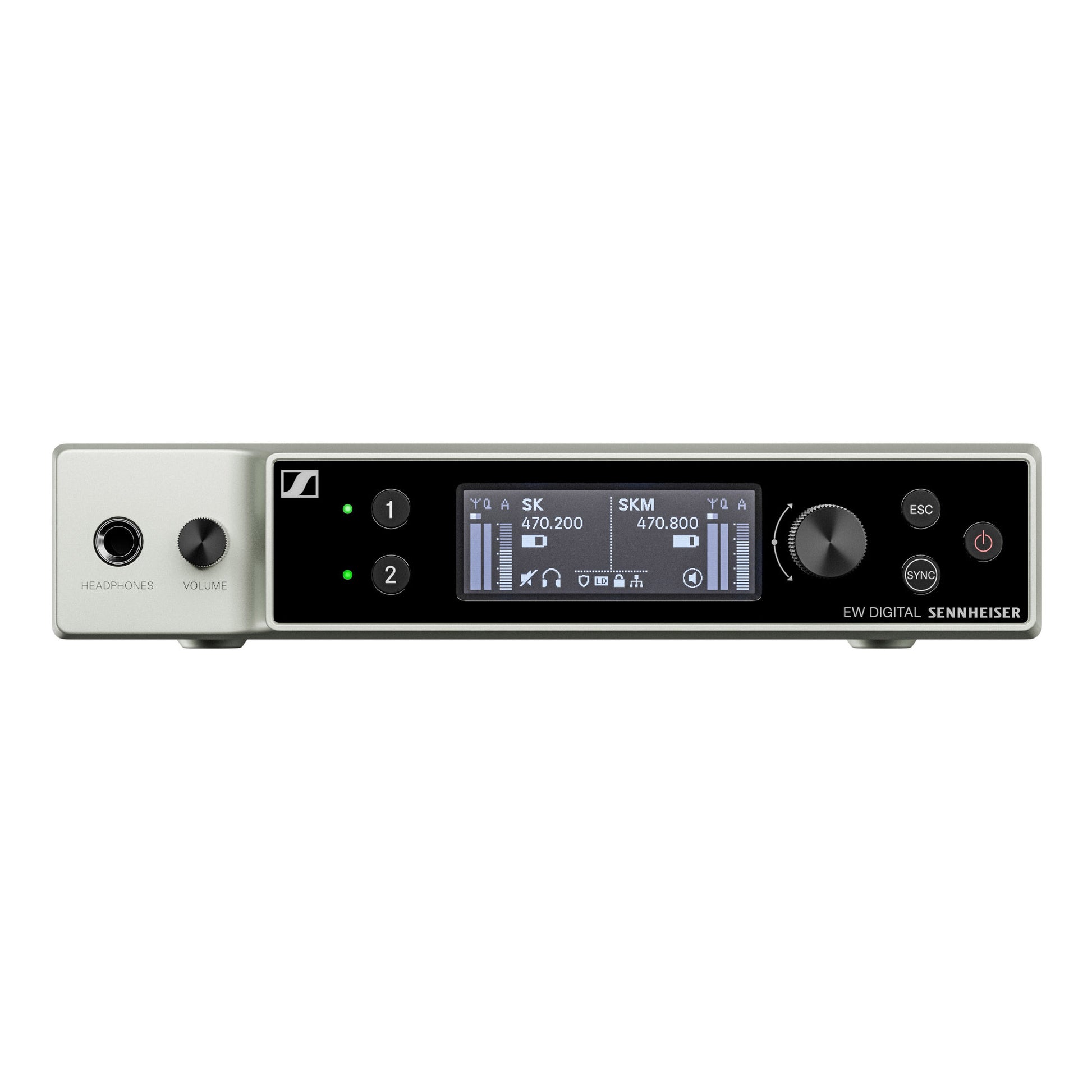

Sennheiser EW-DX EM 2 2-Channel Wireless Receiver | Frequency: Q1-9
Sennheiser EW-DX EM 2 2-Channel Wireless Receiver | Frequency: Q1-9
SoundPro Item: 133293 | Part Number: 509342
In stock and ready to ship
- 2 channel half rack (9.5’)
- Up to 88 MHz switching bandwidth
- PoE IEEE 802.3af Class 3
- Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
- Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
- Clear and easy focused user interface with OLED display
- Ethernet connectivity (IPv4 and IPv6)
- Secure AES 256 encryption

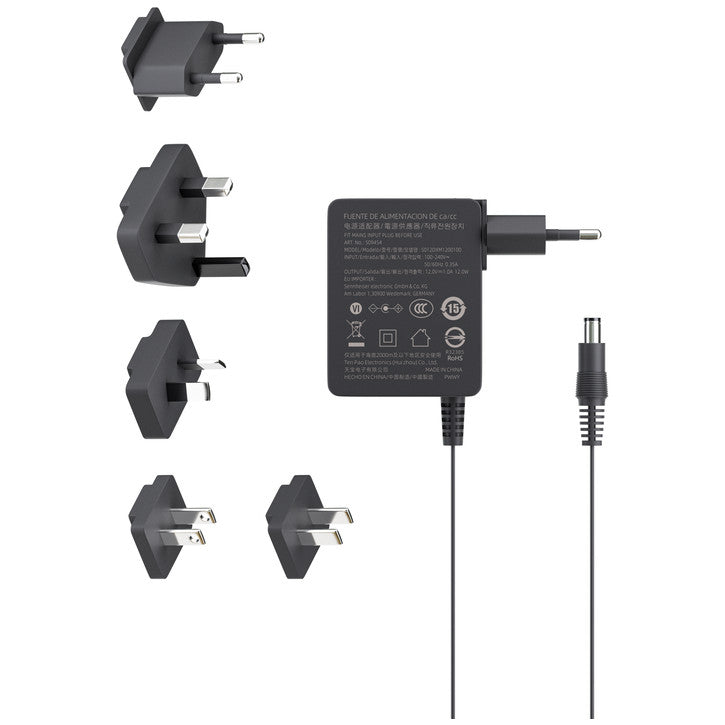

- External PSU 12V/1A
- All-metal housing
The EW-DX EM 2 from Sennheiser is a two-channel digital wireless receiver compatible with Evolution Wireless Digital handheld, bodypack, and table-stand transmitters. This half-rack (9.5”) receiver features extended 88 MHz switching bandwidth, intermodulation-free operation for up to 293 channels with secure AES 256 encryption, and a redundant power supply via Power over Ethernet (PoE).
- System
- Audio Link Frequency Ranges
- Q1-6: 470.2 - 526 MHz
- R1-6: 520 - 576 MHz
- V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
- Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
- Audio Frequency Response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
- Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Dynamic Range: 134 dB
- System Latency: 1.9 ms
- Operating Temperature: 14°F to 131°F (-10°C to 55°C)
- Relative Humidity: 5 - 95% (non-condensing)
- EW-DX EM 2 (rack receiver)
- Input Voltage: 11 - 13 V &9107; or PoE IEEE 802.3af Class 0 (CAT5e or higher)
- Input Current: ≤ 1 A
- Transmit Power (radiated): BLE: max. 10 mW EIRP
- Audio Output Power: 18 dBu max
- Headphone Output: 2x 70 mW @ 32 Ω

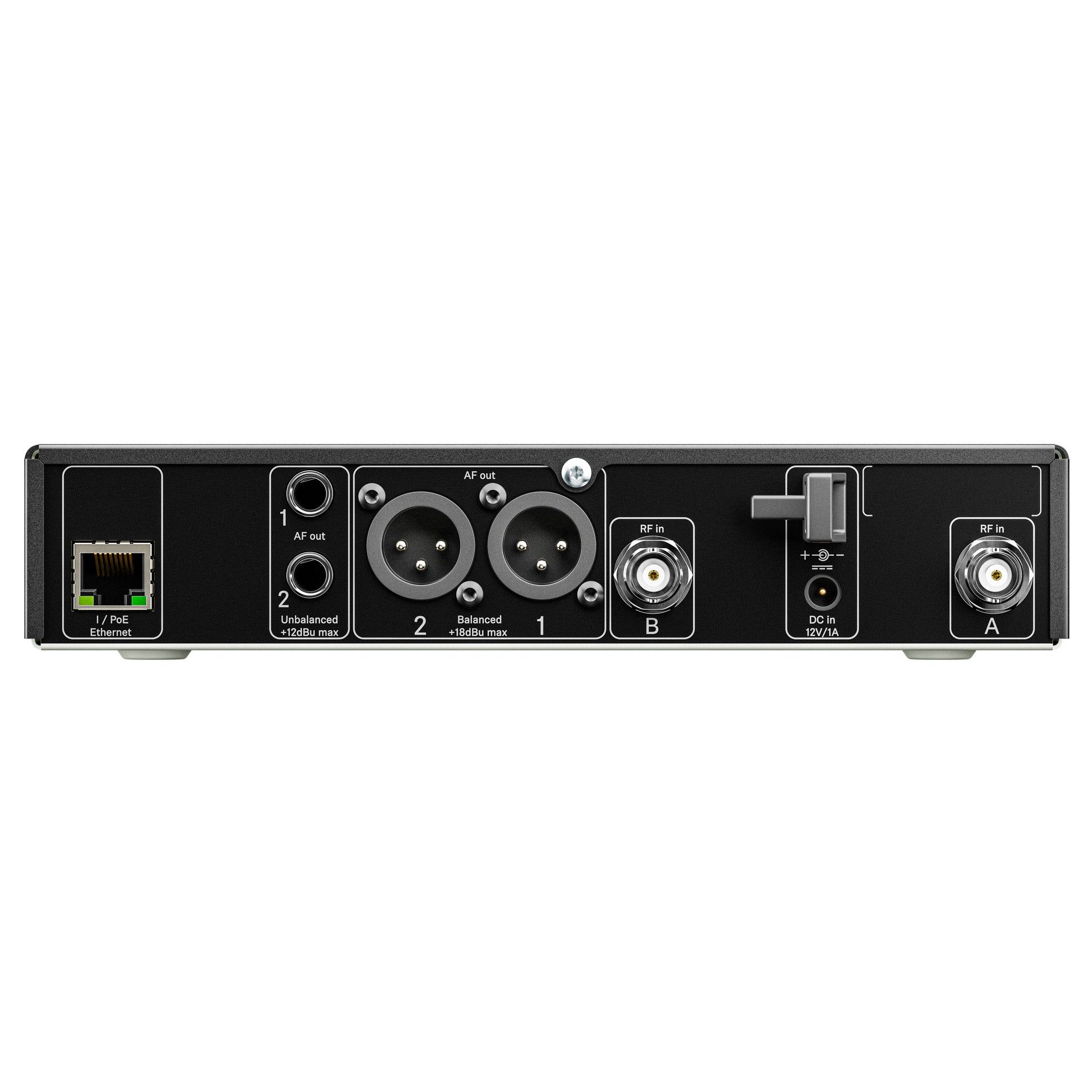

- Ethernet
- RJ-45 socket, IEEE802.3
- 100Base-TX (half+full duplex)
- 10Base-T (half+full duplex)
- (CAT5e or higher)
- Dimensions: 8.35x1.73x7.44"
- Weight: approx. 2.2 lbs (without antennas and power supply)
