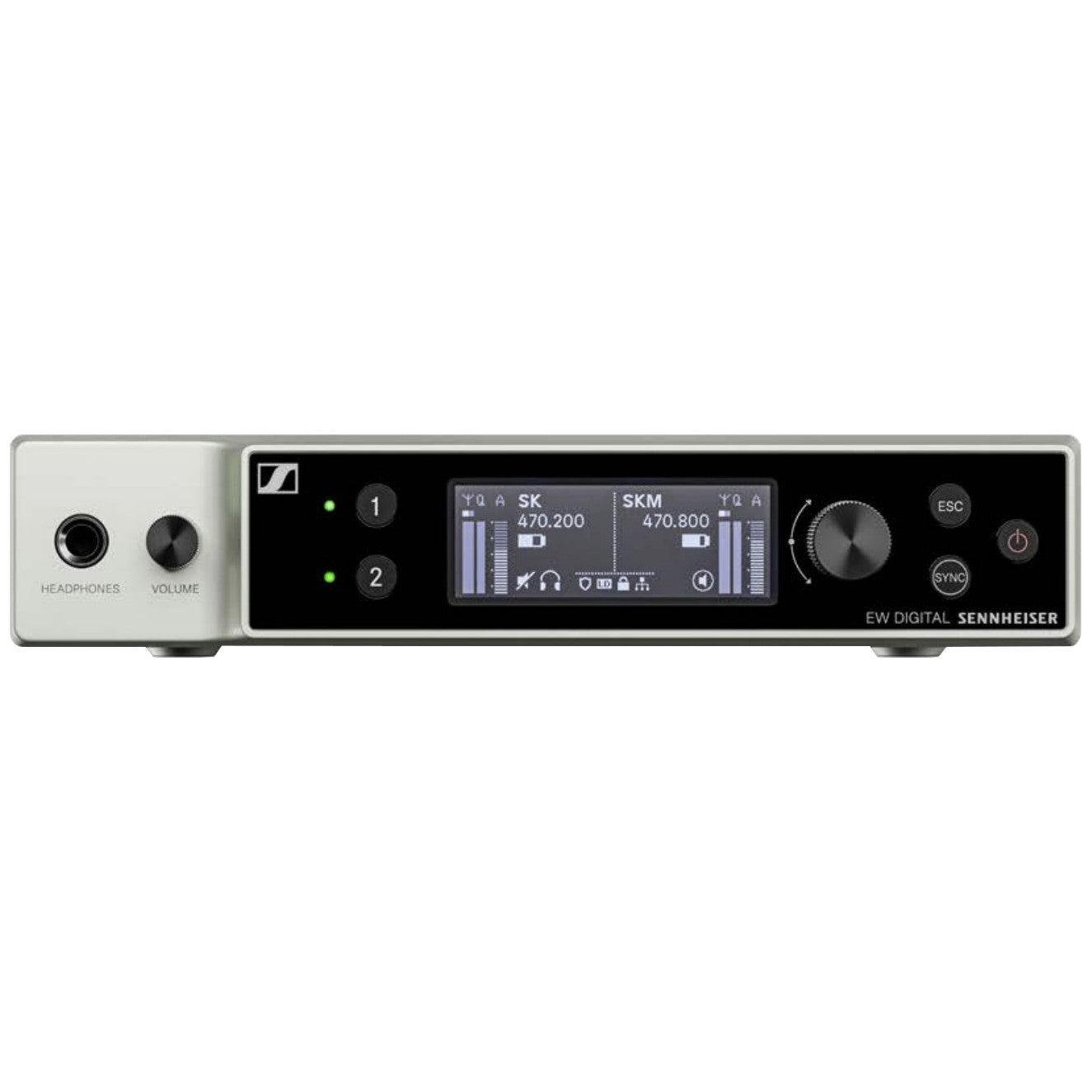

• Sennheiser EW-DX EM 2 DANTE 2-Channel Wireless Receiver

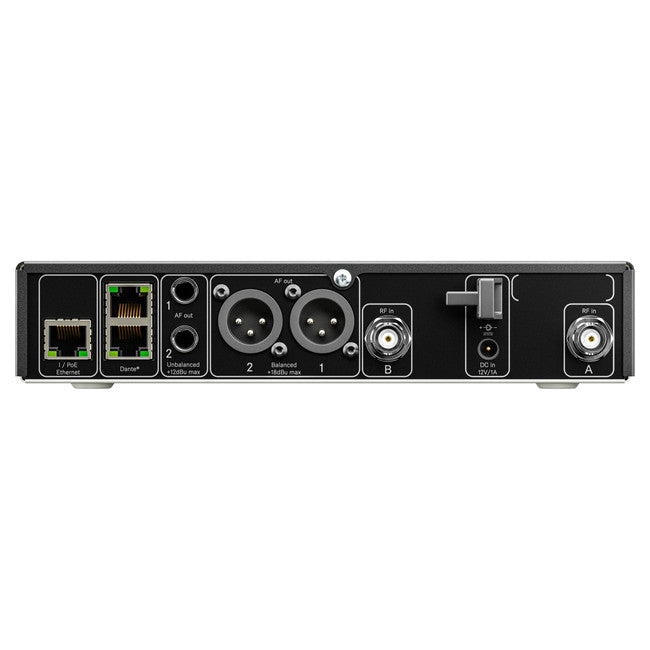

  • Sennheiser EW-DX EM 2 DANTE 2-Channel Wireless Receiver back

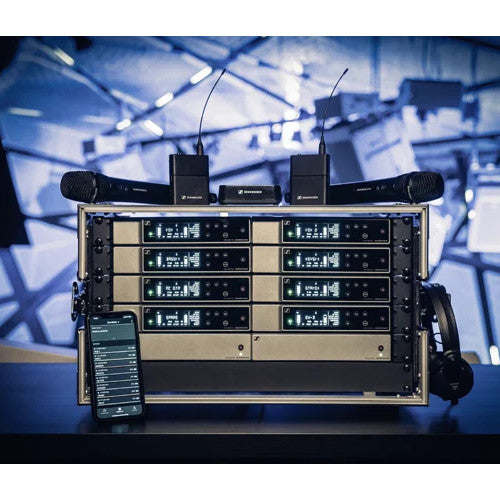

  • Sennheiser EW-DX EM 2 DANTE 2-Channel Wireless Receiver lifestyle
1 3

Sennheiser EW-DX EM 2 DANTE 2-Channel Wireless Receiver | Frequency: Q1-9

Sennheiser EW-DX EM 2 DANTE 2-Channel Wireless Receiver | Frequency: Q1-9

SoundPro Item: 133296 | Part Number: 509356

$1,499.00
$1,749.00 $1,499.00
Your Price Sold out
MSRP: $1,749.00 | MAP: $1,499.00

In stock and ready to ship

  • DANTE-Enabled
  • 2 channel half rack (9.5’)
  • Up to 88 MHz switching bandwidth
  • PoE IEEE 802.3af Class 3
  • Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
  • Network enabled for control with Sennheiser Control Cockpit/ media control system through a number of 3rd party modules
  • Clear and easy focused user interface with OLED display
  • Ethernet connectivity (IPv4 and IPv6)
  • Secure AES 256 encryption
  • External PSU 12V/1A
  • All-metal housing
Log in or register for YOUR best price

The EW-DX EM 2 DANTE from Sennheiser is a two-channel digital wireless receiver compatible with Evolution Wireless Digital handheld, bodypack, and table-stand transmitters. This half-rack (9.5”) receiver is Dante®-enabled, and features extended 88 MHz switching bandwidth, intermodulation-free operation for up to 293 channels with secure AES 256 encryption, and a redundant power supply via Power over Ethernet (PoE).

Choose variations from a range of frequency options.

View full details
  • System
    • Audio link frequency ranges
      • Q1-9: 470.2 - 550 MHz
      • R1-9: 520 - 607.8 MHz
      • S1-10: 606.2 - 693.8 MHz
      • S2-10: 614.2 - 693.8 MHz
      • S4-10: 630 - 693.8 MHz
      • U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
      • V3-4: 925.2 - 937.3 MHz
      • V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
      • Y1-3: 1785.2 - 1799.8 MHz
    • Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
    • Audio frequency response: 20 Hz - 20 kHz (-3 dB)
    • Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
    • Dynamic range: 134 dB
    • System latency: 1.9 ms
    • Operating temperature: 14 °F - 131 °F (-10 °C - +55 °C)
    • Relative humidity: 5 - 95 % (non-condensing
  • EW-DX EM 2 (Rack Receiver)
    • Input voltage: 11 - 13 V &9107; or PoE IEEE 802.3af Class 0 (CAT5e or higher)
    • Input current: ≤ 1 A
    • Transmit power (radiated): BLE: max. 10 mW EIRP
    • Audio output power: 18 dBu max.
    • Headphone output: 2x 70 mW @ 32 Ω
    • Ethernet
      • RJ-45 socket, IEEE802.3
      • 100Base-TX (half+full duplex)
      • 10Base-T (half+full duplex)
      • (CAT5e or higher)
    • Dimensions: 8.35x1.73x7.44" (212x44x189 mm)
    • Weight (without antennas and power supply): approx. 1000 g (2.2 lbs)
