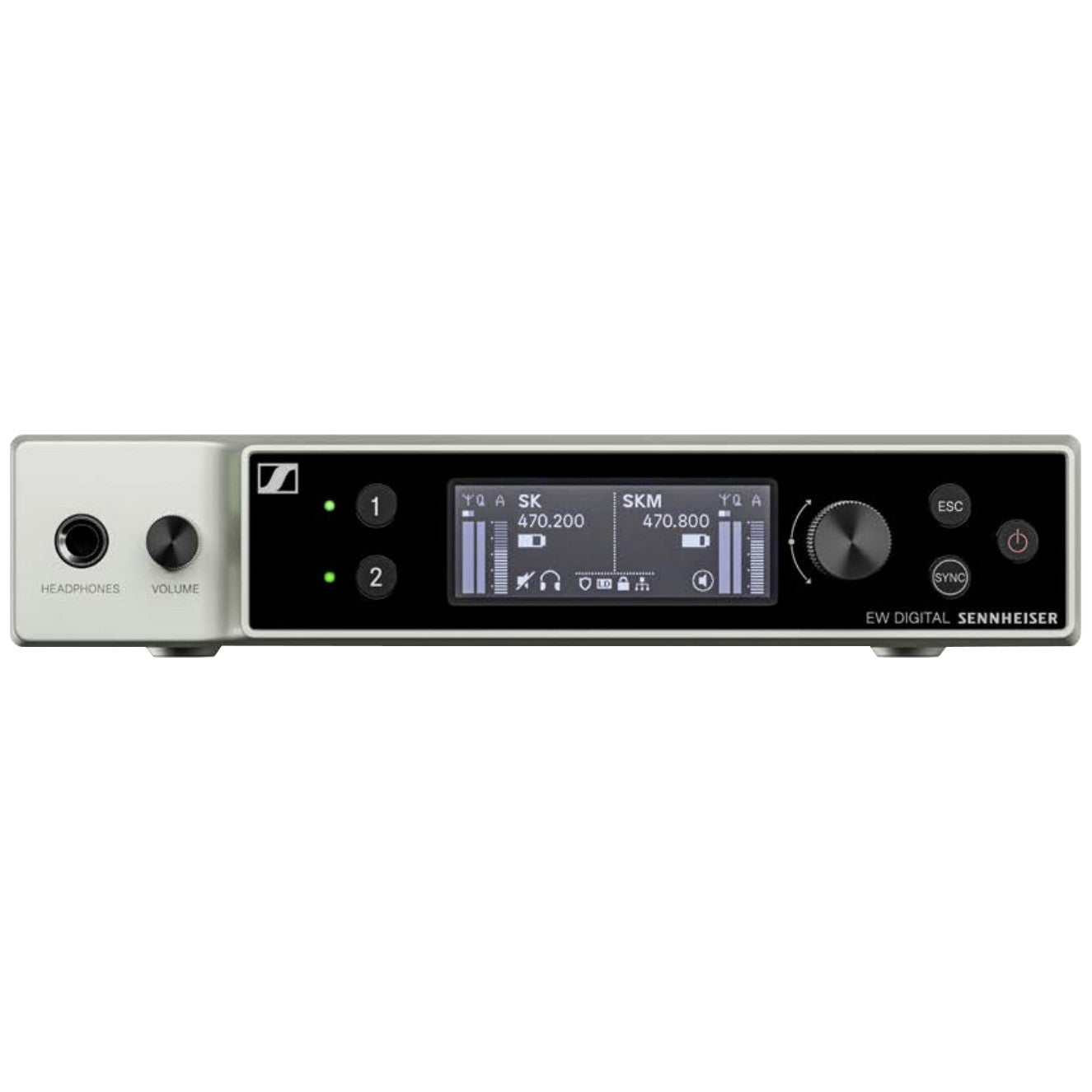

• Sennheiser EW-DX EM 2 DANTE 2-Channel Wireless Receiver

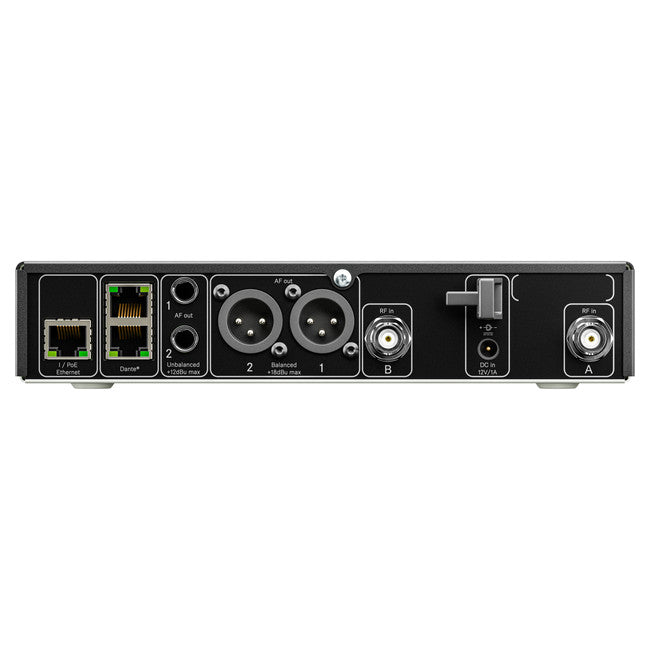

  • Sennheiser EW-DX EM 2 DANTE 2-Channel Wireless Receiver back

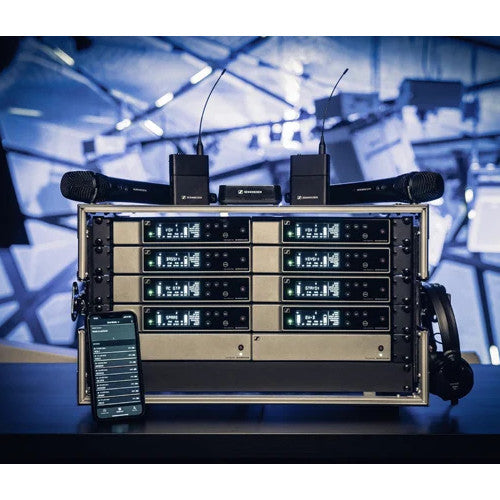

  • Sennheiser EW-DX EM 2 DANTE 2-Channel Wireless Receiver lifestyle
1 3

Sennheiser EW-DX EM 2 DANTE 2-Channel Wireless Receiver | Frequency: V5-7

Sennheiser EW-DX EM 2 DANTE 2-Channel Wireless Receiver | Frequency: V5-7

SoundPro Item: 133298 | Part Number: EW-DX EM 2 DANTE (V5-7)

$1,499.00
$1,749.00 $1,499.00
Your Price Sold out
MSRP: $1,749.00 | MAP: $1,499.00

Usually ships in 5-7 business days

  • DANTE-Enabled
  • 2 channel half rack (9.5’)
  • Up to 88 MHz switching bandwidth
  • PoE IEEE 802.3af Class 3
  • Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
  • Network enabled for control with Sennheiser Control Cockpit/ media control system through a number of 3rd party modules
  • Clear and easy focused user interface with OLED display
  • Ethernet connectivity (IPv4 and IPv6)
  • Secure AES 256 encryption
  • External PSU 12V/1A
  • All-metal housing
Log in or register for YOUR best price

The EW-DX EM 2 DANTE from Sennheiser is a two-channel digital wireless receiver compatible with Evolution Wireless Digital handheld, bodypack, and table-stand transmitters. This half-rack (9.5”) receiver is Dante®-enabled, and features extended 88 MHz switching bandwidth, intermodulation-free operation for up to 293 channels with secure AES 256 encryption, and a redundant power supply via Power over Ethernet (PoE).

Choose variations from a range of frequency options.

View full details

Specifications

Dimensions
Dimensions
8.35x1.73x7.44" (212x44x189 mm)
Weight
Weight (without Antennas and Power supply)
approx. 1000 g (2.2 lbs)
Electrical
Audio THD
≤ -60 dB for 1 kHz @ -3 dBfs input level
Input Current
≤ 1 A
Audio
Audio Frequency Response
20 Hz - 20 kHz (-3 dB)
Audio Output Power
18 dBu max.
Headphone Output
2x 70 mW @ 32 Ω
Connectivity
Bluetooth® Low Energy (BLE) Frequency Range
2402 - 2480 MHz
Environmental
Operating Temperature
14 °F - 131 °F (-10 °C - +55 °C)
Relative Humidity
5 - 95 % (non-condensing
General
Q1-9
470.2 - 550
MHzR1-9
520 - 607.8
MHzS1-10
606.2 - 693.8
MHzS2-10
614.2 - 693.8
MHzS4-10
630 - 693.8
MHzU1/5
823.2 - 831.8 MHz & 863.2 - 864.8
MHzV3-4
925.2 - 937.3
MHzV5-7
941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65
MHzY1-3
1785.2 - 1799.8 MHz
Dynamic Range
134 dB
System Latency
1.9 ms
Transmit Power (radiated)
BLE: max. 10 mW EIRP
EW-DX EM 2 (Rack Receiver)
Ethernet RJ-45 socket, IEEE802.3100Base-TX (half+full duplex)10Base-T (half+full duplex)(CAT5e or higher)
Power
Input Voltage
11 - 13 V &9107; or PoE IEEE 802.3af Class 0 (CAT5e or higher)
