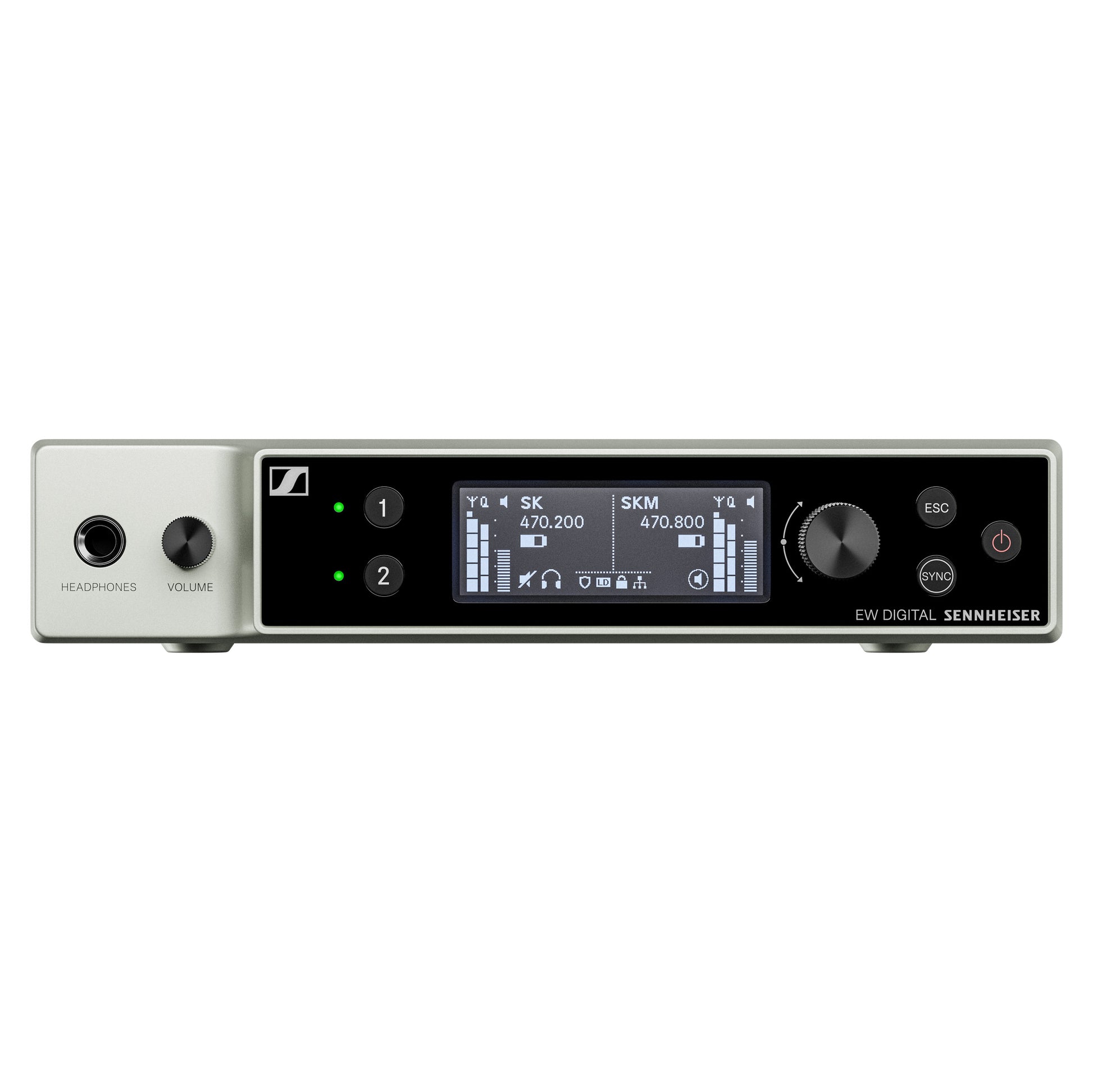

  • Sennheiser EW-DX EM2

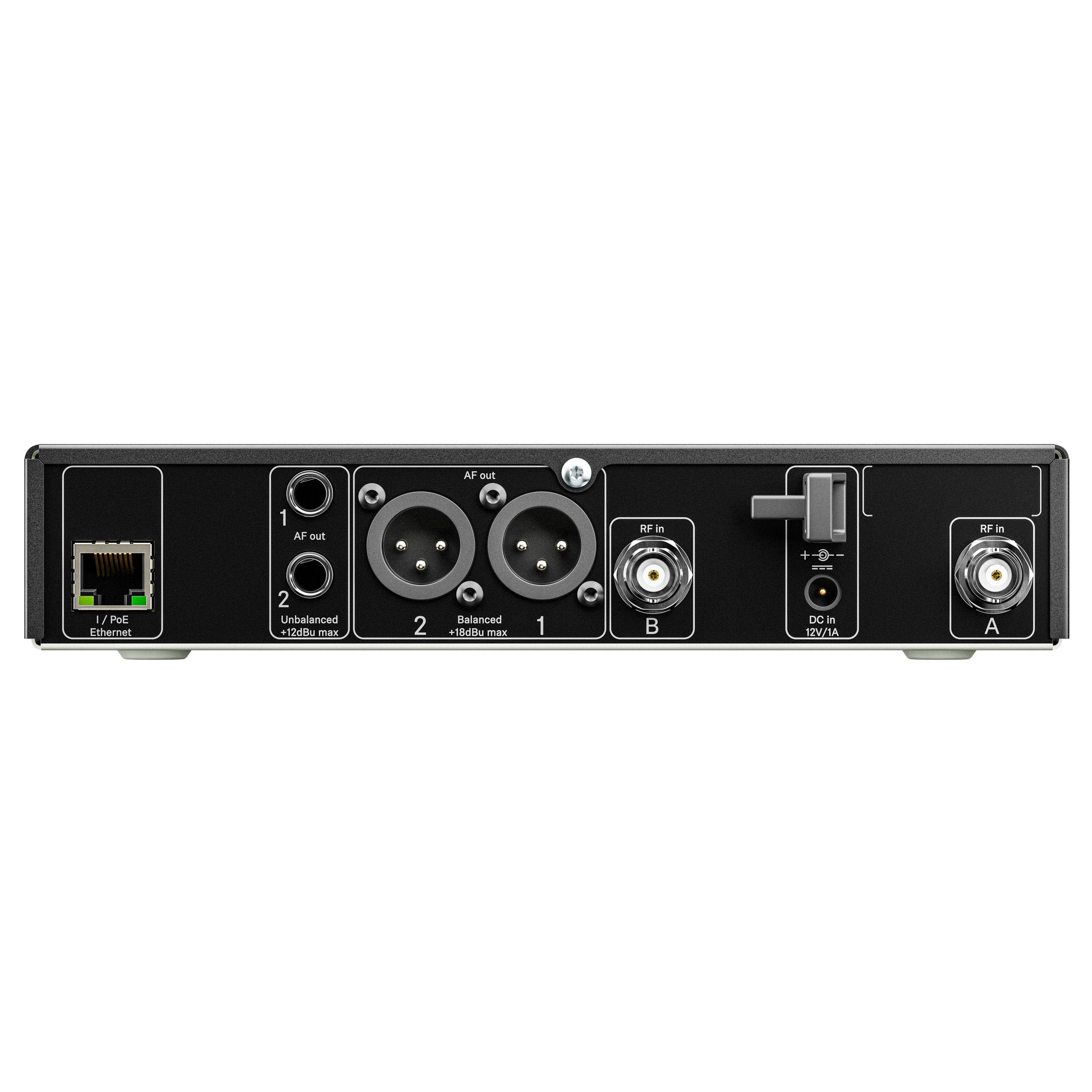

  • Sennheiser EW-DX EM2 back

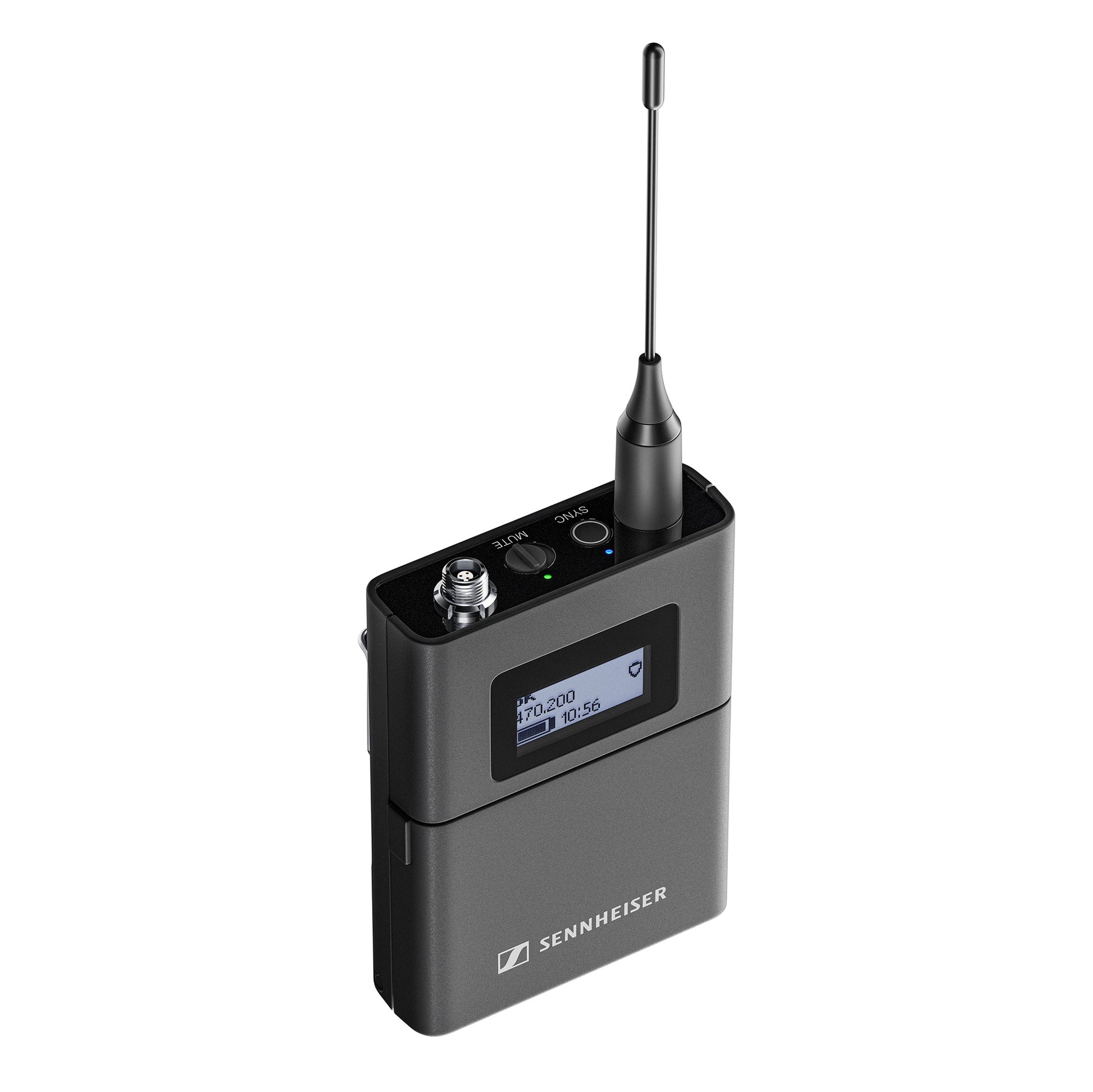

  • EW-DX SK bodypack receiver front

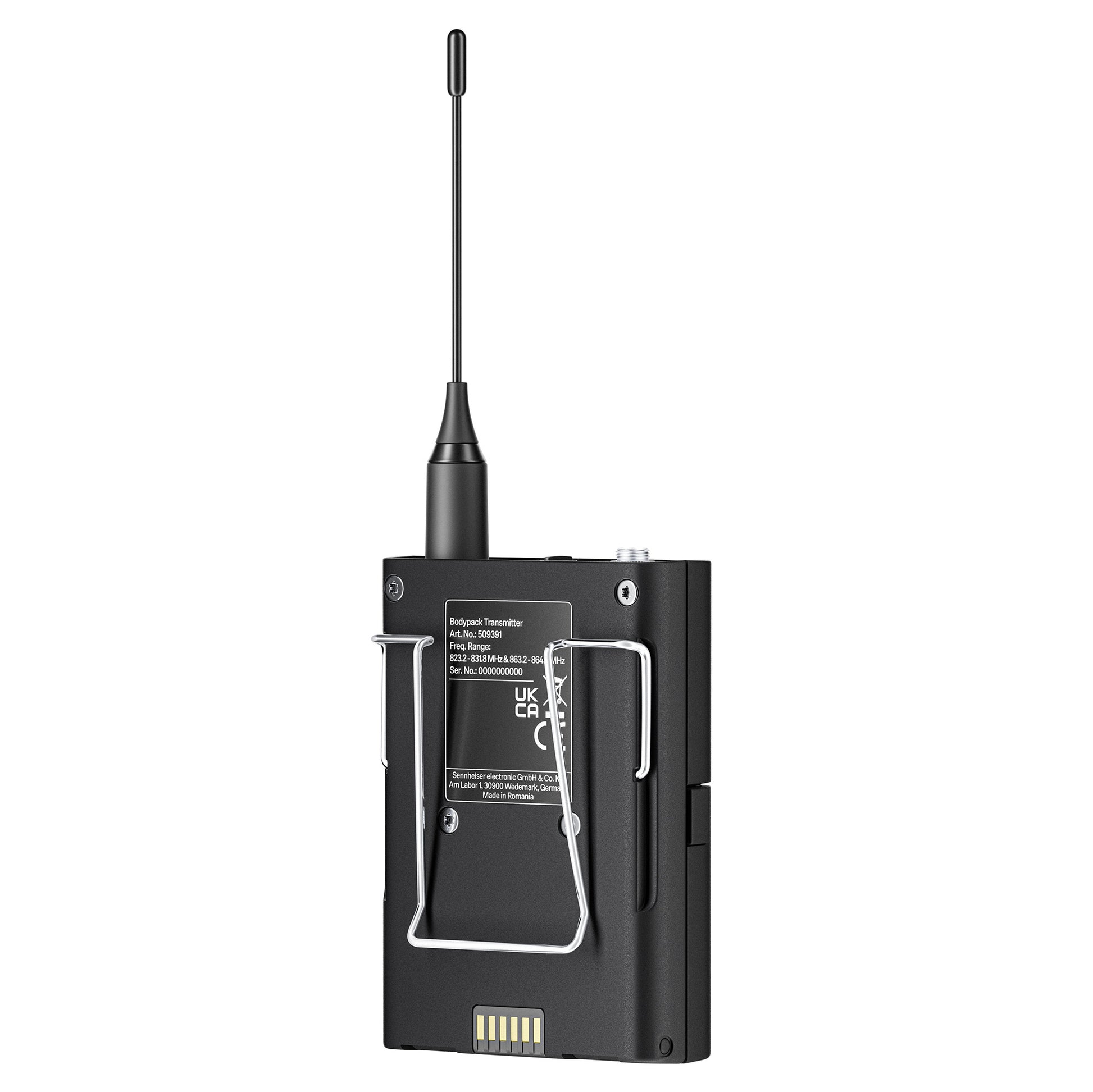

  • EW-DX SK bodypack receiver back

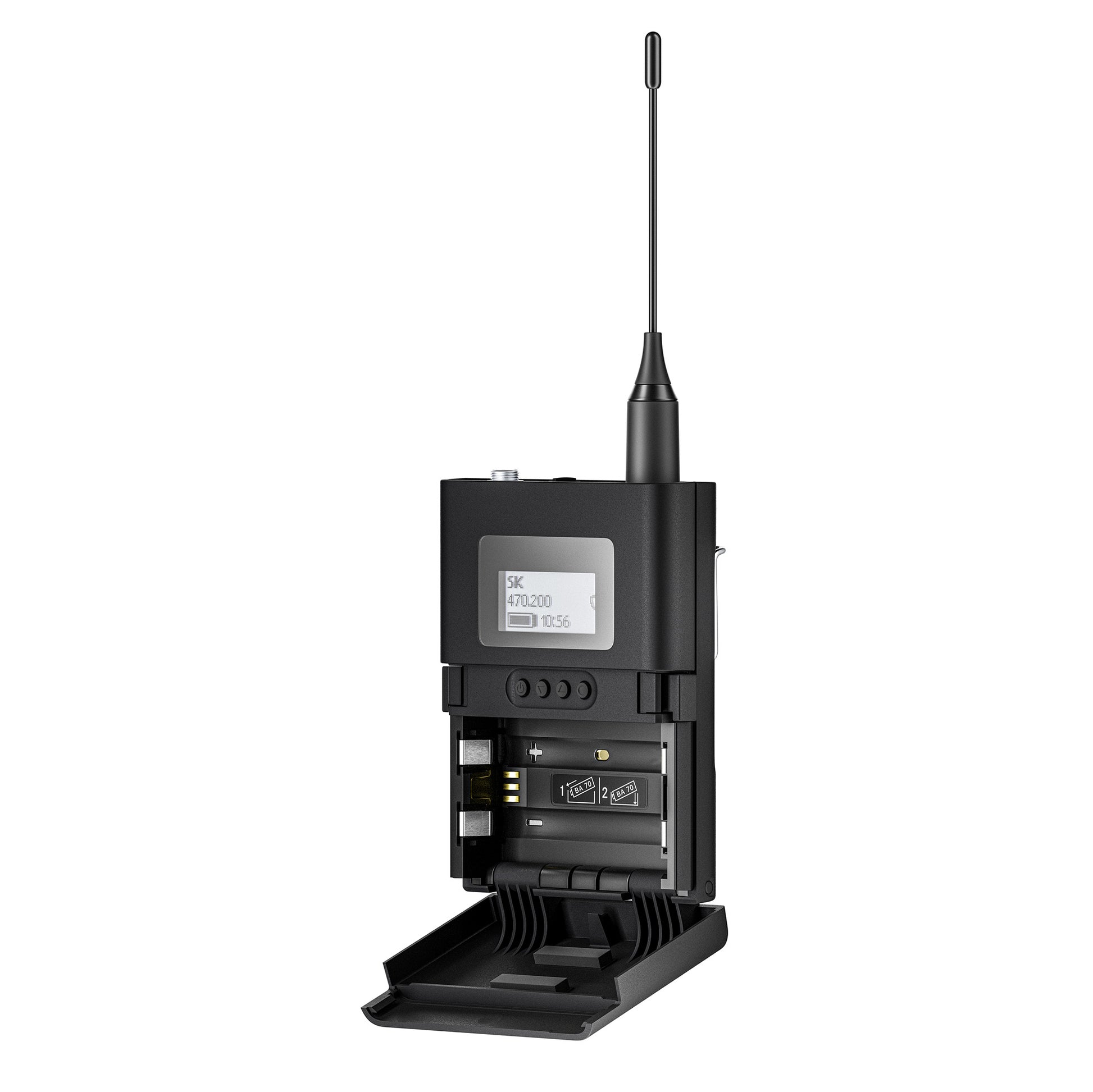

  • EW-DX SK bodypack receiver interior

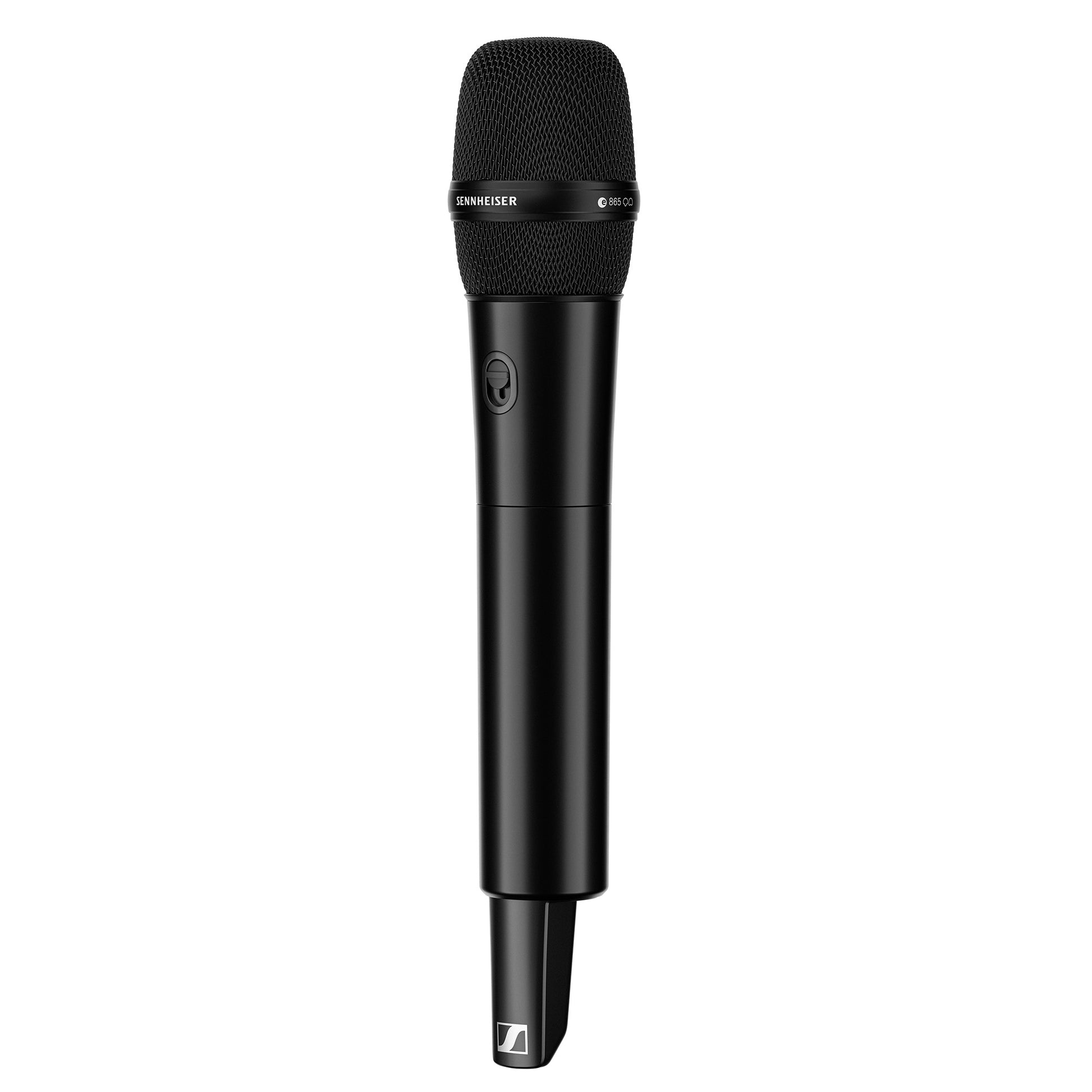

  • EW-DX SKM-S handheld transmitter side
1 8

Sennheiser EW-DX MKE 2/835-S SET Wireless Microphone Combo System | Frequency: R1-9

Sennheiser EW-DX MKE 2/835-S SET Wireless Microphone Combo System | Frequency: R1-9

SoundPro Item: 133288 | Part Number: EW-DX MKE 2-835-S SET (R1-9)

$2,749.00
$3,249.00 $2,749.00
Your Price Sold out
MSRP: $3,249.00 | MAP: $2,749.00

Usually ships in 5-7 business days

  • 2 channel half rack (9.5’)
  • Up to 88 MHz switching bandwidth
  • PoE IEEE 802.3af Class 3
  • Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
  • Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
  • Clear and easy focused user interface with OLED display
  • Ethernet connectivity (IPv4 and IPv6)
  • Secure AES 256 encryption
  • External PSU 12V/1A
  • All-metal housing
  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
  • Function buttons - control all the transmitter settings directly from handheld microphone
  • Extended runtime with lithium-ion batteries - up to 12 hours operation time
  • Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
  • Mic input trim control
Log in or register for YOUR best price

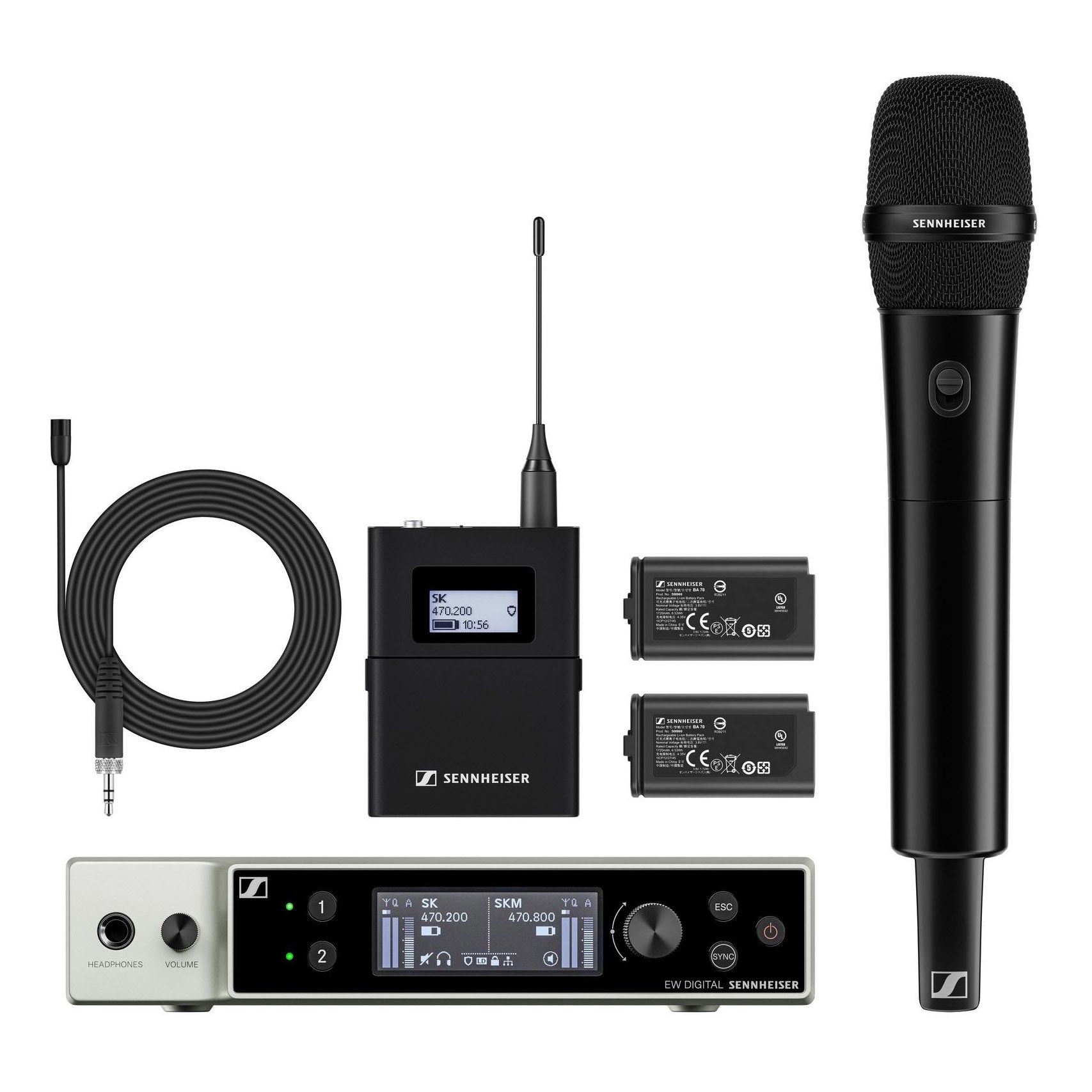

The EW-DX MKE 2/835-S SET from Sennheiser is a wireless microphone combo system. It includes one EW-DX SKM-S handheld transmitter, one MMD 835 cardioid dynamic capsule, one EW-DX SK bodypack transmitter, one MKE 2 lavalier microphone, one EW-DX EM 2 two-channel rackmount receiver, and two BA 70 rechargeable batteries.

The handheld transmitter comes with a built-in mute switch.

Available Configurations

  • Q1-9: 470.2 - 550 MHz
  • R1-9: 520 - 607.8 MHz
  • V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
View full details

Specifications

Dimensions
Dimensions
8.35x1.73x7.44"
Dimensions (ø X l)
1.97x10.55" including MMD 835 module
Dimensions (without antenna)
2.5x3.35x0.79"
Weight
Weight (without batteries)
approx. 0.27 lbs
Electrical
Audio THD
≤ -60 dB for 1 kHz @ -3 dBfs input level
Input Current
≤ 1 A
Supply Voltage
7.5V
Audio
Audio Frequency Response
20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio Output Power
18 dBu max
Headphone Output
2x 70 mW @ 32 Ω
Sensitivity
2.1 mV/Pa
Sensitivity (free Field, No load) (1kHz)
5 mV/Pa +- 3dB
Max SPL at 1kHz
142 dB
Frequency Response
20 to 20,000Hz
Connectivity
Bluetooth® Low Energy (BLE) Frequency Range
2402 - 2480 MHz
Connector
3.5mm jack
Construction
Pick-Up Pattern
cardioid
Cable Length
approx. 63"
Environmental
Operating Temperature
14°F to 131°F (-10°C to 55°C)
Relative Humidity
5 - 95% (non-condensing)
Shipping
Weight
approx. 2.2 lbs (without antennas and power supply)
General
System
Audio Link Frequency Ranges
Dynamic Range
134 dB
System Latency
1.9 ms
Transmit Power (radiated)
BLE: max. 10 mW EIRP
EW-DX EM 2 (rack receiver)
Ethernet
Transducer Principle
dynamic
Sound Pressure Level
154 dB SPL
Power Supply
2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied Bandwidth
200 kHz
EW-DX SKM-S (handheld transmitter)
Transmit Power (radiated)
EW-DX SK (bodypack transmitter)
Transmit Power (radiated)
Equivalent Noise Level A-weighted
26 dB
Power
Input Voltage
11 - 13 V &9107; or PoE IEEE 802.3af Class 0 (CAT5e or higher)
