Sennheiser EW-DX MKE 2/835-S SET Wireless Microphone Combo System | Frequency: Q1-9
Sennheiser EW-DX MKE 2/835-S SET Wireless Microphone Combo System | Frequency: Q1-9
SoundPro Item: 133287 | Part Number: 509328
In stock and ready to ship
- 2 channel half rack (9.5’)
- Up to 88 MHz switching bandwidth
- PoE IEEE 802.3af Class 3
- Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
- Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
- Clear and easy focused user interface with OLED display
- Ethernet connectivity (IPv4 and IPv6)
- Secure AES 256 encryption
- External PSU 12V/1A
- All-metal housing
- 10mW RF power with up to 100m/328ft working range
- Charging contacts for in-device charging with CHG 70N
- Persistent eInk display - parameters visible on screen even when device is not powered on
- Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
- Function buttons - control all the transmitter settings directly from handheld microphone
- Extended runtime with lithium-ion batteries - up to 12 hours operation time
- Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
- Mic input trim control

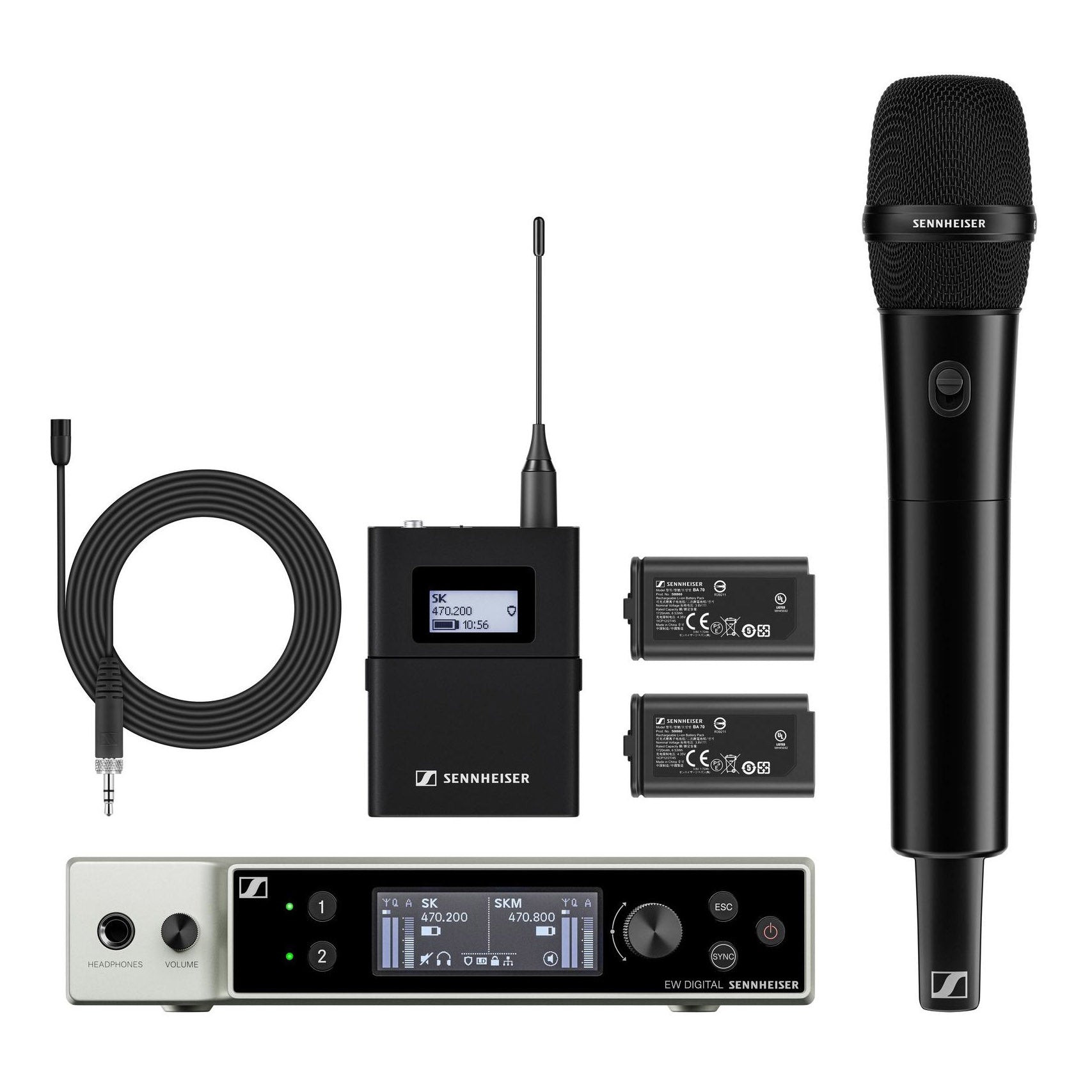

The EW-DX MKE 2/835-S SET from Sennheiser is a wireless microphone combo system. It includes one EW-DX SKM-S handheld transmitter, one MMD 835 cardioid dynamic capsule, one EW-DX SK bodypack transmitter, one MKE 2 lavalier microphone, one EW-DX EM 2 two-channel rackmount receiver, and two BA 70 rechargeable batteries.
The handheld transmitter comes with a built-in mute switch.
Available Configurations
- Q1-9: 470.2 - 550 MHz
- R1-9: 520 - 607.8 MHz
- V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
- System
- Audio Link Frequency Ranges
- Q1-6: 470.2 - 526 MHz
- R1-6: 520 - 576 MHz
- V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
- Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
- Audio Frequency Response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
- Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Dynamic Range: 134 dB
- System Latency: 1.9 ms
- Operating Temperature: 14°F to 131°F (-10°C to 55°C)
- Relative Humidity: 5 - 95% (non-condensing)

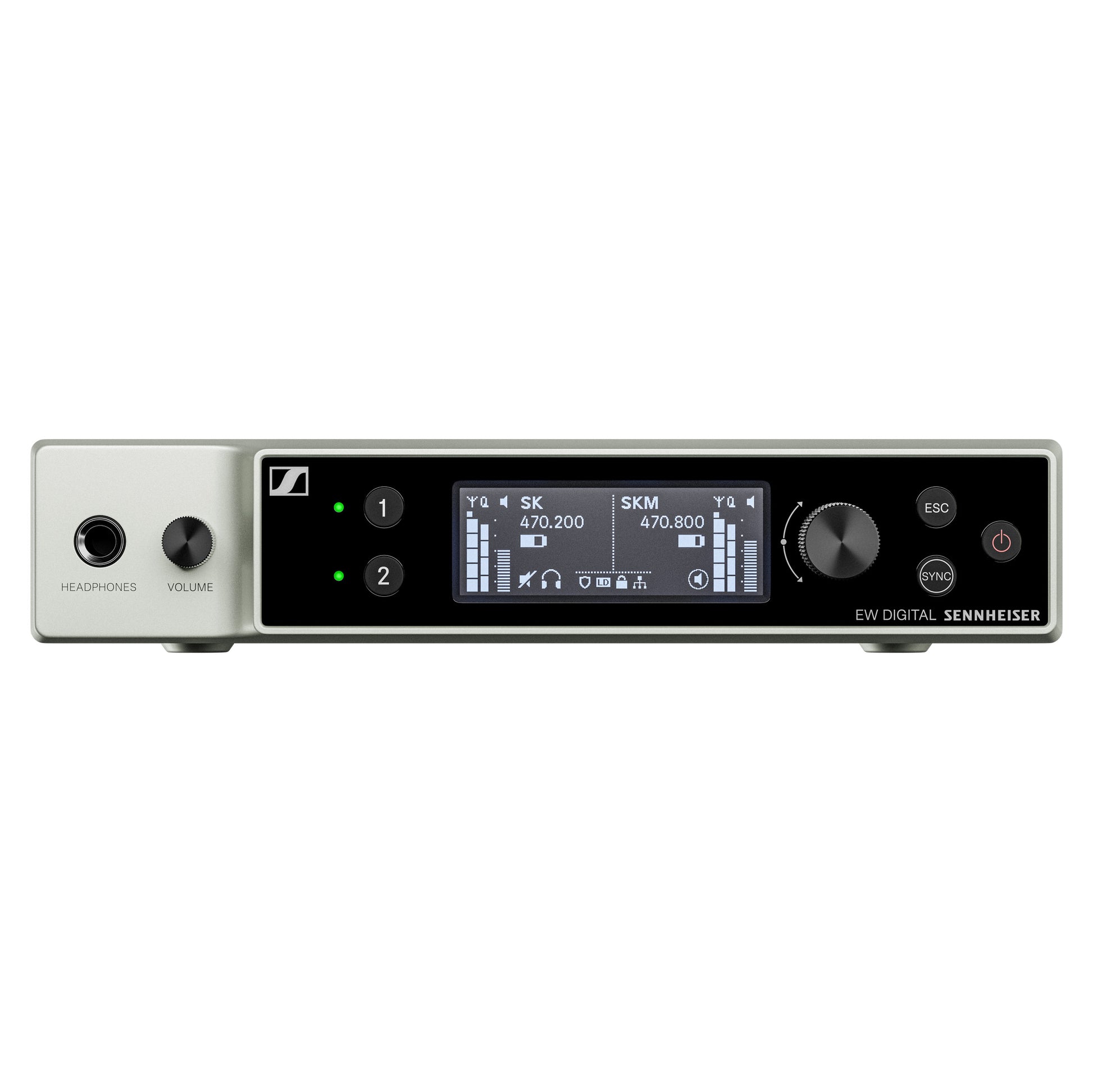

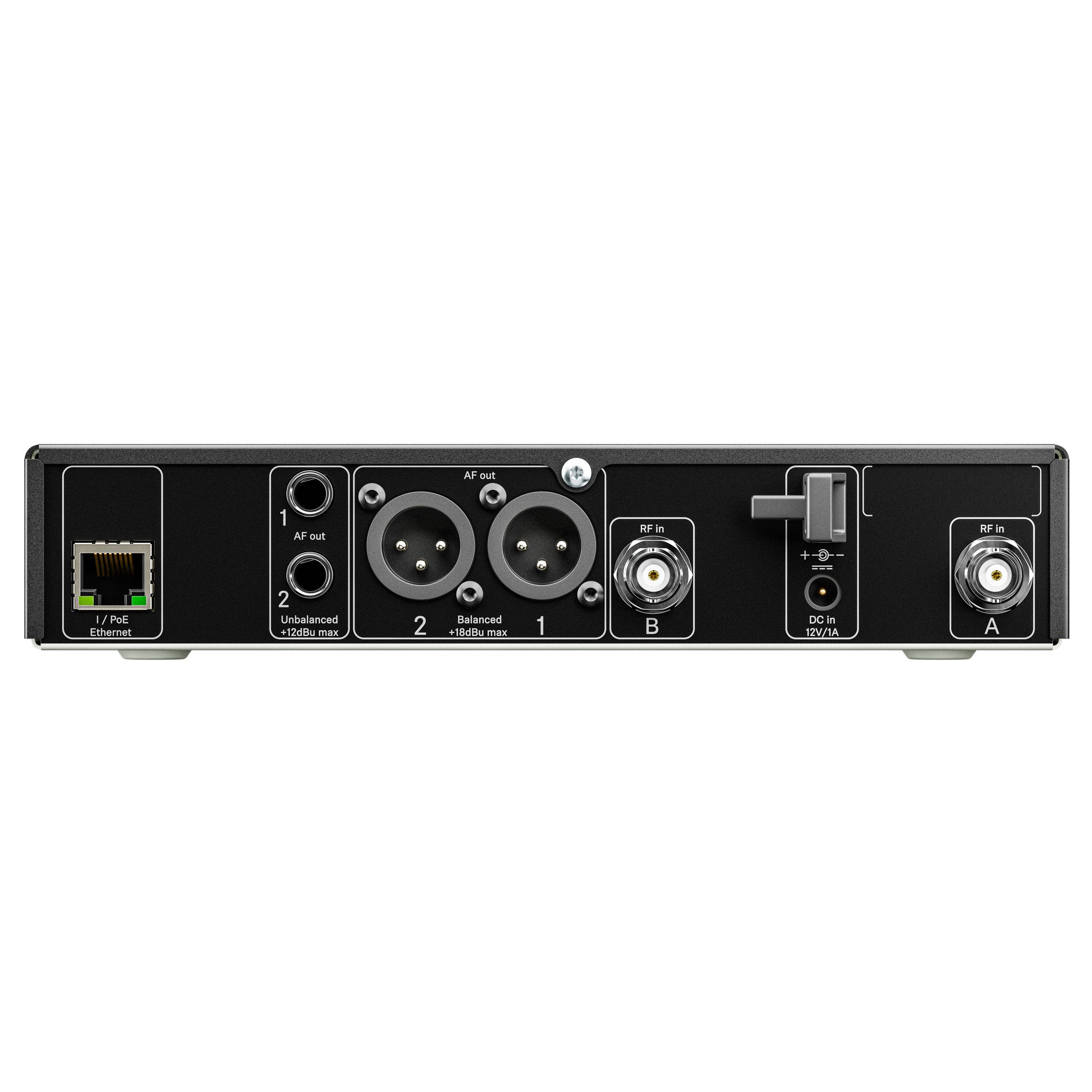

- EW-DX EM 2 (rack receiver)
- Input Voltage: 11 - 13 V &9107; or PoE IEEE 802.3af Class 0 (CAT5e or higher)
- Input Current: ≤ 1 A
- Transmit Power (radiated): BLE: max. 10 mW EIRP
- Audio Output Power: 18 dBu max
- Headphone Output: 2x 70 mW @ 32 Ω
- Ethernet
- RJ-45 socket, IEEE802.3
- 100Base-TX (half+full duplex)
- 10Base-T (half+full duplex)
- (CAT5e or higher)
- Dimensions: 8.35x1.73x7.44"
- Weight: approx. 2.2 lbs (without antennas and power supply)
- MMD 835 (microphone module)
- Transducer Principle: dynamic
- Sensitivity: 2.1 mV/Pa
- Sound Pressure Level: 154 dB SPL
- Pick-Up Pattern: cardioid

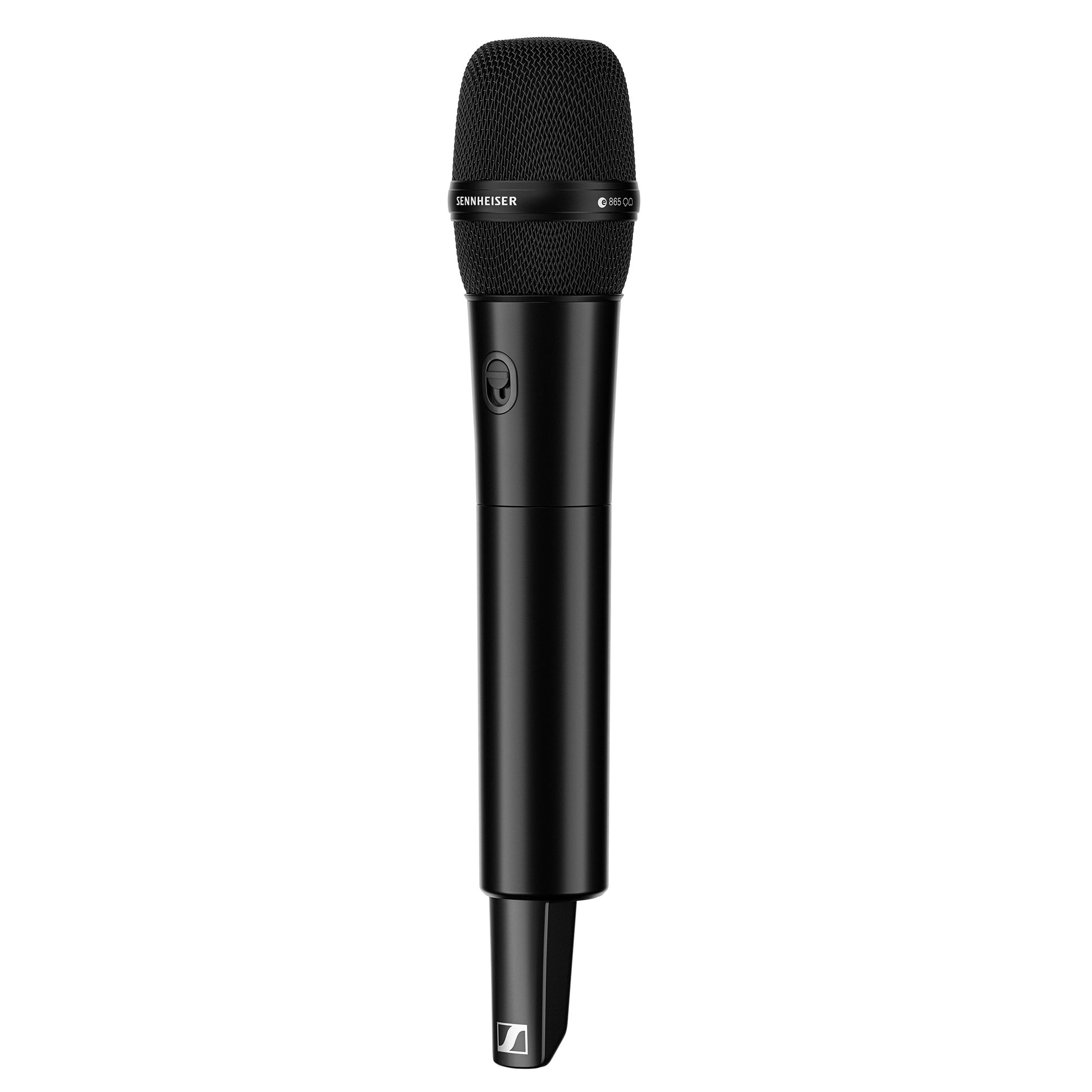

- EW-DX SKM-S (handheld transmitter)
- Input Voltage: 2.0 - 4.35 V
- Input Current: < 300 mA
- Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
- Occupied Bandwidth: 200 kHz
- Transmit Power (radiated)
- Audio link: 10 mW ERP
- (Range Y1-3: 12 mW ERP)
- LD mode: 10 mW ERP
- BLE: max. 10 mW EIRP
- Dimensions (ø x l): 1.97x10.55" including MMD 835 module
- Weight: approx. 0.67 pounds (including MMD 835 module)

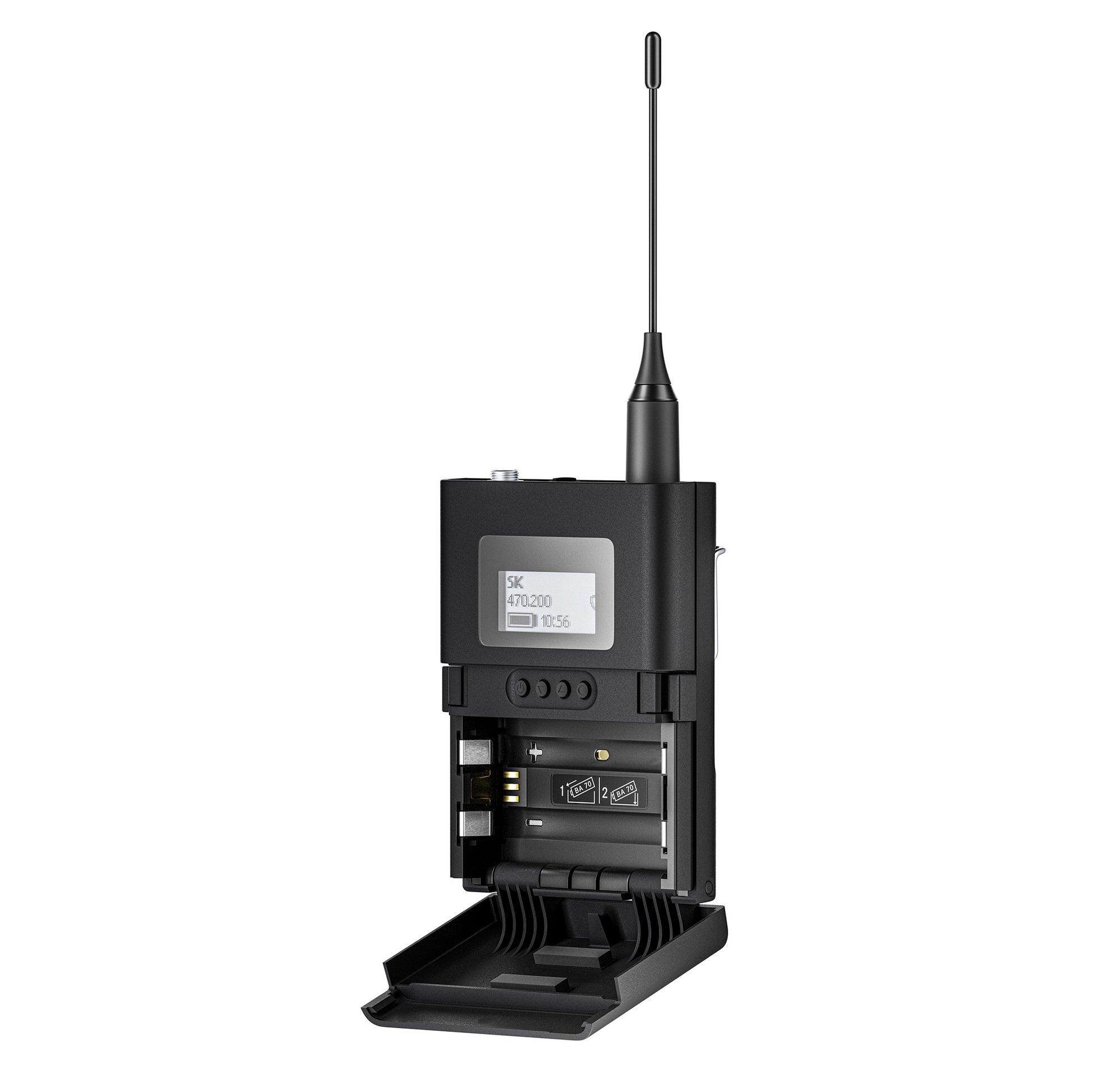

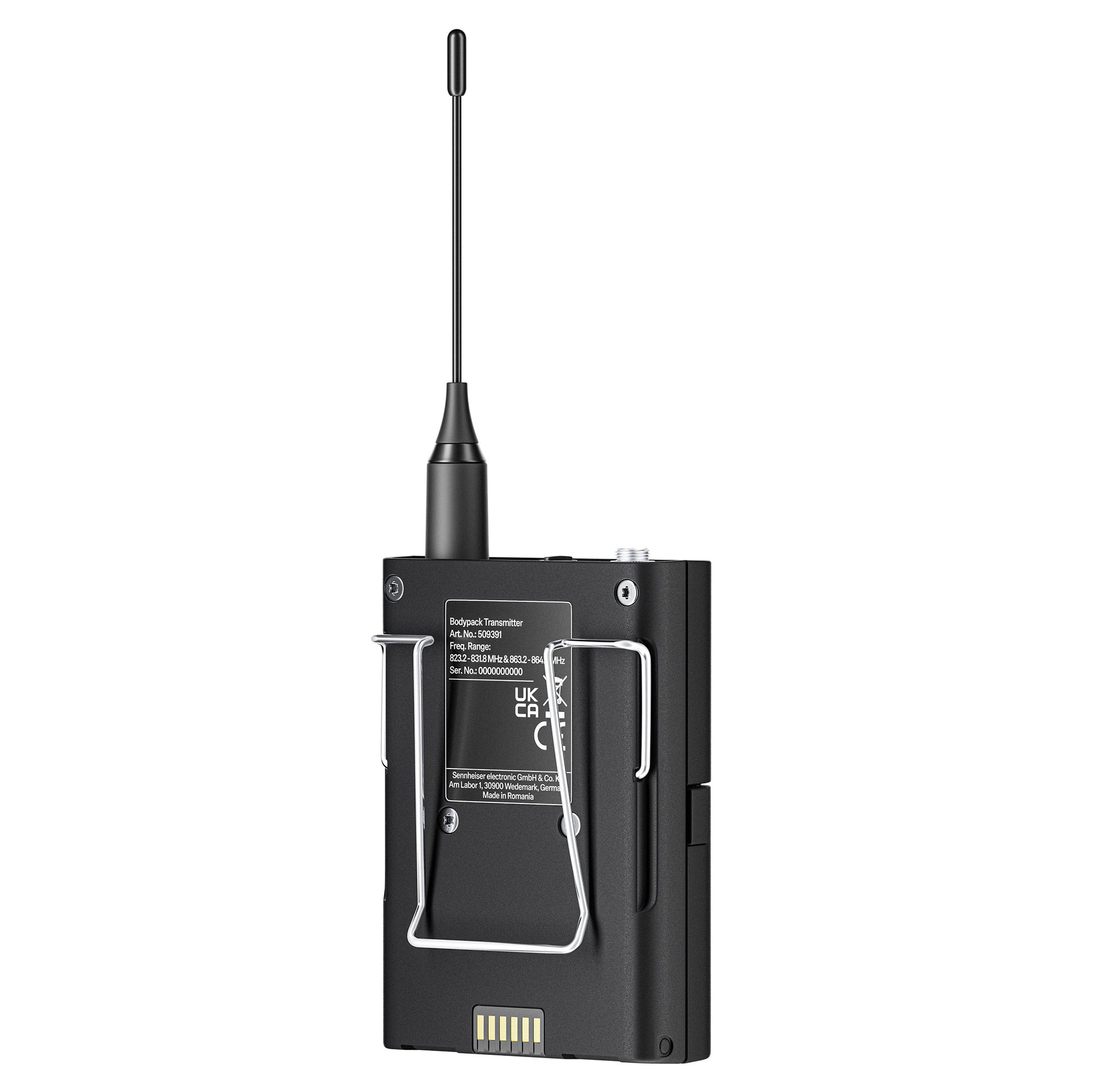

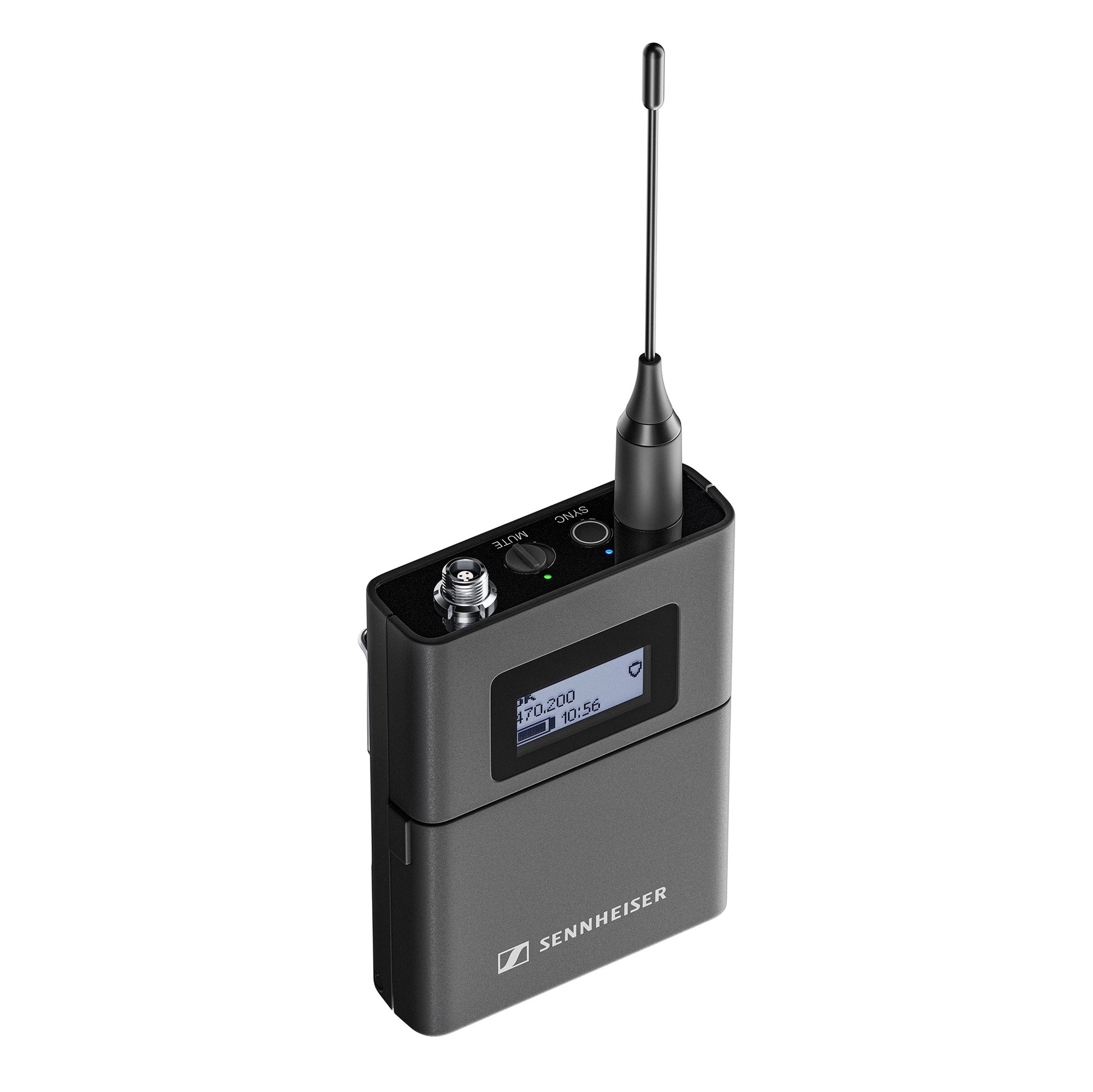

- EW-DX SK (bodypack transmitter)
- Input Voltage: 2.0 - 4.35V
- Input Current: < 300 mAEW-DX SK (bodypack transmitter)
- Power Supply: 2 AA batteries 1.5V (alkali manganese) or BA 70 rechargeable battery pack
- Occupied Bandwidth: 200 kHZ
- Transmit Power (radiated)
- Audio link: 10 mW ERP
- (Range Y1-3: 12 mW ERP)
- LD mode: 10 mW ERP
- BLE: max. 10 mW EIRP
- Dimensions (without antenna): 2.5x3.35x0.79"
- Weight (without batteries): approx. 0.27 lbs
- MKE 2 (lavalier microphone)
- Transducer Principle: pre-polarized condenser microphone
- Pick-Up Pattern: omni-directional
- Sensitivity (free field, no load) (1kHz): 5 mV/Pa +- 3dB
- Max SPL at 1kHz: 142 dB
- Frequency Response: 20 to 20,000Hz
- Equivalent Noise Level A-weighted: 26 dB
- Connector: 3.5mm jack
- Cable Length: approx. 63"
- Supply Voltage: 7.5V
