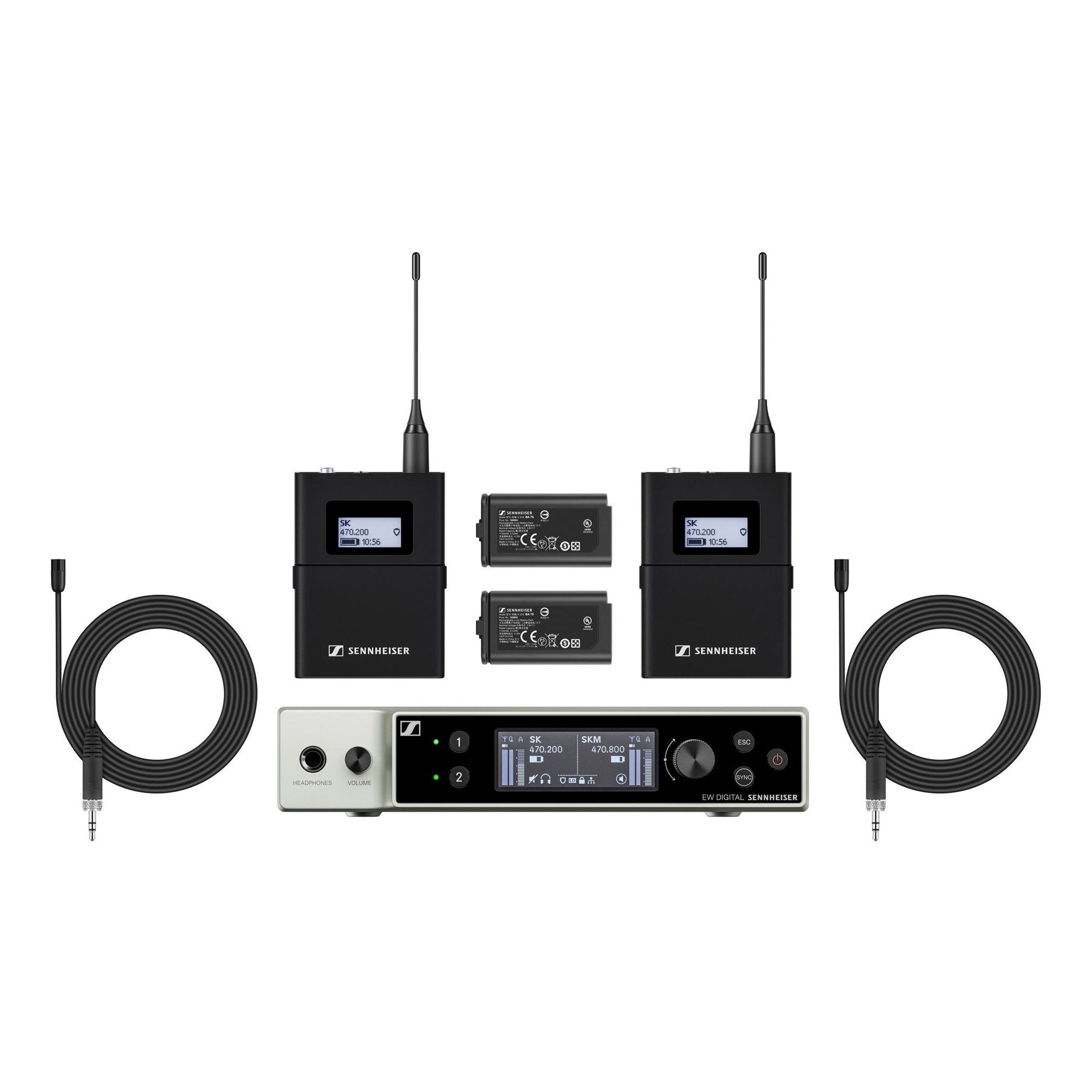

• Sennheiser EW-DX MKE 2 SET Wireless Microphone Lavalier System

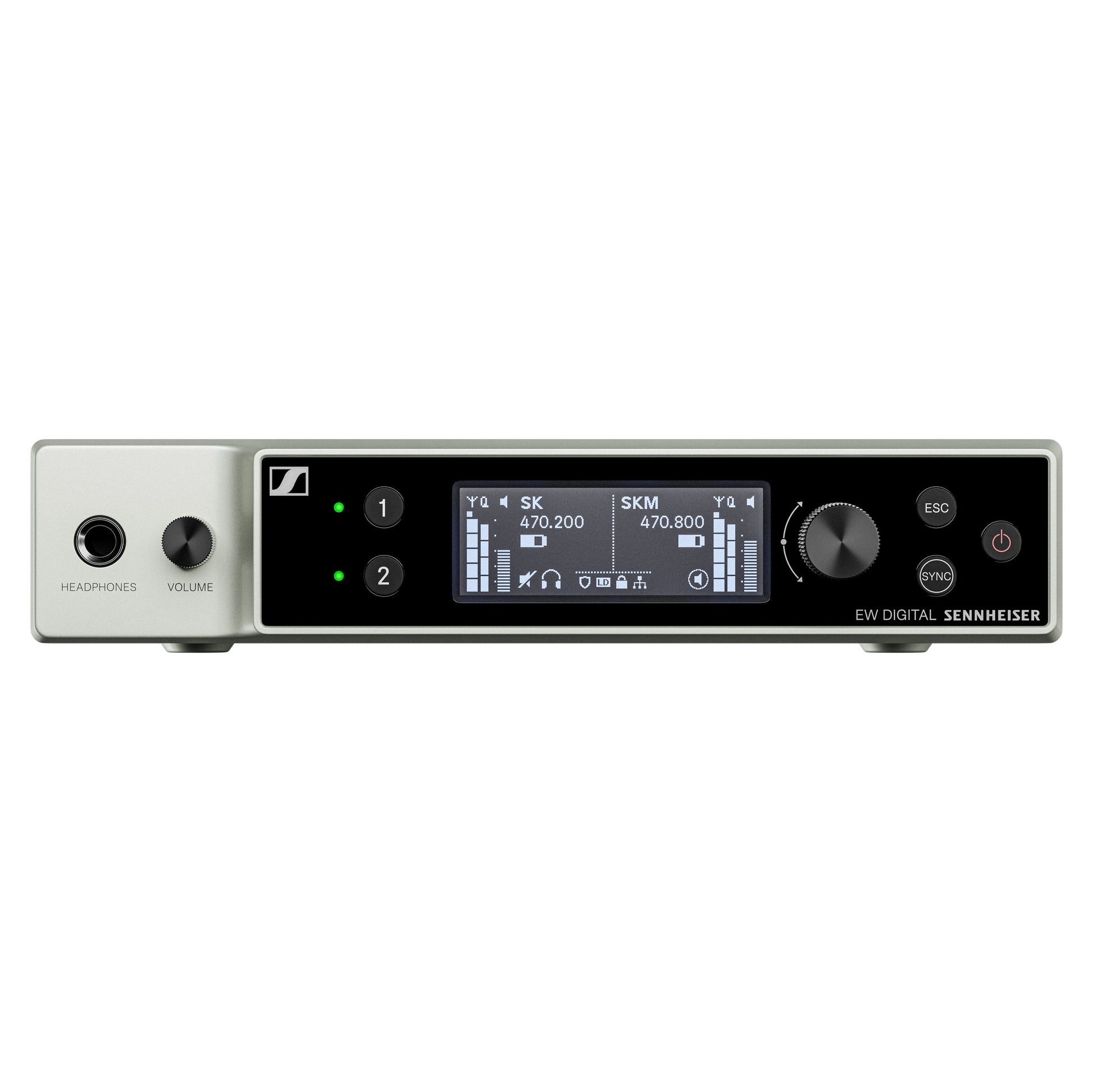

  • Sennheiser EW-DX MKE 2 SET EM2

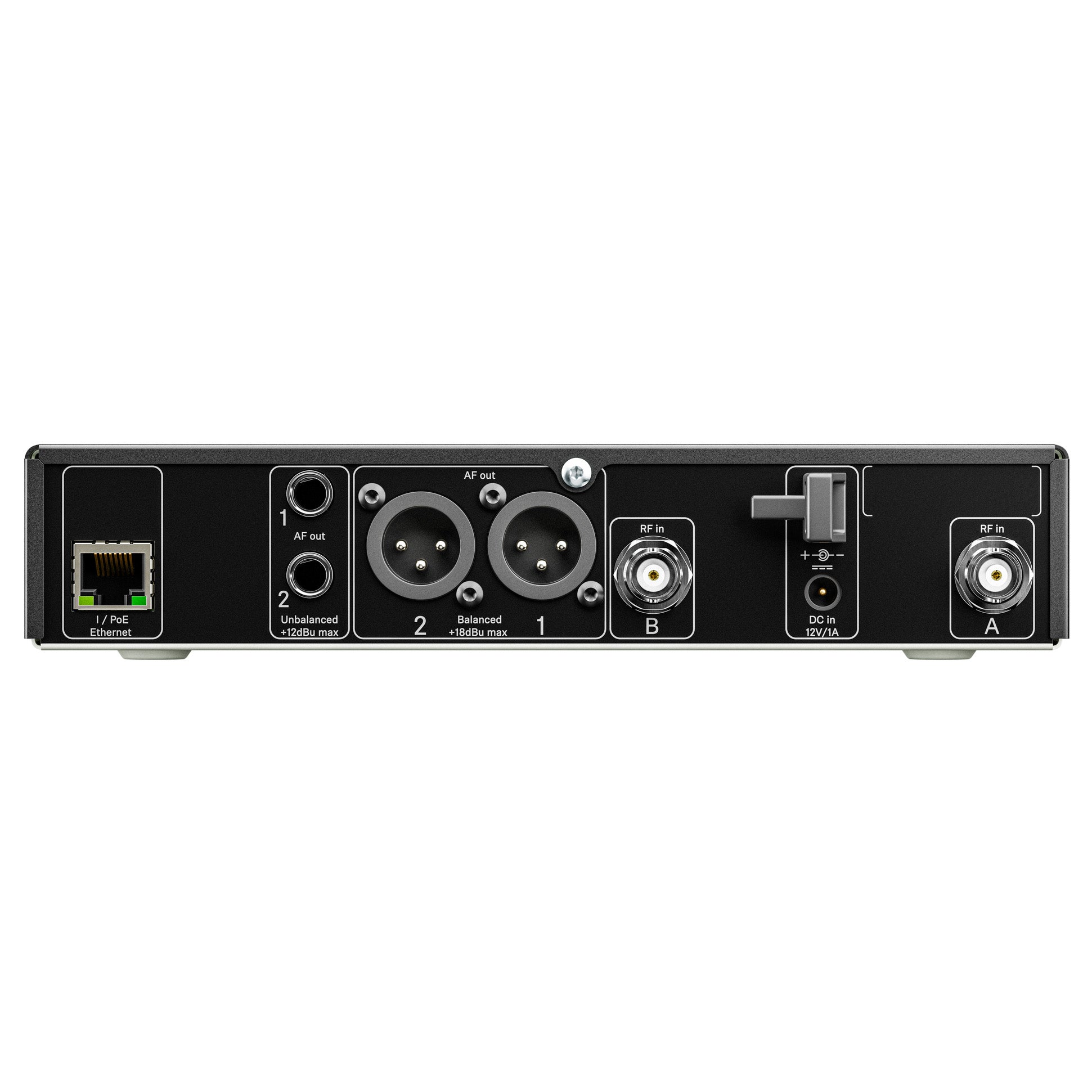

  • Sennheiser EW-DX MKE 2 SET EM2 back

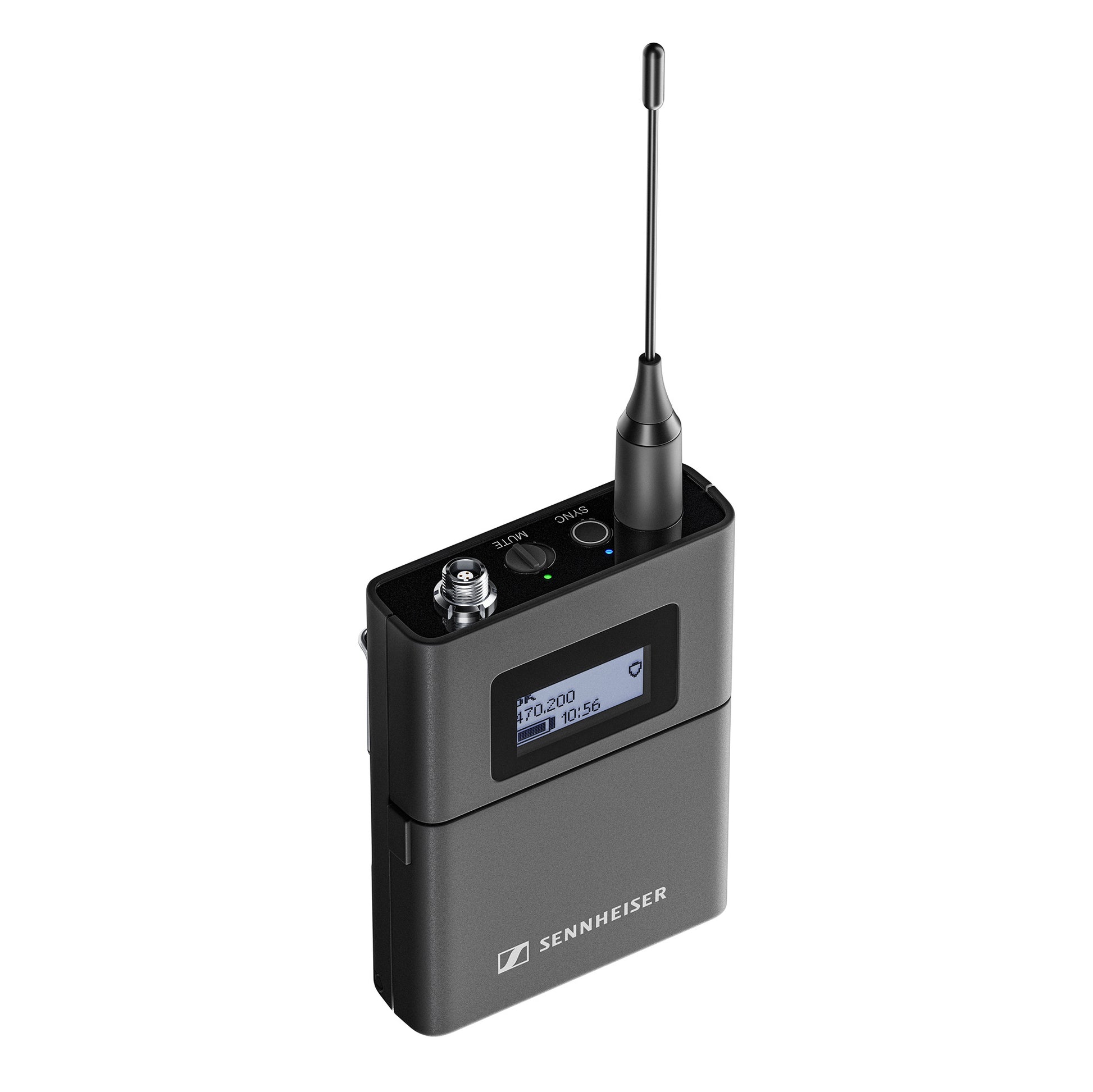

  • Sennheiser EW-DX MKE 2 SET SK

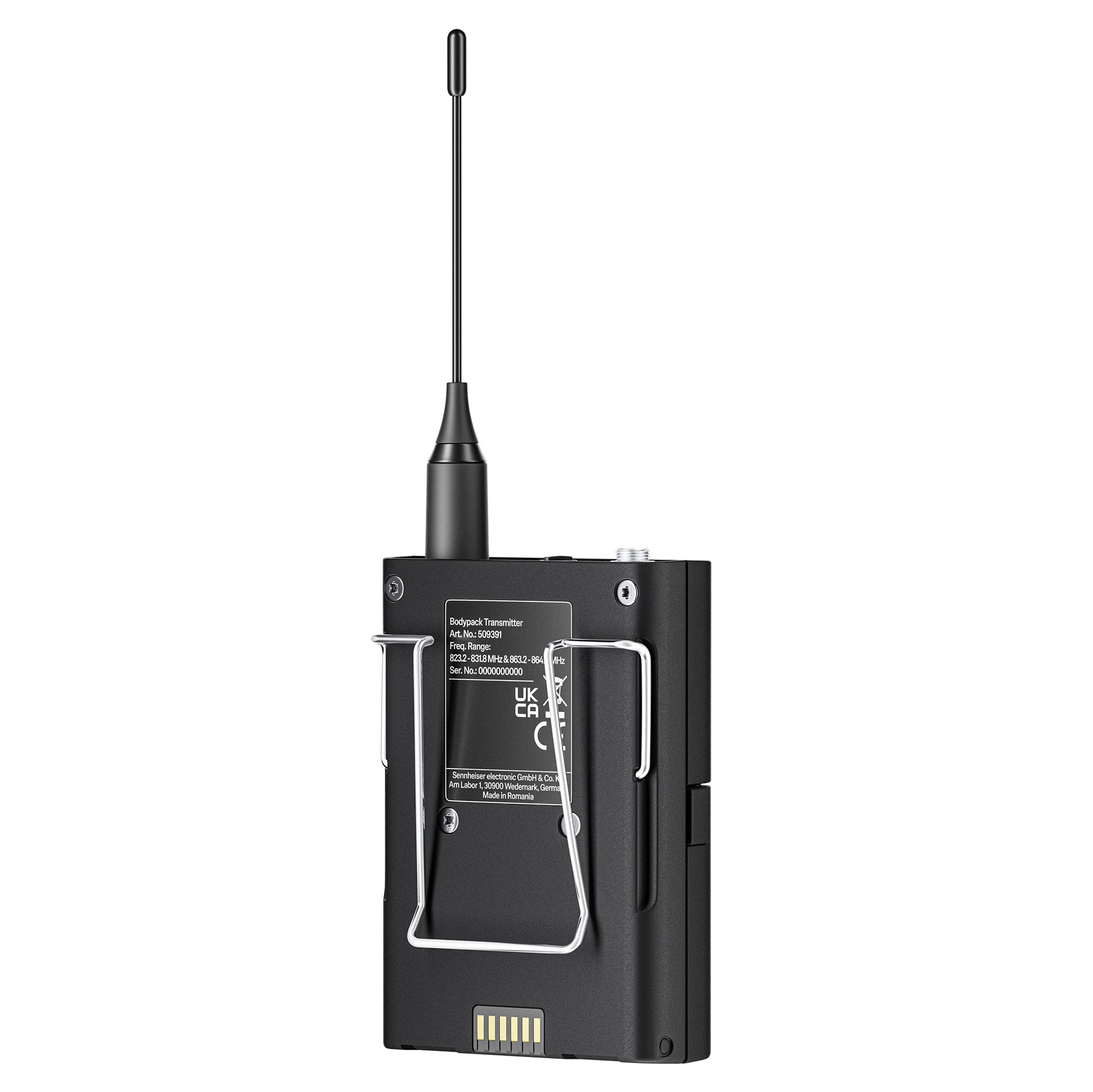

  • Sennheiser EW-DX MKE 2 SET SK back

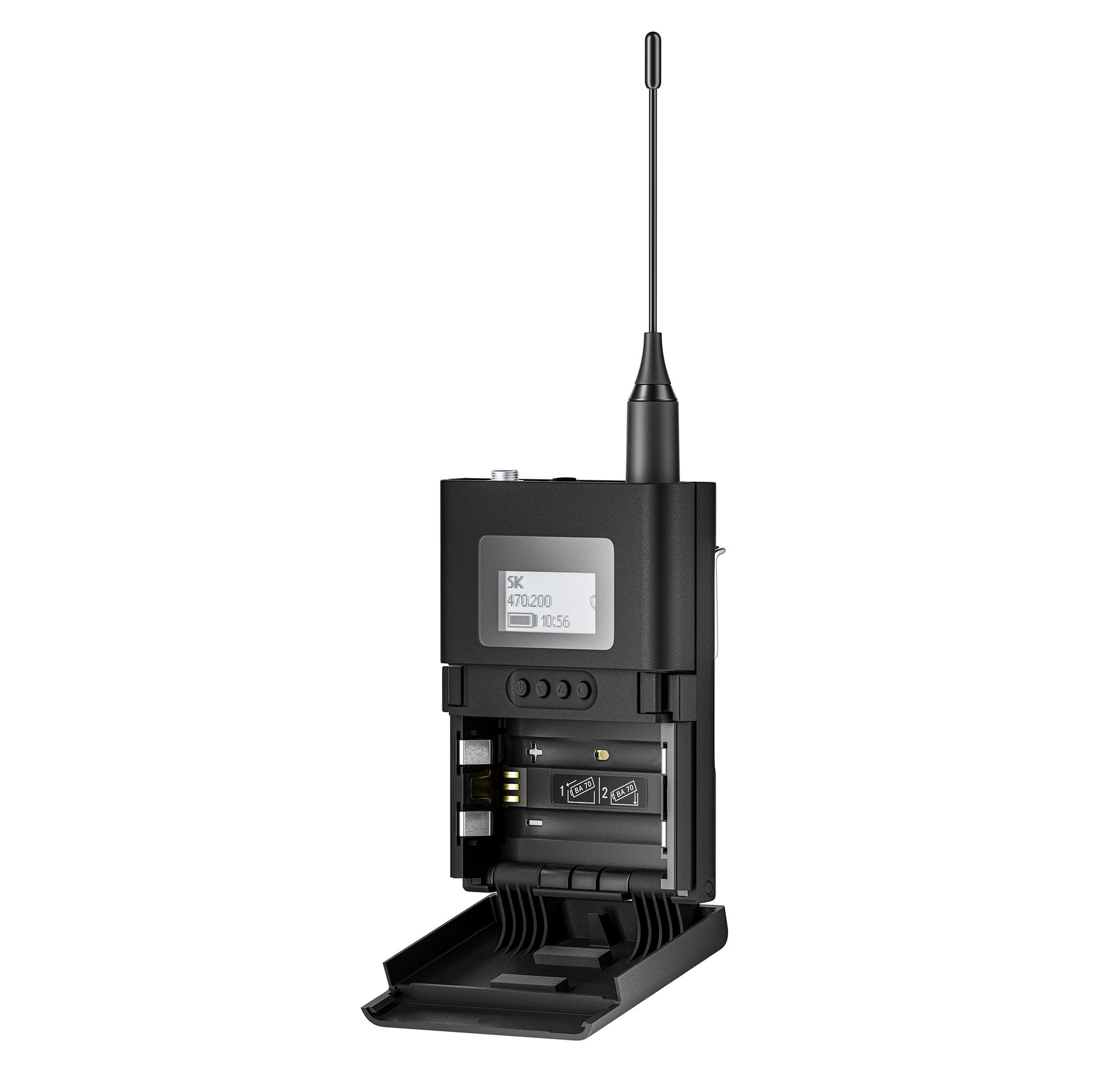

  • Sennheiser EW-DX MKE 2 SET interior

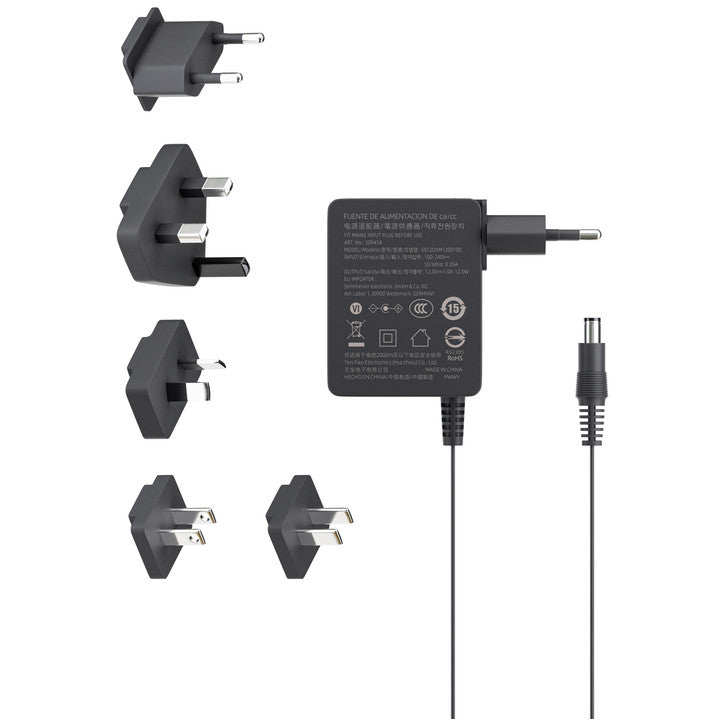

  • Power supply with country adapters
1 7

Sennheiser EW-DX MKE 2 SET Wireless Microphone Lavalier System | Frequency: Q1-9

Sennheiser EW-DX MKE 2 SET Wireless Microphone Lavalier System | Frequency: Q1-9

SoundPro Item: 133284 | Part Number: 509314

$2,999.00
$3,549.00 $2,999.00
Your Price Sold out
MSRP: $3,549.00 | MAP: $2,999.00

Usually ships in 5-7 business days

  • 2 channel half rack (9.5’)
  • Up to 88 MHz switching bandwidth
  • PoE IEEE 802.3af Class 3
  • Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
  • Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
  • Clear and easy focused user interface with OLED display
  • Ethernet connectivity (IPv4 and IPv6)
  • Secure AES 256 encryption
  • External PSU 12V/1A
  • All-metal housing
  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Programmable mute switch - customize the device depending on your professional needs
  • Extended runtime with lithium-ion batteries - up to 12 hours operation time
  • Mic input trim control
Log in or register for YOUR best price

Ideal for performers and presenters who need hands-free vocal capture, the EW-DX MKE 2 SET from Sennheiser is a wireless microphone lavalier system designed to deliver that audio freedom. This set includes two EW-DX SK bodypack transmitters, two MKE 2 lavalier microphones, one EW-DX EM 2 two-channel rackmount receiver, and two BA 70 rechargeable batteries.

Available Configurations

  • Q1-9: 470.2 - 550 MHz
  • R1-9: 520 - 607.8 MHz
  • V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
View full details
  • System
    • Audio Link Frequency Ranges
      • Q1-6: 470.2 - 526 MHz
      • R1-6: 520 - 576 MHz
      • V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
    • Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
    • Audio Frequency Response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
    • Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
    • Dynamic Range: 134 dB
    • System Latency: 1.9 ms
    • Operating Temperature: 14°F to 131°F (-10°C to 55°C)
    • Relative Humidity: 5 - 95% (non-condensing)
  • EW-DX EM 2 (rack receiver)
    • Input Voltage: 11 - 13 V &9107; or PoE IEEE 802.3af Class 0 (CAT5e or higher)
    • Input Current: ≤ 1 A
    • Transmit Power (radiated): BLE: max. 10 mW EIRP
    • Audio Output Power: 18 dBu max
    • Headphone Output: 2x 70 mW @ 32 Ω
    • Ethernet
      • RJ-45 socket, IEEE802.3
      • 100Base-TX (half+full duplex)
      • 10Base-T (half+full duplex)
      • (CAT5e or higher)
    • Dimensions: 8.35x1.73x7.44"
    • Weight: approx. 2.2 lbs (without antennas and power supply)
  • MKE 2 (lavalier microphone)
    • Transducer Principle: pre-polarized condenser microphone
    • Pick-Up Pattern: omnidirectional
    • Sensitivity (free field, no load) (1kHz): 5 mV/Pa +- 3 dB
    • Max. SPL at 1kHz: 142 dB
    • Frequency Response: 20 to 20,000Hz
    • Equivalent Noise Level A-weighted: 26 dB
    • Connector: 3.5mm jack
    • Cable Length: approx. 1.6m
    • Supply Voltage: 7.5V
  • EW-DX SK (bodypack transmitter)
    • Input Voltage: 2.0 - 4.35 V
    • Input Current: <300 mA
    • Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
    • Occupied Bandwidth: 200 kHz
    • Transmit Power (radiated)
      • Audio link: 10 mW ERP
      • (Range Y1-3: 12 mW ERP)
      • LD mode: 10 mW ERP
      • BLE: max. 10 mW EIRP
    • Dimensions (without antenna): 2.5x3.35x0.79"
    • Weight (without batteries): approx. 0.27 lbs
