Sennheiser EW-DX SK Wireless Bodypack Transmitter | Frequency: Q1-9, Connector: 3-Pin
Sennheiser EW-DX SK Wireless Bodypack Transmitter | Frequency: Q1-9, Connector: 3-Pin
SoundPro Item: 133311 | Part Number: 509398
Usually ships in 5-7 business days
- 3.5 mm jack or 3-pin connector variants
- 10mW RF power with up to 100m/328ft working range

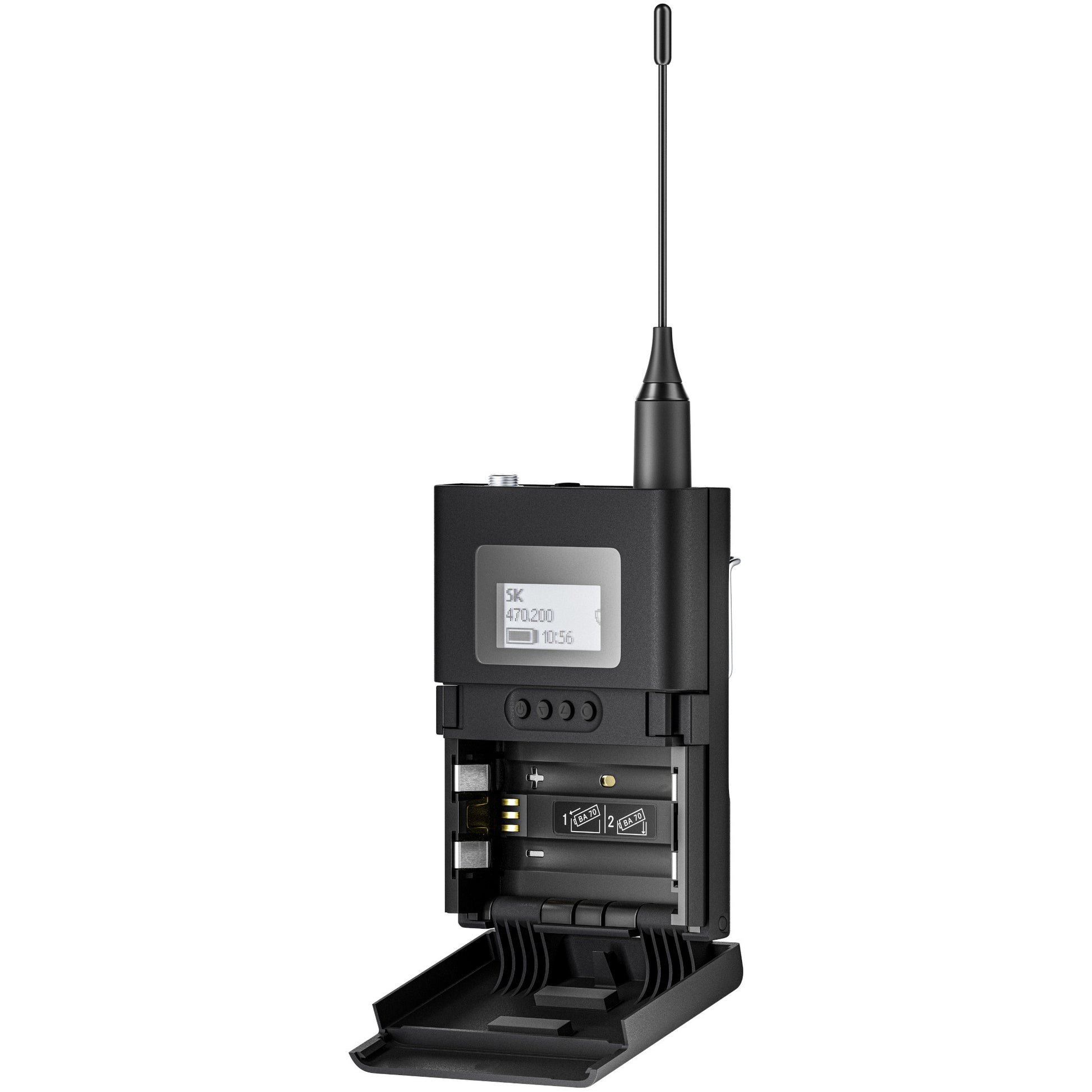

- Charging contacts for in-device charging with CHG 70N
- Persistent eInk display - parameters visible on screen even when device is not powered on
- Programmable mute switch - customize the device depending on your professional needs
- Extended runtime with lithium-ion batteries - up to 12 hours operation time
- Mic input trim control
- Metal housing

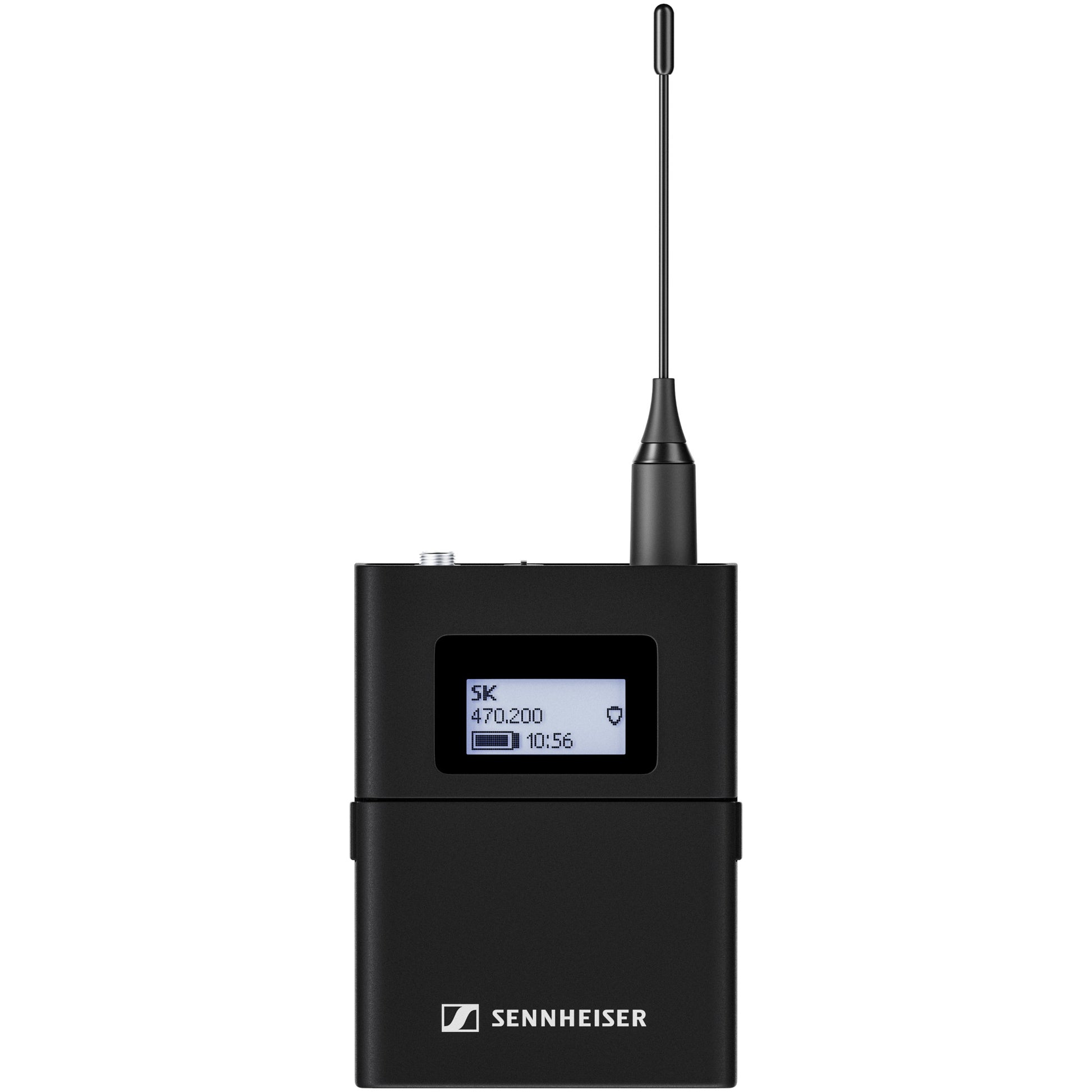

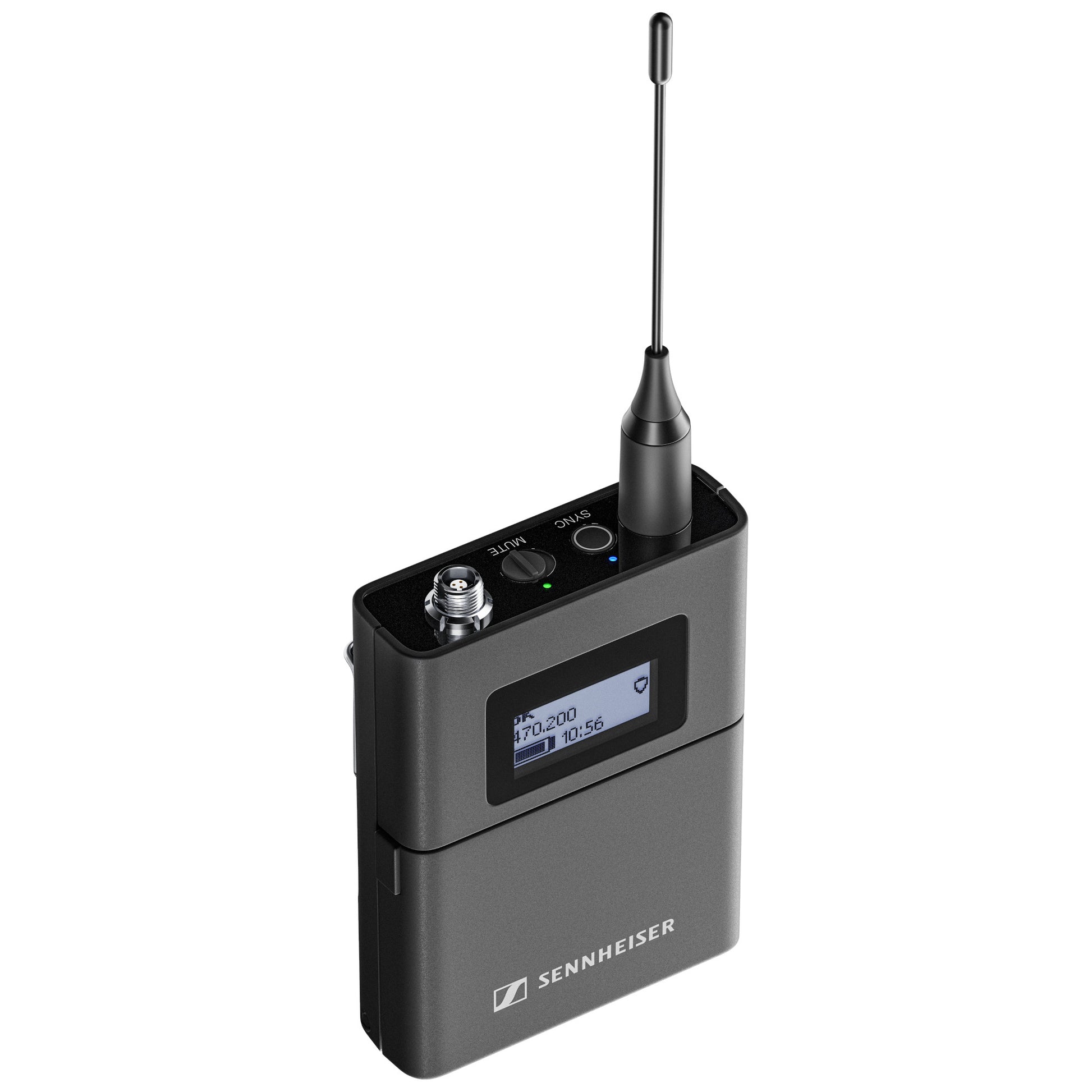

The EW-DX SK from Sennheiser is a compact wireless bodypack transmitter, designed to work with a wide range of Sennheiser headsets or lavalier microphones from the Evolution Wireless Digital collection. Housed in a rugged metal enclosure, boasting up to 12 hours of continuous operation, and featuring an easy-to-read e-Ink display and charging contacts for in-device charging, the versatile EW-DX SK is ideal for musicians and public speakers who want reliable, hands-free audio.
Choose from variants according to frequency and 3,5 mm jack or 3-pin connector options.
- System
- Audio link frequency ranges
- Q1-9: 470.2 - 550 MHz
- R1-9: 520 - 607.8 MHz
- S1-10: 606.2 - 693.8 MHz
- S: 2-10: 614.2 - 693.8 MHz
- S4-10: 630 - 693.8 MHz
- U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
- V3-4: 925.2 - 937.3 MHz
- V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
- Y1-3: 1785.2 - 1799.8 MHz
- Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
- Audio frequency response: 20 Hz - 20 kHz (-3 dB)
- Audio THD ≤ -60 dB for 1 kHz: @ -3 dBfs input level
- Dynamic range: 134 dB
- System latency: 1.9 ms
- Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
- Relative humidity: 5 - 95 % (non-condensing)
- Audio link frequency ranges
- EW-DX SK Bodypack Transmitter
- Input voltage 2.0 - 4.35 V
- Input current < 300 mA
- Power supply 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
- Occupied bandwidth 200 kHz
- Transmit power (radiated)
- Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
- LD mode: 10 mW ERP
- BLE: max. 10 mW EIRP
- Dimensions (without antenna): 2.5x3.35x0.79" (63.5x85x20 mm)
- Weight (without batteries): approx. 115-120 g (0.26-0.27 lbs)
