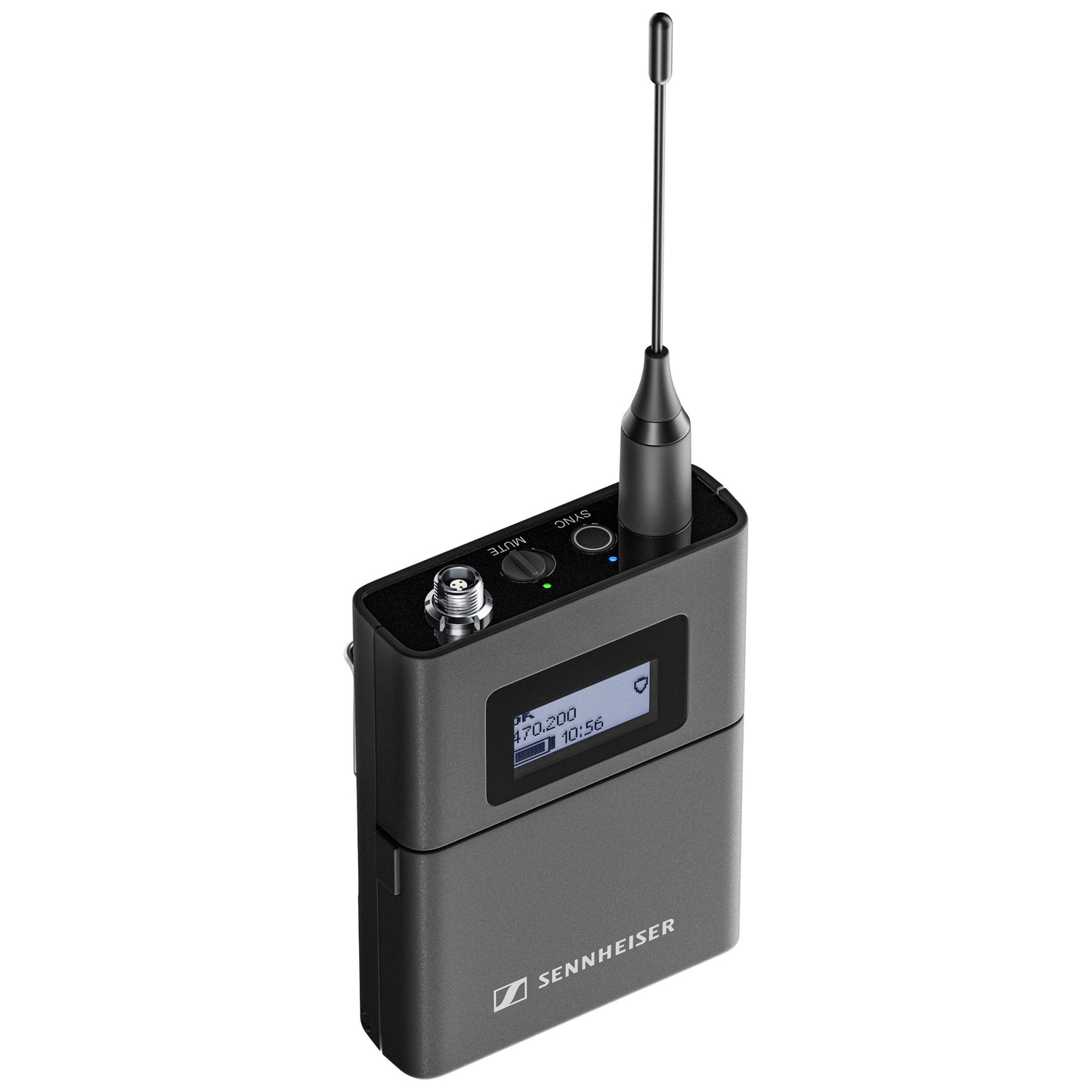

• Sennheiser EW-DX SK Wireless Bodypack Transmitter

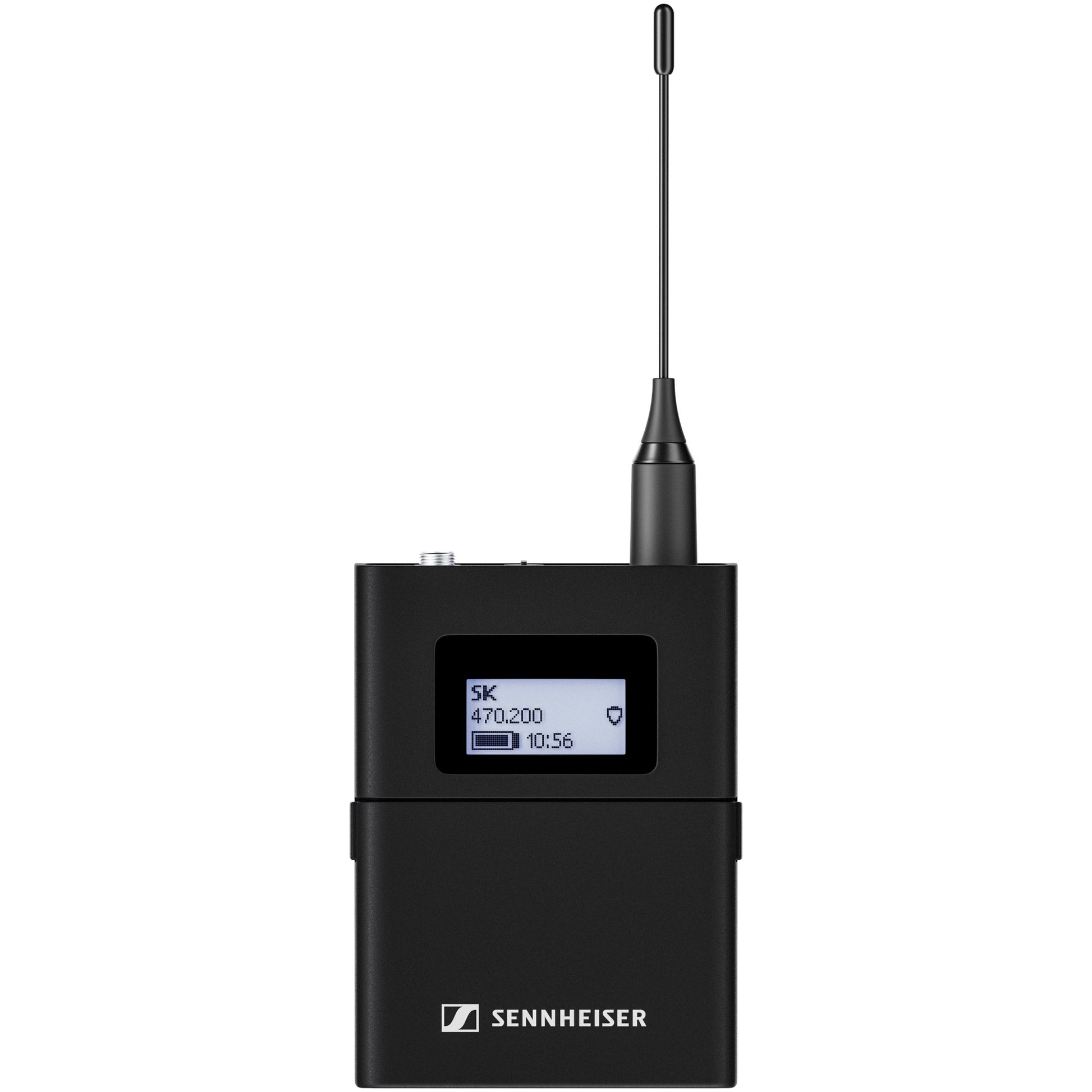

  • Sennheiser EW-DX SK Wireless Bodypack Transmitter front

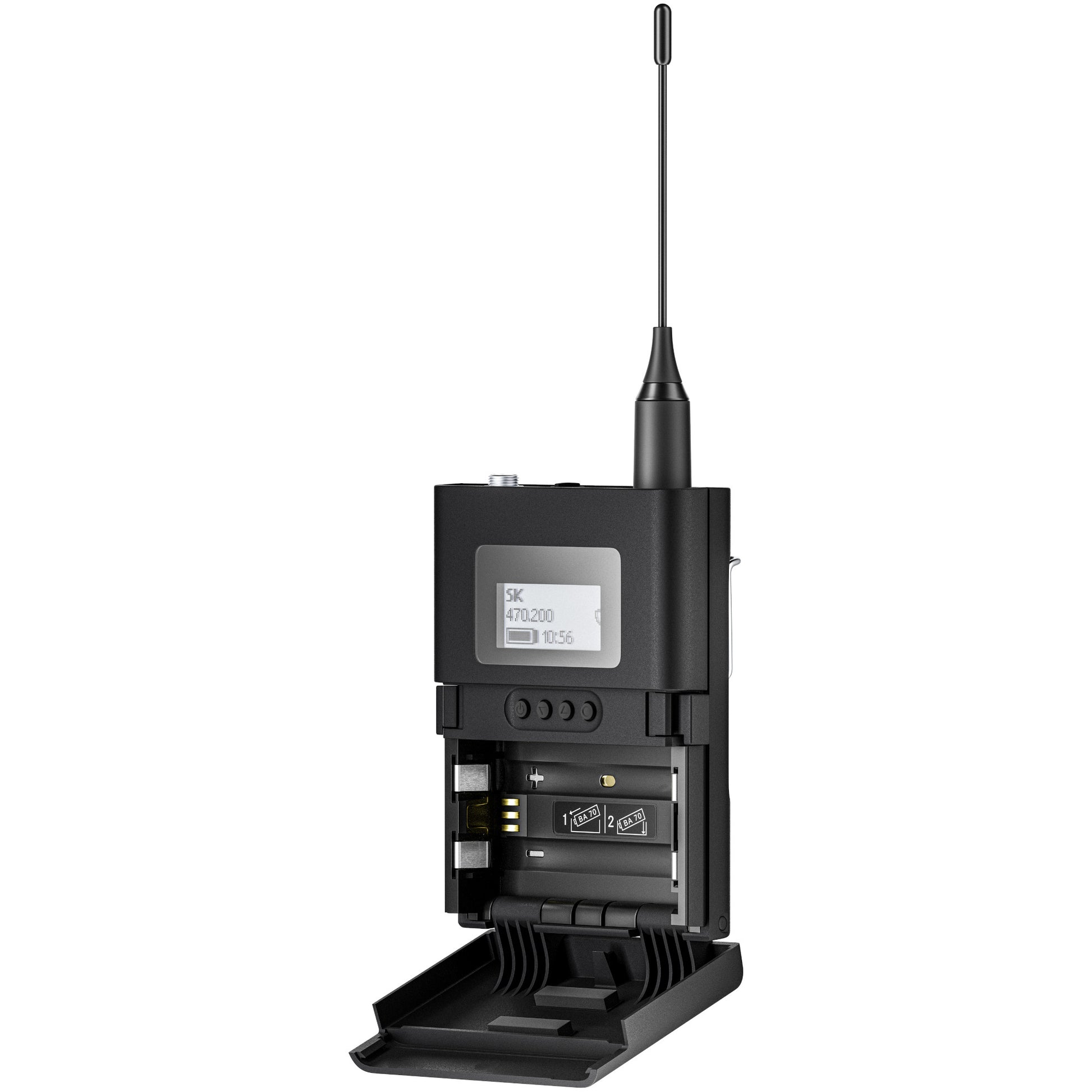

  • Sennheiser EW-DX SK Wireless Bodypack Transmitter interior
1 3

Sennheiser EW-DX SK Wireless Bodypack Transmitter | Frequency: V5-7, Connector: 3.5mm

Sennheiser EW-DX SK Wireless Bodypack Transmitter | Frequency: V5-7, Connector: 3.5mm

SoundPro Item: 133310 | Part Number: EW-DX SK (V5-7)

$499.00
$579.00 $499.00
Your Price Sold out
MSRP: $579.00 | MAP: $499.00

Usually ships in 5-7 business days

  • 3.5 mm jack or 3-pin connector variants
  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Programmable mute switch - customize the device depending on your professional needs
  • Extended runtime with lithium-ion batteries - up to 12 hours operation time
  • Mic input trim control
  • Metal housing
Log in or register for YOUR best price

The EW-DX SK from Sennheiser is a compact wireless bodypack transmitter, designed to work with a wide range of Sennheiser headsets or lavalier microphones from the Evolution Wireless Digital collection. Housed in a rugged metal enclosure, boasting up to 12 hours of continuous operation, and featuring an easy-to-read e-Ink display and charging contacts for in-device charging, the versatile EW-DX SK is ideal for musicians and public speakers who want reliable, hands-free audio.

Choose from variants according to frequency and 3,5 mm jack or 3-pin connector options.

View full details

Specifications

Dimensions
Dimensions (without antenna)
2.5x3.35x0.79" (63.5x85x20 mm)
Weight
Weight (without batteries)
approx. 115-120 g (0.26-0.27 lbs)
Electrical
Audio THD ≤ -60 Db for 1 Khz
@ -3 dBfs input level
Audio
Audio Frequency Response
20 Hz - 20 kHz (-3 dB)
Transmit Power (radiated) Audio Link
10 mW ERP (Range Y1-3: 12 mW ERP)LD mode: 10 mW ERPBLE: max. 10 mW EIRP
Connectivity
Bluetooth® Low Energy (BLE) Frequency Range
2402 - 2480 MHz
Environmental
Operating Temperature
-10 °C - +55 °C (14 °F - 131 °F)
Relative Humidity
5 - 95 % (non-condensing)
General
Q1-9
470.2 - 550
MHzR1-9
520 - 607.8
MHzS1-10
606.2 - 693.8
MHzS
2-10: 614.2 - 693.8
MHzS4-10
630 - 693.8
MHzU1/5
823.2 - 831.8 MHz & 863.2 - 864.8
MHzV3-4
925.2 - 937.3
MHzV5-7
941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65
MHzY1-3
1785.2 - 1799.8 MHz
Dynamic Range
134 dB
System Latency
1.9 ms
EW-DX SK Bodypack Transmitter
Input voltage 2.0 - 4.35 V, Input current < 300 mA, Power supply 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack, Occupied bandwidth 200 kHz
