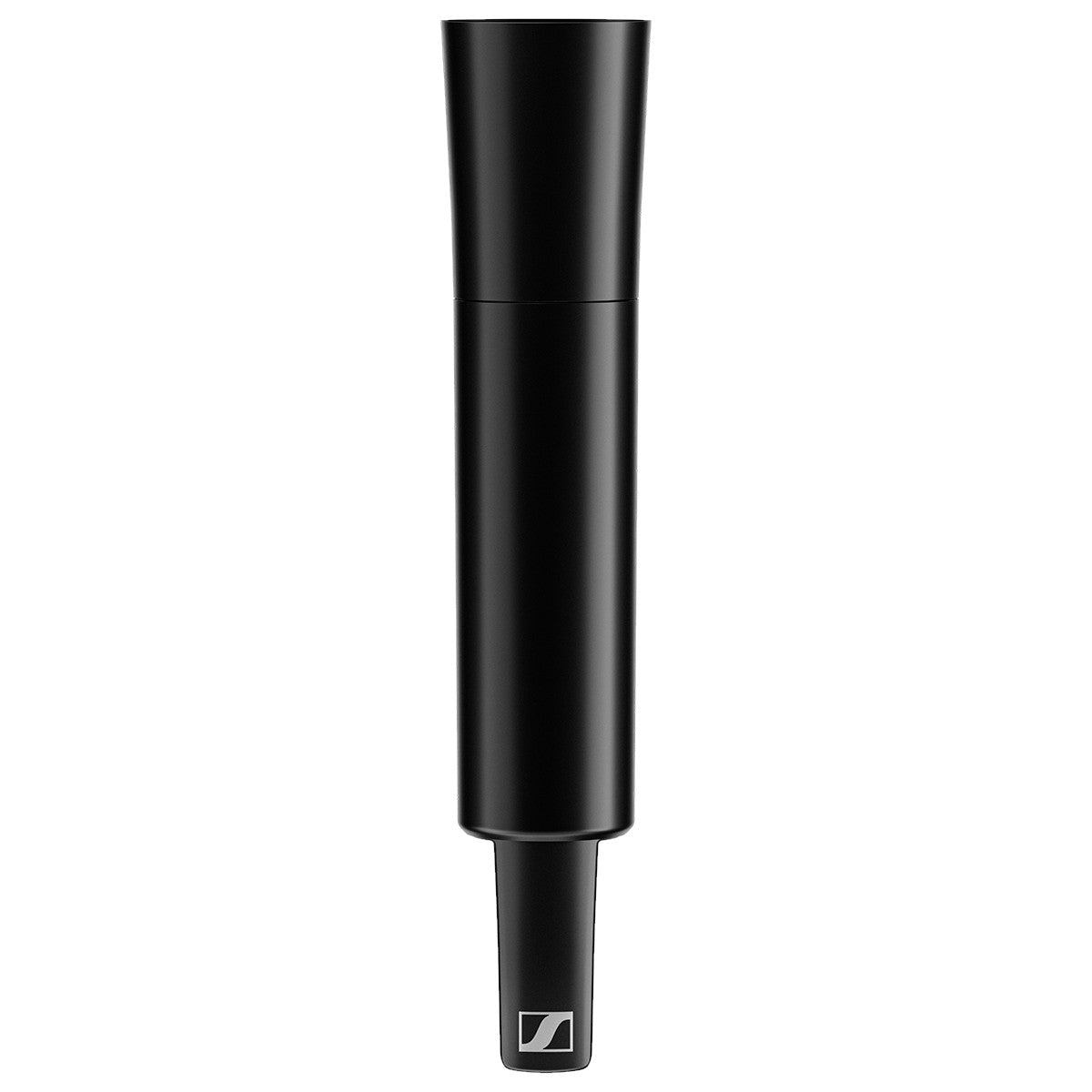

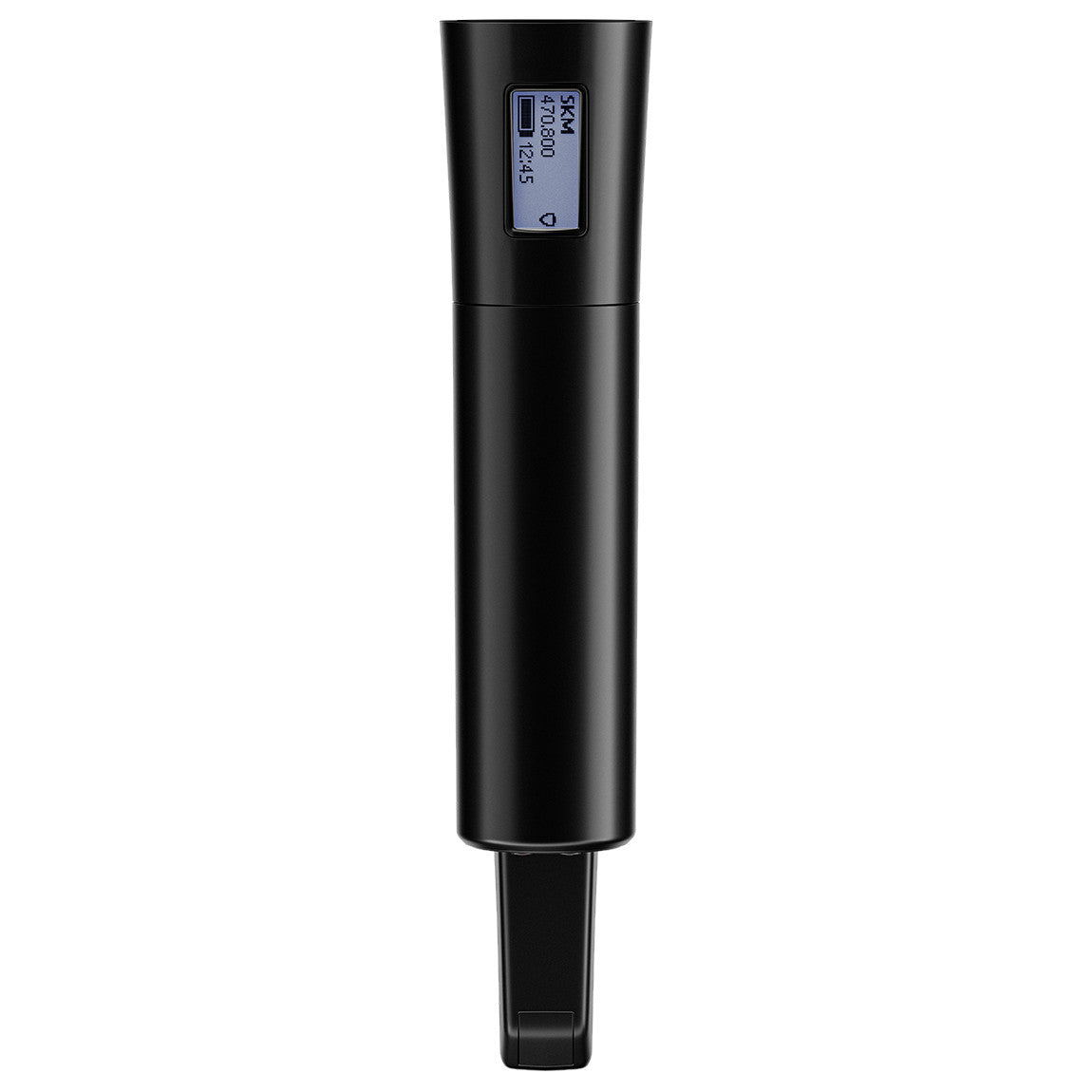

Sennheiser EW-DX SKM Wireless Microphone Handheld Transmitter | Frequency: Q1-9, Switch: Yes
Sennheiser EW-DX SKM Wireless Microphone Handheld Transmitter | Frequency: Q1-9, Switch: Yes
SoundPro Item: 133302 | Part Number: EW-DX SKM-S (Q1-9)
In stock and ready to ship
- 10mW RF power with up to 100m/328ft working range
- Charging contacts for in-device charging with CHG 70N
- Persistent eInk display - parameters visible on screen even when device is not powered on
- Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
- Function buttons - control all the transmitter settings directly from handheld microphone
- Extended runtime with lithium-ion batteries - up to 12 hours operation time
- Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
- Mic input trim control
- Metal housing
The EW-DX SKM from Sennheiser is a digital wireless handheld transmitter designed for optimal compatibility with Evolution Wireless Digital systems. Its standard capsule interface fits a wide range of Sennheiser and Neumann microphone modules (sold separately) for enhanced customization to specific applications. Boasting a rugged metal construction and enjoying up to 12 hours of runtime, EW-DX SKM is built to meet the challenges of live sound head-on. Other features include an easy-to-read e-Ink display and charging contacts for in-device charging.
Choose from variations according to frequency, as well as options with or without built-in switches.
- System
- Audio link frequency ranges
- Q1-9: 470.2 - 550 MHz
- R1-9: 520 - 607.8 MHz
- S1-10: 606.2 - 693.8 MHz
- S: 2-10: 614.2 - 693.8 MHz
- S4-10: 630 - 693.8 MHz
- U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
- V3-4: 925.2 - 937.3 MHz
- V5-7: 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
- Y1-3: 1785.2 - 1799.8 MHz
- Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
- Audio frequency response: 20 Hz - 20 kHz (-3 dB)
- Audio THD ≤ -60 dB for 1 kHz: @ -3 dBfs input level
- Dynamic range: 134 dB
- System latency: 1.9 ms
- Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
- Relative humidity: 5 - 95 % (non-condensing)
- Audio link frequency ranges
- EW-DX SKM Handheld Transmitter
- Input voltage: 2.0 - 4.35 V
- Input current: < 300 mA
- Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
- Occupied bandwidth: 200 kHz
- Transmit power (radiated)
- Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
- LD mode: 10 mW ERP
- BLE: max. 10 mW EIRP
- Dimensions (ø x l)
- Incl. MMD 835 microphone module: 50x268 mm (1.97x10.55")
- Without microphone module: 40x200 mm (1.57x7.87")
- Weight (without batteries)
- Incl. MMD 835 microphone module: approx. 304 g (0.67 lbs)
- Without microphone module: approx. 195 g (0.43 lbs)
