Sennheiser ew IEM G4-twin Wireless Monitoring System | Frequency: A1 (470-516 MHz)
Sennheiser ew IEM G4-twin Wireless Monitoring System | Frequency: A1 (470-516 MHz)
SoundPro Item: 118398 | Part Number: ew IEM G4-TWIN-A1
In stock and ready to ship
- Half-rack stereo transmitter in a full-metal housing with OLED display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Compatible with Sennheiser WSM control software for flexible frequency allocation
- Up to 16 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100m/300 ft
- High RF output power (up to 50 mW) depending on country regulations

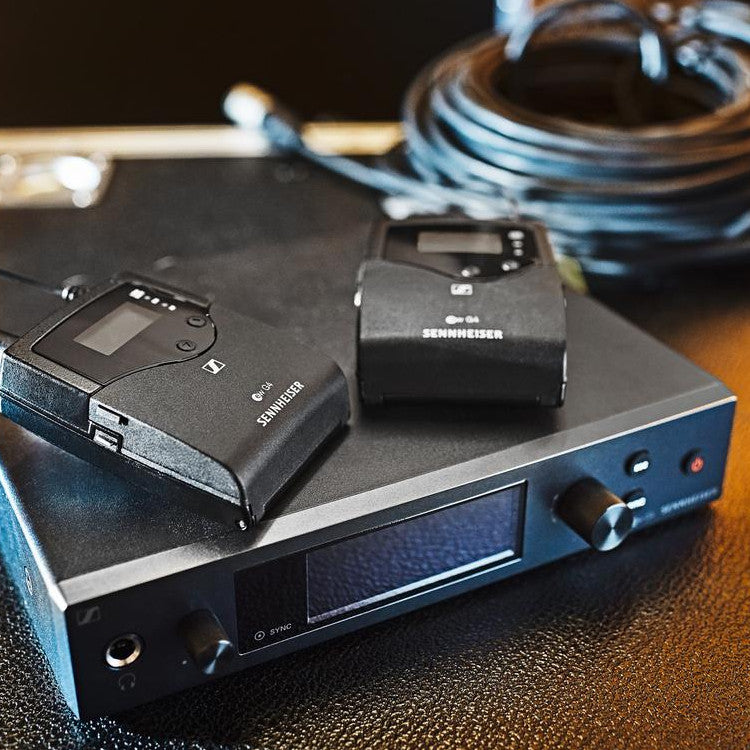

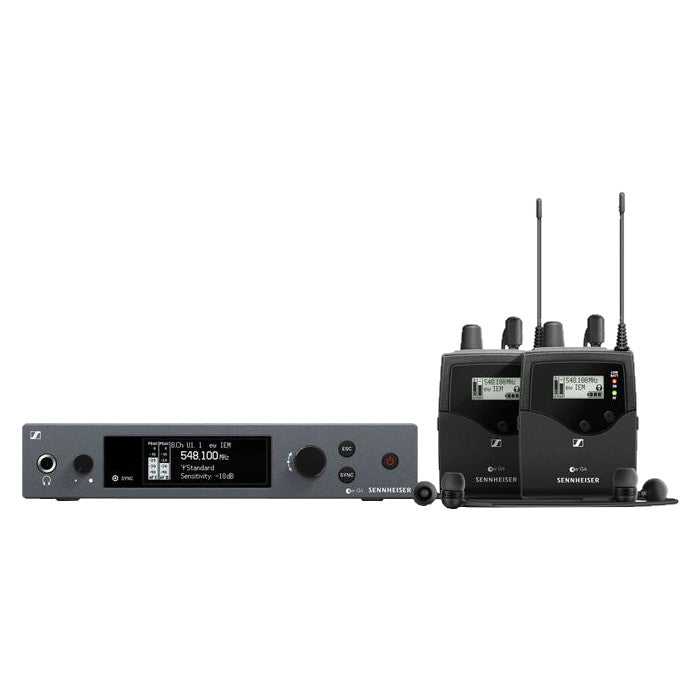

Immerse yourself in an extraordinary stage experience with the Sennheiser ew IEM G4 Wireless Stereo Monitoring System. Hear anywhere on stage so you can achieve precision control over your sound. This rugged, all-in-one wireless system includes two rugged SR IEM G4 stereo bodypack transmitters, an EK IEM G4 stereo receiver, two sets of IE 4 earphones, 4 AA batteries, a rod antenna, GA 3 rackmount set, and power supply.
- SR IEM G4
- Frequency range
- A: 516 - 558 MHz
- A1: 470 - 516 MHz
- AS: 520 - 558 MHz
- B: 626 - 668 MHz
- C: 734 - 776 MHz
- D: 780 - 822 MHz
- E: 823 - 865 MHz
- G: 566 - 608 MHz
- GB: 606 - 648 MHz
- Dimensions: Approx. 202 x 212 x 43 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: <0.9 %
- Weight: Approx. 980 g

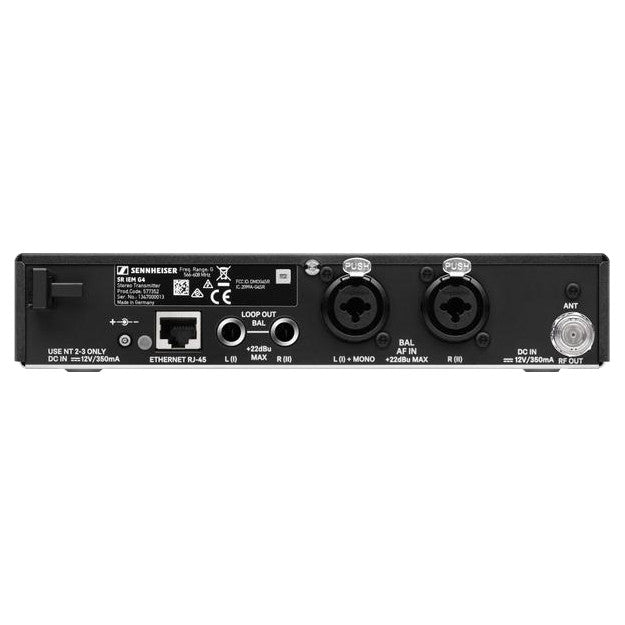

- Audio input: 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
- Audio output: ¼" (6.3 mm) stereo jack socket, balanced
- Signal-to-noise ratio: >90 dB
- RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidth: up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Modulation: Wideband FM stereo (MPX pilot tone)
- Power supply: 12 V DC
- Current consumption: max. 350 mA
- Max. Input voltage: +22 dBu
- Transmission frequency: Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
- AF frequency response: 25 Hz to 15 kHz
- Temperature Range: -10 °C to +55 °C
- Frequency stability: ±10 ppm
- Antenna Output: BNC socket, 50 Ω
- Frequency range
- EK IEM G4
- Dimensions: Approx. 82 x 64 x 24 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: ≤ 0.9 %
- Weight (incl. batteries): approx. 125 g
- Signal-to-noise ratio: approx. 90 dBA
- Switching bandwidth: up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: approx. 4 to 6 hours (depending on volume level)
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption
- at nominal voltage: approx. 140 mA
- with transmitter switched off: ≤ 25 µA
- Adjacent channel rejection: Typically ≥ 65 dB
- Audio-Output-Power: 2 x 100 mW at 32 Ω
- Intermodulation attenuation: Typically ≥ 70 dB
- Limiter: –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
- Powering: 3 V battery / 2.4 V rechargeable battery
- Receiving frequency: Max. 1680 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 6 frequency banks with up to 16 programmable channels
- RF sensitivity: < 4 μV, typ. 1.6 μV for 52 dBA rms S/N
- Squelch: 5 to 25 dBµV, adjustable in steps of 2 dB
- Bass Boost: +8 dB at 8 kHz
- Temperature Range: -10 °C to +55 °C
- Receiver Principle: Adaptive diversity
- Blocking: ≥ 80 dB
