Specifications
Dimensions
Diameter
Ø 3,3 mm
Electrical
Min. Terminating Impedance
4,7 kΩ
Operating Voltage (mains)
-4 and -4-3: through transmitters SK 5212, SK 5012, SK 250, SK 50, SK 3063; -5 and -5-3: 4,5 - 15 V
Audio
Polar Pattern
Omnidirectional
Frequency Response
20 Hz - 20 kHz ± 2,5 dB
Output Impedance
1000 Ω
Sensitivity in Free Field, No Load (1kHz)
5 mV / Pa ± 2,5 dB
Max SPL (passive)
142 dB
Construction
Color

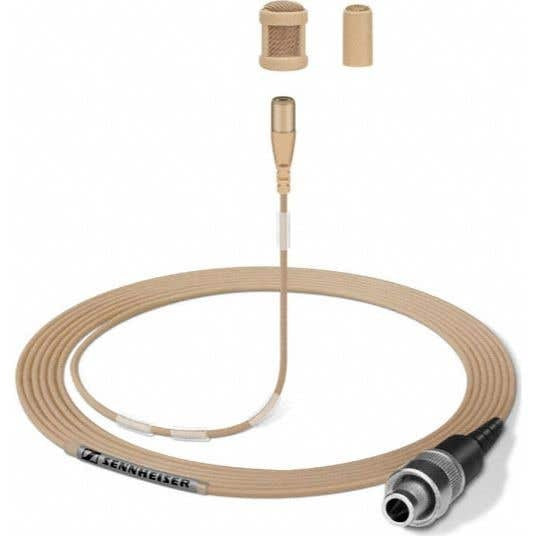

-4 et -5: black; -4-3 and -5-3: beige
Shipping
Weight
0,1 g
General
Transducer Type
Condenser
Equivalent Noise Level
27 dB
Equivalent Noise Level Weighted As per CCIR
39 dB
