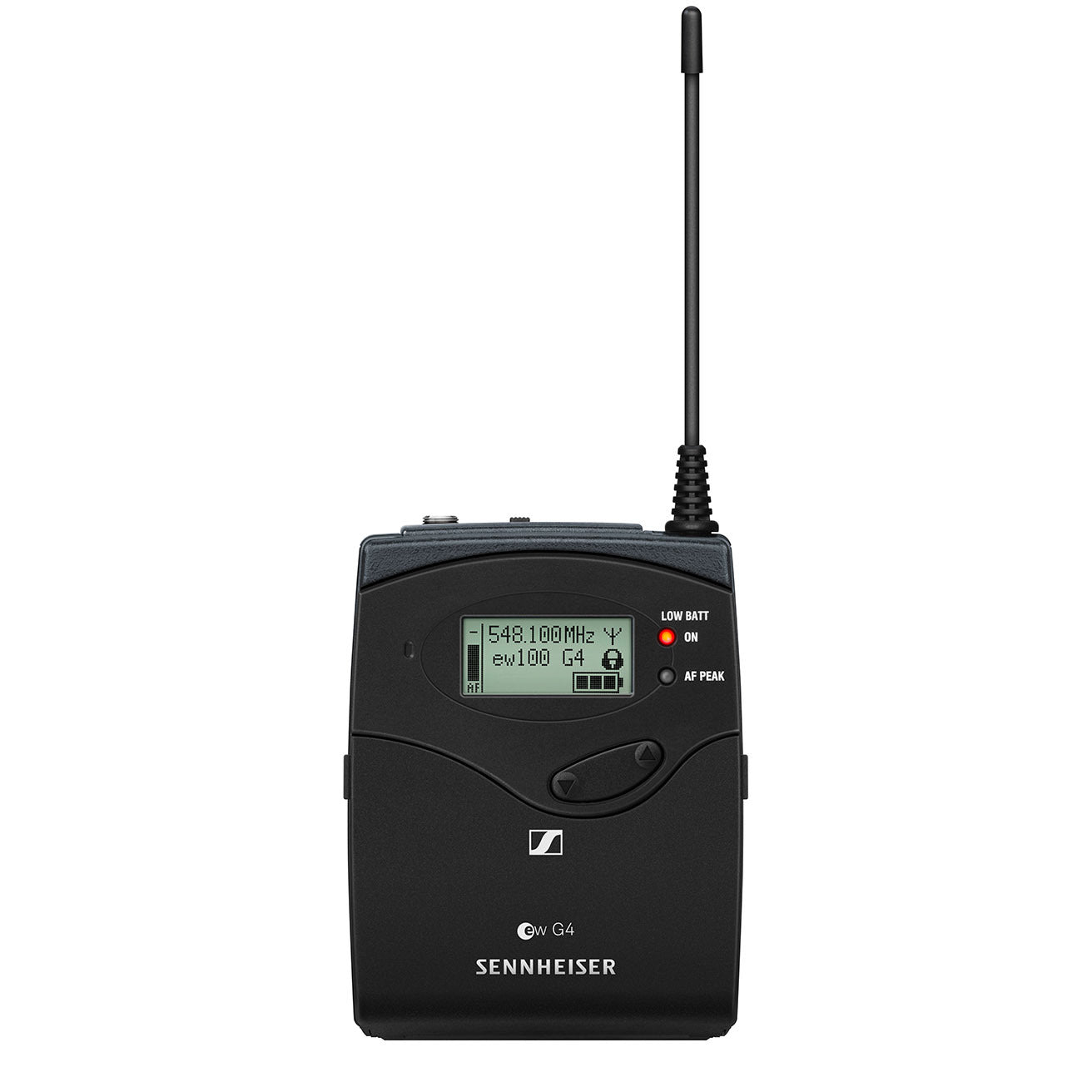

Sennheiser SK 100 G4 Bodypack Transmitter | Frequency: A1 (470-516 MHz)
Sennheiser SK 100 G4 Bodypack Transmitter | Frequency: A1 (470-516 MHz)
SoundPro Item: 118320 | Part Number: SK 100 G4-A1
Usually ships in 5-7 business days
- Robust bodypack transmitter for daily use on stage
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100m/300 ft
- High RF output power (up to 30 mW) depending on country regulations
Ideal for daily use on the stage, the SK 100 G4 from Sennheiser is a rugged bodypack transmitter that is compatible with evolution wireless G4 100 systems. Using infrared, this bodypack is easy to wirelessly sync to a receiver. Using an innovative linking functionality, its fast frequency allocation allows up to 12 receivers. Other features include up to 20 compatible channels, up to 42 MHz bandwidth (with 1680 selectable frequencies) that’s fully tunable in a stable UHF range, and a high RF output power (up to 30mW) depending on country regulations.
The SK 100 G4 is available in various frequencies. Comes with two AA batteries.
- Frequency range
- A: 516 - 558 MHz
- A1: 470 - 516 MHz
- G: 566 - 608 MHz
- Switching bandwidth up to 42 MHz
- Peak deviation ±48 kHz
- Nominal deviation ±24 kHz
- Operating time Typically 8 h
- Modulation Wideband FM
- Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption
- at nominal voltage: typ. 180 mA
- with transmitter switched off: ≤ 25 μA
- Input impedance 40 kΩ, unbalanced / 1 MΩ
- Max. Input voltage 3 Veff
- Powering 3V battery / 2.4V rechargeable battery
- Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- AF frequency response Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
- Temperature Range -10 °C to +55 °C
- Frequency stability ≤ ±15 ppm
