Sennheiser SR IEM G4 In-Ear Monitor Transmitter | Frequency: G (566-608 MHz)
Sennheiser SR IEM G4 In-Ear Monitor Transmitter | Frequency: G (566-608 MHz)
SoundPro Item: 118412
Usually ships in 5-7 business days

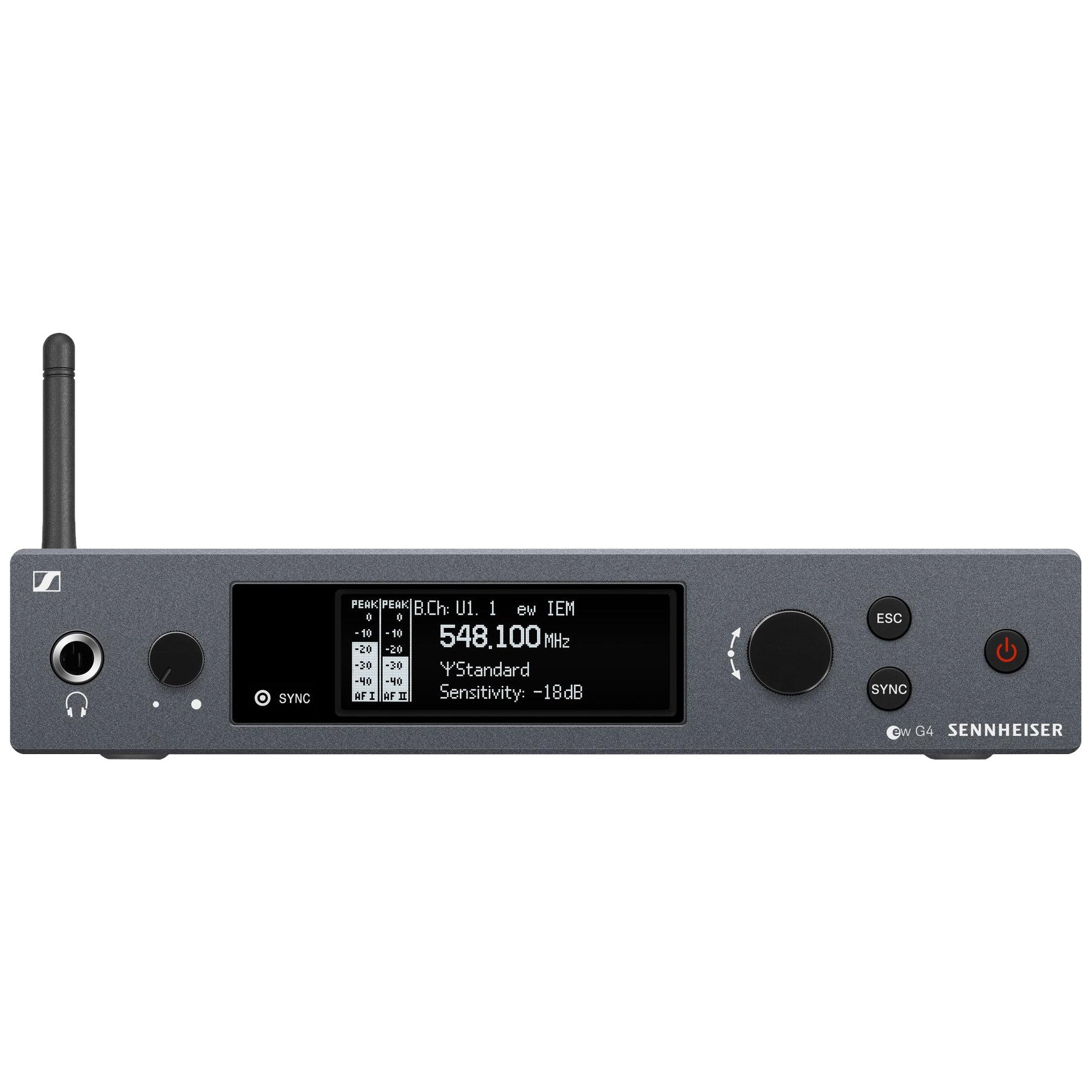

- Half-rack stereo transmitter in a full-metal housing with OLED display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Compatible with Sennheiser WSM control software for flexible frequency allocation
- Up to 16 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100m/300 ft
- High RF output power (up to 50 mW) depending on country regulations
- Compatible with wireless speaker system LSP 500 PRO
Half-rack stereo transmitter in a full-metal housing with OLED display for full control delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.
- Frequency range
- A: 516 - 558 MHz
- A1: 470 - 516 MHz
- AS: 520 - 558 MHz
- B: 626 - 668 MHz
- C: 734 - 776 MHz
- D: 780 - 822 MHz
- E: 823 - 865 MHz
- G: 566 - 608 MHz
- GB: 606 - 648 MHz
- DimensionsApprox. 202 x 212 x 43 mm
- CompanderSennheiser HDX
- THD, total harmonic distortion<0.9 %
- WeightApprox. 980 g
- Audio input2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
- Audio output¼" (6.3 mm) stereo jack socket, balanced
- Signal-to-noise ratio>90 dB
- RF output powerswitchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidthup to 42 MHz
- Peak deviation±48 kHz
- Nominal deviation±24 kHz
- ModulationWideband FM stereo (MPX pilot tone)
- Power supply12 V DC
- Current consumptionmax. 350 mA
- Max. Input voltage+22 dBu
- Transmission frequencyMax. 1680 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 6 frequency banks with up to 16 programmable channels
- AF frequency response25Hz to 15kHz
- Temperature Range10°C to +55°C
- Frequency stability±10 ppm
- Antenna OutputBNC socket, 50Ω
