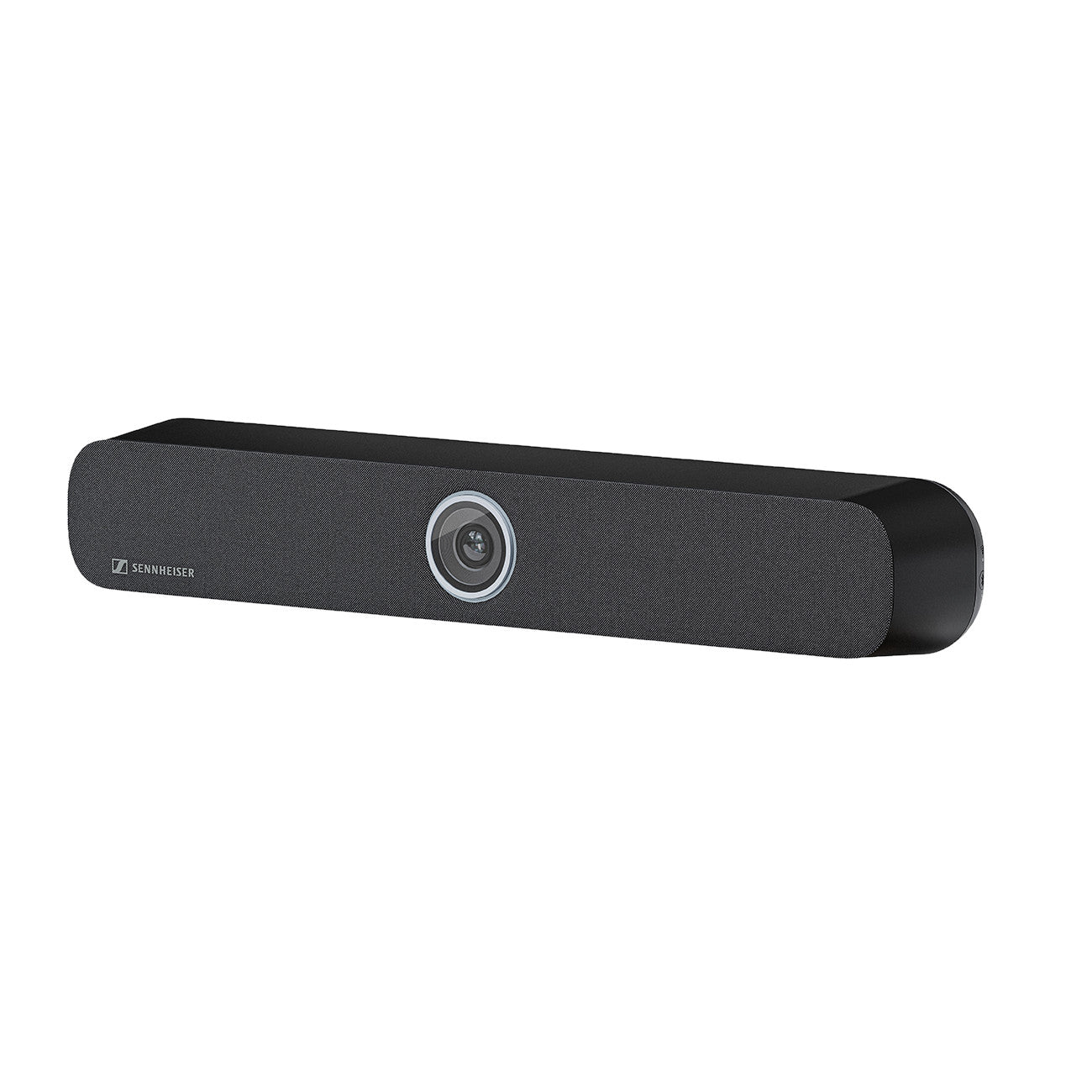

• Sennheiser TeamConnect Bar S

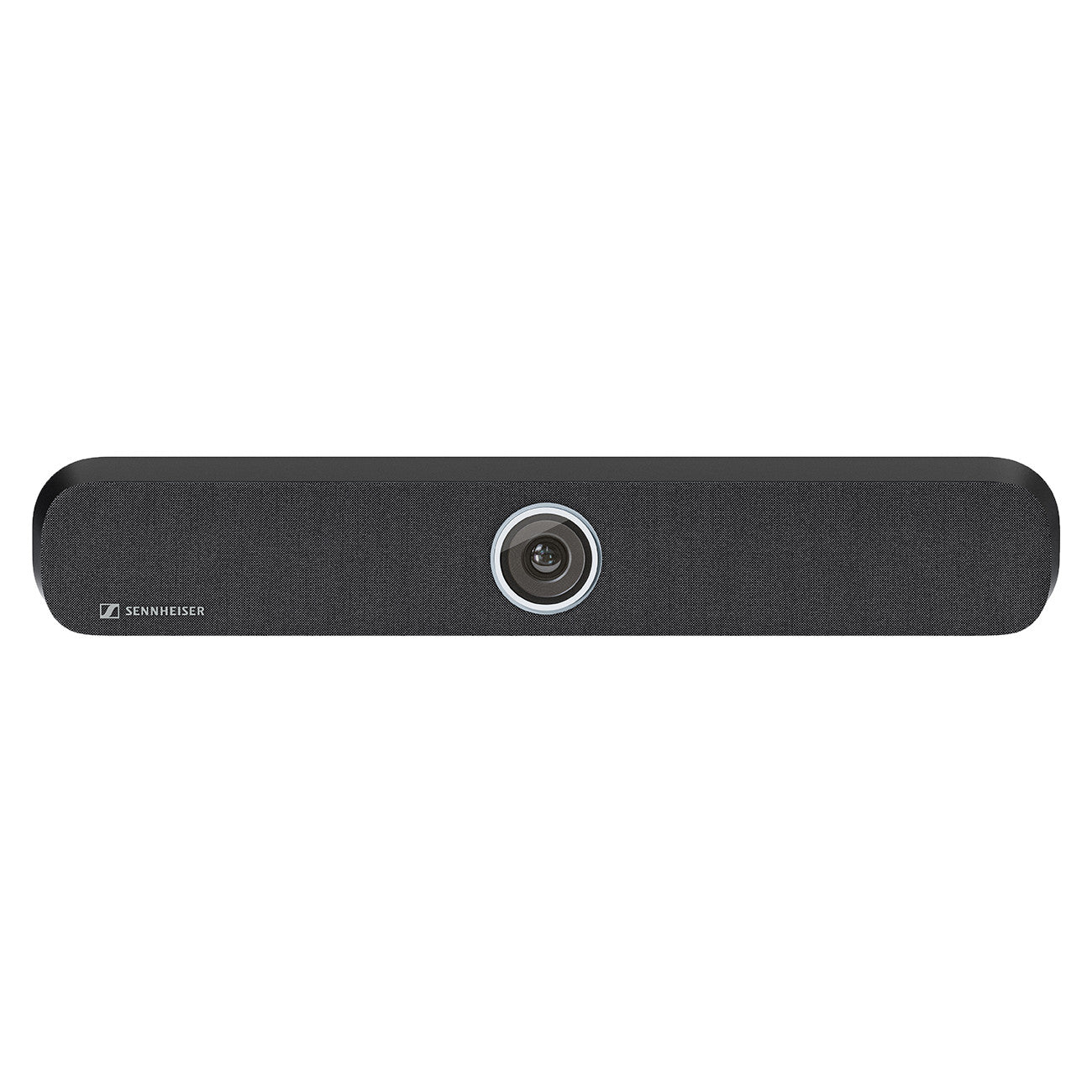

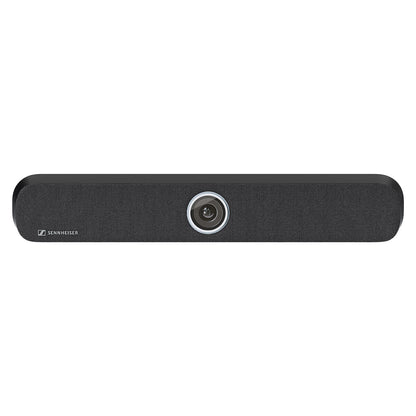

  • Sennheiser TeamConnect Bar S front

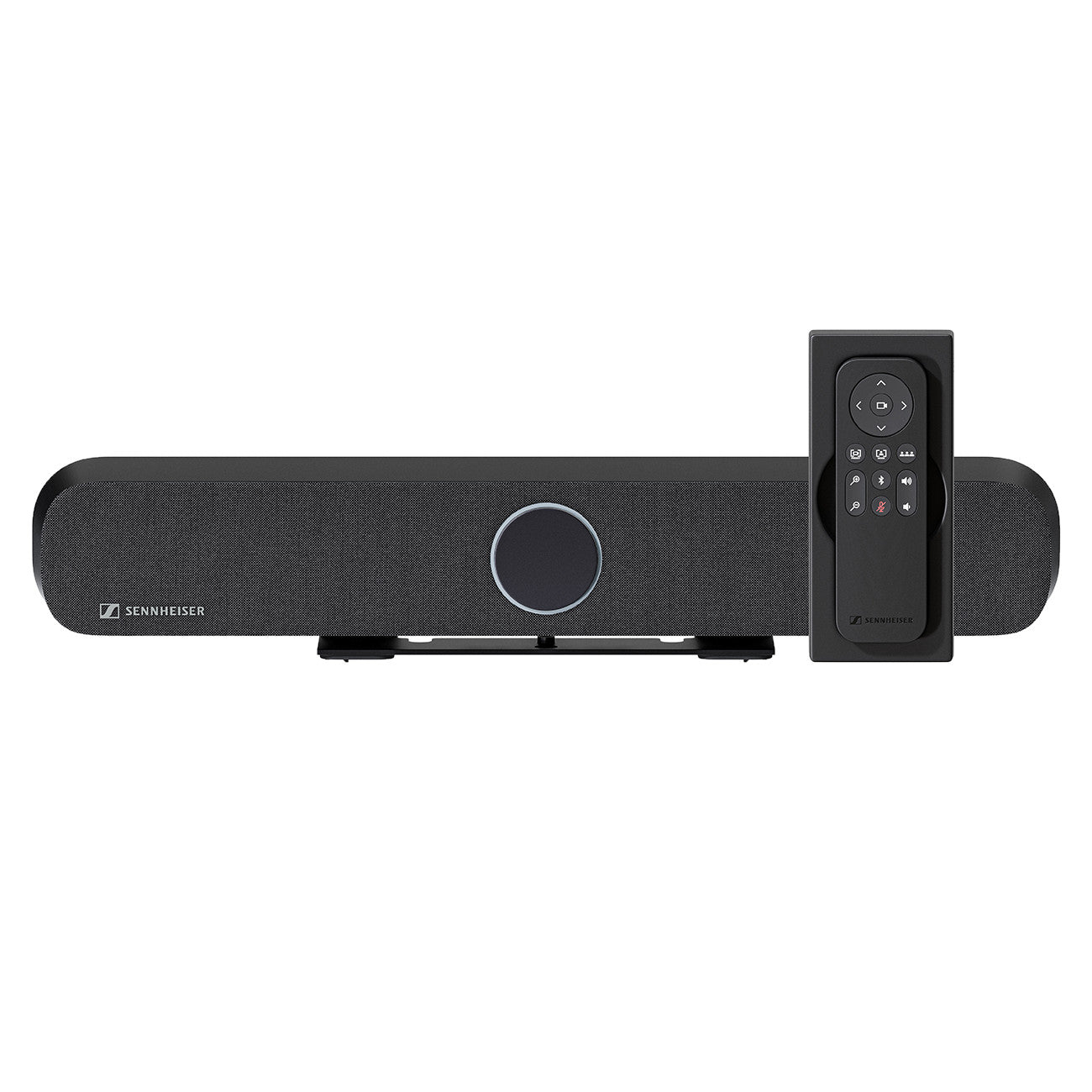

  • Sennheiser TeamConnect Bar S with remote

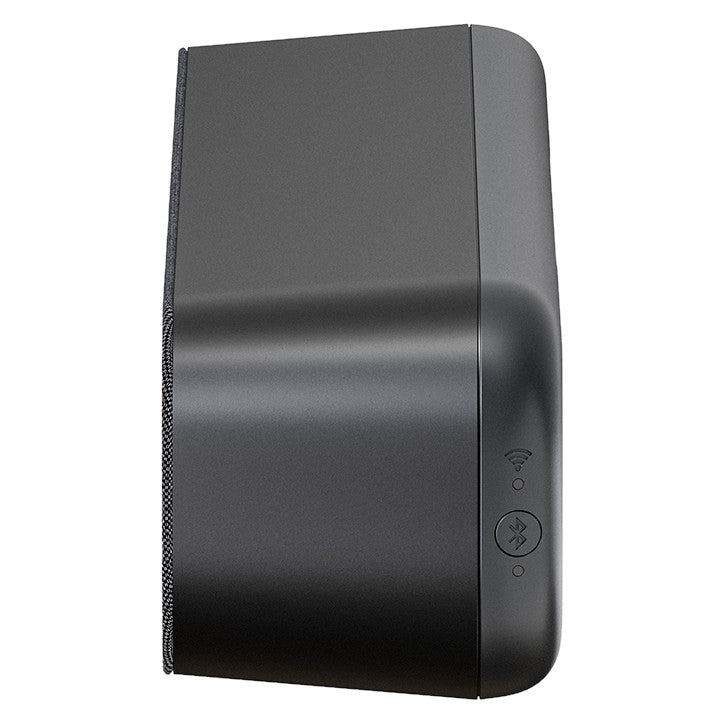

  • Sennheiser TeamConnect Bar S side

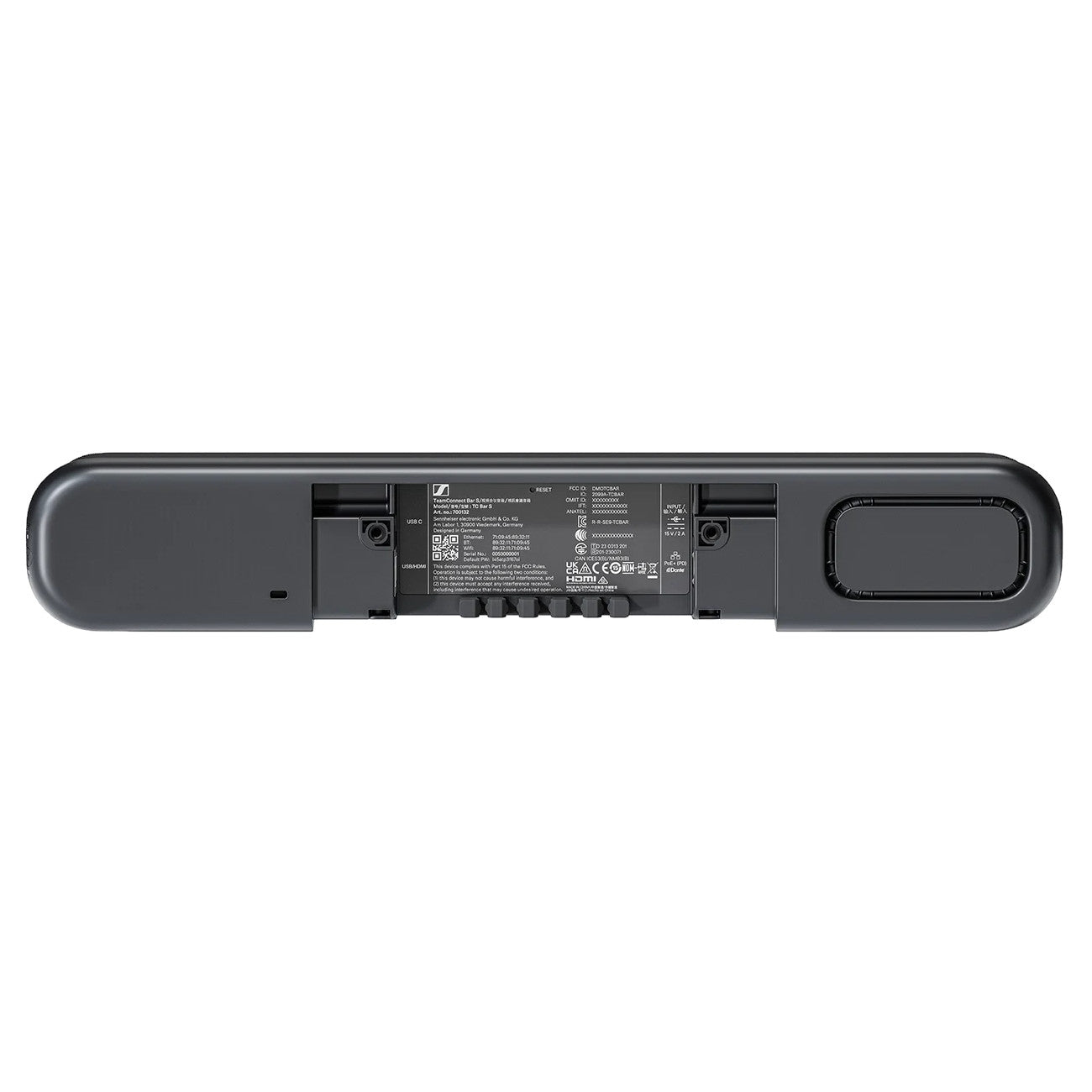

  • Sennheiser TeamConnect Bar S back

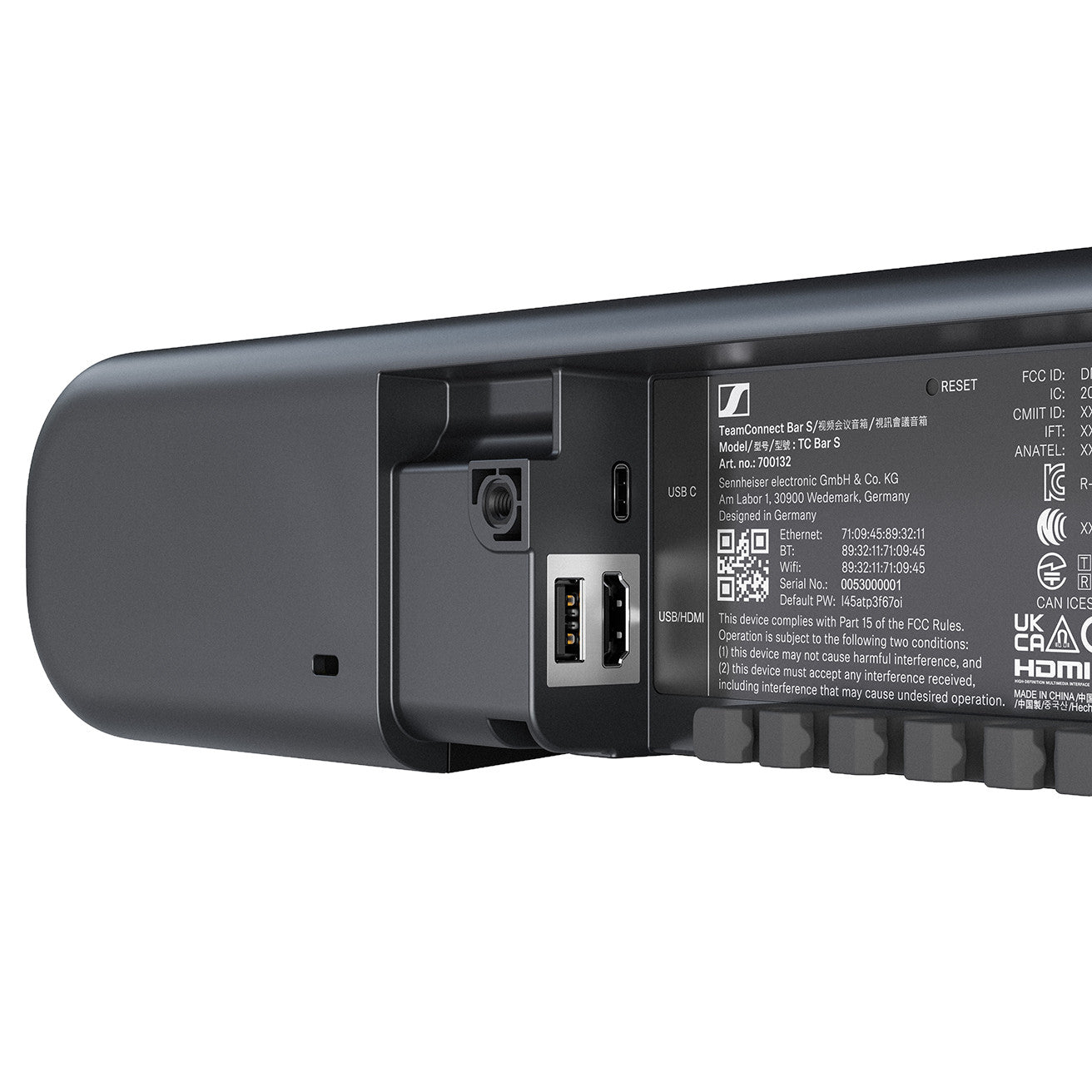

  • Sennheiser TeamConnect Bar S detail left

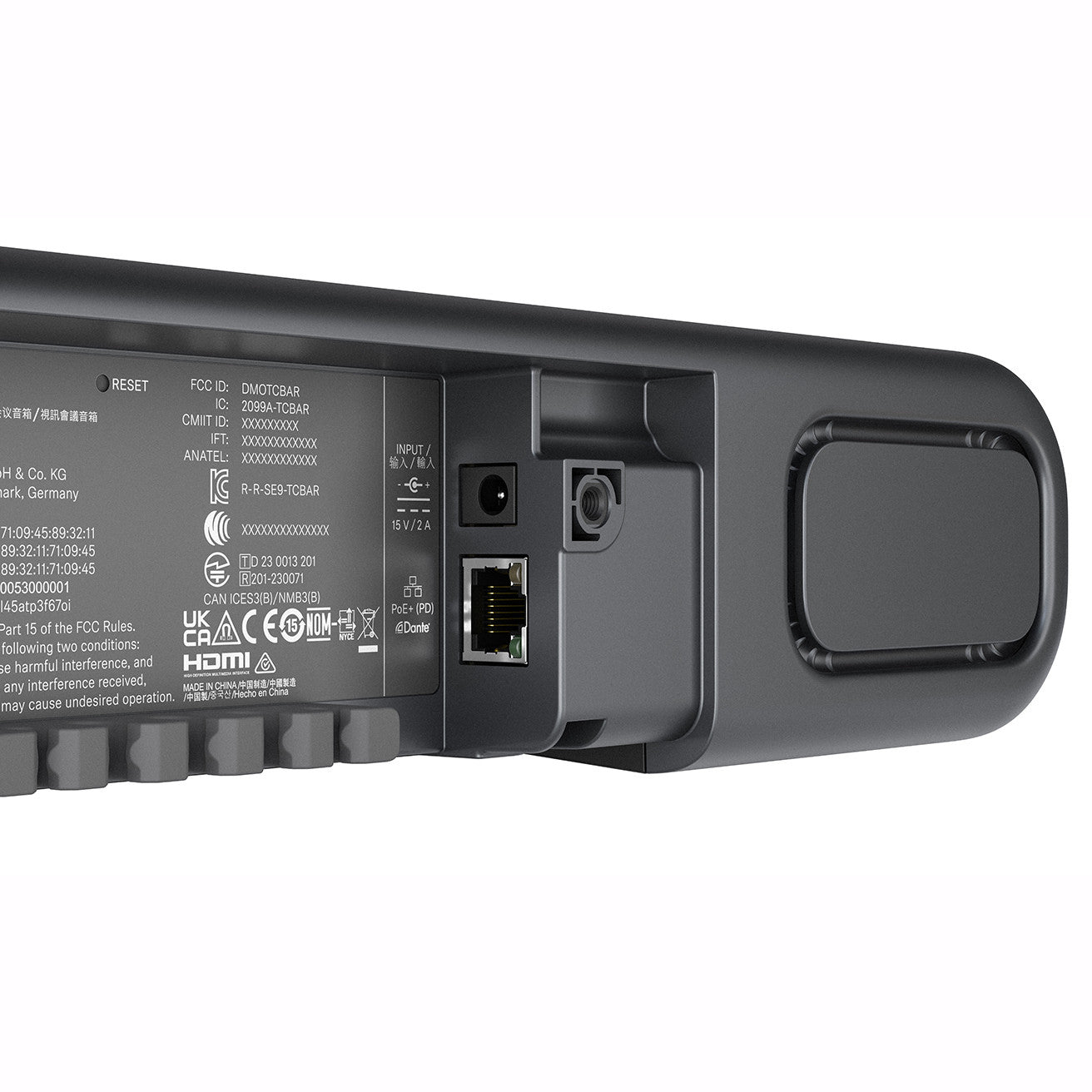

  • Sennheiser TeamConnect Bar S detail right
1 7

Sennheiser TeamConnect Bar S

Sennheiser TeamConnect Bar S

SoundPro Item: 139910 | Part Number: TC BAR S US

$699.00
$875.00 $699.00
Your Price Sold out
MSRP: $875.00 | MAP: $699.00

Usually ships in 5-7 business days

  • Plug and Play Device
  • Integrated Beamforming Technology
  • Flexible Extensions
  • High Video Quality
  • Full-Range Stereo Speakers
  • Built-In DSP
  • Multiple Mounting Options
  • Autoframing and Person Tiling
  • Control Management
  • Advanced Security Features
Log in or register for YOUR best price

The TeamConnect Bar S is the most flexible all-in-one device for small meeting rooms and collaboration spaces. The TC Bar S features 4 microphones and 2 speakers to deliver Trusted Sennheiser Audio Quality to every meeting. The TC Bar S is a true problem solver with benefits like easy setup, brand agnostic integration, easy management & control, high video quality, security and sustainability.

View full details

Specifications

Dimensions
Dimensions (LxBxH)
450x71x76mm
Diameter
50 mm (2")
DC IN Dimension
5.5x2.1x10.5mm
Electrical
Max. Power Consumption
30W
Voltage Range PoE (PD)
42.5 – 57.0 V &9107; (IEEE 802.3at Type 2, PoE+)
THD at max. Output
<5%
Audio
Max. SPL (output)
80 dB SPL
Total Audio Power (RMS/PEAK)
10W / 20W
Frequency Response
100 Hz - 18 kHz
Optics
Zoom
3x digital zoom
Connectivity
Power State Information Standby Mode (all Ports deactivated) Networked Standby (all Ports activated)
≤ 0.50 W (Entered after 2 hours with no activity on any network port) ≤ 2.00 W (Entered after 18 minutes of inactivity)
HDMI Out
1x HDMI 2.0
USB-C
USB 3.1 (Gen 1)
USB-A Power Output
USB 3.1 (Gen1); 5 V &9107;, max. 900 mA
Ethernet
1 x 1000/100/10
Construction
Pick-up Pattern
Beamforming Array
Environmental
Operating Temperature
0°C to 40°C | 32°F to 104°F
Storage Temperature
-25°C to 70°C | -13°F to 158°F
Relative Humidity Operation
0 to 75 %, non-condensing
Relative Humidity Storage
0 to 95 %, non-condensing
Shipping
Weight
1.5 kg
General
DC IN
15 V &9107;, max. 2 A
Total Number of Speakers
2 with passive radiator
Type
full range
Amplifier
Class-D
Transducer Principle
MEMS
Number of Microphone Capsules
4
Pickup Range
3.5 m
Dynamic Range
69 dB (A)
Mbit/s (RJ45) Note
Only use network cables with the standard CAT5e (F/STP) or better.
Note
Only use network cables with the standard CAT5e (F/STP) or better.
Technology
ePTZ
Diagonal Field of View
120°
Horizontal Field of View
115°
Resolution
UHD 2160p (4K), 1080p, 720p, 960×480, 848×480, 640×480, 640×360, 432×240
RF
Frequency Range
100 Hz to 14.5 kHz
