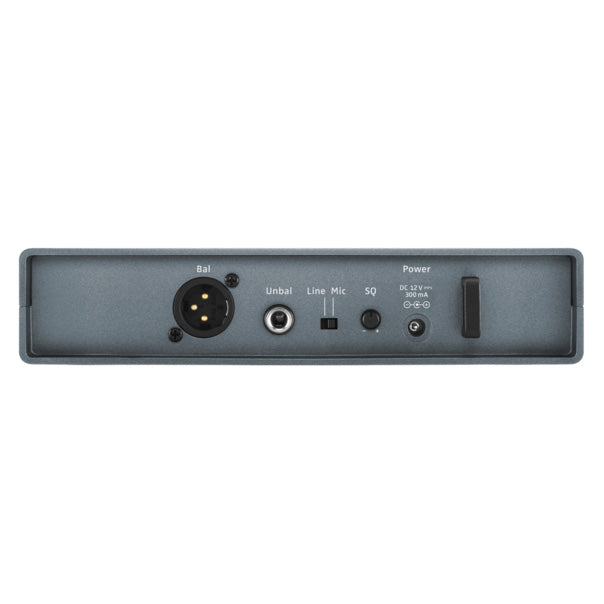

  • Sennheiser XSW 1-825 Wireless Handheld Microphone System receiver back
1 2

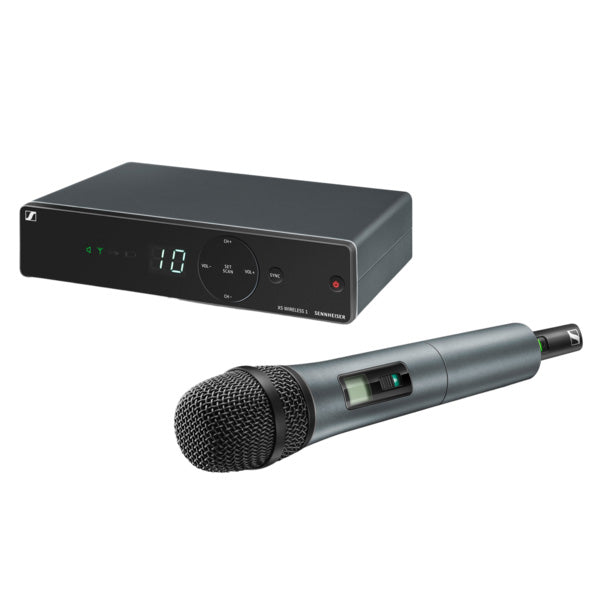

Sennheiser XSW 1-825 Wireless Handheld Microphone System

Sennheiser XSW 1-825 Wireless Handheld Microphone System

SoundPro Item: 75315 | Part Number: XSW 1-825-A

$329.00
$379.00 $329.00
Your Price Sold out
MSRP: $379.00 | MAP: $329.00

Usually ships in 5-7 business days

  • Wireless handheld microphone system for singers and presenters
  • A great addition to live sound environments including stage and theater venues
  • Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835)
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Antenna-switching diversity reception
  • Integrated antennas
  • Selectable UHF frequencies within a large bandwidth
Log in or register for YOUR best price

The XSW 1-825 from Sennheiser is an easy-to-use, all-in-one wireless system for singers and presenters. It can be used to capture audio for live sound, stage, and theater applications.

This set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as one vocal microphone transmitter and a microphone clamp. An AC power adapter and two AA batteries are also included.

View full details

Specifications

Dimensions
Dimensions
approx. 200 x 42 x 127 mm
Electrical
THD, Total Harmonic Distortion
≤ 0.9%
Audio
Signal-to-noise Ratio
≥ 103 dBA
Output Voltage
1/4“ (6.3 mm) jack socket (unbalanced: +6 dBu; XLR socket (balanced): +12 dBu
Sensitivity
< 3 μV at 52 dB(A)rms S/N
Input Sensitivity
1.5 mV / Pa
Audio Adjustment Range
45 dB, adjustable in 5-dB steps
Operation
0°C to +40°C
AF Frequency Response
Receiver: 50 to 16,000 Hz (–3 dB)
AF Frequency Response SKM 825
80-14,000 HzSKM 835: 80-16,000 Hz
Connectivity
RF Output Power
10 mW
Construction
Pick-up Pattern
cardioid
Housing
rugged ABS housing
Shipping
Weight
approx. 340g
General
Switching Bandwidth
up to 24 MHz
Operating Time
approx. 10 hrs
Dynamic Range
dynamic
Frequency
8 frequency banks, each with up to 10 factory-preset channels
A
548-572 MHz
GB
606-630 MHz
B
614-638 MHz
C
766-790 MHz
D
794-806 MHz
E
821-832 MHz, 863-865 MHz
K
925-937.5 MHz
Synchronization
2.4 GHz, Low Power OQPSK (only active during synchronization)
Adjustment Range Transmitter
0 to -30 dB, adjustable in 10 dB steps
Line / Mic Level
20 dB, switchable
Storage
> –20°C to +70°C
Receiver Principle
Double superheterodyne
Diversity Principle
Antenna switching diversity via internal antennas
Power Supply
Receiver: 12 V DC nom. / 300 mA
Radio
Modulation
wideband FM
RF
Squelch
adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
