Sennheiser XSW 1-Cl1 Guitar / Bass Wireless Instrument System
Sennheiser XSW 1-Cl1 Guitar / Bass Wireless Instrument System
SoundPro Item: 97626 | Part Number: XSW 1-CI1-A
Usually ships in 5-7 business days

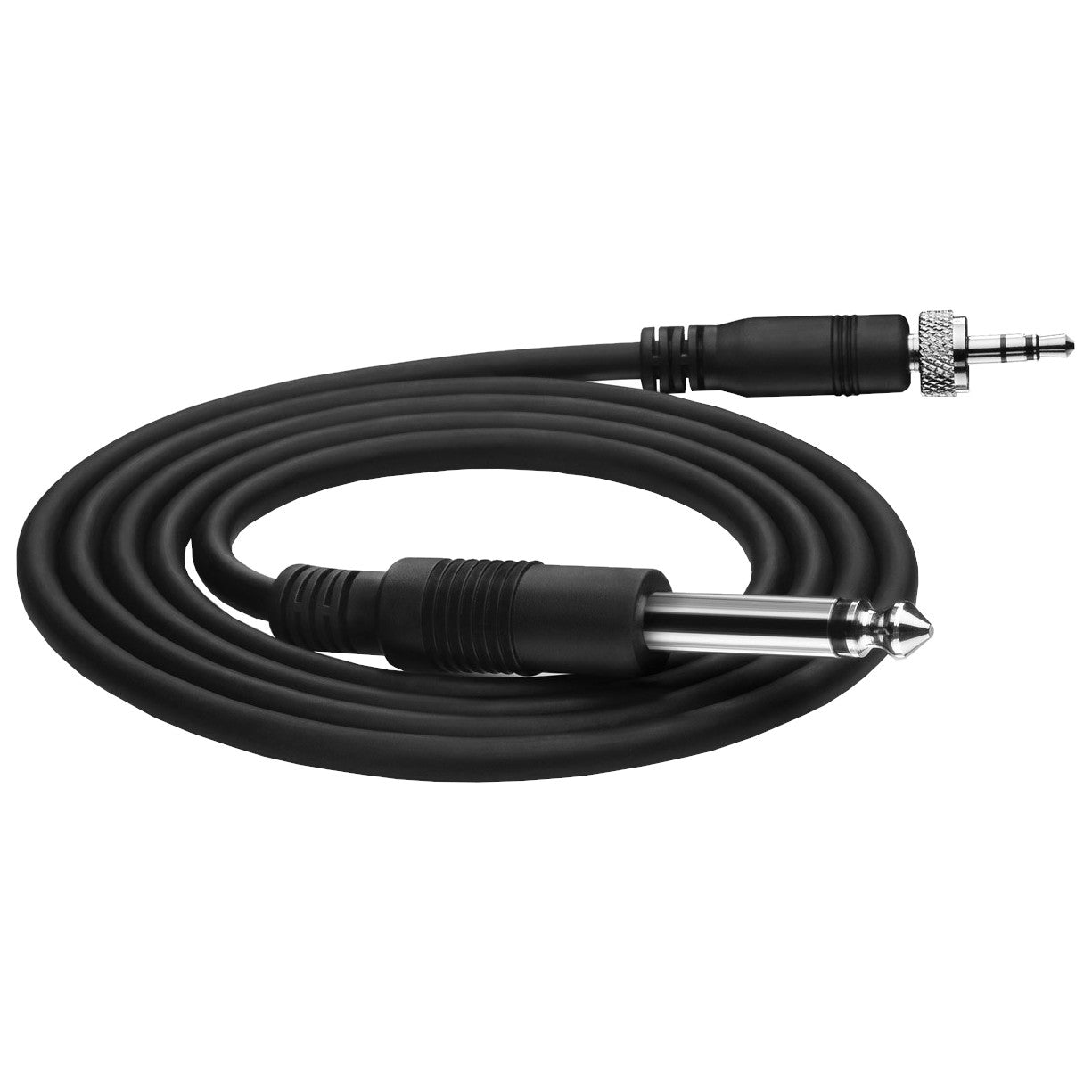

- Compact bodypack transmitter, rugged instrument cable
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels

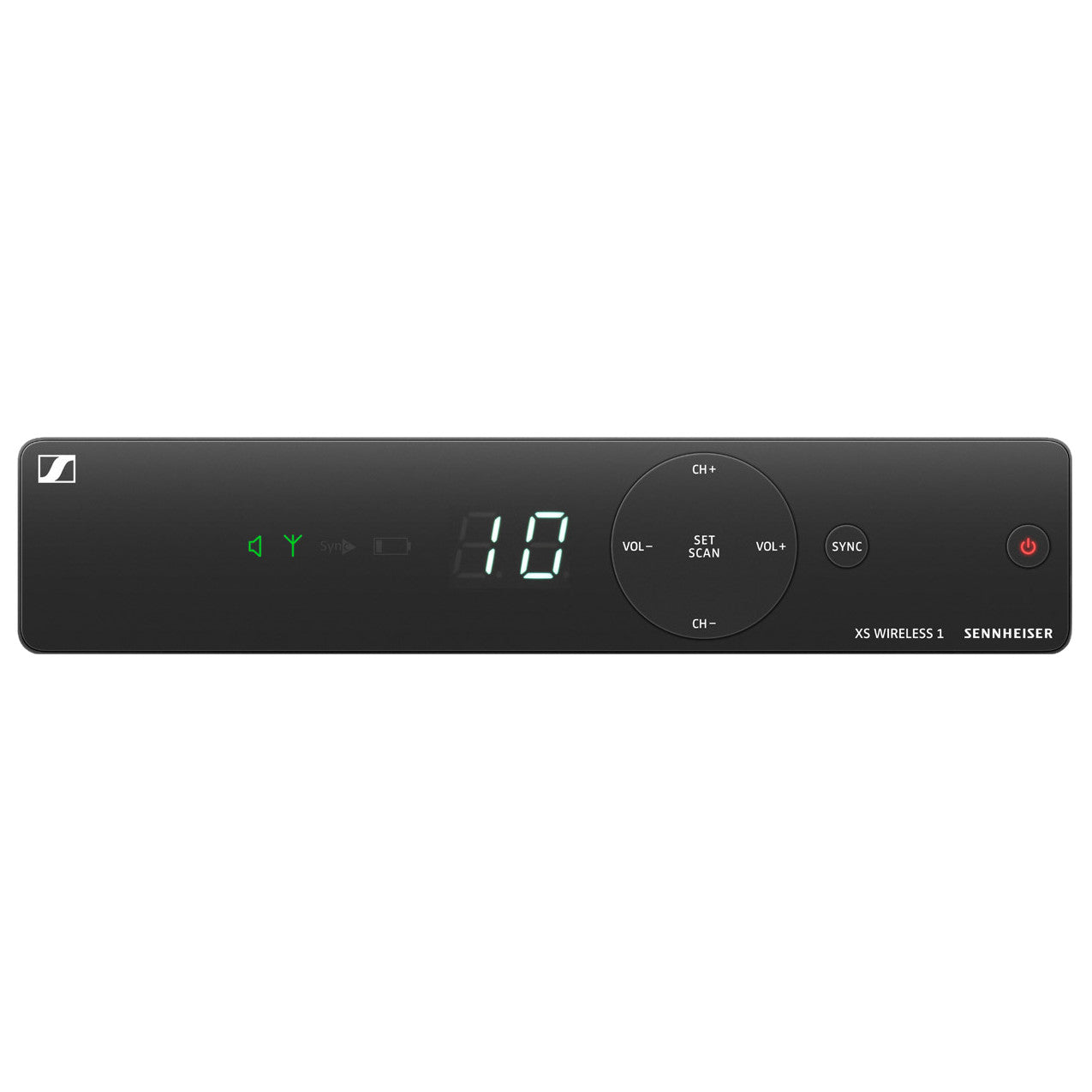

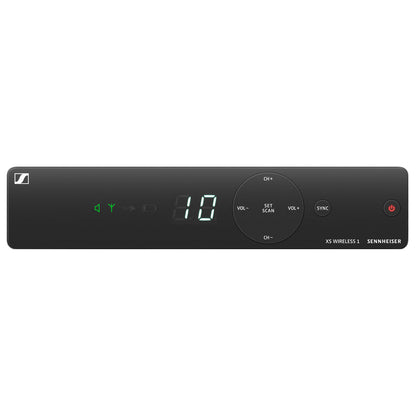

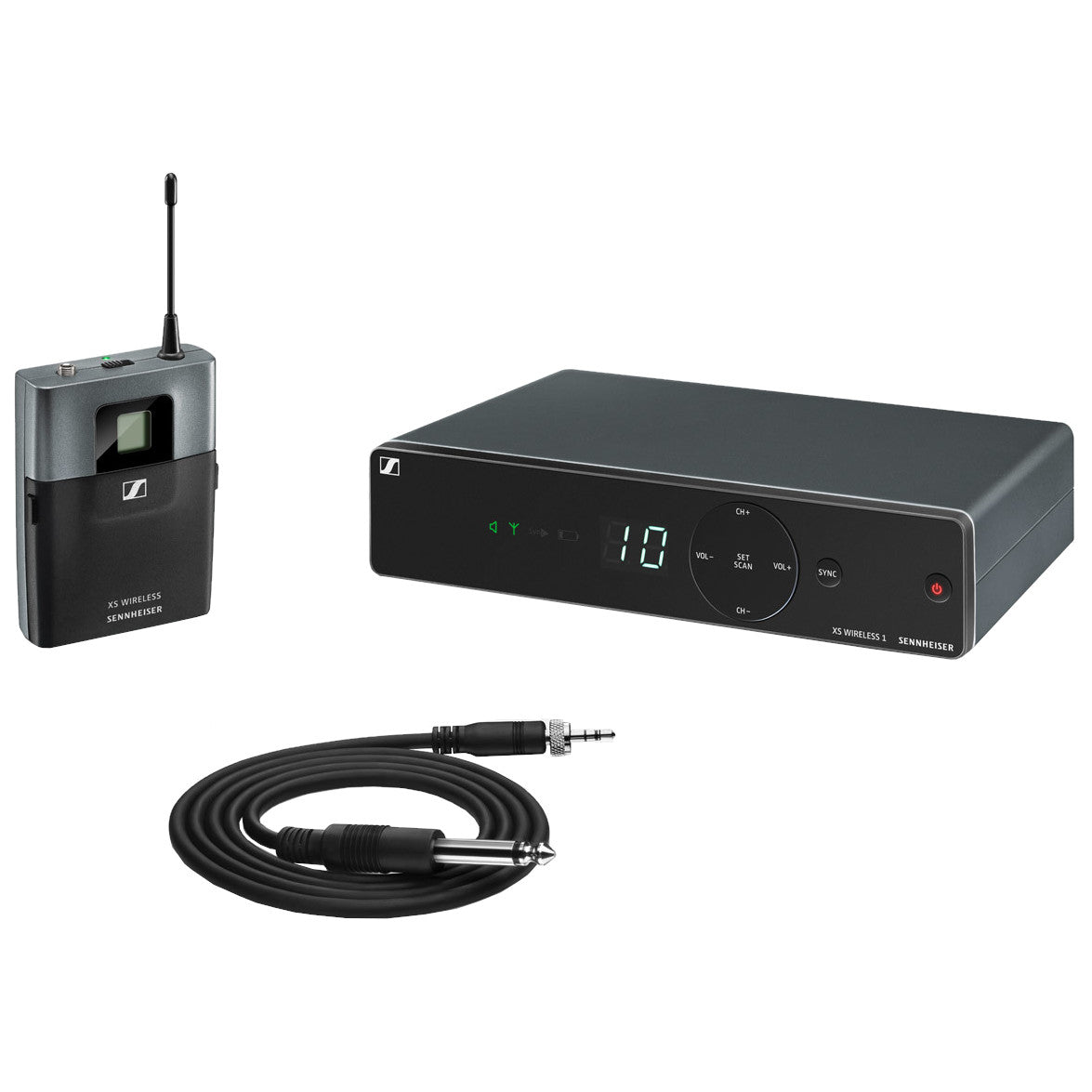

Amplify your tunes. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 INSTRUMENT SET is an easy to use all-in-one wireless system for guitarists and bassists, excellent for live sound. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable.
- Dimensions
- Receiver: approx. 200x42x127mm

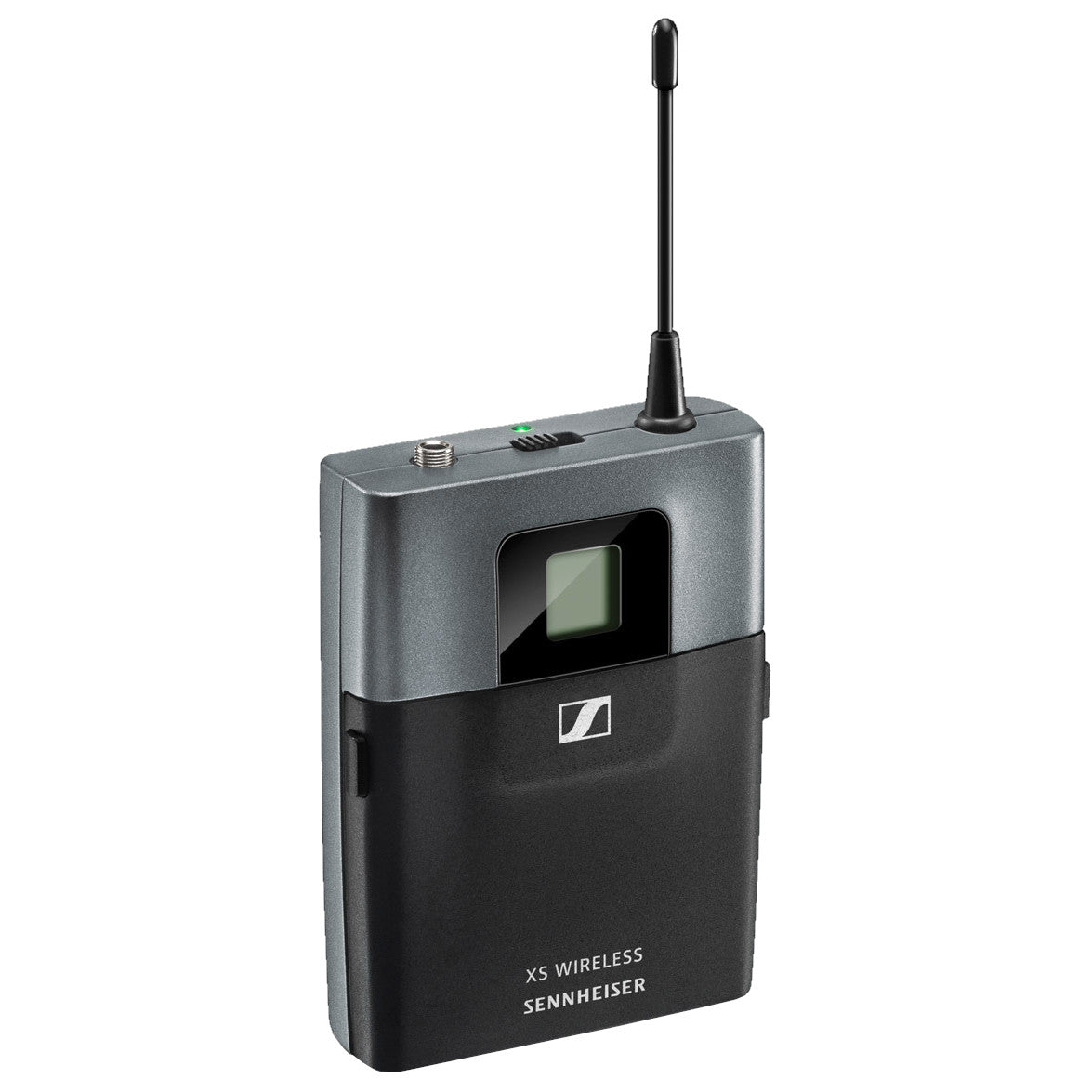

- Bodypack transmitter: approx. 71x96x28mm
- THD, total harmonic distortion≤ 0.9%
- Weightapprox. 340g (receiver), approx. 95g (transmitter)
- Signal-to-noise ratio≥ 103 dBA
- RF output power10 mW
- Switching bandwidthup to 24 MHz
- Operating timeapprox. 10 hrs
- ModulationWideband FM
- Power supply
- Receiver: 12V DC nom./300 mA
- Transmitter: 2 AA size batteries, 1.5V

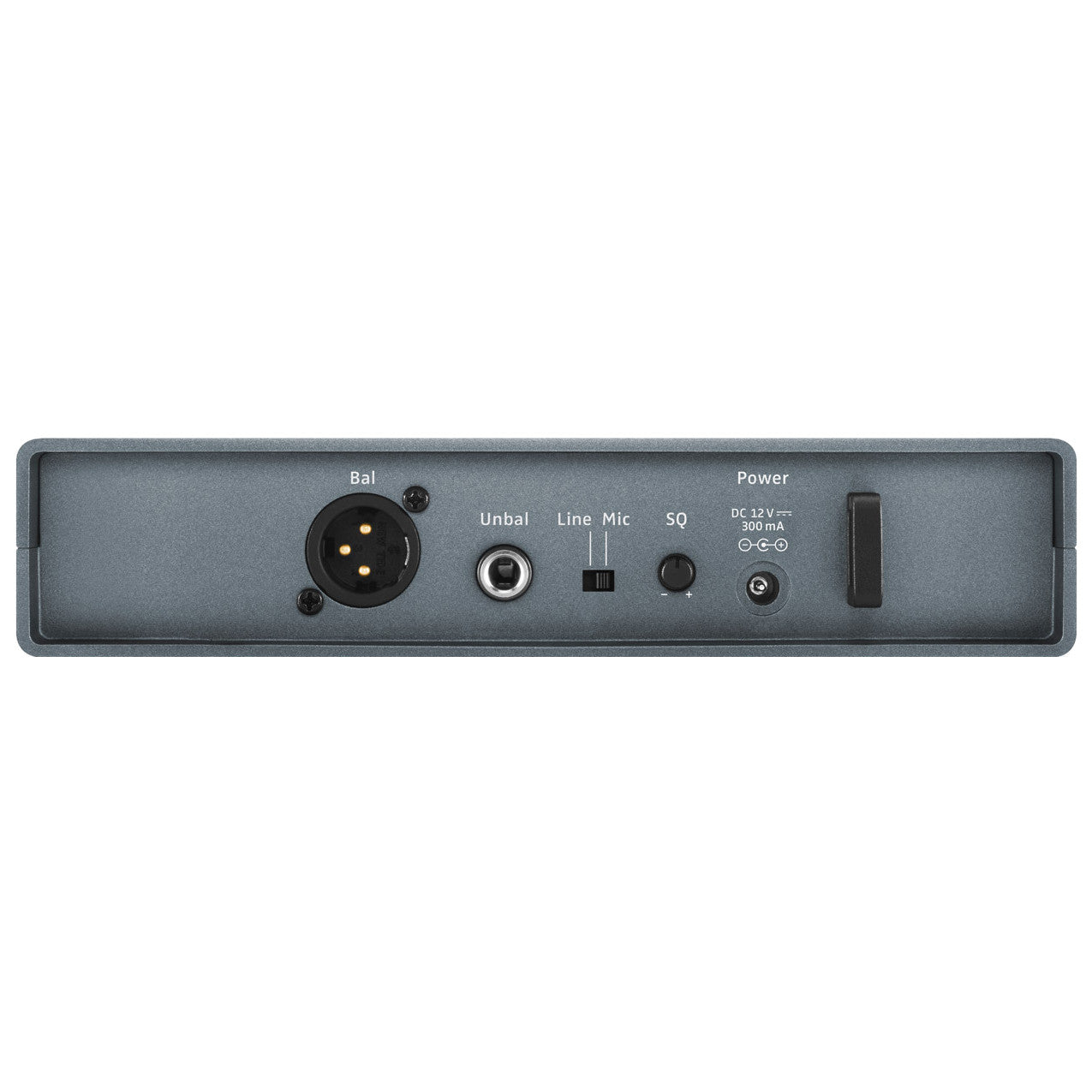

- Output voltage1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- HousingRugged ABS housing
- Frequency8 frequency banks, each with up to 10 factory-preset channels
- Frequency range
- A: 548-572 MHz, GB: 606-630 MHz
- B: 614-638 MHz
- C: 766-790 MHz
- D: 794-806 MHz
- E: 821-832 MHz, 863-865 MHz
- K: 925-937.5 MHz
- Sensitivity< 3 μV at 52 dB(A)rms S/N
- SPL for peak deviation130 dB
- Squelchadjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
- Synchronization2.4 GHz, Low Power OQPSK (only active during synchronization)
- Input sensitivity1.5 mV / Pa
- AF frequency responseReceiver: 50 to 16,000 Hz (–3 dB)
- Adjustment Range Transmitter0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range45 dB, adjustable in 5-dB steps
- Line / Mic level20 dB, switchable
- Temperature Rangeoperation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principledouble superheterodyne
- Diversity principleAntenna switching diversity via internal antennas
