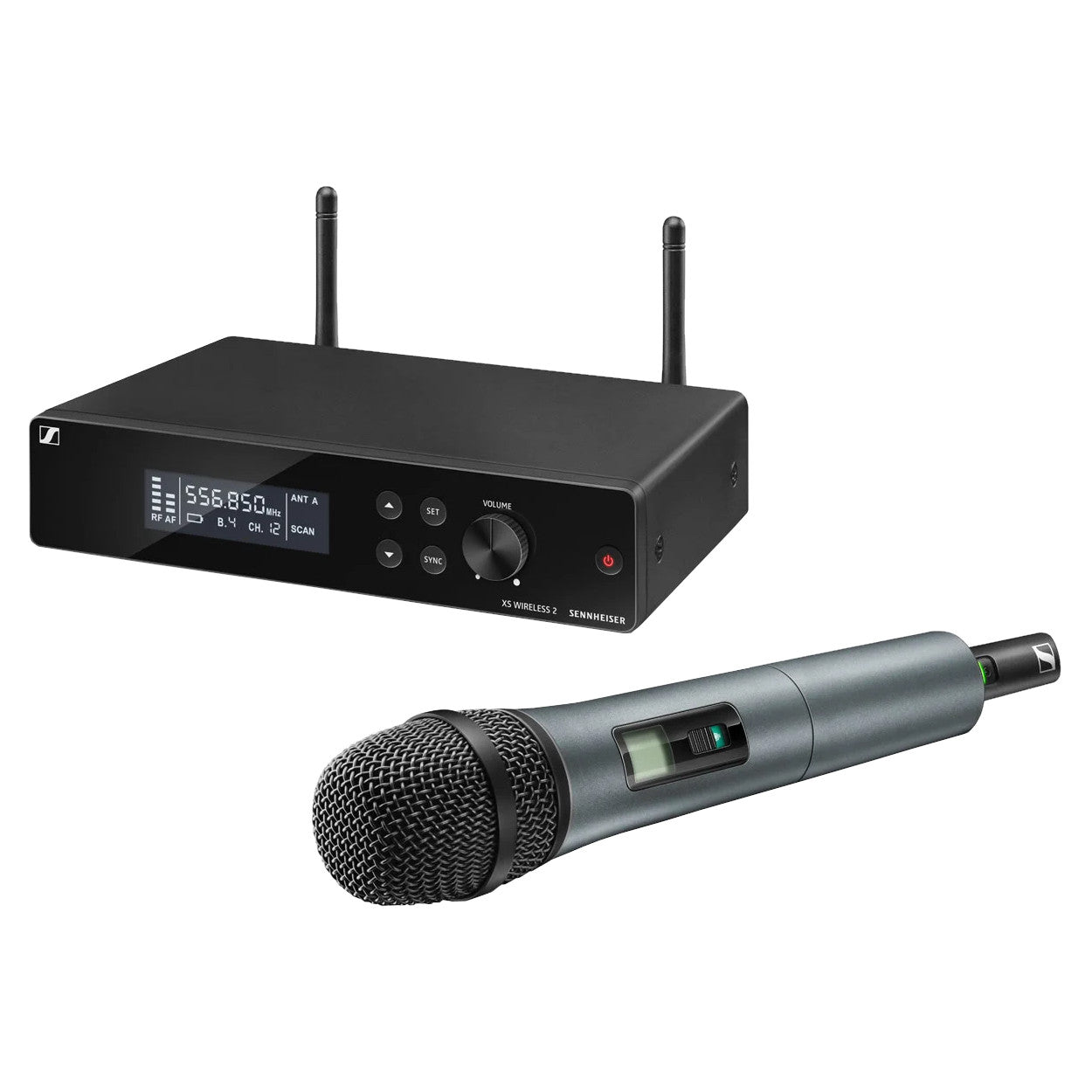

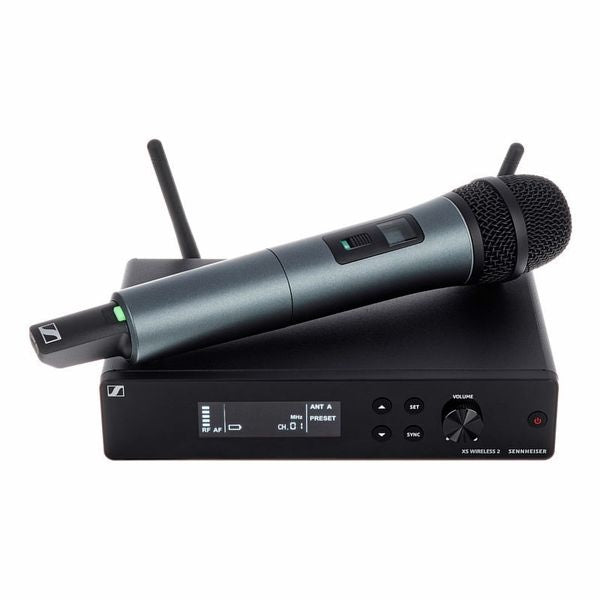

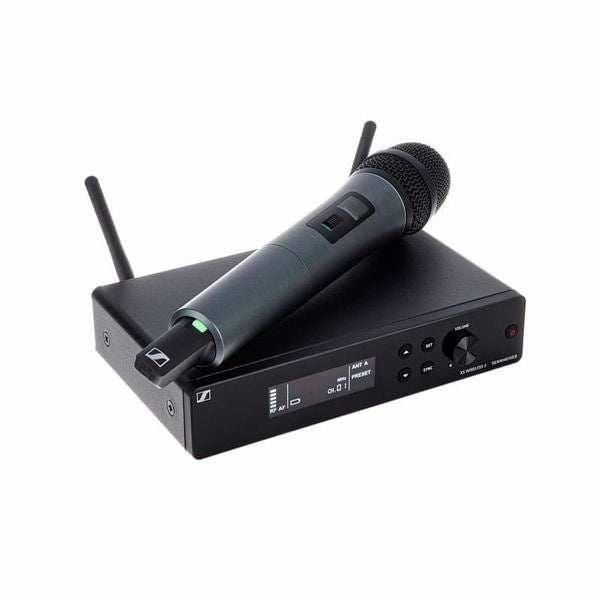

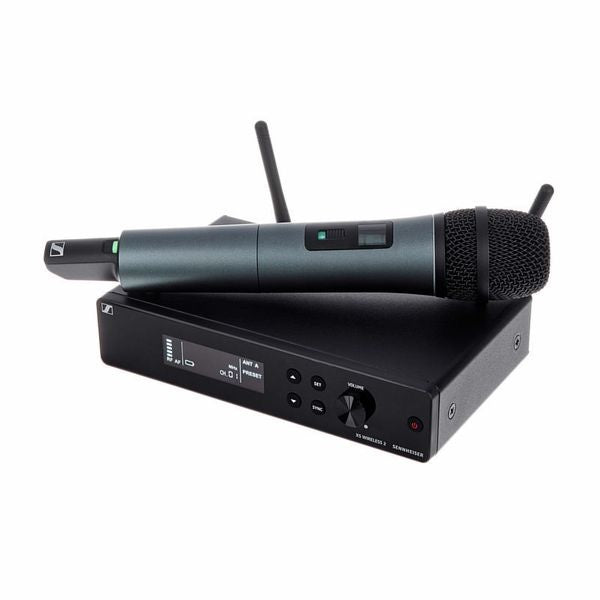

Sennheiser XSW 2-835 UHF Wireless Handheld Microphone System

Sennheiser XSW 2-835 UHF Wireless Handheld Microphone System

SoundPro Item: 56823 | Part Number: 507143

Regular price $479.00
Regular price $579.00 Sale price $479.00
Your Price Sold out
MSRP: $579.00 | MAP: $479.00

Usually ships in 5-7 business days

  • Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules

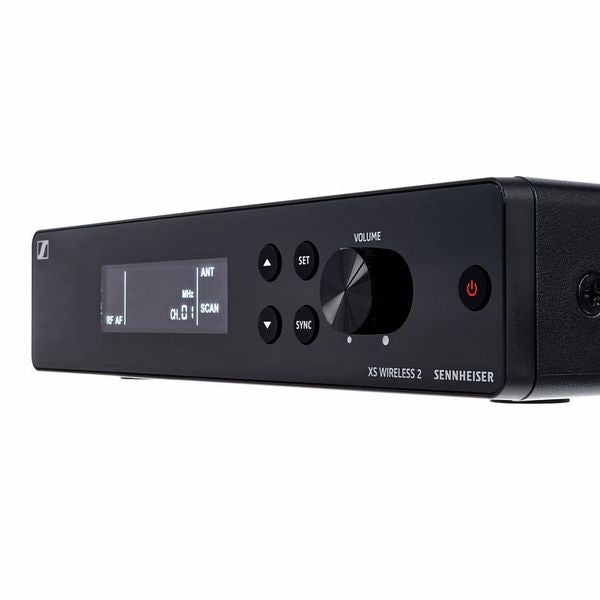

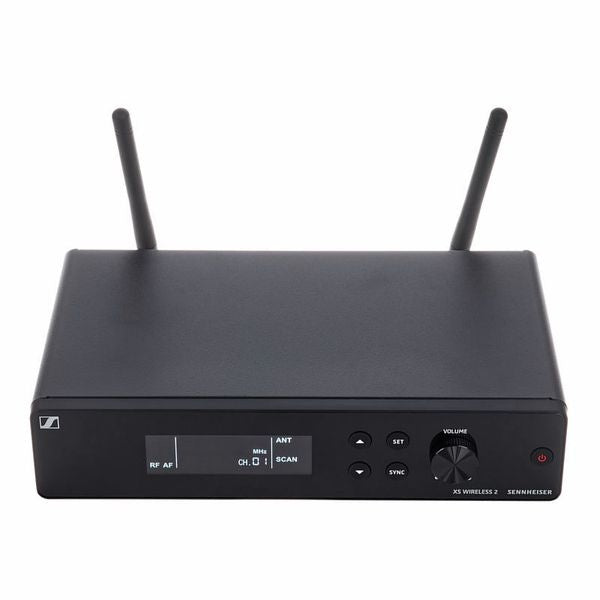

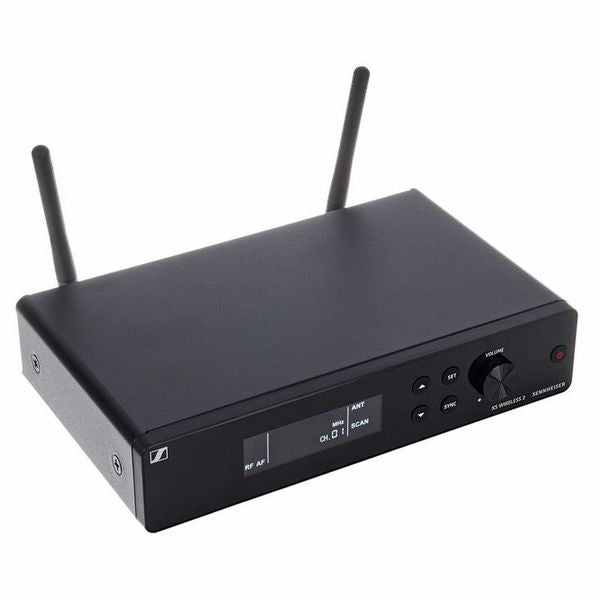

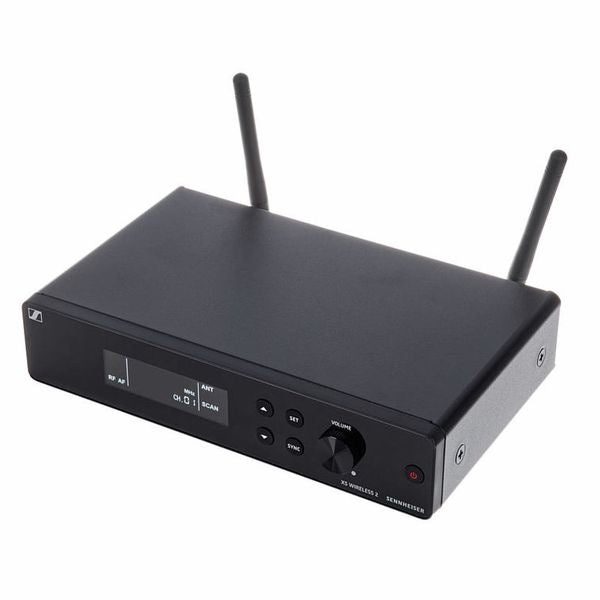

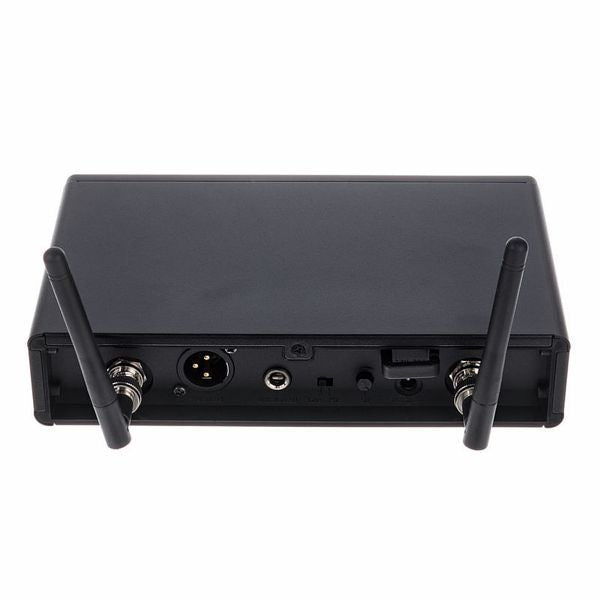

  • True diversity receiver with metal housing
  • External antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Fully tunable over a wide range of UHF frequencies

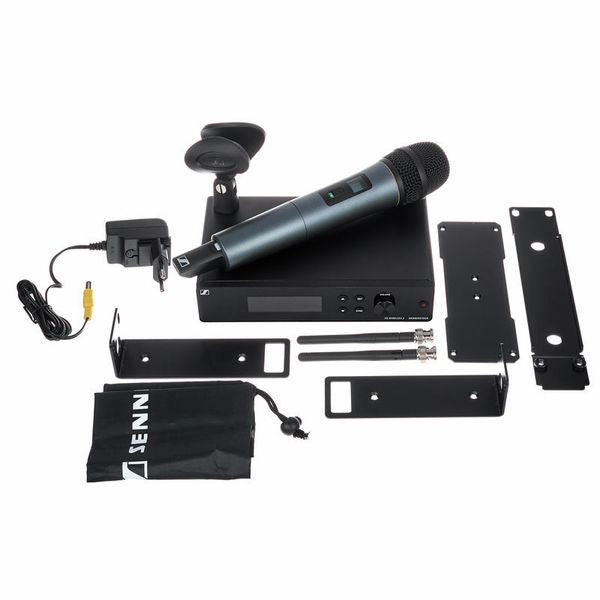

  • Rackmount kit included
  • Up to 12 compatible channels

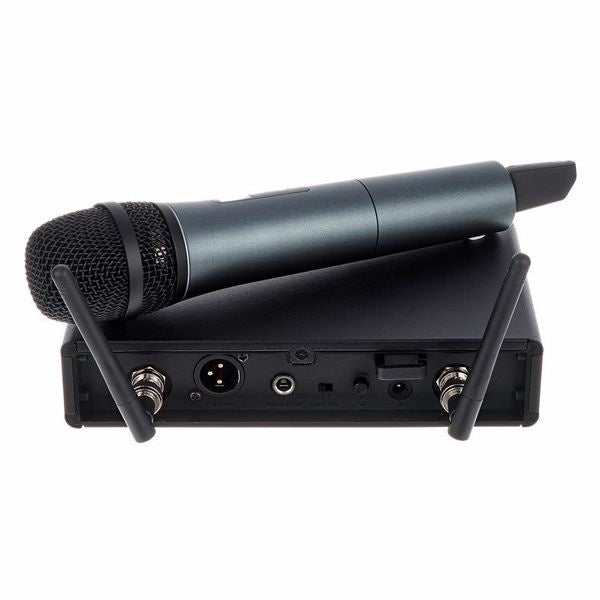

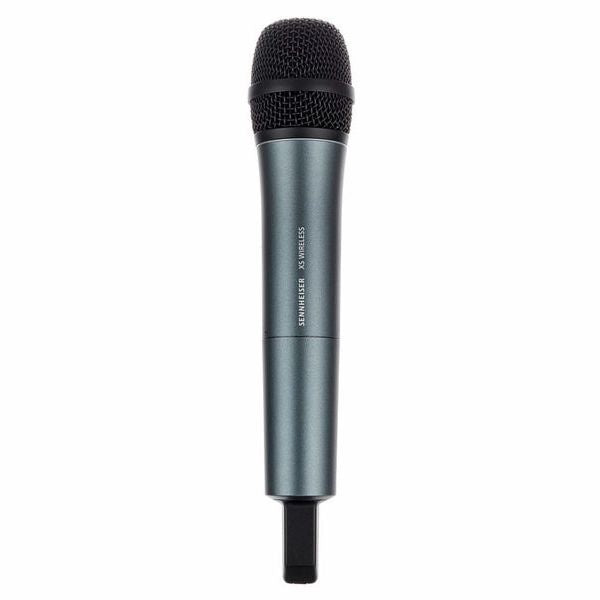

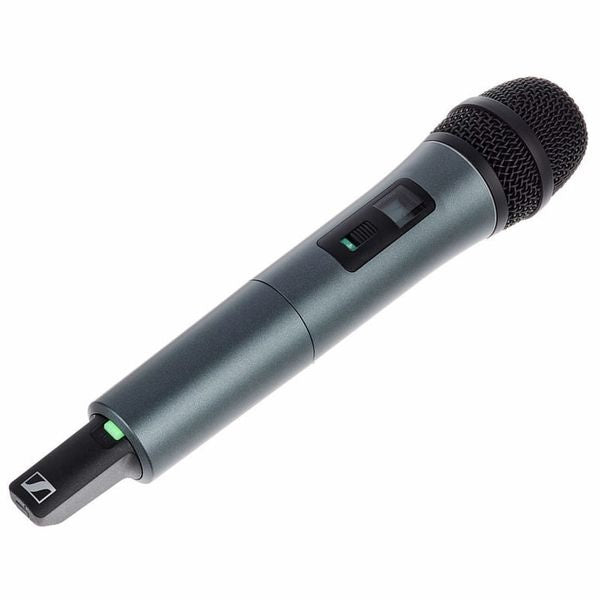

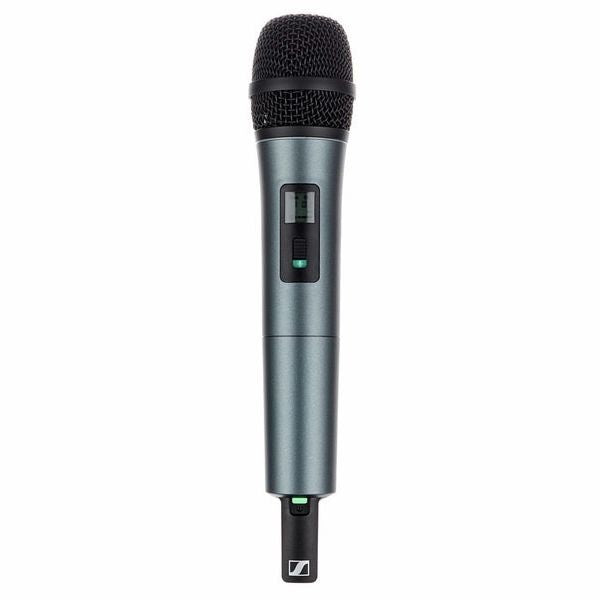

The XSW 2-835-A Wireless Handheld Microphone System with e835 Capsule (A: 548 to 572 MHz) features a true diversity receiver, and a handheld transmitter with an intuitive LCD display. It has 12 compatible channels and is offered as an easy to use, all-in-one wireless system for singers and presenters.

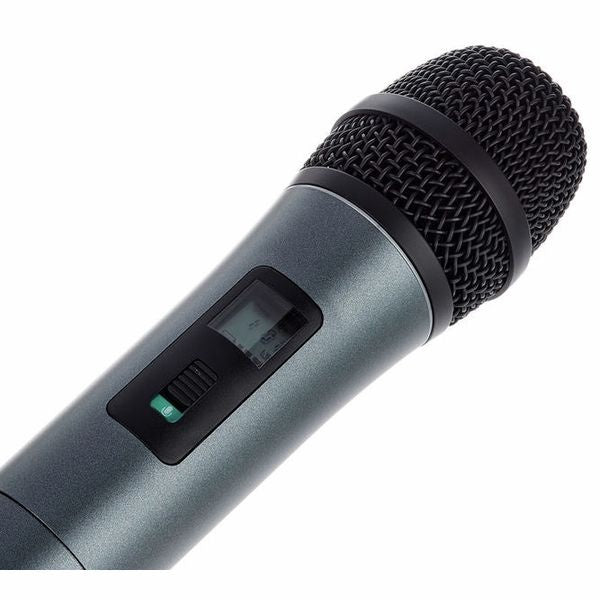

The unit has automatic frequency management and synchronization so you don't have to scramble to find an available channel. The transmitter's e835 capsule uses a cardioid polar pattern, which is part of the evolution series and designed for withstanding tougher, live-stage conditions.

View full details

Specifications

Dimensions
Dimensions
approx. 200x42x127mm, microphone: approx. 260x50mm
Electrical
THD, Total Harmonic Distortion
≤ 0.9%
Audio
AF Frequency Response
50 to 16,000 Hz (–3 dB)
Microphone
dynamic
Frequency Response
50 to 16,000 Hz (–3 dB)
Signal-to-noise Ratio
≥ 103 dBA
Output Voltage
1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu
Sensitivity
< 3 μV at 52 dB(A)rms S/N
Input Sensitivity
1.5 mV / Pa
Audio Adjustment Range
40 dB, adjustable in 5-dB steps
Operation
0°C to +40°C
Connectivity
RF Output Power
10 mW

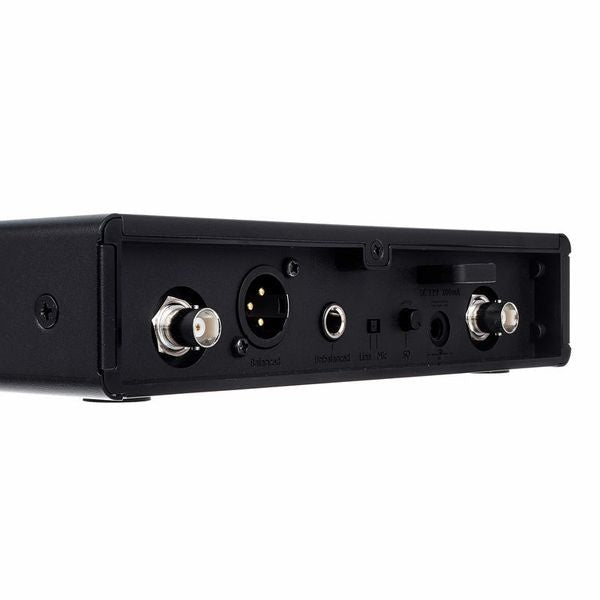

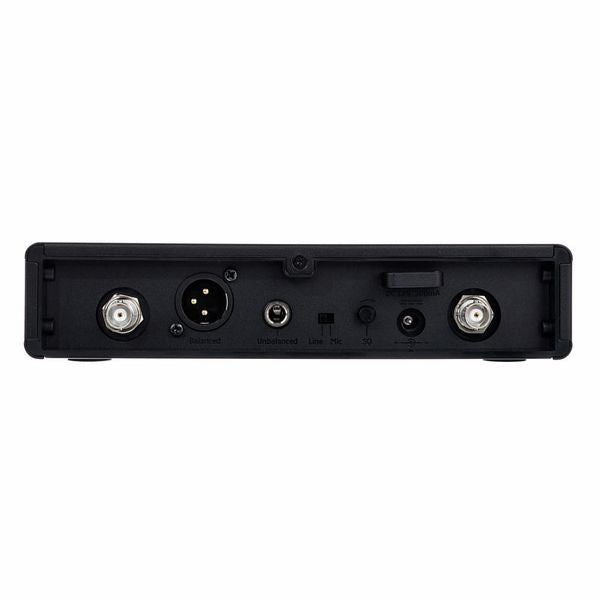

XLR Socket (balanced)
+12 dBu
Construction
Housing
Metal, microphone: robust ABS
Pick-up Pattern
cardioid
Included Items
Receivers
Temperature Range
Shipping
Weight
approx. 680g
General
Power Supply
12 V DC nom. / 300 mA
Switching Bandwidth
up to 24 MHz
Operating Time
approx. 10 hrs
Frequency
8 frequency banks, each with up to 12 factory-preset channels
Frequency Range a
548-572
MHzGB
606-630
MHzB
614-638
MHzC
766-790
MHzD
794-806
MHzE
821-832 MHz, 863-865
MHzK
925-937.5 MHz
Synchronization
2.4 GHz, Low Power OQPSK (only active during synchronization)
Line
20 dB, switchable
Adjustment Range Transmitter
0 to -30 dB, adjustable in 10 dB steps
Storage
–20°C to +70°C
Receiver Principle
double superheterodyne
Diversity Principle
True Diversity
Radio
Modulation
wideband FM
RF
Squelch
switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
