Specifications
Dimensions
Dimensions
approx. 200x42x127 mm
Electrical
THD, Total Harmonic Distortion
≤ 0.9%
Audio
AF Frequency Response
50 to 16,000 Hz (–3 dB)
Microphone
condenser
Frequency Response
50 to 16,000 Hz (–3 dB)
Signal-to-noise Ratio
≥ 103 dBA
Output Voltage
1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu
Sensitivity
< 3 μV at 52 dB(A)rms S/N
Input Sensitivity
1.8 mV / Pa
Audio Adjustment Range
40 dB, adjustable in 5-dB steps
Connectivity
RF Output Power
10 mW

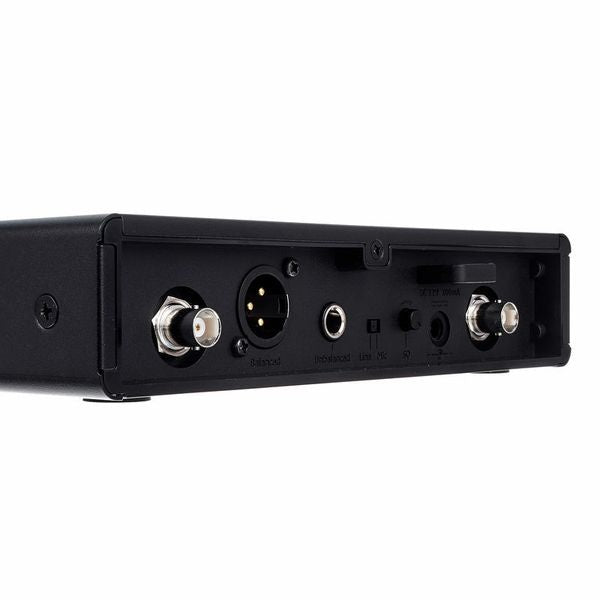

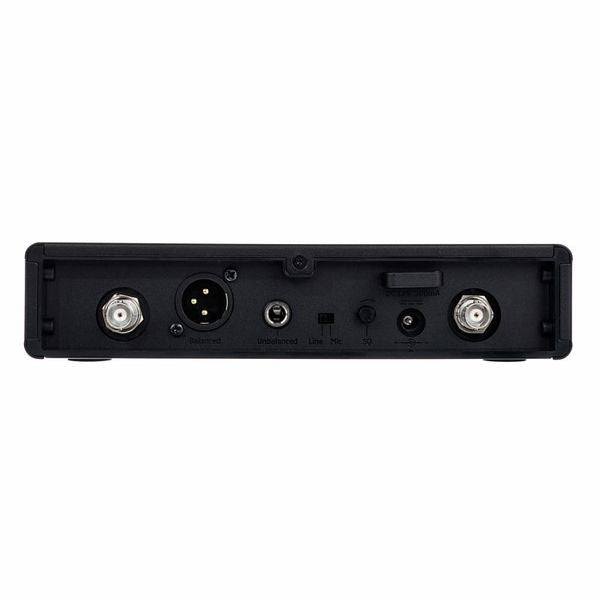

XLR Socket (balanced)
+12 dBu
Construction
Housing
metal, microphone: robust ABS
Pick-up Pattern
super-cardioid
Environmental
Temperature Range
operation: 0°C to +40°C, storage: –20°C to +70°C
Shipping
Weight
approx. 680g
General
Power Supply
12 V DC nom. / 300 mA
Operating Time
approx. 10 hrs
Switching Bandwidth
up to 24 MHz
Frequency
8 frequency banks, each with up to 12 factory-preset channels
Frequency Range a
548-572
MHzGB
606-630
MHzB
614-638
MHzC
766-790
MHzD
794-806
MHzE
821-832 MHz, 863-865
MHzK
925-937.5 MHz
Synchronization
2.4 GHz, Low Power OQPSK (only active during synchronization)
Line / Mic Level
20 dB, switchable
Receiver Principle
double superheterodyne
Diversity Principle
True Diversity
Radio
Modulation
wideband FM
RF
Squelch
switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
