Specifications
Dimensions
Dimensions
7.87x1.65x5"
Audio
AF Frequency Response
50Hz to 16,000Hz
Microphone
condenser
THD
≤ 0.9%
Polar Pattern
omnidirectional
Signal to Noise Ratio
≥ 103 dBA
Sensitivity
< 3 μV at 52 dB(A)rms S/N
Audio Adjustment Range
40dB, adjustable in 5-dB steps
Connectivity
RF Output Power
10mW
Construction
Housing
metal

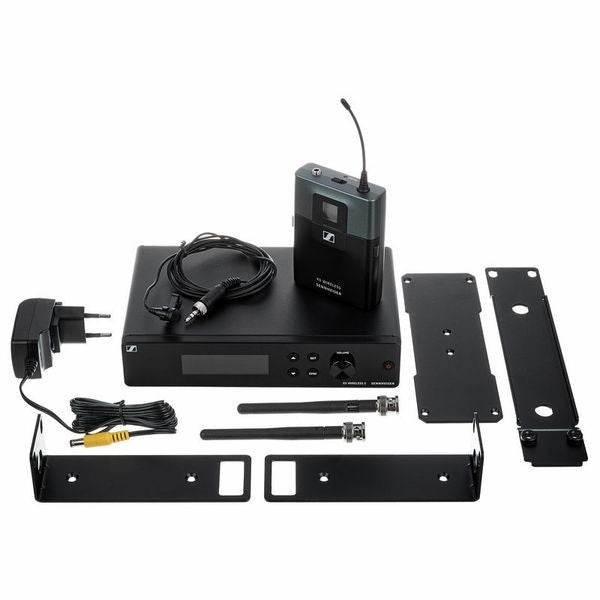

Included Items
Transmitter
Output Voltage
Shipping
Weight
1.49 pounds
General
Power Supply
12 V DC nom. / 300mA
Switching Bandwidth
up to 24 MHz
Diversity Reception
True Diversity
Frequency
8 frequency banks, each with up to 12 factory-preset channels
Synchronization
2.4 GHz, Low Power OQPSK (only active during synchronization)

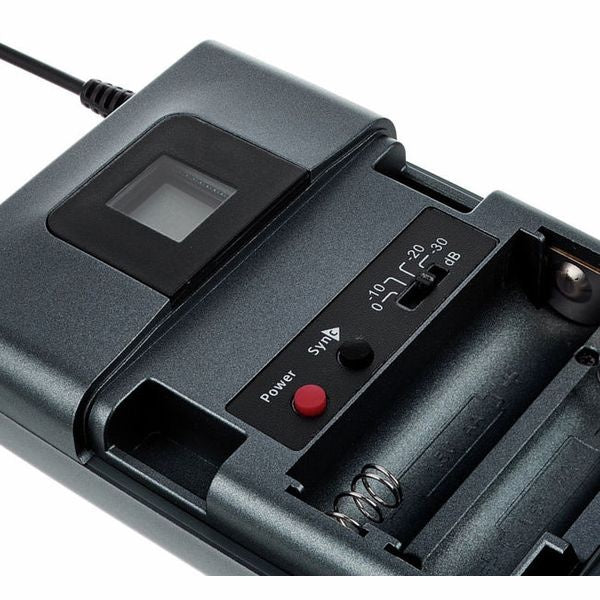

Adjustment Range Transmitter
0 to -30 dB, adjustable in 10 dB steps
Line/Mic Level
20dB, switchable
Receiver Principle
double superheterodyne
Radio
Modulation
Wideband FM
RF
Frequency Range
548 - 572 MHz
Squelch
switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
