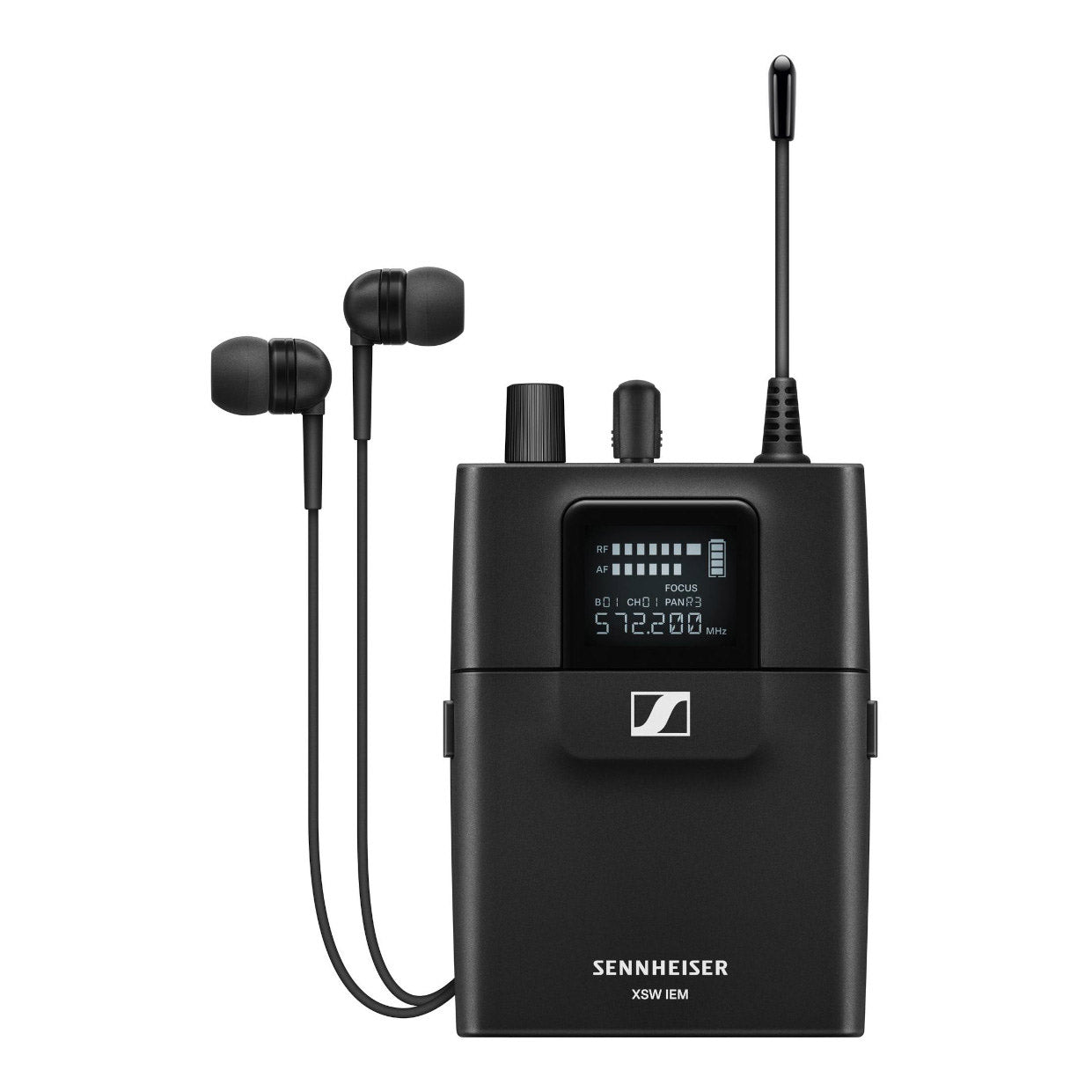

• Sennheiser XSW IEM EK (A) Lightweight In-Ear Monitoring Bodypack Receiver

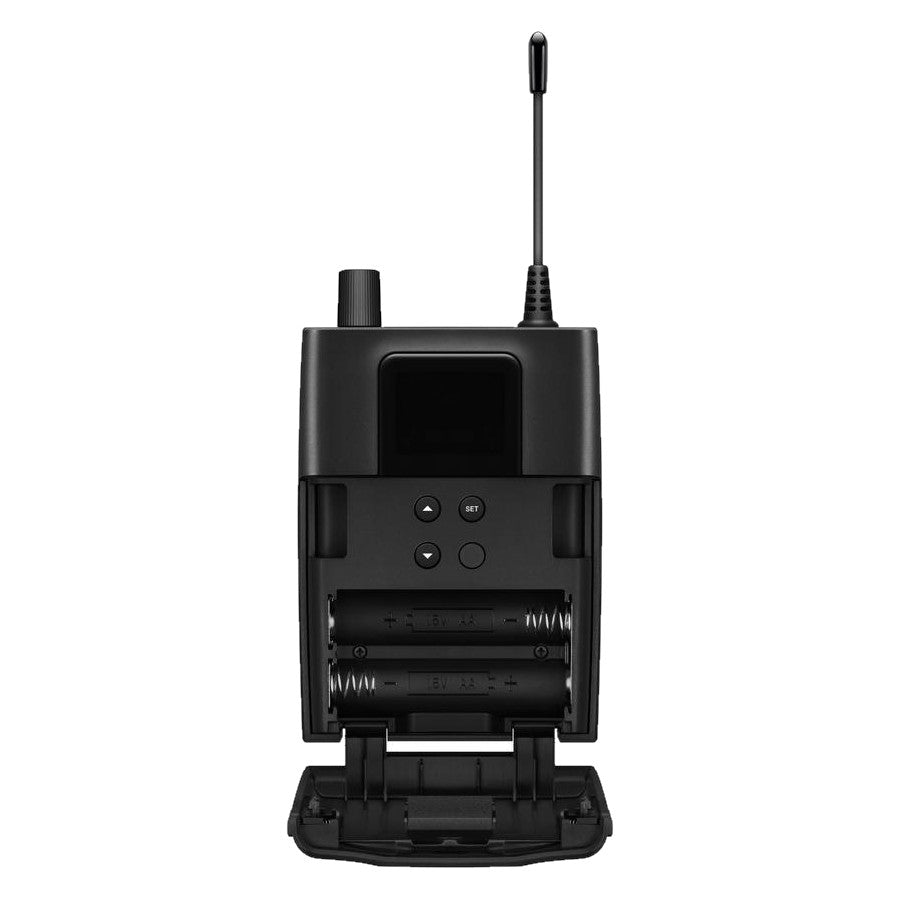

  • Sennheiser XSW IEM EK (A) Lightweight In-Ear Monitoring Bodypack Receiver interior

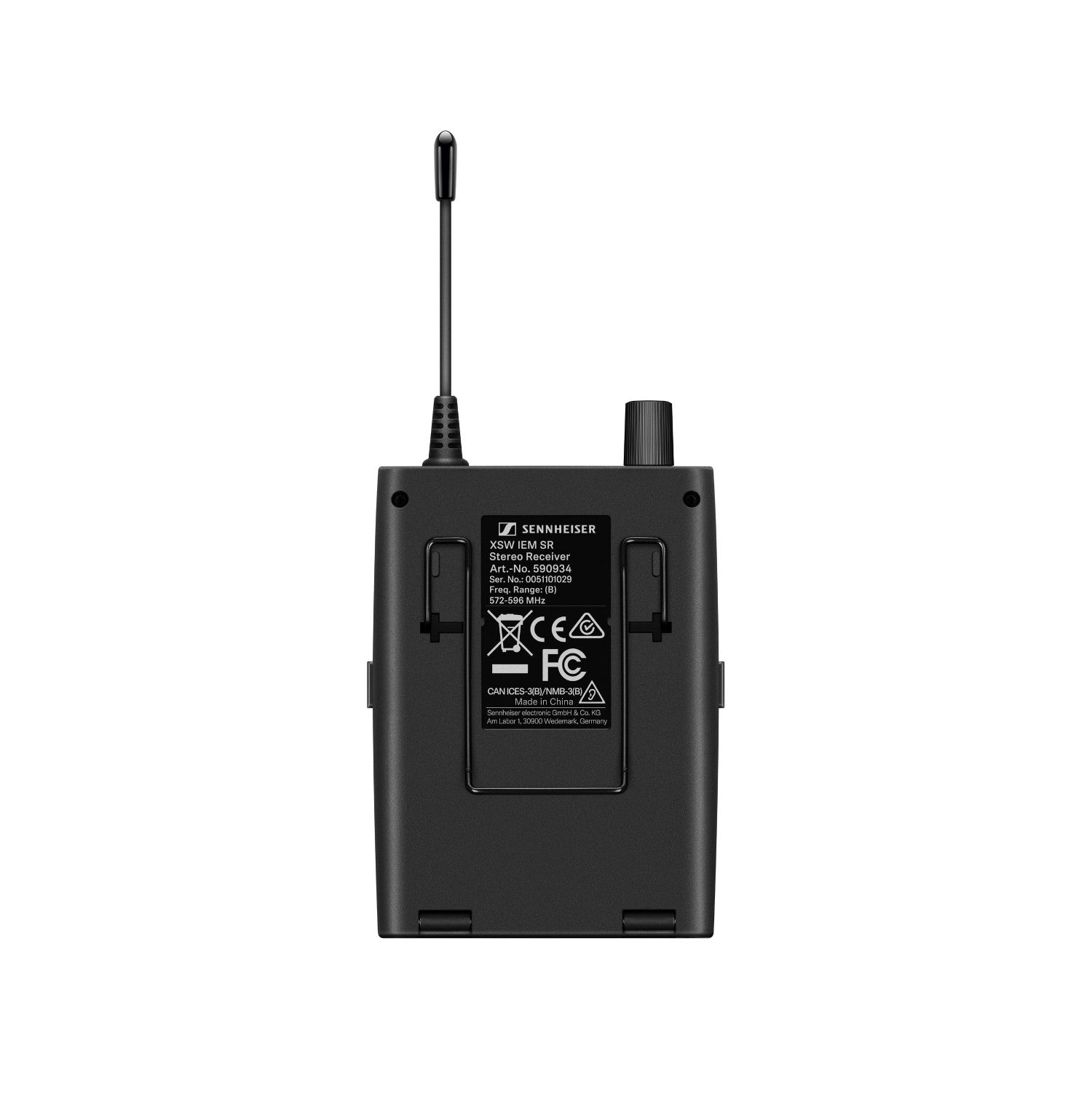

  • Sennheiser XSW IEM EK (A) Lightweight In-Ear Monitoring Bodypack Receiver back

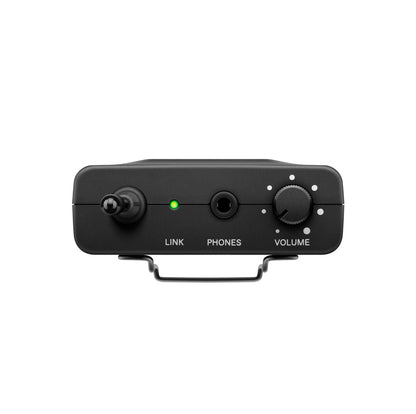

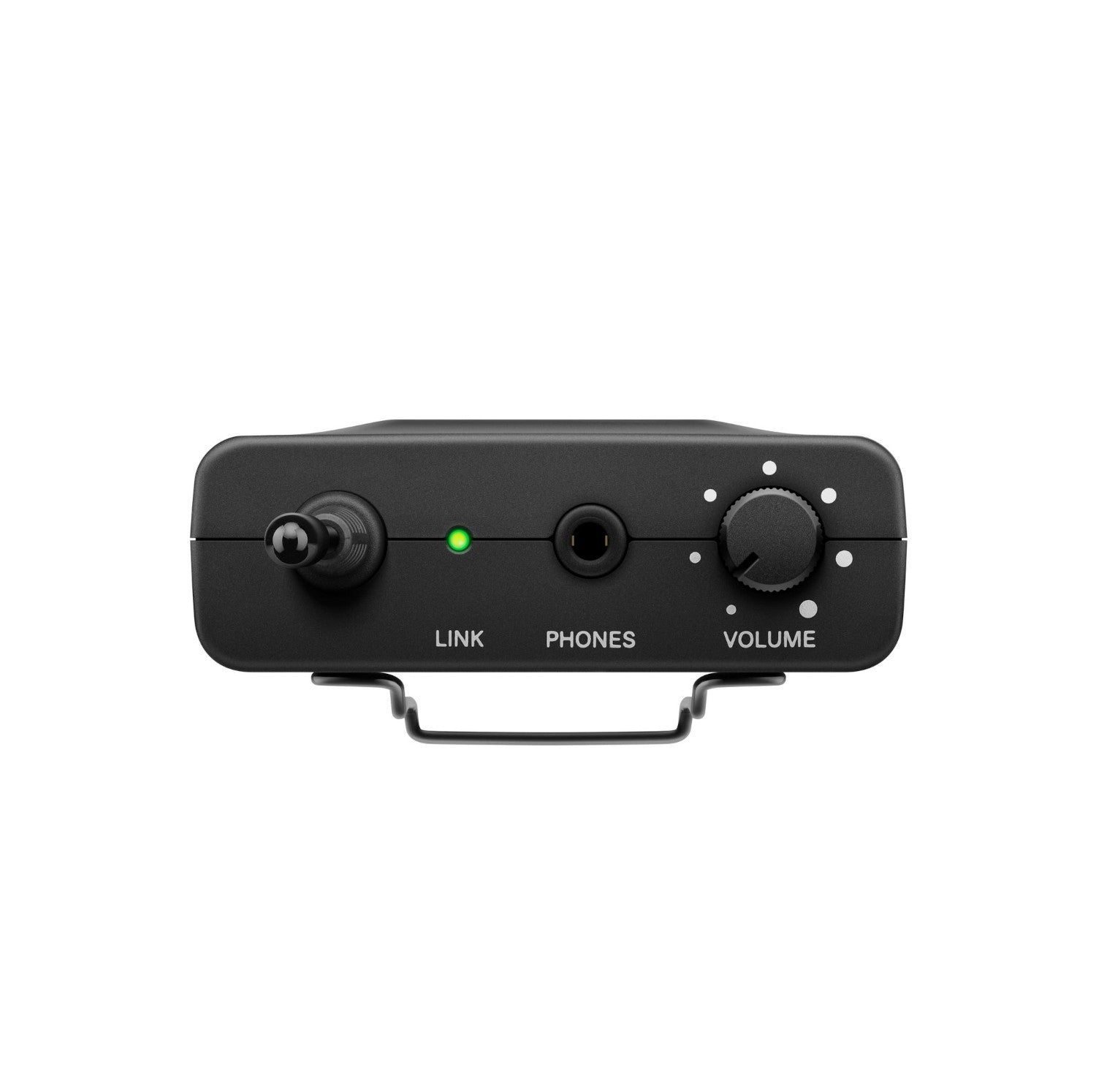

  • Sennheiser XSW IEM EK (A) Lightweight In-Ear Monitoring Bodypack Receiver top
1 4

Sennheiser XSW IEM EK (A) In-Ear Monitoring Bodypack Receiver

Sennheiser XSW IEM EK (A) In-Ear Monitoring Bodypack Receiver

SoundPro Item: 131181 | Part Number: XSW IEM EK (A)

$379.00
$449.00 $379.00
Your Price Sold out
MSRP: $449.00 | MAP: $379.00

In stock and ready to ship

  • Lightweight bodypack with rear clamp and stage-proof control panel
  • Standard 3.5mm jack plug for supplied IE 4 headphones or optional in-ear sets
  • Backlit front panel and status LED for battery and link status
  • Menu access to receiver sound settings like focus modes, volume control, limiter, and EQ
  • Pan control for individual balance of the input channels
  • Operates with 2 AA primary batteries or rechargeable batteries
Log in or register for YOUR best price

Lightweight yet rugged, the XSW IEM EK (A) bodypack receiver from Sennheiser is the perfect basis for their XS Wireless IEM series. This stereo receiver bodypack is built with the live stage in mind. Fine-tune your settings to achieve the perfect focus on your individual mix, with functions such as balancing, EQ, channel selection, or manual frequency. Once you have your settings picked, the stage-proof panel keeps you from bumping anything and making any accidental changes during your performance. A status LED keeps you informed about battery and connection status, while an LCD offers settings readouts for more detailed data.

View full details

Specifications

Dimensions
Dimensions
3.74x2.76x1.02"
Electrical
Nominal Voltage
3V battery
Audio
Signal-to-Noise Ratio (1mV, Peak deviation)
≥88dB
THD
≤1%
AF Frequency Response
45Hz to 15kHz
Frequency Response
40-20,000Hz
SPL (1kHz, 1mW)
106dB
Connectivity
AF Output Level at 3.5mm
2 x 1,25 Veff at 16 Ω
Connector
3.5mm (1/8") stereo plug, gold-plated
Construction
Cable Length
4.6 ft
Shipping
Weight
3.88 oz
General
Frequency a
476 - 500 MHz
Switching Bandwidth
up to 24 MHz
Nominal/Peak Deviation
±15kHz / ±24kHz
High Boost (EQ)
+10dB at 13kHz
Limiter
-10dB
Crosstalk (50Hz - 10kHz)
typically 45dB
Transducer
dynamic
Nominal Impedance
6Ω
Power Supply
2 AA batteries, 1.5V
Operating Time
approx. 6 hours (depending on volume level)
Radio
Modulation
Wideband FM
RF
Squelch
10 µV, fixed
