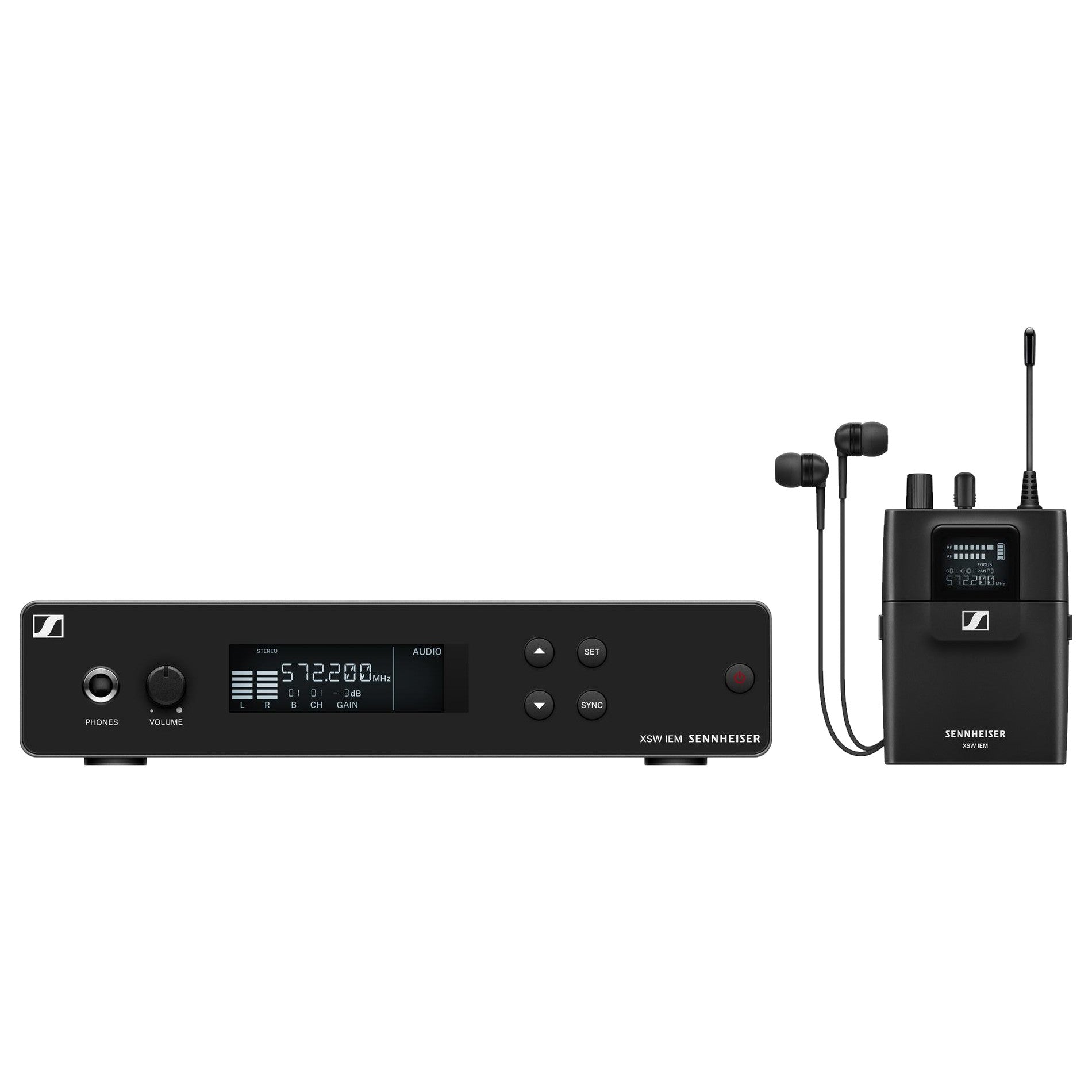

• Sennheiser XSW IEM Set (A) Wireless In-Ear Monitoring System

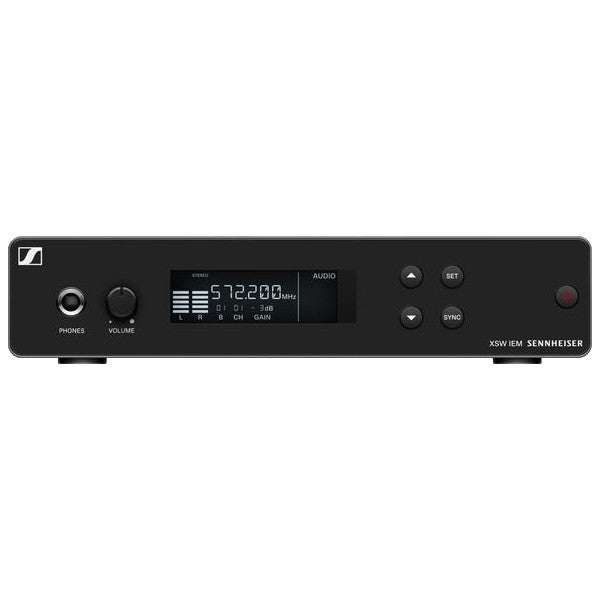

  • Sennheiser XSW IEM Set Wireless In-Ear Monitoring System transmitter

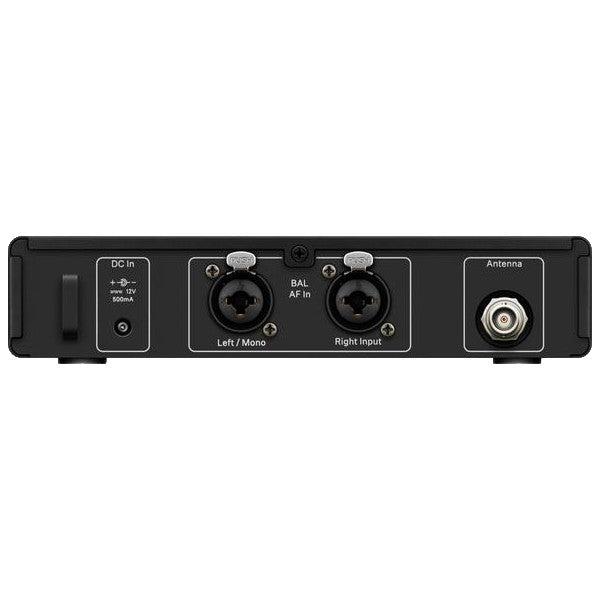

  • Sennheiser XSW IEM Set Wireless In-Ear Monitoring System transmitter back

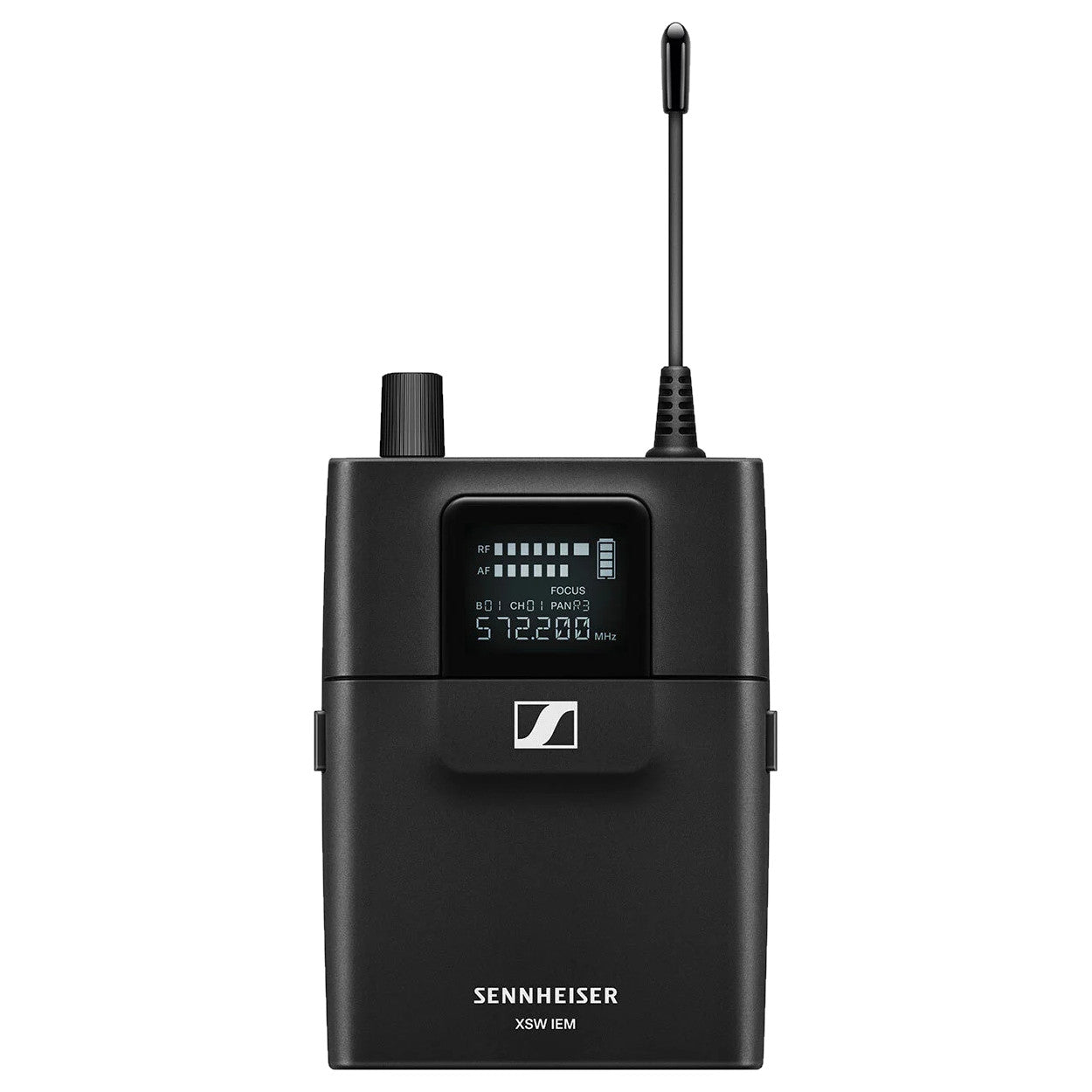

  • Sennheiser XSW IEM receiver

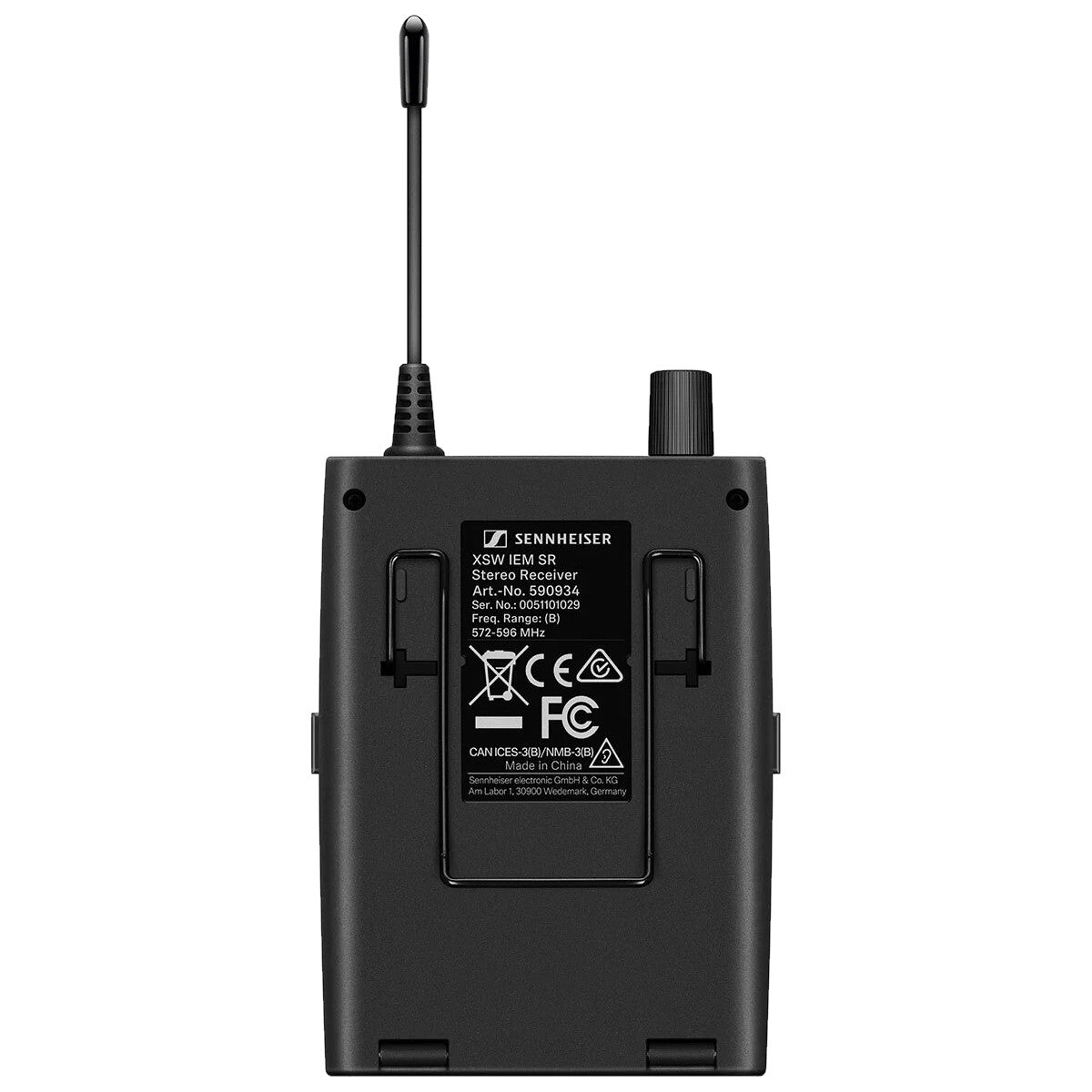

  • Sennheiser XSW IEM receiver back

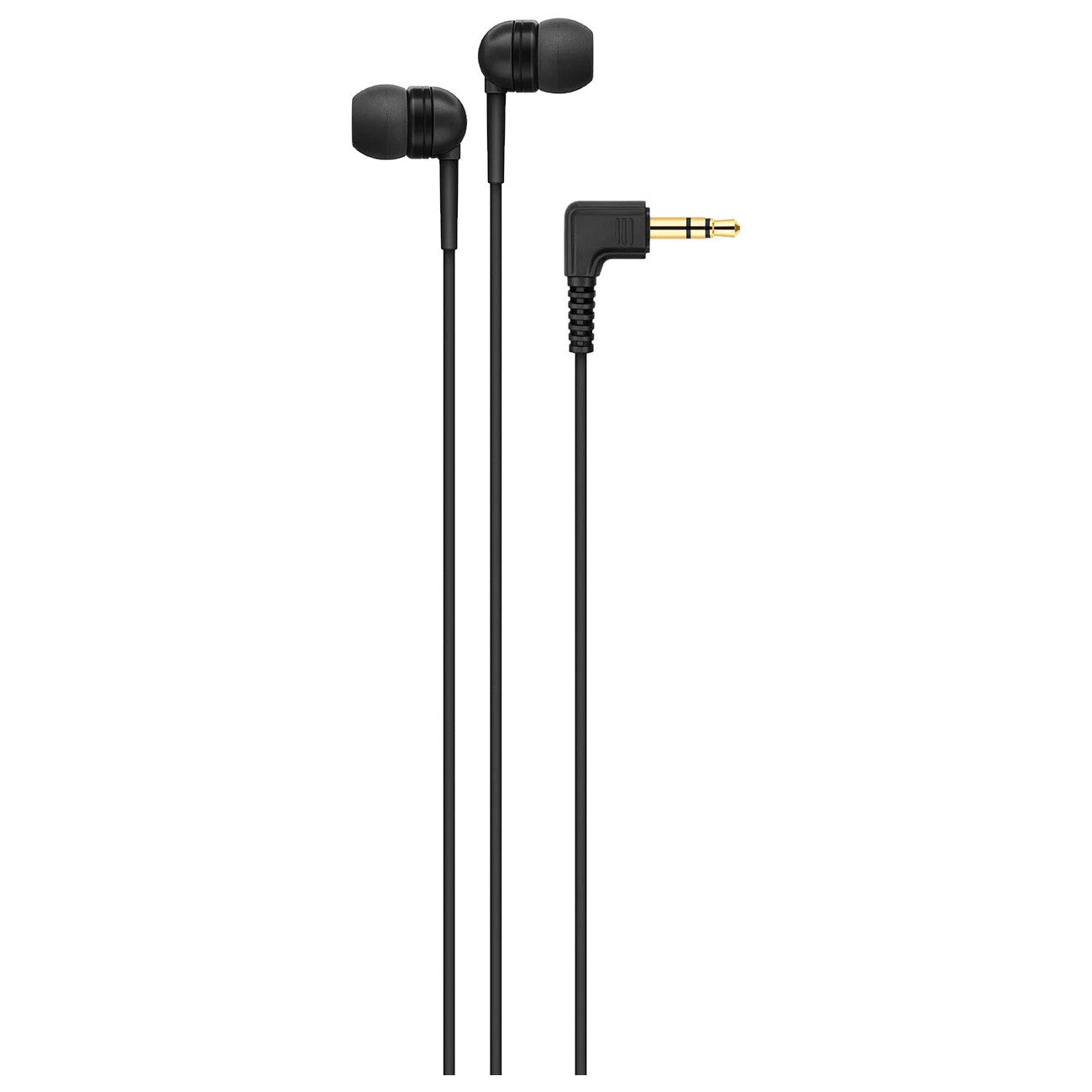

  • Sennheiser XSW IEM headphones

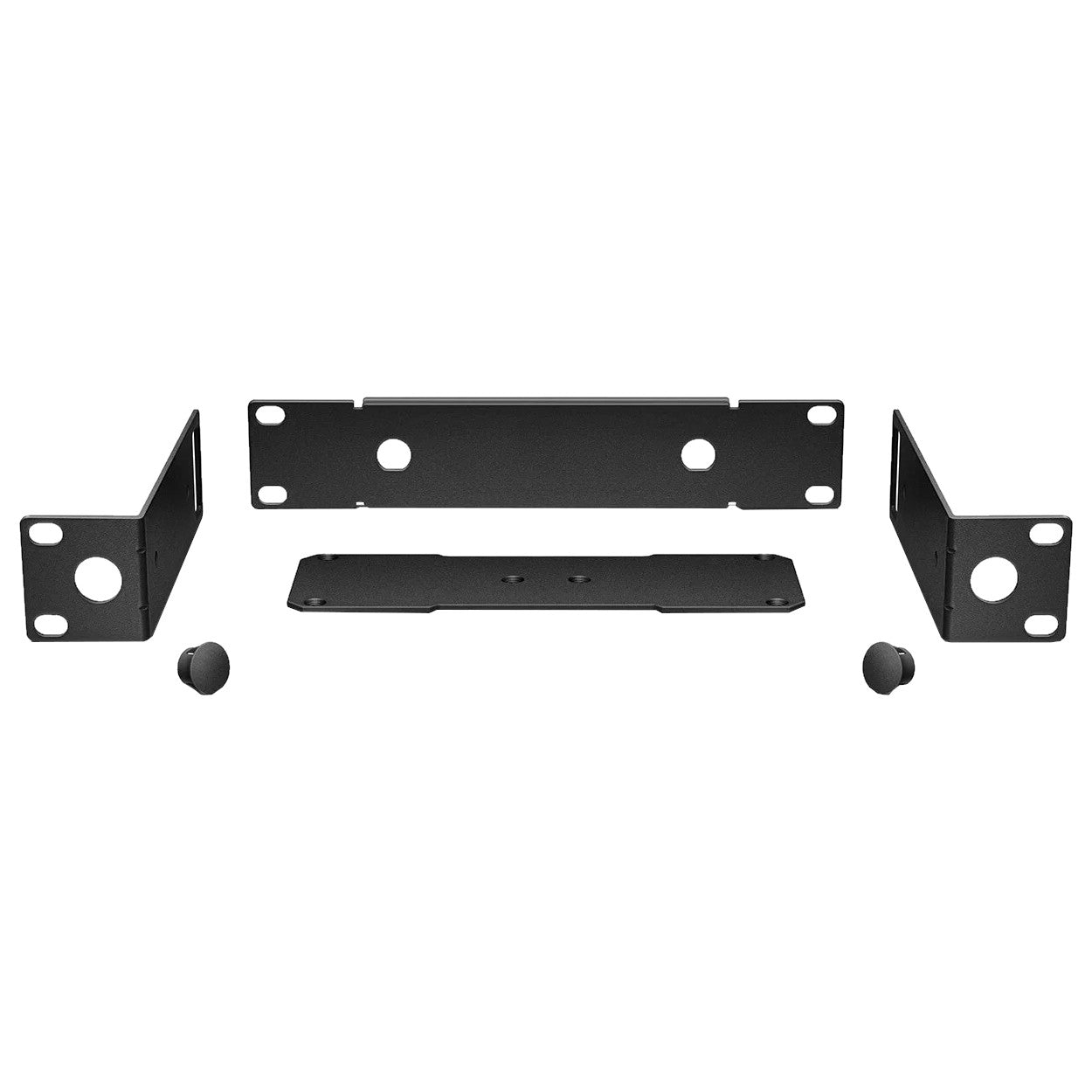

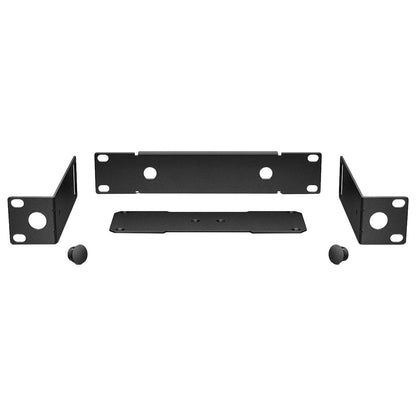

  • Sennheiser XSW IEM rack mount kit

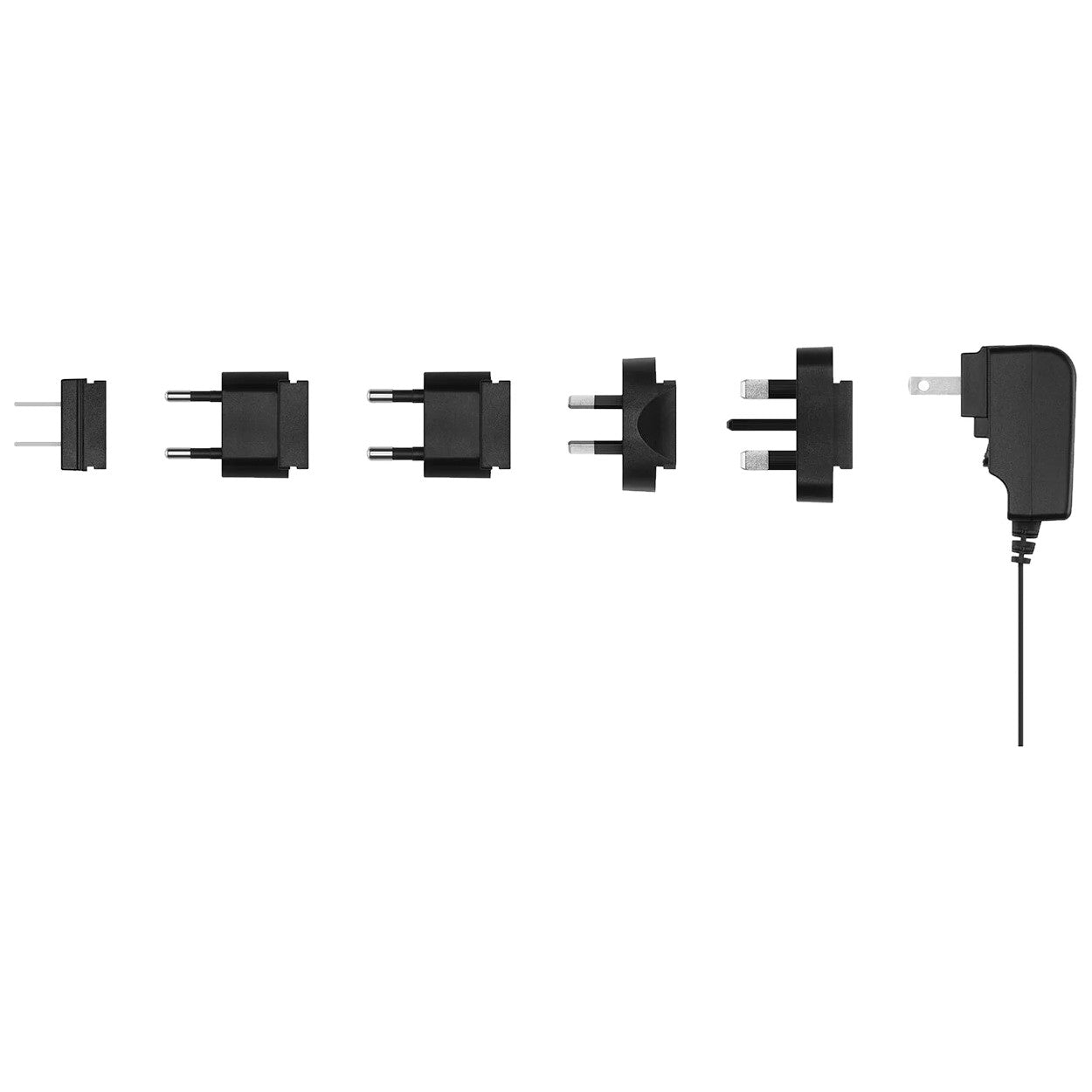

  • Sennheiser XSW IEM power supply adapters

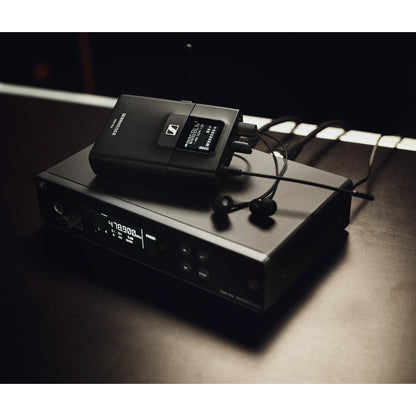

  • Sennheiser XSW IEM Set (A) Wireless In-Ear Monitoring System lifestyle

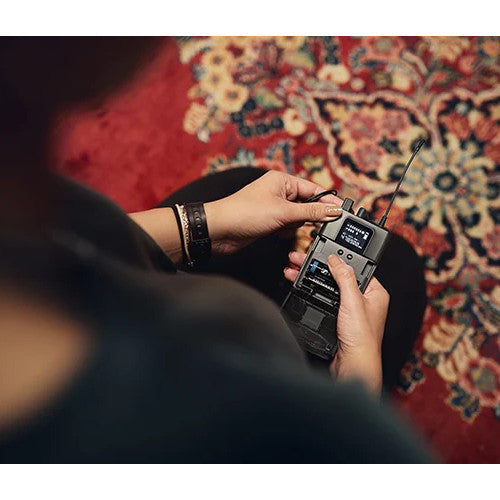

  • Sennheiser XSW IEM Set (A) receiver lifestyle
1 10

Sennheiser XSW IEM Set Wireless In-Ear Monitoring System | Frequency: A (476-500 MHz)

Sennheiser XSW IEM Set Wireless In-Ear Monitoring System | Frequency: A (476-500 MHz)

SoundPro Item: 131179 | Part Number: XSW IEM SET (A)

$649.00
$779.00 $649.00
Your Price Sold out
MSRP: $779.00 | MAP: $649.00

Usually ships in 5-7 business days

  • Complete starter set for in-ear monitoring
  • Reliable, easy-to-manage wireless connection in the professional UHF range
  • Full control with flexible audio modes
  • Focus mode to balance your personal mix
  • Advanced features like EQ and limiter
  • Easy frequency presets or detailed manual control
  • Infrared sensor to sync multiple receivers easily to one transmitter
Log in or register for YOUR best price

The XSW IEM Set (A) Wireless In-Ear Monitoring System from Sennheiser provides all the tools you need to customize your personal monitoring onstage.

This system includes a transmitter, receiver, headphones, a rackmount kit for permanent setups, power supply with country adapters, and two AA batteries.

View full details

Specifications

Dimensions
Dimensions
Approx. 95x70x26 mm
Weight
Weight (incl. batteries)
ca. 110 g
Electrical
Total Harmonic Distortion (THD)
≤ 1 %
Input Voltage Range
100 to 240 V~200mA, 50/60 Hz
Secondary Output Current
500 mA
Audio
AF Frequency Response
45Hz to 15kHz
Signal-to-noise Ratio (1 Mv, Peak deviation)
≥88 dB
Signal-to-noise Ratio (at Nominal Load and Peak deviation)
≥88 dB
Output Voltage
+12 V DC
Connectivity
AF Output Level at 3.5 Mm
2 x 1,25 Veff at 16Ω
Input Rating
+12 V DC
Input
2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
Antenna Output
BNC socket, 50Ω
Environmental
Temperature Range
0°C to +40°C
Storage Temperature
-20°C ... +60°C (4 °F ... +140 °F)
Shipping
Weight
Approx. 700 g
General
XSW IEM EK Stereo Receiver
Frequency Ranges (RF Output Power) A 476-500 MHz (30 mW)B 572-596 MHz (30 mW)C 662-686 MHz (30 mW)E 823,2-831,8 MHz (30 mW)K 925,2-937,3 MHz (10 mW)
Switching Bandwidth
up to 24 MHz
High Boost (EQ)
+10 dB at 13 kHz
Limiter
-10 dB
Power Supply
2 AA batteries, 1.5V
Operating Time
Approx. 6 hrs
XSW IEM SR Stereo Transmitter
Frequency Ranges (RF Output Power) A 476-500 MHz (30 mW)B 572-596 MHz (30 mW)C 662-686 MHz (30 mW)E 823,2-831,8 MHz (30 mW)K 925,2-937,3 MHz (10 mW)
Current Consumption
Approx. 400mA (depending on volume level)
Radio
Modulation
Wideband FM
