Sennheiser XSW IEM Set Wireless In-Ear Monitoring System | Frequency: A (476-500 MHz)
Sennheiser XSW IEM Set Wireless In-Ear Monitoring System | Frequency: A (476-500 MHz)
SoundPro Item: 131179 | Part Number: XSW IEM SET (A)
In stock and ready to ship
- Complete starter set for in-ear monitoring
- Reliable, easy-to-manage wireless connection in the professional UHF range
- Full control with flexible audio modes
- Focus mode to balance your personal mix
- Advanced features like EQ and limiter
- Easy frequency presets or detailed manual control
- Infrared sensor to sync multiple receivers easily to one transmitter

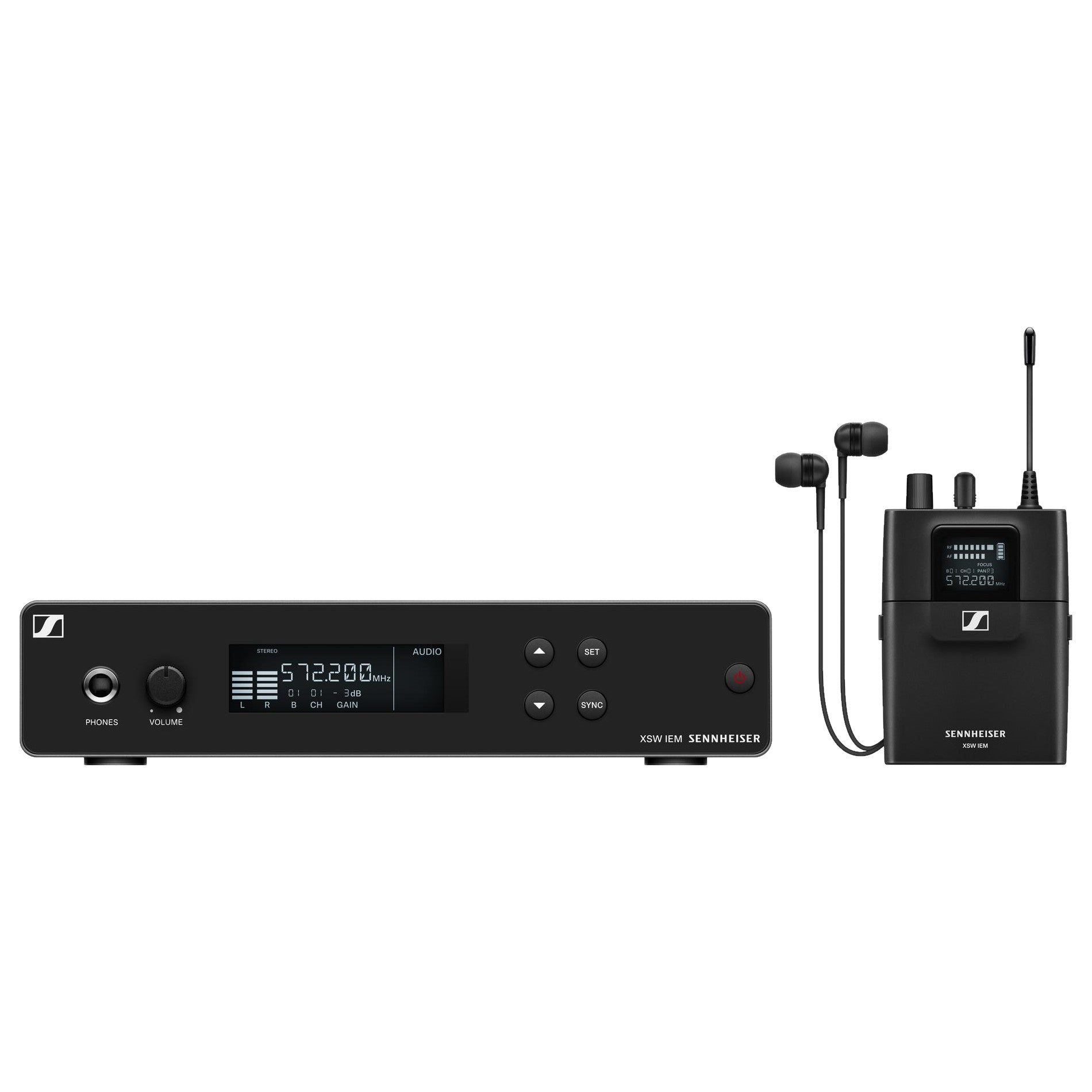

The XSW IEM Set (A) Wireless In-Ear Monitoring System from Sennheiser provides all the tools you need to customize your personal monitoring onstage.

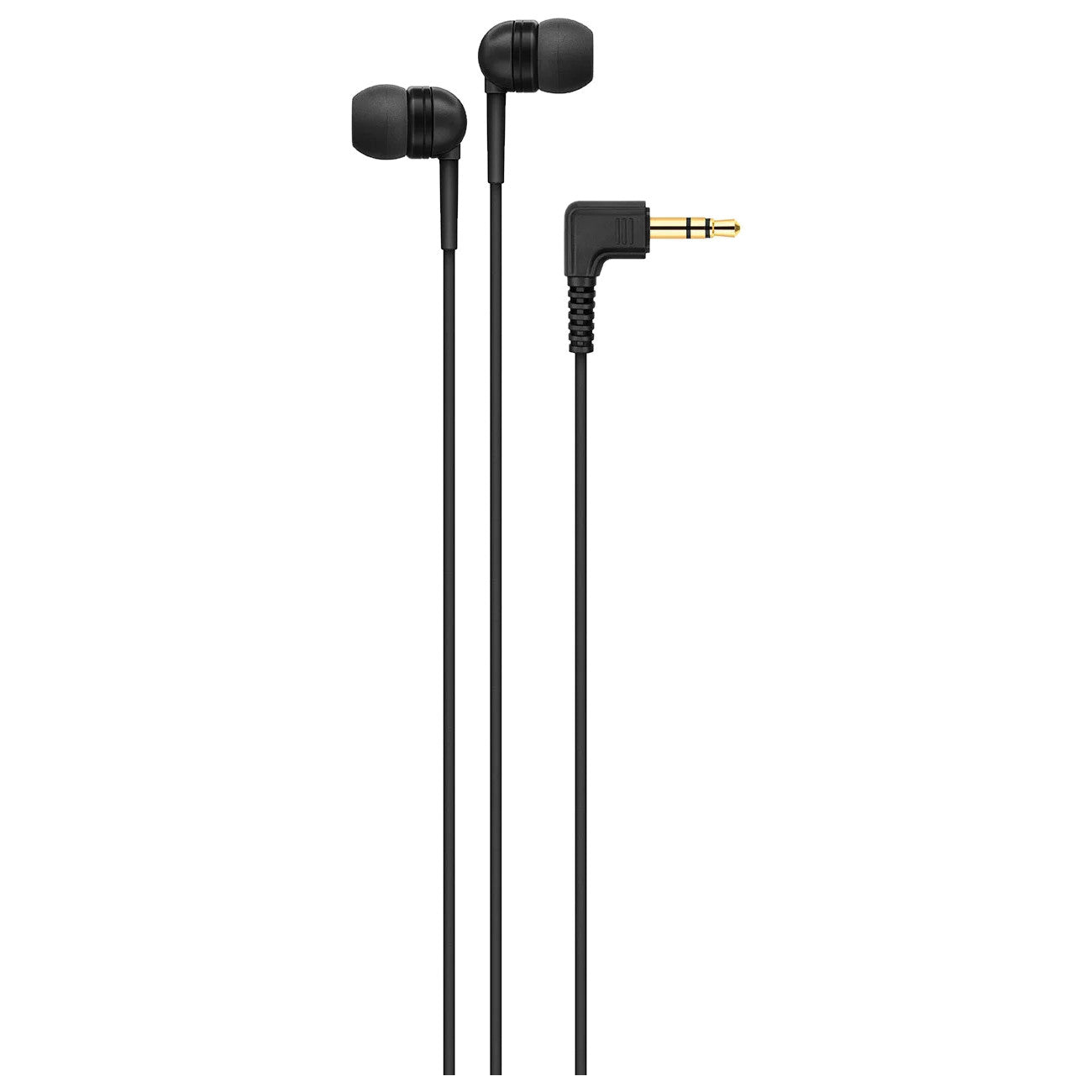

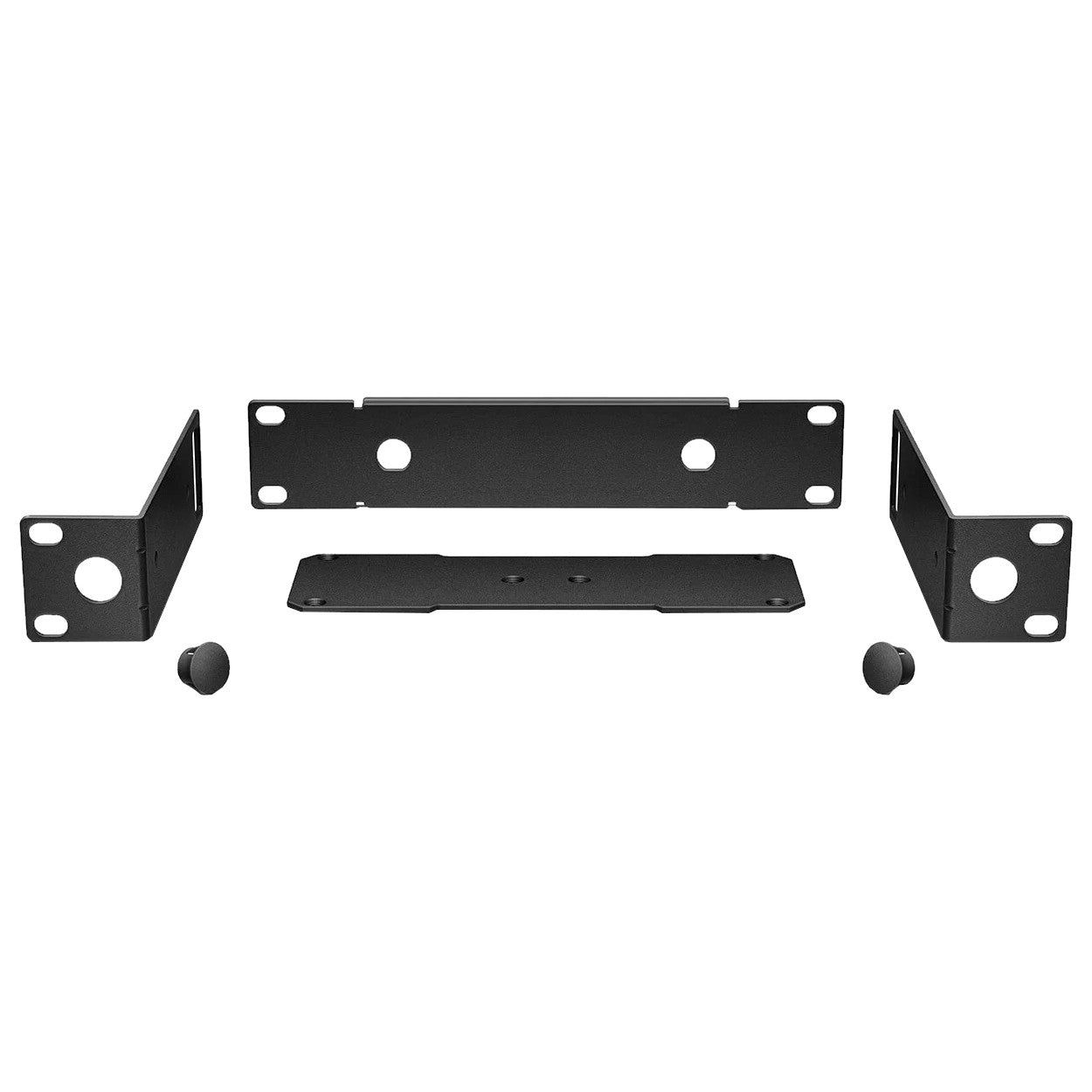

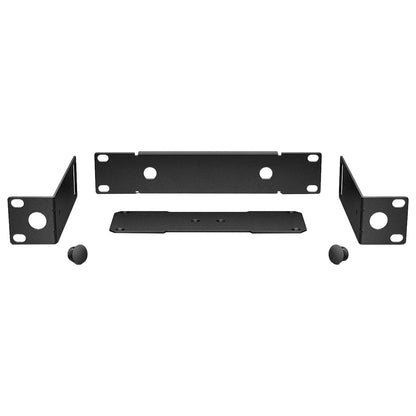

This system includes a transmitter, receiver, headphones, a rackmount kit for permanent setups, power supply with country adapters, and two AA batteries.

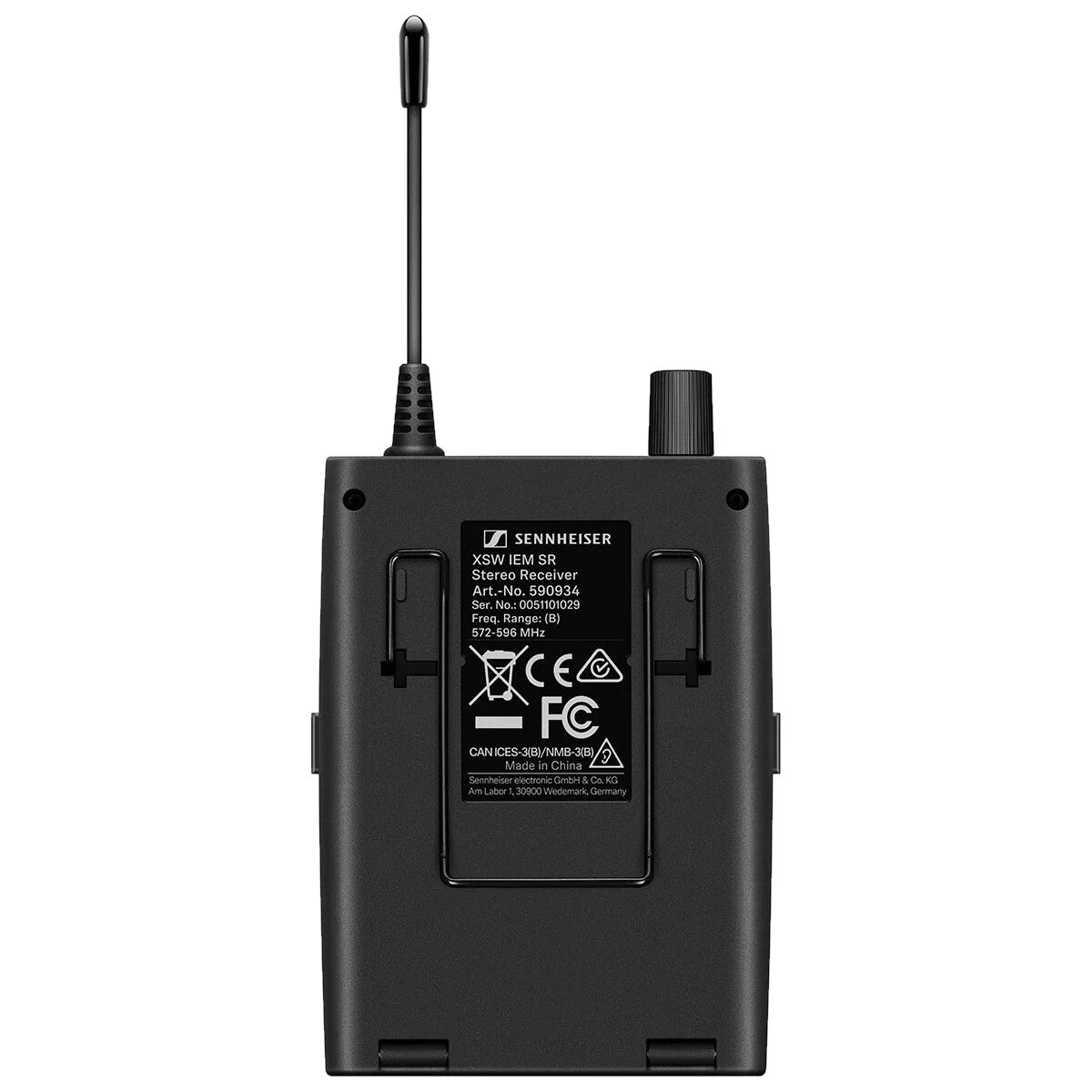

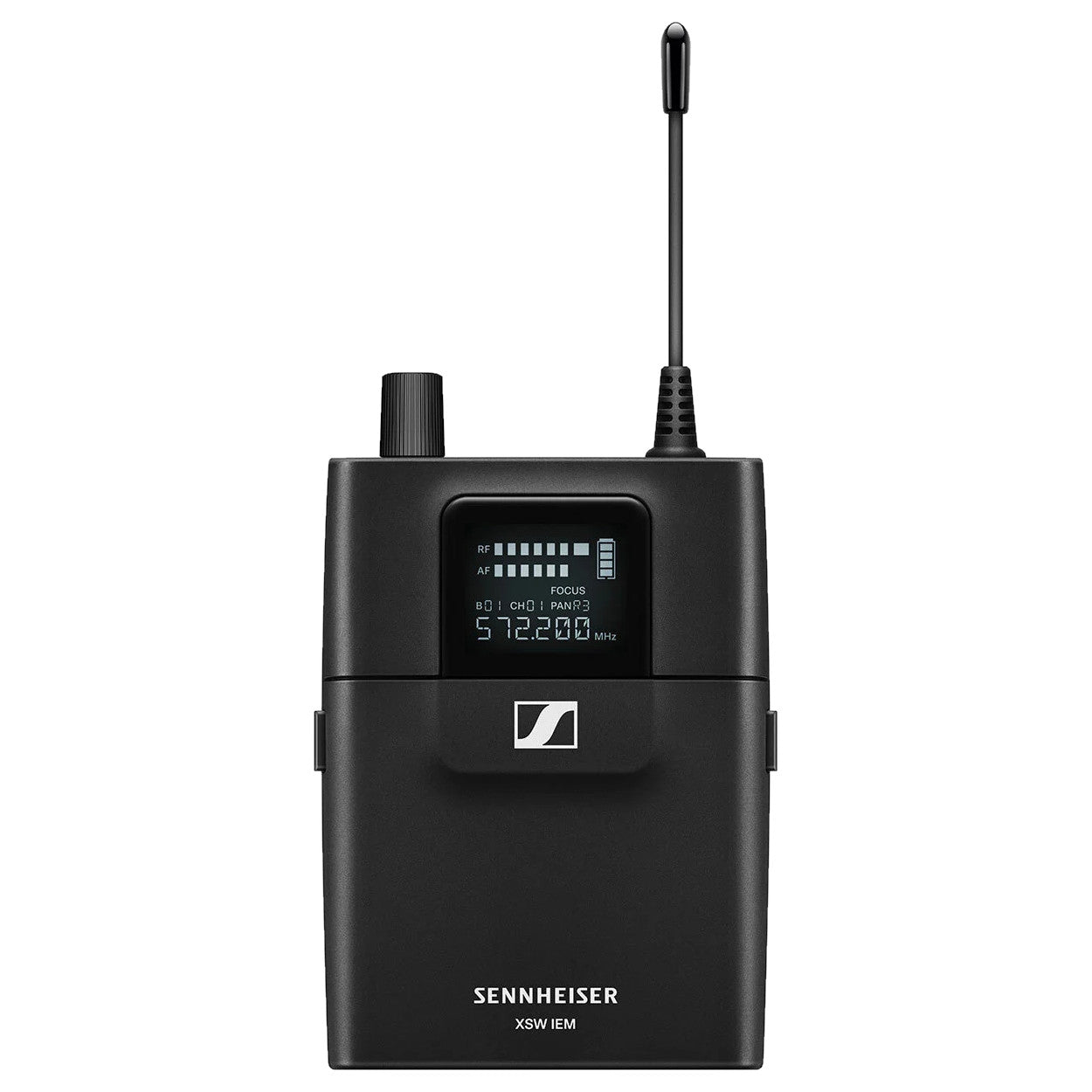

- XSW IEM EK Stereo Receiver
- Frequency Ranges (RF Output Power)
- A 476-500 MHz (30 mW)
- B 572-596 MHz (30 mW)
- C 662-686 MHz (30 mW)
- E 823,2-831,8 MHz (30 mW)
- K 925,2-937,3 MHz (10 mW)
- Dimensions: Approx. 95x70x26 mm
- Weight (incl. batteries): ca. 110 g
- Switching bandwidth: up to 24 MHz
- Temperature Range: 0°C to +40°C
- AF frequency response: 45Hz to 15kHz
- Modulation: Wideband FM
- Signal-to-noise ratio (1 mV, peak deviation): ≥88 dB
- AF output level at 3.5 mm: 2 x 1,25 Veff at 16Ω
- High Boost (EQ): +10 dB at 13 kHz
- Total harmonic distortion (THD): ≤ 1 %
- Limiter: -10 dB
- Power supply: 2 AA batteries, 1.5V
- Operating time: Approx. 6 hrs
- Frequency Ranges (RF Output Power)

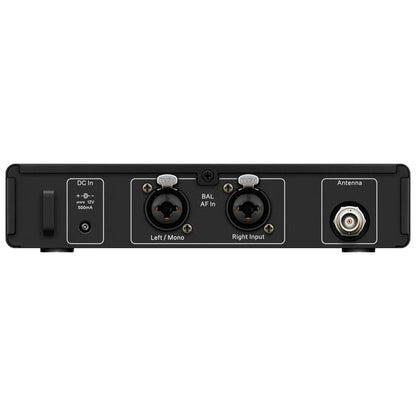

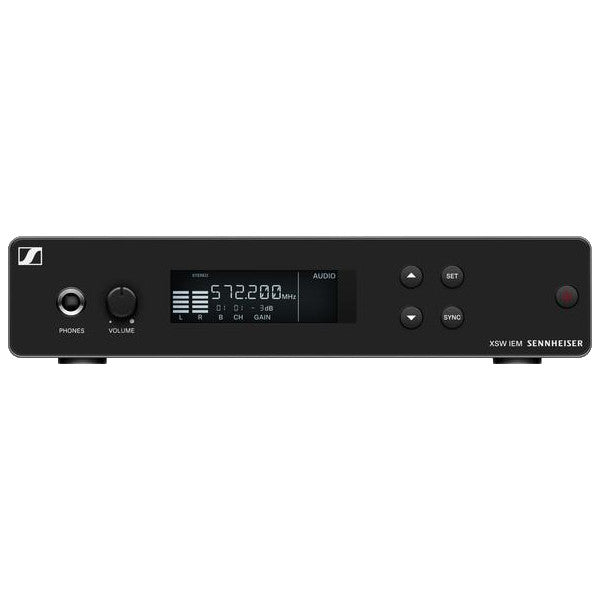

- XSW IEM SR Stereo Transmitter
- Frequency Ranges (RF Output Power)
- A 476-500 MHz (30 mW)
- B 572-596 MHz (30 mW)
- C 662-686 MHz (30 mW)
- E 823,2-831,8 MHz (30 mW)
- K 925,2-937,3 MHz (10 mW)
- Dimensions: Approx. 200x128x42 mm
- Weight: Approx. 700 g
- Switching bandwidth: up to 24 MHz
- Temperature Range: 0 °C to +40 °C
- AF frequency response: 45 Hz to 15 kHz
- Modulation: FM Stereo
- Signal-to-noise ratio (at nominal load and peak deviation): ≥88 dB
- Current consumption: Approx. 400mA (depending on volume level)
- Input rating: +12 V DC
- Input: 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
- Antenna Output: BNC socket, 50Ω
- Frequency Ranges (RF Output Power)

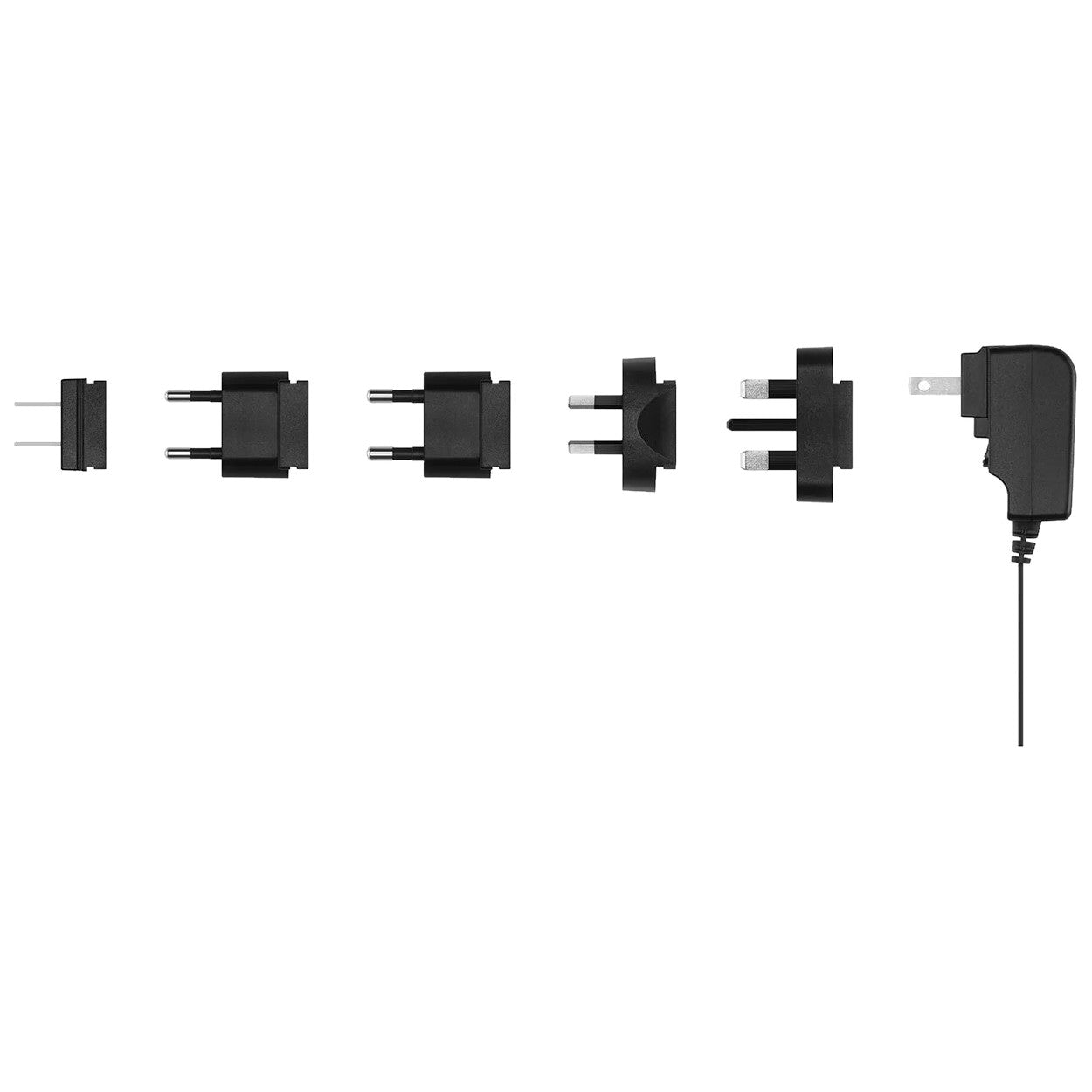

- NT 12-5CW Power supply
- Input voltage range: 100 to 240 V~200mA, 50/60 Hz
- Storage temperature: -20°C ... +60°C (4 °F ... +140 °F)
- Output voltage: +12 V DC
- Temperature Range: 0°C ... +40°C (32°F ... +104°F)
- Current consumption: Max. 200 mA
- Secondary output current: 500 mA
