• Shure BLX14/PGA31 Headworn Wireless System
1 1

Shure BLX14/PGA31 Wireless Headworn Microphone System | Frequency: H10 (542-572 MHz)

Shure BLX14/PGA31 Wireless Headworn Microphone System | Frequency: H10 (542-572 MHz)

Soundpro Item: 44260 | Part Number: BLX14/P31-H10

$379.00
$488.00 $379.00
Your Price Sold out
MSRP: $488.00 | MAP: $379.00
  • Headworn mic system for performers and presenters
  • Includes a bodypack, a receiver, a headset mic, and accessories
  • Simple setup and intuitive interface
  • 2 AA batteries (included) provide up to 14 hours of continuous use
  • 300 feet (91 m) operating range (line of sight)
Log in or register for YOUR best price

Enjoyed by public speakers, worship leaders, community theater groups, and fitness instructors, Shure’s BLX14/PGA31 Wireless Headworn Microphone System is unobtrusive and easy to use.

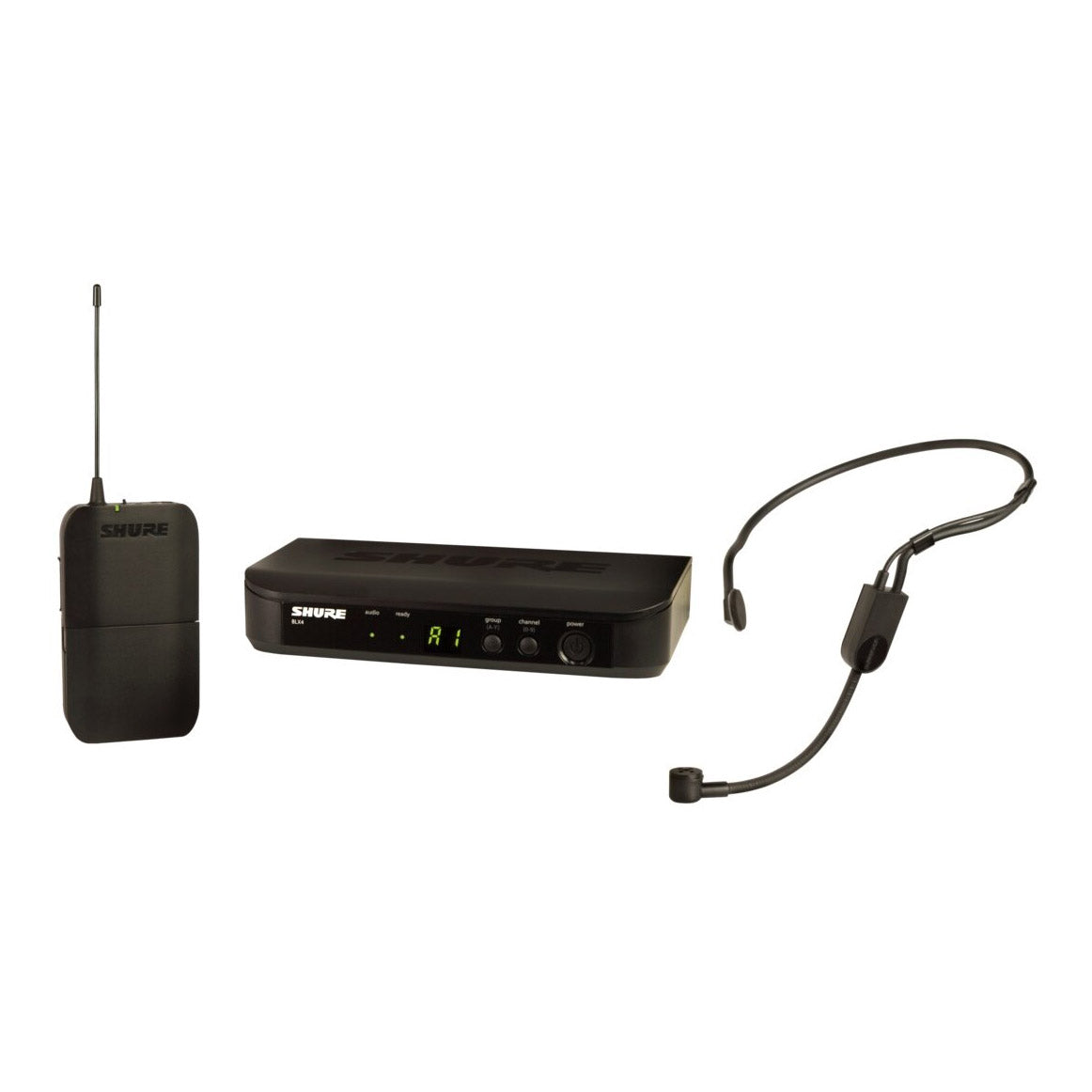

This system is comprised of a BLX1 Bodypack Transmitter, a BLX4 Receiver, and a PGA31 Headset microphone, as well as a power supply, windscreen, and clothing clip.

View full details

Specifications

  • System
    • Working Range: 91 m (300 ft) Line of Sight
    • Audio Frequency Response: 50 to 15,000 Hz
    • Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone: 0.5%, typical
    • Dynamic Range: 100 dB, A-weighted, typical
    • Operating Temperature: -18°C (0°F) to 57°C (135°F)
    • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

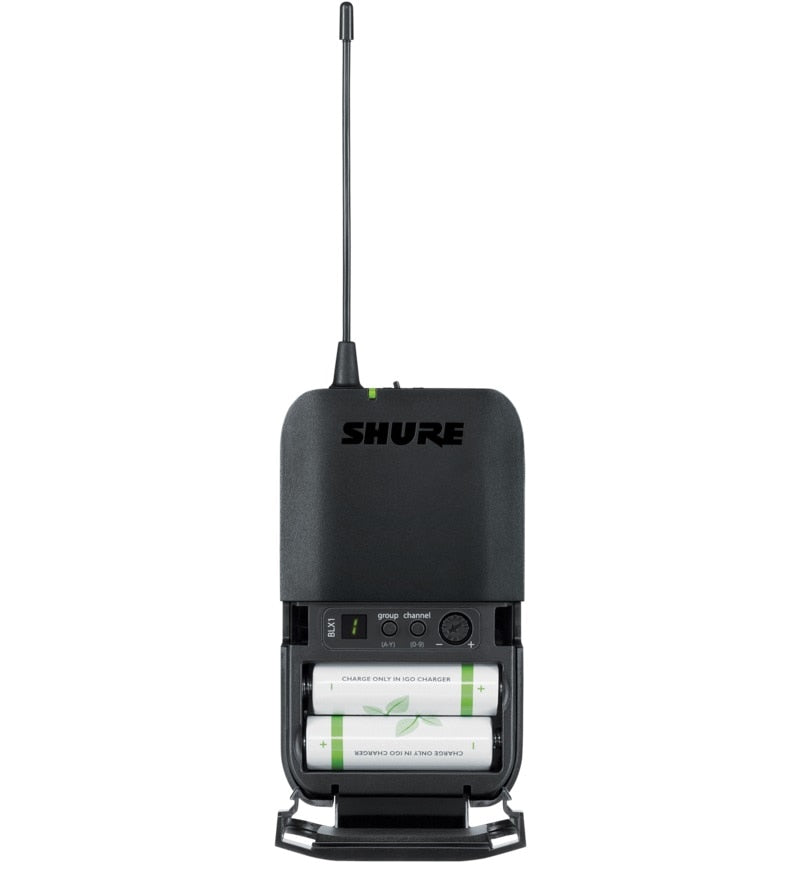

  • BLX1 Transmitter
    • Audio Input Level
      • max: -16 dBVmaximum
      • min (0 dB): +10 dBVmaximum
    • Gain Adjustment Range: 26 dB
    • Input Impedance: 1 MΩ
    • RF Transmitter Output: 10 mW, typical
    • Dimensions (HxWxD): 4.33x2.52x0.83" (110x64x21mm)
    • Weight: 2.6 oz. (75 g), without batteries
    • Housing: Molded ABS
    • Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
    • Battery Life: up to 14 hours (alkaline)

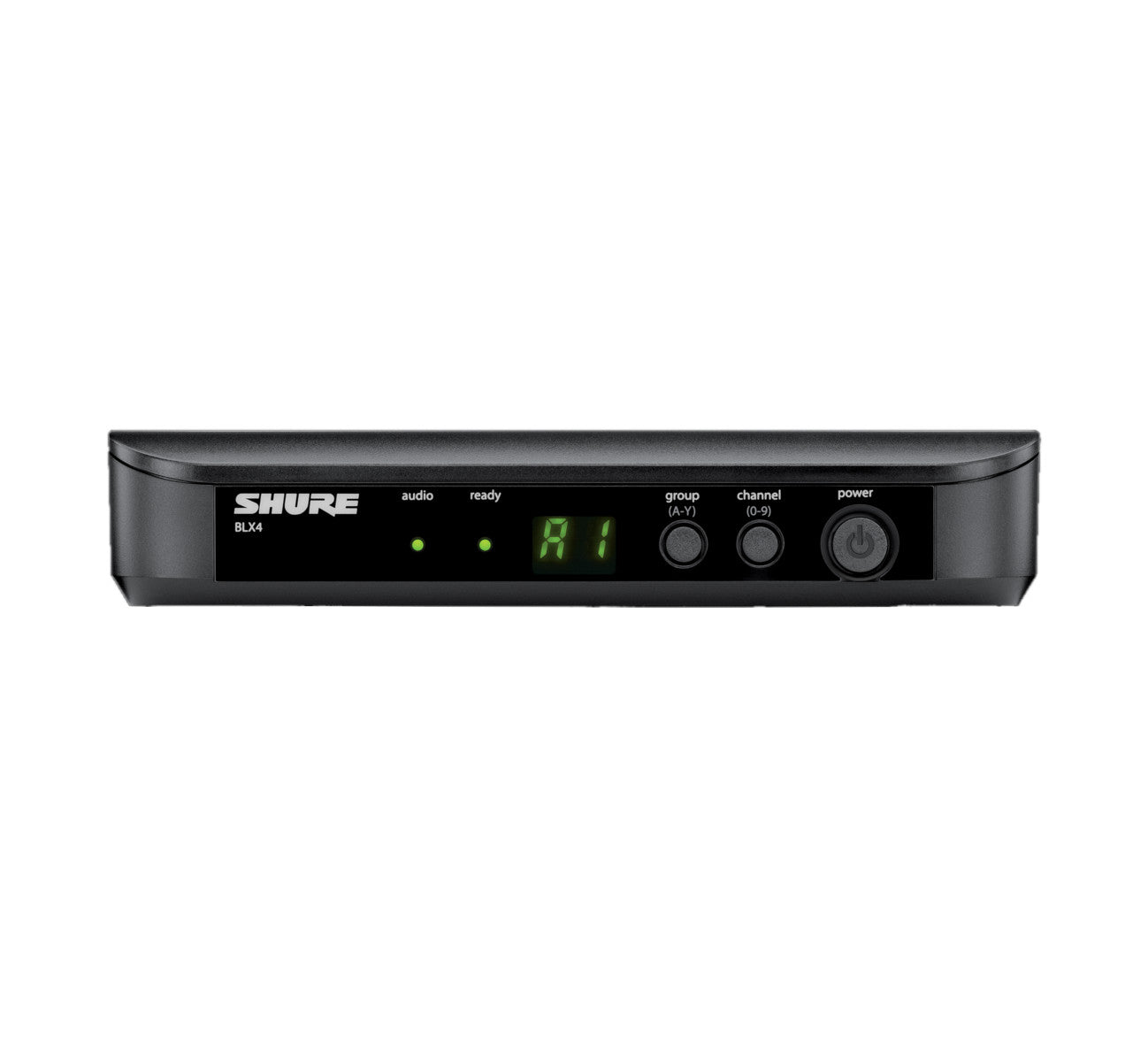

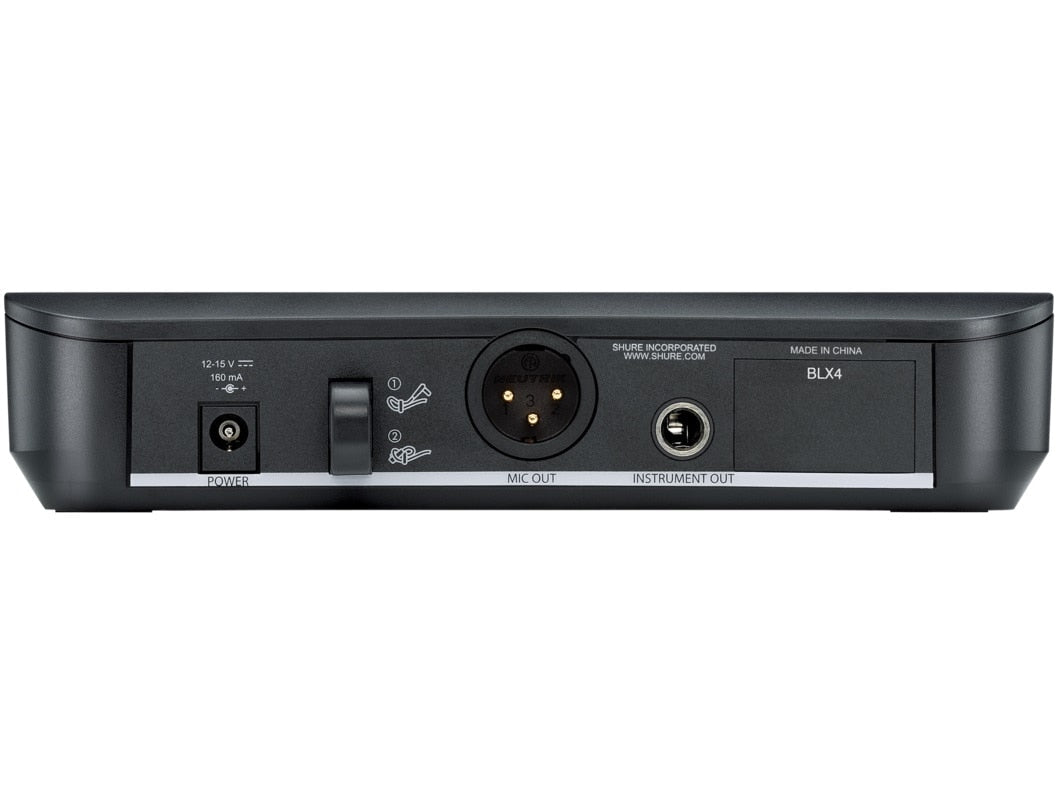

  • BLX4 Receiver
    • Output Impedance
      • XLR connector: 200 Ω
      • 6.35 mm (1/4") connector: 50 Ω
    • Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone
      • XLR connector: –27 dBV (into 100 kΩ load)
      • 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
    • RF Sensitivity: -105 dBm for 12 dB SINAD, typical
    • Image Rejection: >50 dB, typical
    • Dimensions (HxWxD): 1.57x7.4x4.06" (40x188x103mm)
    • Weight: 8.5 oz. (241g)
    • Housing: Molded ABS
    • Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
