Shure GLXD14+/93 Dual Band Wireless Lavalier Microphone System
Shure GLXD14+/93 Dual Band Wireless Lavalier Microphone System
SoundPro Item: 137163 | Part Number: GLXD14+/93-Z3
In stock and ready to ship
- Dual Band Wireless Technology
- Automatic Frequency Management
- Smart Rechargeability
- Up to 16 Compatible Systems

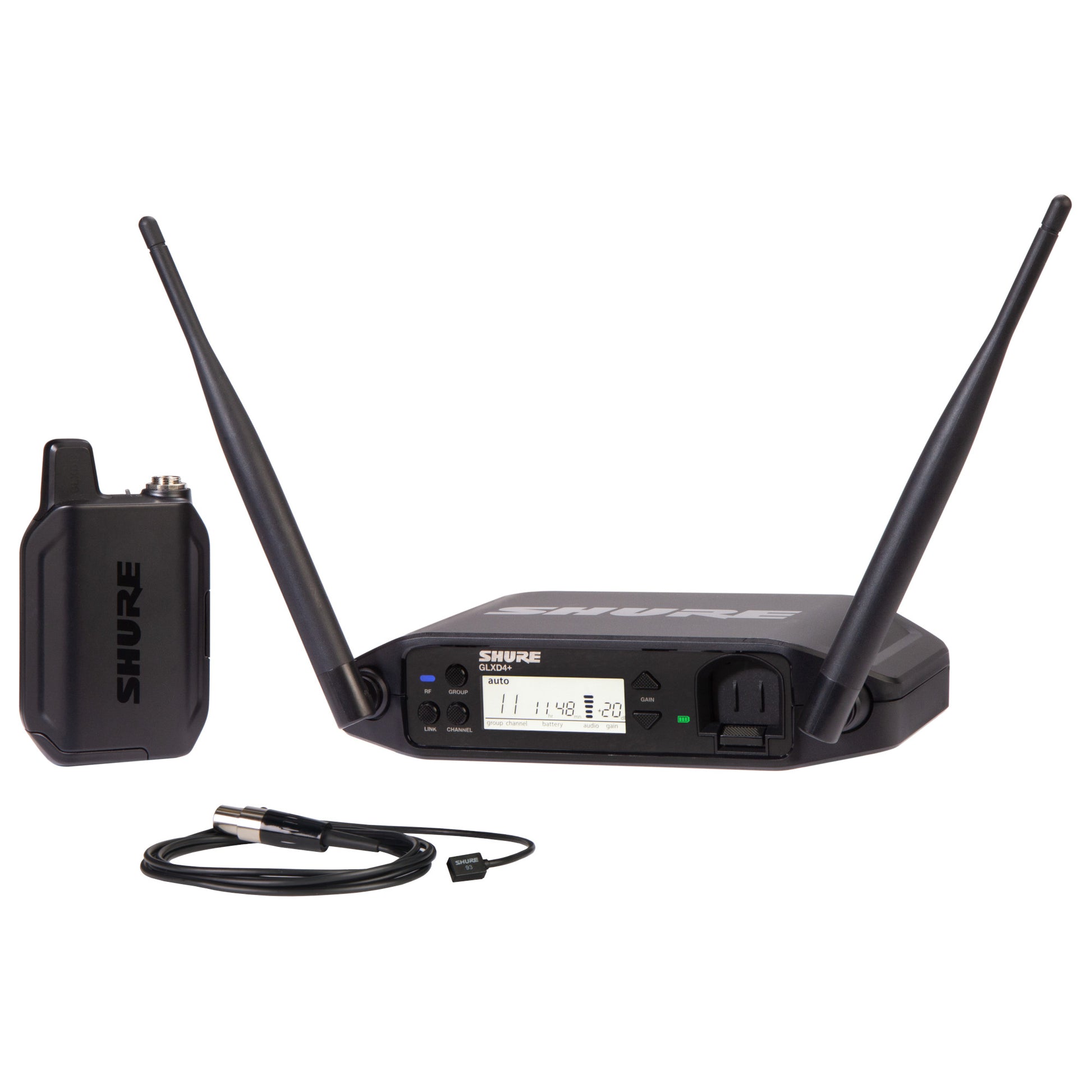

The GLX-D+ Dual Band Wireless Presenter System features the miniature wearable WL93 lavalier microphone for spoken word applications and the GLXD4+ tabletop receiver. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.
- Compatibility
- With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions
- Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
- System Operating Range
- Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions
- Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
- Transmit Mode Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
- Audio Frequency Response 20 Hz – 20 kHz Note: Dependent on microphone type
- Dynamic Range 120 dB, A-weighted
- RF Sensitivity -88 dBm, typical
- Total Harmonic Distortion 0.07%, typical
- RF Output Power 10 mW E.I.R.P. max
- Operating Temperature Range -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
- Storage Temperature Range -29°C (-20°F) to 74°C (165°F)
- PolarityPositive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
- Battery Life Up to 12 hours

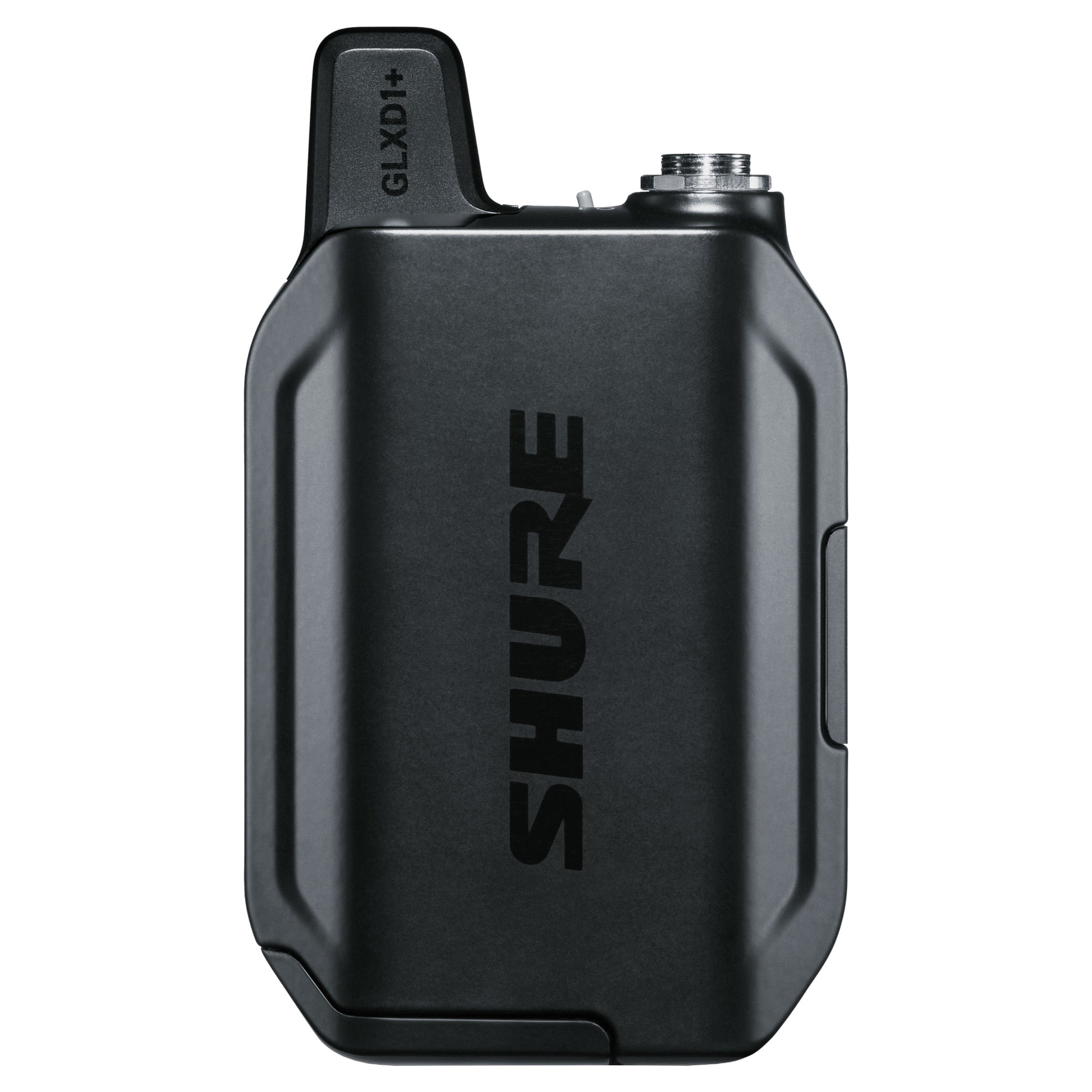

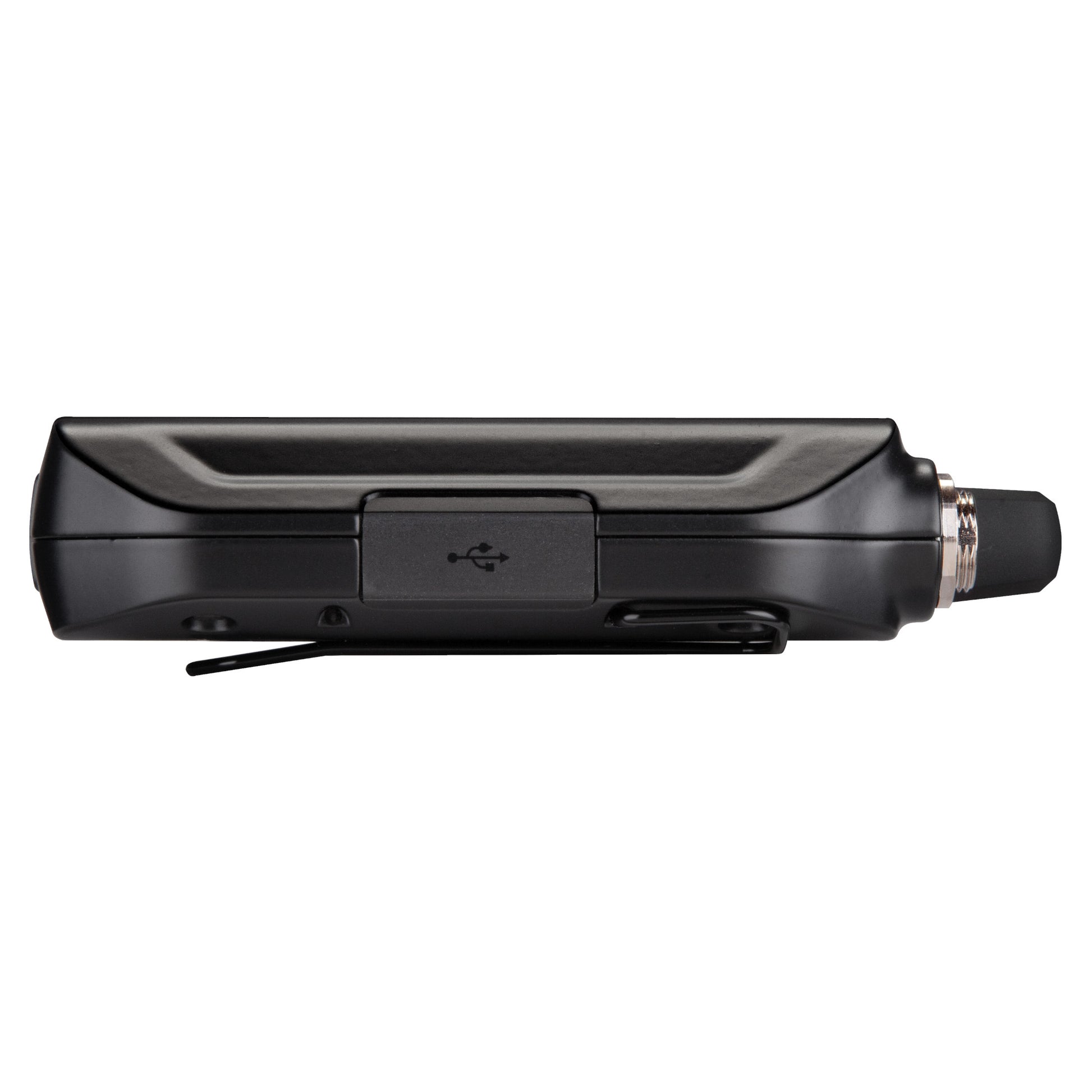

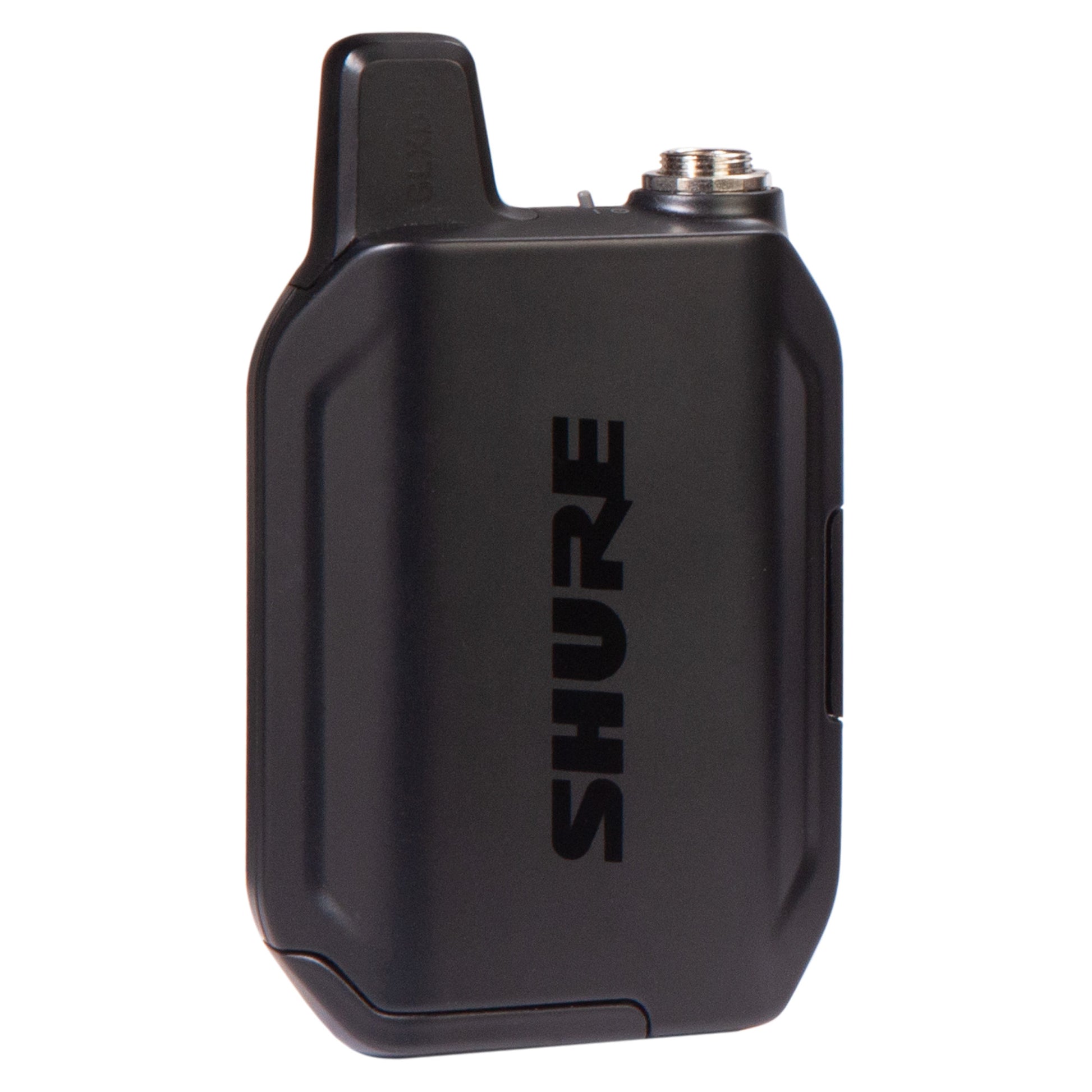

- GLXD1+ DUAL BAND BODYPACK TRANSMITTER
- Dimensions (HxWxD) : 4.5x2.6x1.1” (115x66.94x28.51mm), without antenna
- Weight: 5.4 oz (153.1g), without battery
- Power Requirements: 3.7V Rechargeable Li-Ion
- Housing Cast: Metal, Black Powdercoat
- Input Impedance: 900 kΩ RF
- Output Power: 10 mW E.I.R.P. max

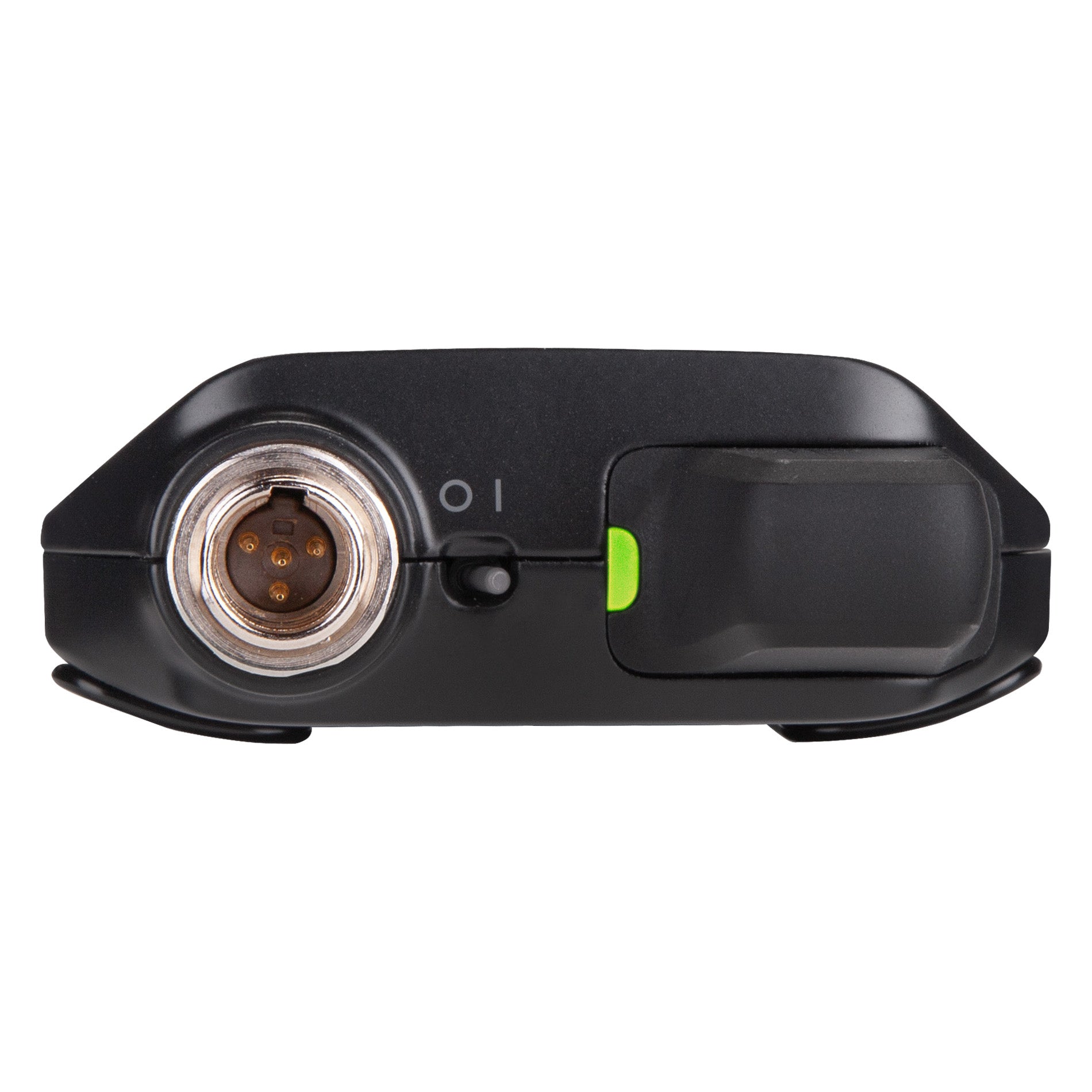

- TRANSMITTER INPUT
- Connector: 4-Pin male mini connector (TA4M)
- Configuration: Unbalanced
- Maximum Input Level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp-p)
- Antenna Type: Dual Band Internal Monopole
- Pin Assignments TA4M
- 1: Ground (cable shield)
- 2: + 5 V Bias
- 3: Audio
- 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)

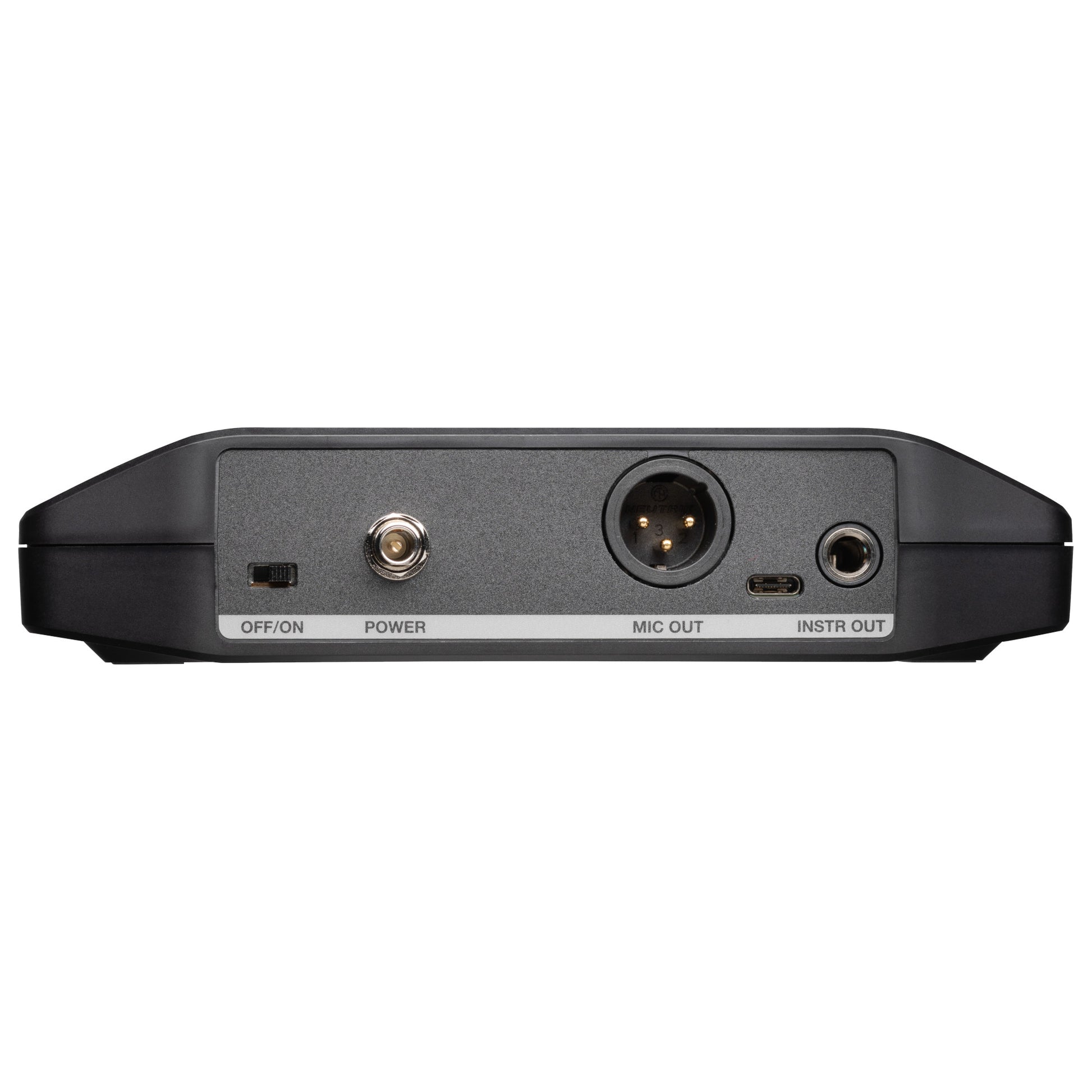

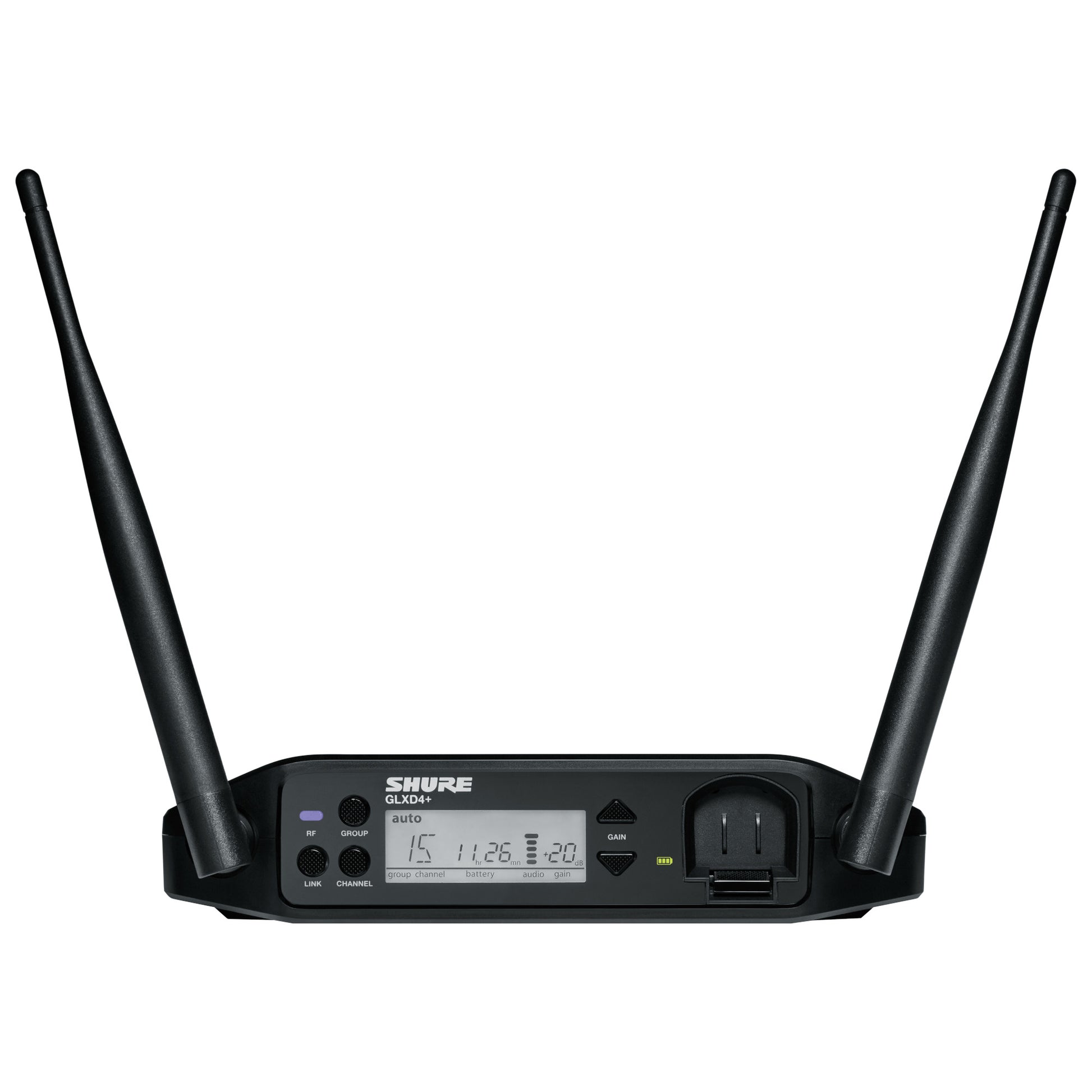

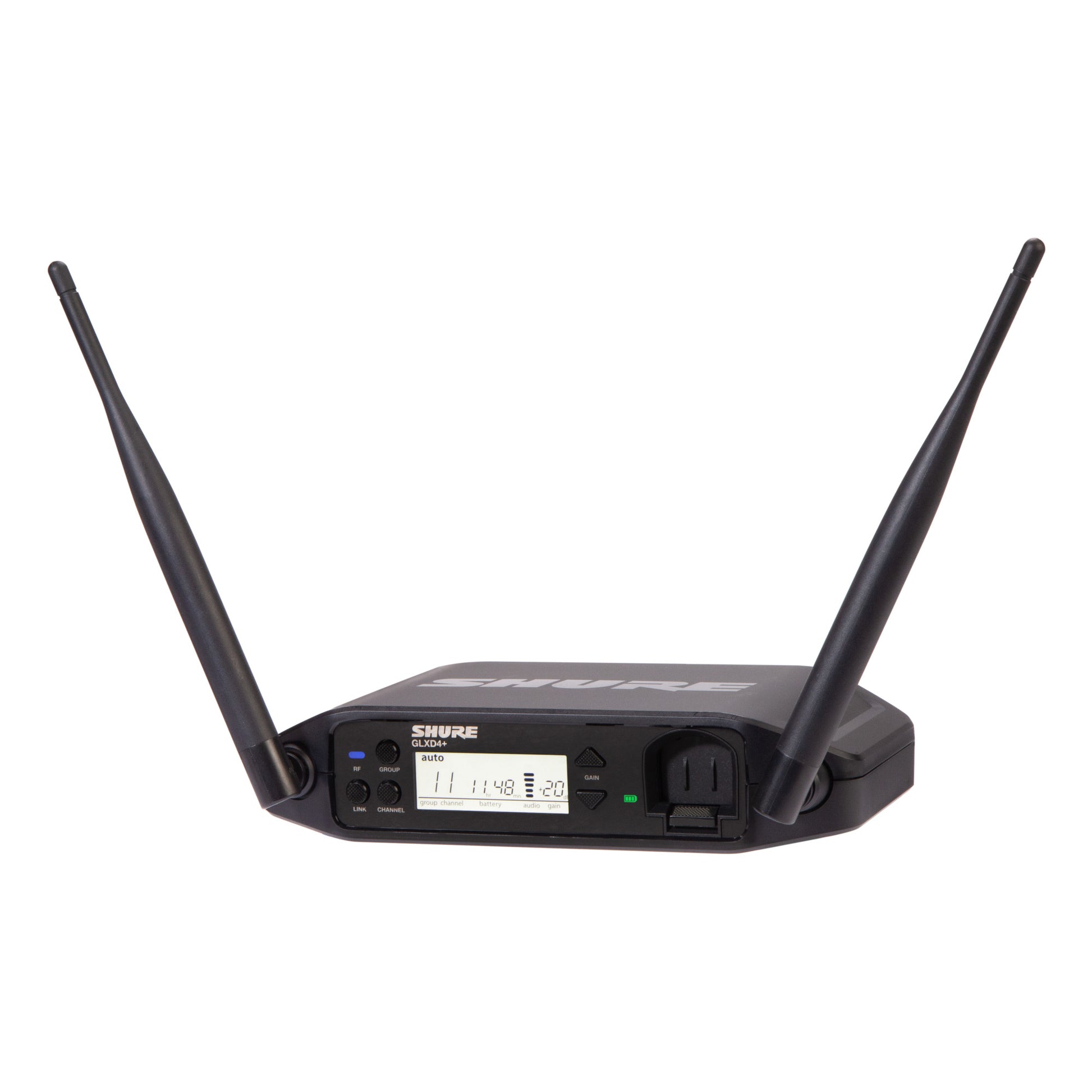

- GLXD4+ DUAL BAND WIRELESS RECEIVER
- Dimensions (HxWxD): 7.2x4.8x1.6" (182.8x121.97x40.3 mm), antennas folded
- Weight : 10.9 oz (310g)
- Housing : Molded Plastic
- Power Requirements : 14.5V - 17V, 600mA
- Spurious Rejection: >35 dB, typical
- Gain Adjustment Range: -20 to 40 dB in 1 dB steps
- Phantom Power Protection: Yes
- Configuration
- XLR Output: Impedance Balanced
- 6.35 mm (1/4“) output: Impedance Balanced
- Impedance
- XLR Output: 100Ω
- 6.35 mm (1/4“) output: 100Ω (50Ω, Unbalanced)
- Maximum Audio Output Level
- XLR connector (into 600 Ω load): 1dBV
- 6.35 mm (1/4“) connector (into 3 kΩ load): +8.5 dBV
- Pin Assignments
- XLR Output: 1=ground, 2=hot, 3=cold
- 6.35 mm (1/4“) connector: Tip=audio, Ring/Sleeve=ground
- RECEIVER ANTENNA INPUT
- Impedance 50Ω
- Antenna Type Dual Band 1/2 Wave Sleeve Dipole, non-removable
- Maximum Input Level −20 dBm

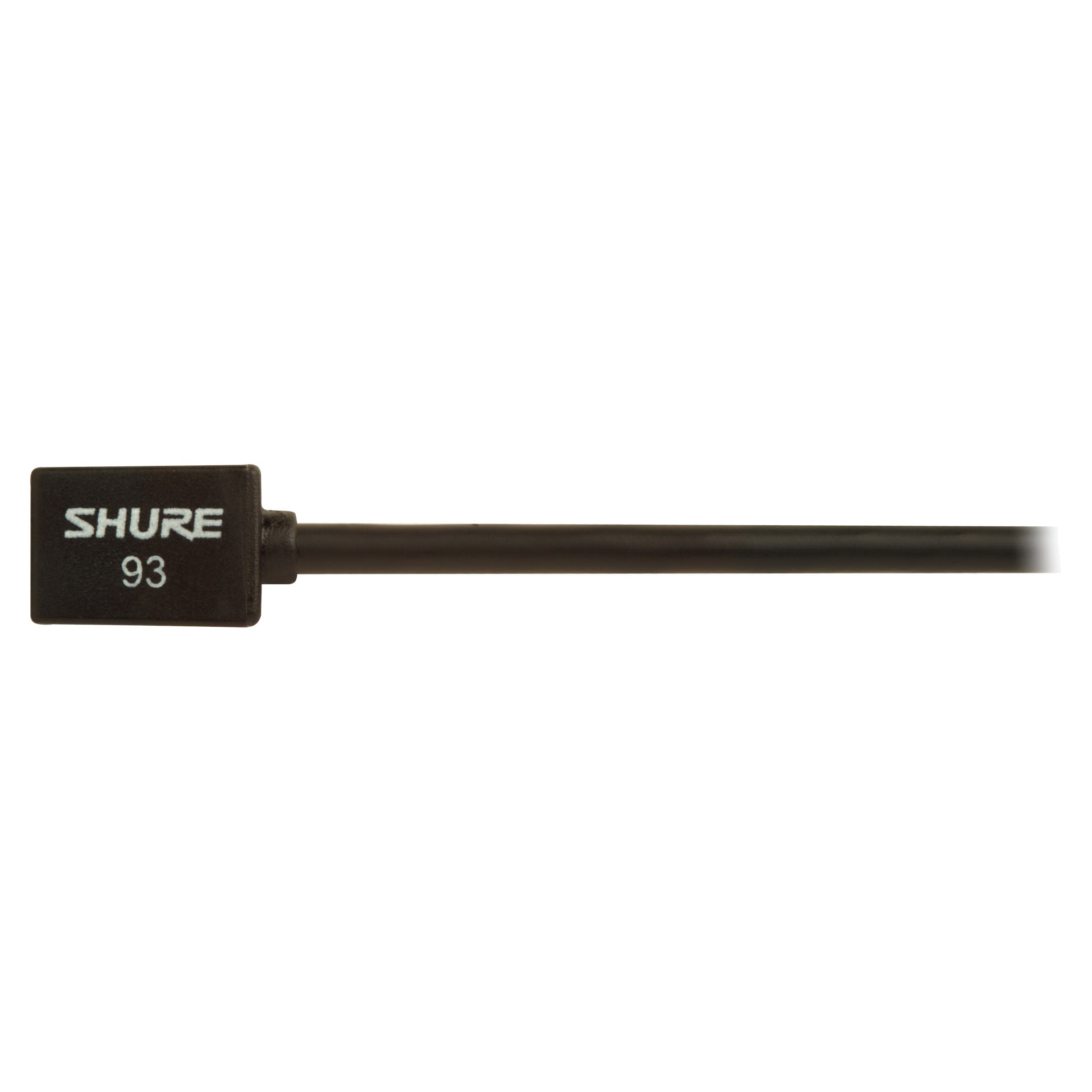

- WL93 LAVALIER MICROPHONE
- Type: Condenser (electret bias)
- Frequency Response: 50 to 20,000 Hz
- Polar Pattern: Omnidirectional, uniform with frequency
- Output Impedance: 3000Ω
- Sensitivity: open circuit voltage: −38 dBV/Pa(13 mV)
- Clipping Level (at 1 kHz): 0.25V at 120 dB
- Maximum SPL: 120 dB
- Dynamic Range (Maximum SPL, A-weighted): 102 dB
- Self Noise: 18 dB typical , A-Weighted
- Signal-to-Noise Ratio: 76 dB at 94 dB SPL (IEC 651)
- Polarity: Positive pressure on microphone diaphragm produces positive voltage on pins 3 and 4 with respect to pin 1 (ground)*
- Power Requirements: 2 to 10V; 5V nominal (pin 2 to pins 3 and 4);Current Drain 40 µA typical
- Environmental Conditions
- Operating Temperature : −18 to 57°C (0 to 135°F)
- Storage Temperature : −29 to 74°C (−20 to 165°F)
- Cable: Black1.27 m (4.17 ft), attached , two-conductor , shielded , terminated by miniature Connector Type TA4F (: Tan 1.27 m[4.17 ft])
- Housing: Black ABS thermoplastic case with stainless-steel-mesh grille
- Weight: 0.57 oz (16 g); *Produces positive voltage at pin 2 of Shure L4/EC4 wireless receiver three-pin connector.
