Shure GLXD14R+/MX53 Dual Band Wireless Headworn Microphone System
Shure GLXD14R+/MX53 Dual Band Wireless Headworn Microphone System
SoundPro Item: 137172 | Part Number: GLXD14R+/MX53-Z3
Usually ships in 5-7 business days
- Dual Band Wireless Technology
- Automatic Frequency Management
- Smart Rechargeability
- Up to 16 Compatible Systems

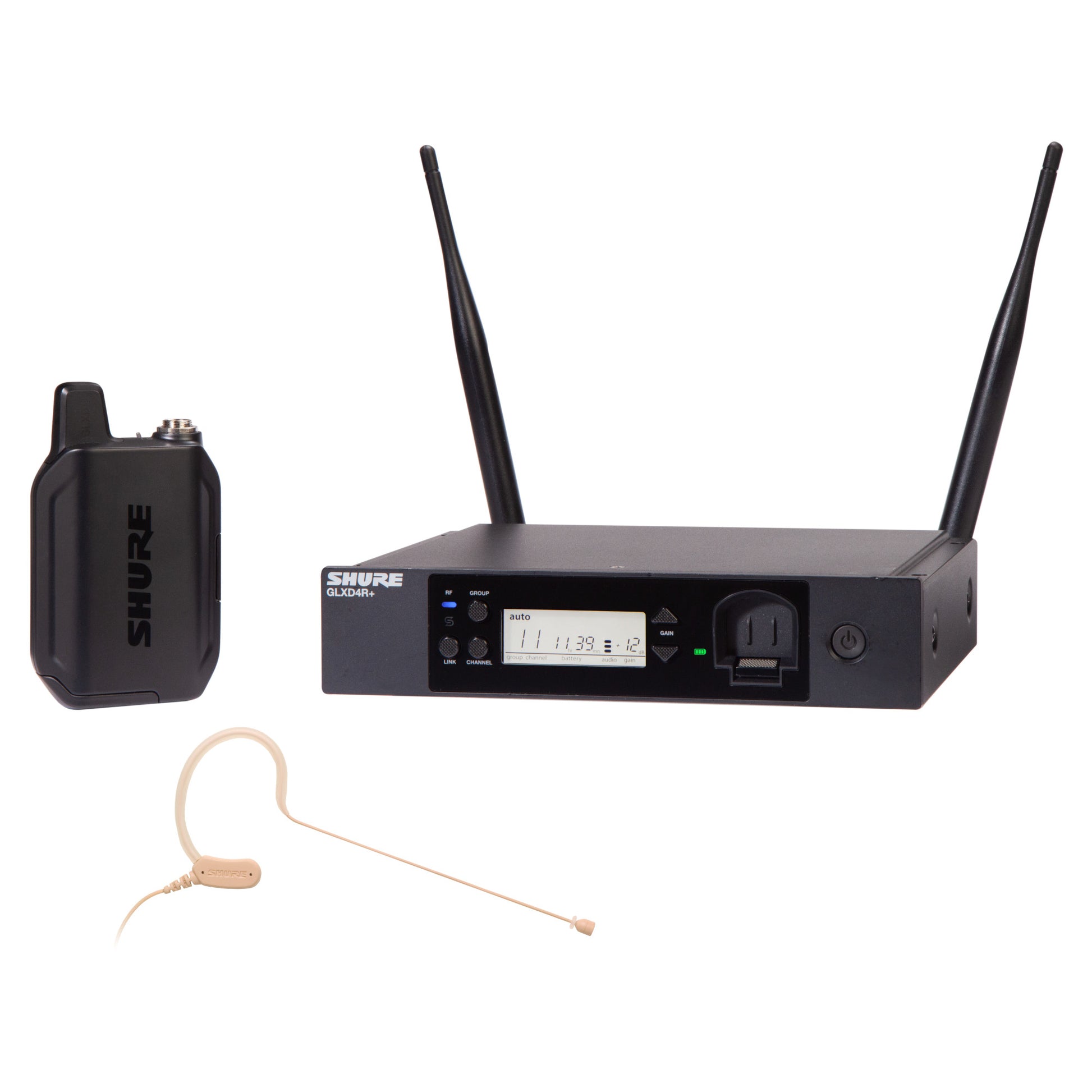

The Shure GLX-D+ Dual Band Wireless Rack System features the MX153 Headworn Earset for high-quality vocal performance and the GLXD4R+ half-rack receiver. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.
- Compatibility
- With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions
- Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
- System Operating Range
- Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions
- Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
- Transmit Mode Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
- Audio Frequency Response 20 Hz – 20 kHz Note: Dependent on microphone type
- Dynamic Range 120 dB, A-weighted
- RF Sensitivity -88 dBm, typical
- Total Harmonic Distortion 0.07%, typical
- RF Output Power 10 mW E.I.R.P. max
- Operating Temperature Range -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
- Storage Temperature Range -29°C (-20°F) to 74°C (165°F)
- PolarityPositive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
- Battery Life Up to 12 hours

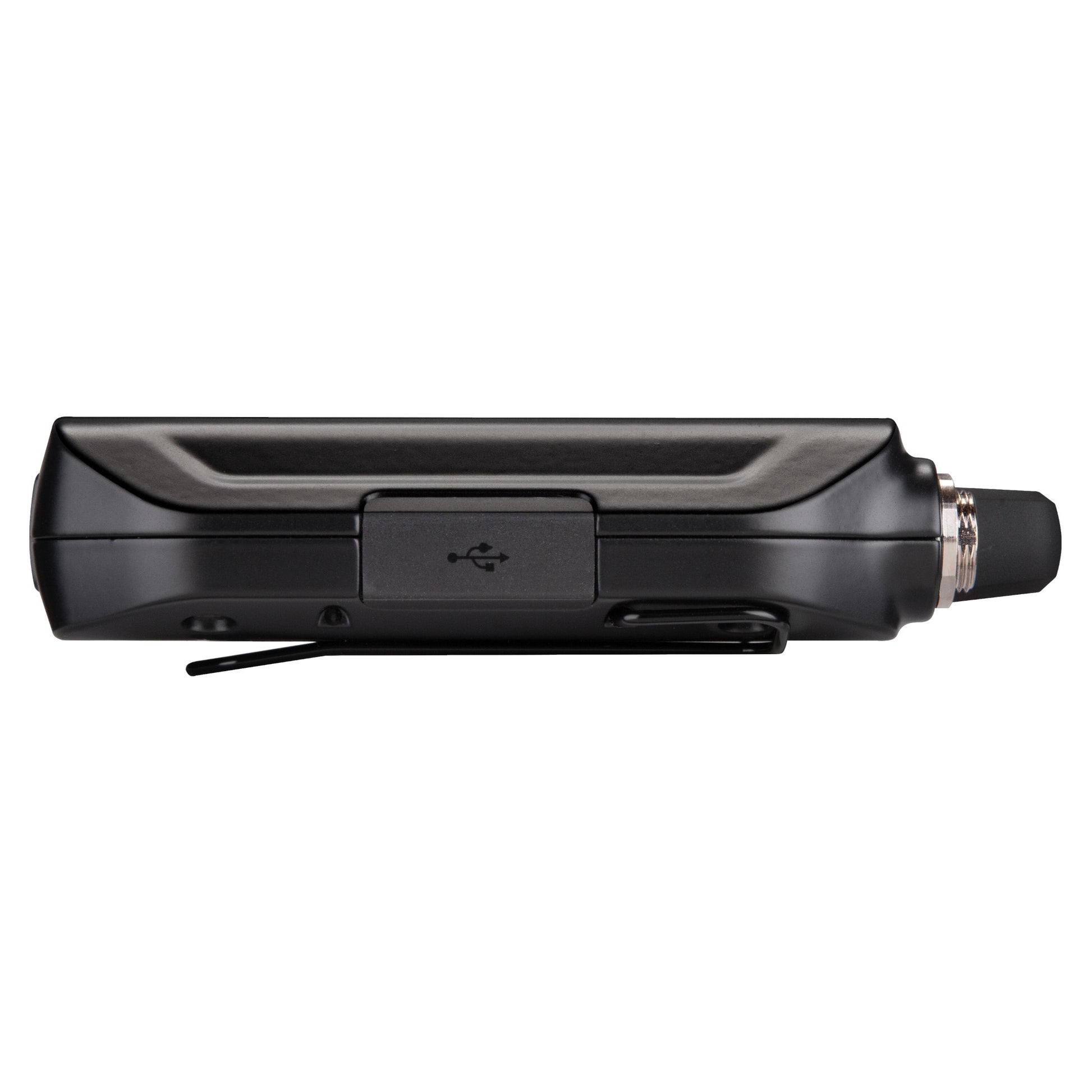

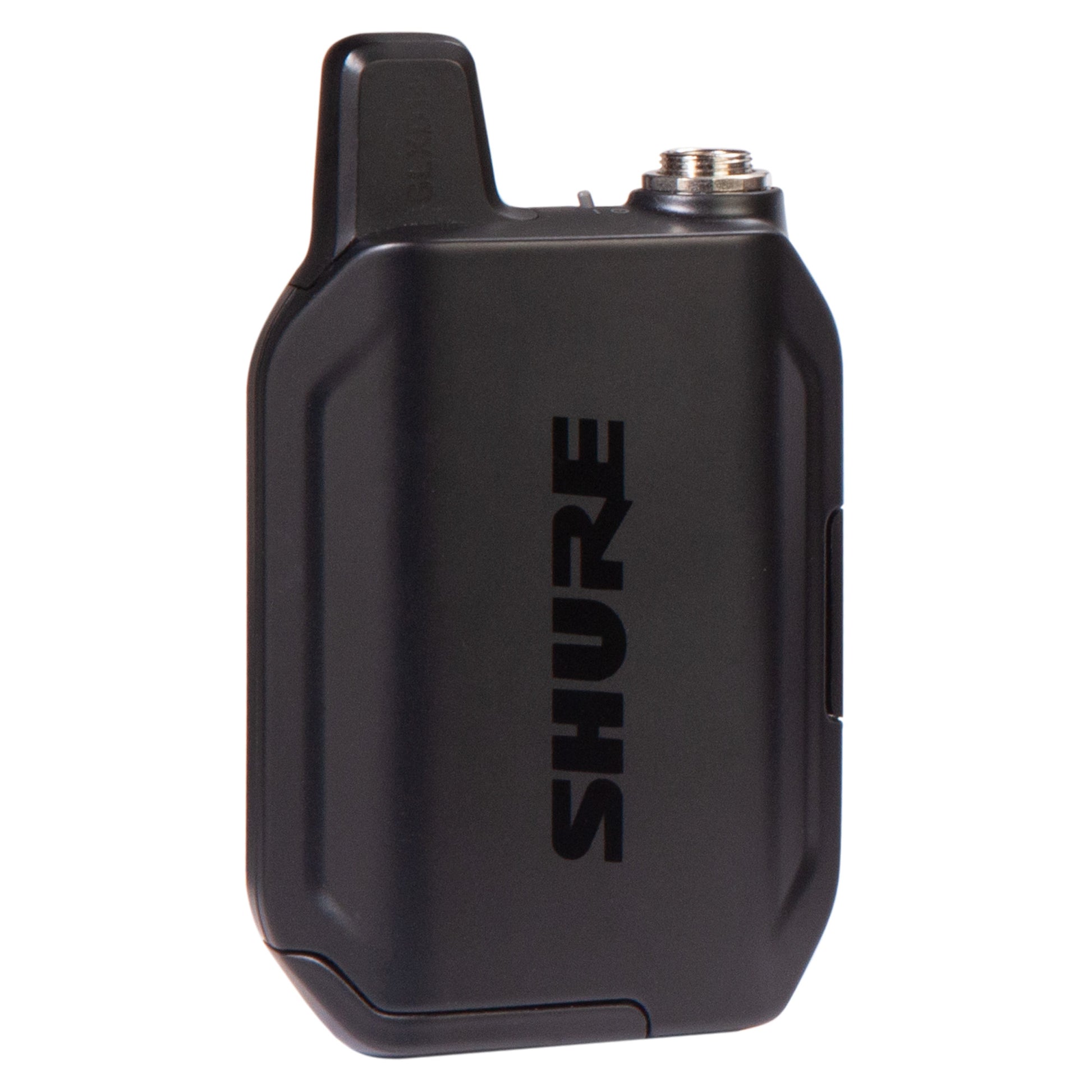

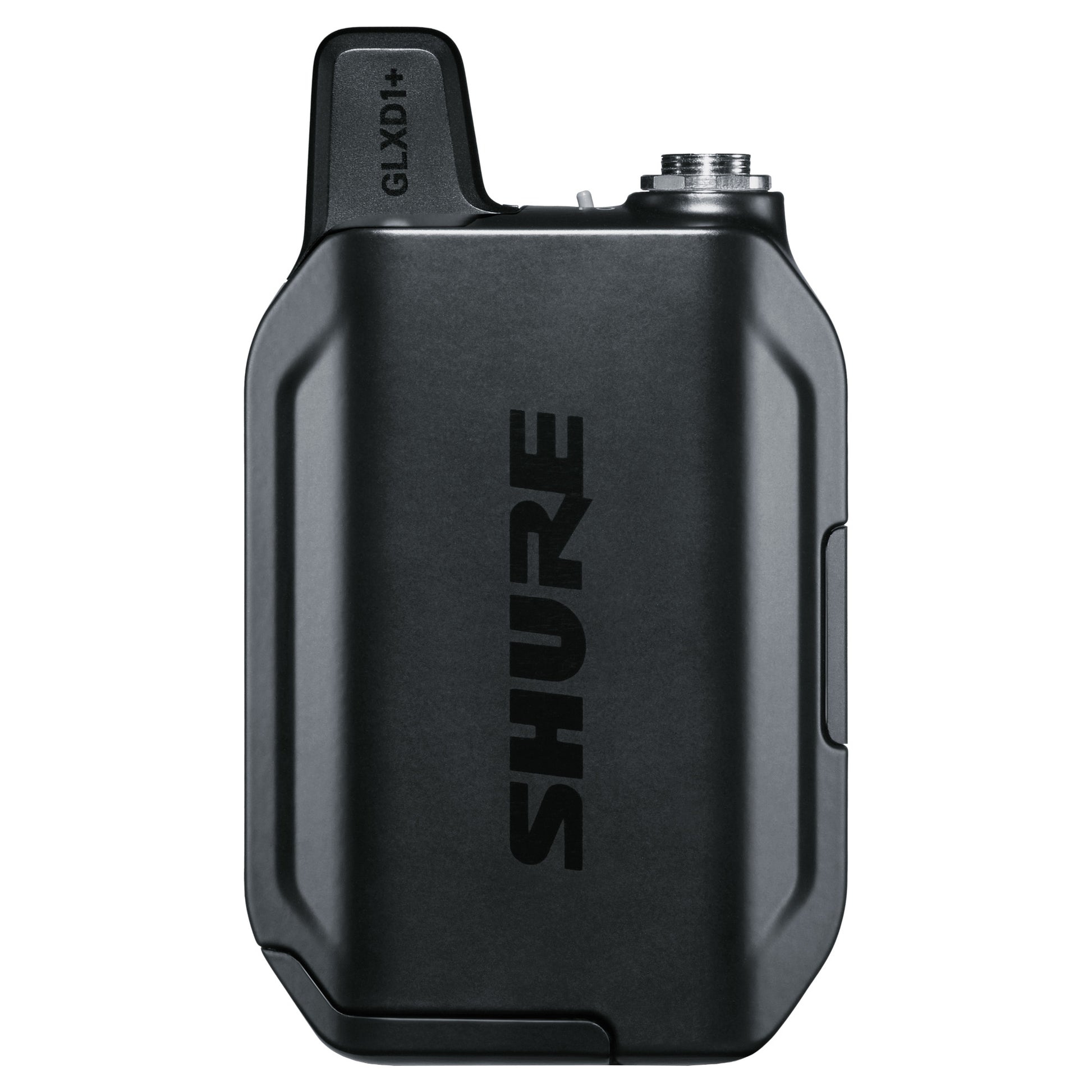

- GLXD1+ DUAL BAND BODYPACK TRANSMITTER
- Dimensions (HxWxD): 4.5x2.6x1.1” (115x66.94x28.51mm), without antenna
- Weight: 5.4 oz (153.1g), without battery
- Power Requirements: 3.7V Rechargeable Li-Ion
- Housing Cast: Metal, Black Powdercoat
- Input Impedance: 900 kΩ RF
- Output Power: 10 mW E.I.R.P. max

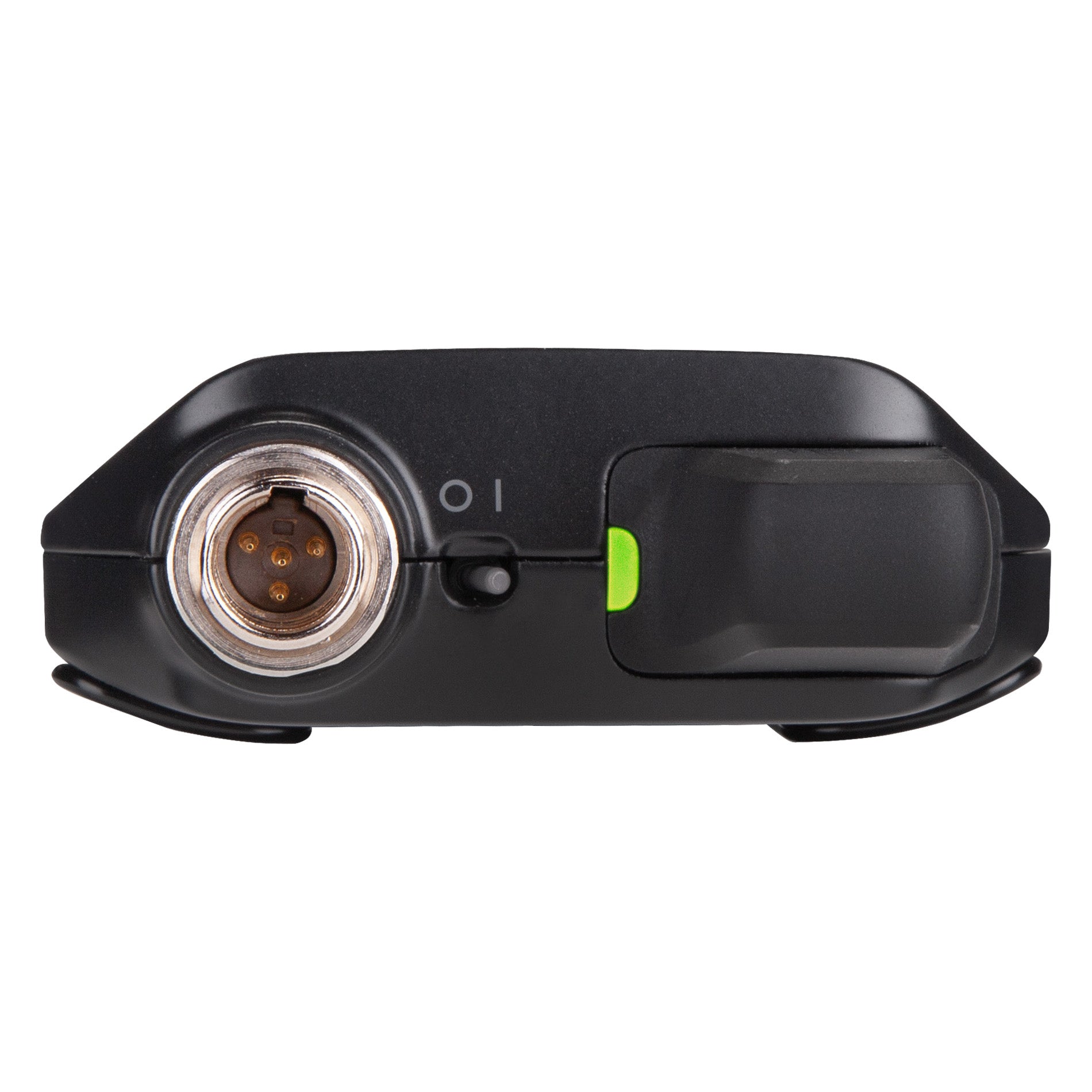

- TRANSMITTER INPUT
- Connector: 4-Pin male mini connector (TA4M)
- Configuration: Unbalanced
- Maximum Input Level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp-p)
- Antenna Type: Dual Band Internal Monopole
- Pin Assignments TA4M
- 1: Ground (cable shield)
- 2: + 5 V Bias
- 3: Audio
- 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)

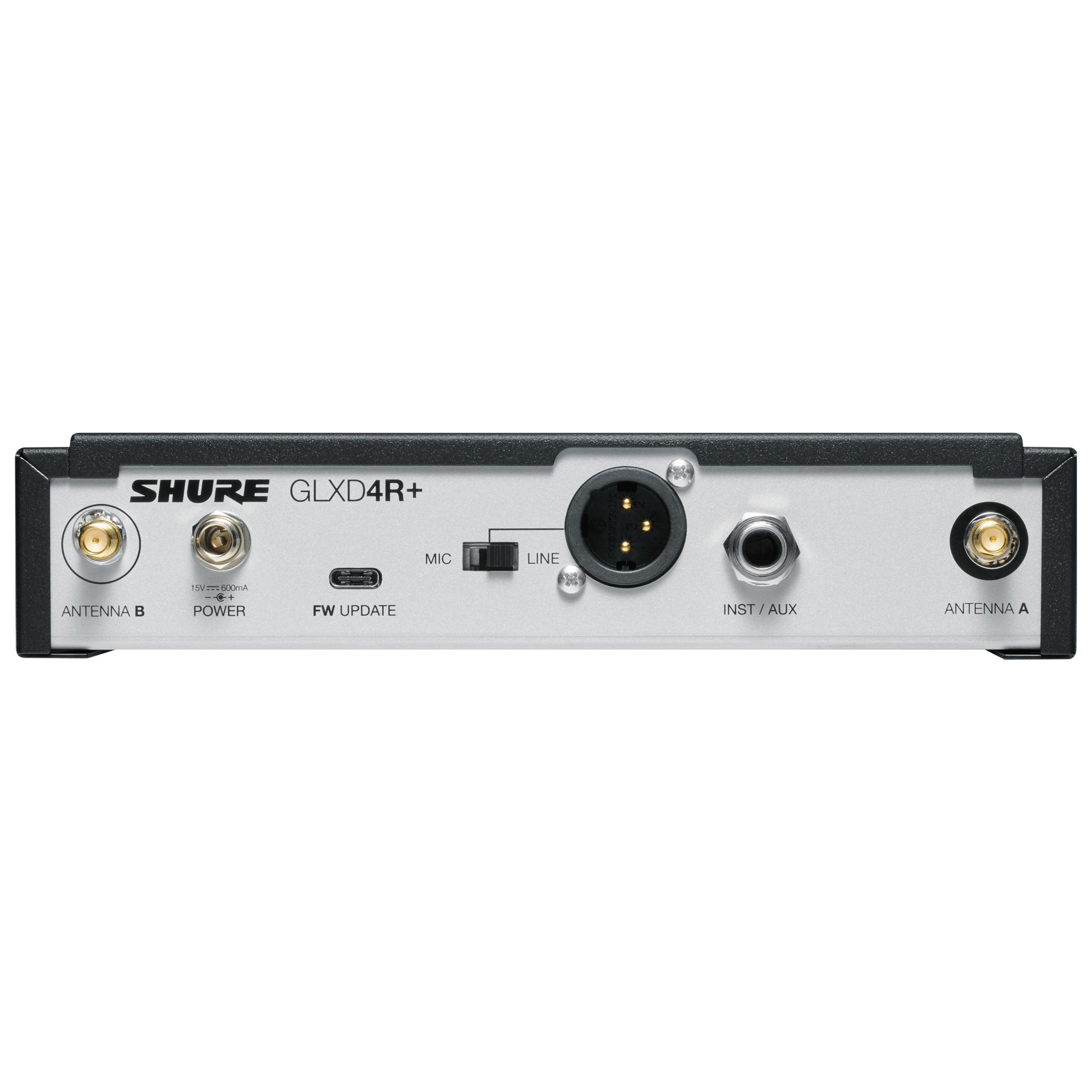

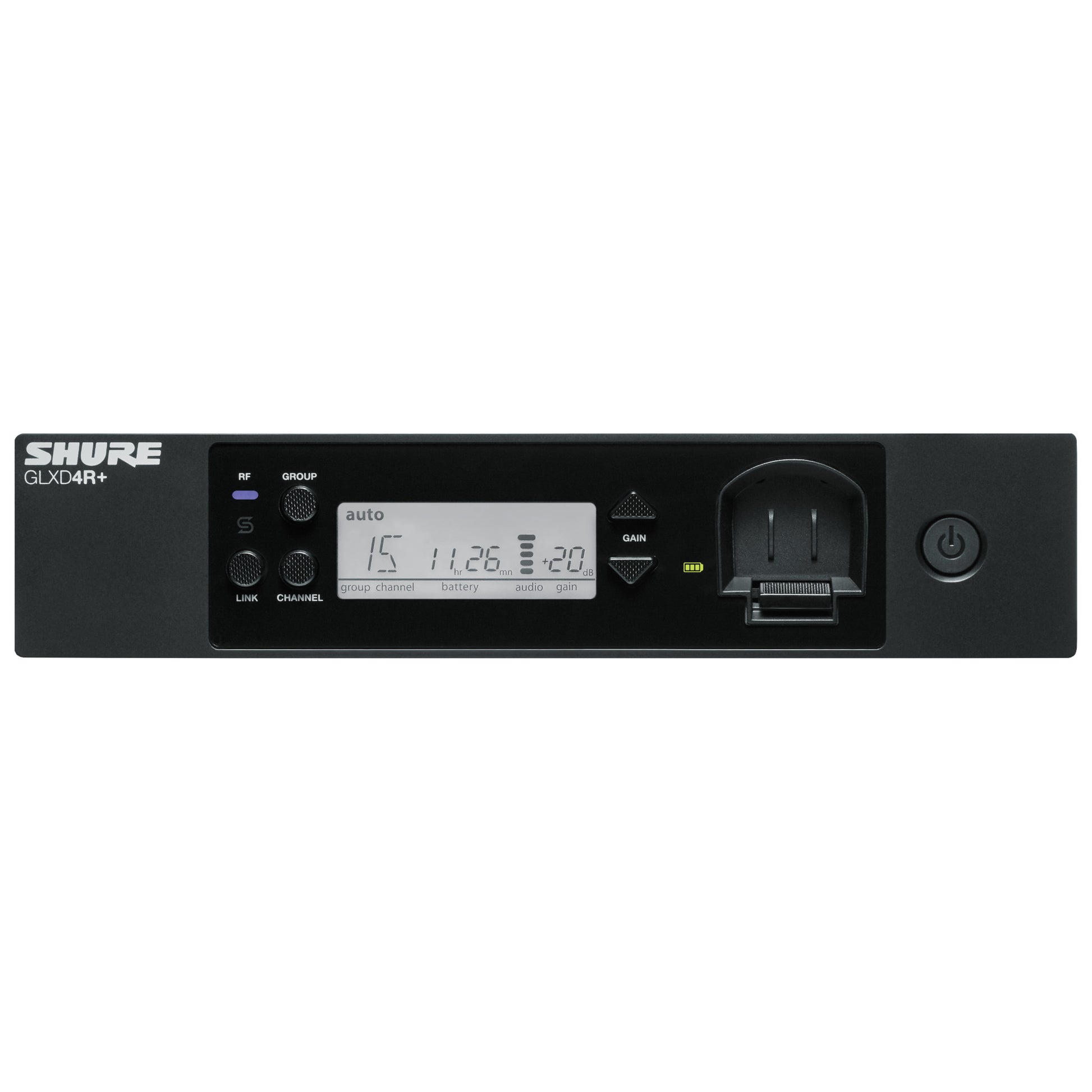

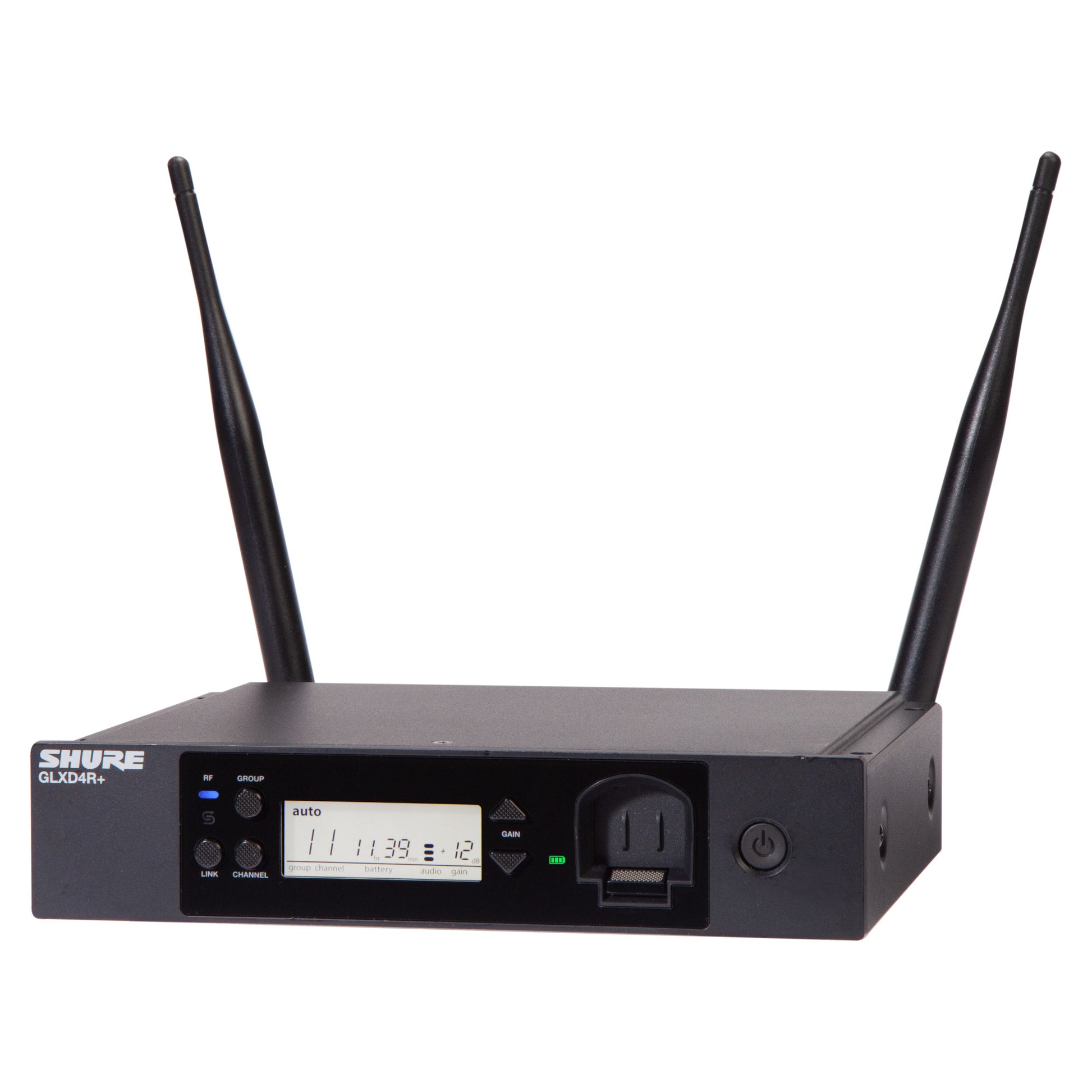

- GLXD4R+ DUAL BAND RACK RECEIVER
- Dimensions: 7.7x6.4x1.6" (196.8x162.97x41.8mm), without antenna
- Weight: 30.5 oz (866g) without batteries
- Housing: Steel
- Power Requirements: 14.5V - 17V, 600mA
- Spurious Rejection: >35 dB, typical
- Gain Adjustment Range: −18 to 42 dB in 1 dB steps
- Phantom Power Protection: Yes
- AUDIO OUTPUT
- Configuration
- XLR Output: Balanced
- 6.35 mm (1/4") output: Impedance balanced
- Impedance
- XLR Output: 100Ω
- 6.35 mm (1/4") output: 100Ω (50Ω, Unbalanced)
- Full-Scale Output
- XLR: LINE setting= +18 dBV, MIC setting= −12 dBV (1/4")
- 6.35mm: 1=ground, 2=hot, 3=cold
- Pin Assignments
- XLR Output: 1=ground, 2=hot, 3=cold
- 6.35 mm (1/4") connector: Tip=audio, Ring=no audio, Sleeve=ground
- Mic/Line Switch: 30 dB Pad
- Configuration
- RECEIVER ANTENNA INPUT
- Impedance 50Ω
- Antenna Type Dual Band 1/2 WaveSleeve Dipole
- Maximum Input Level −20 dBm

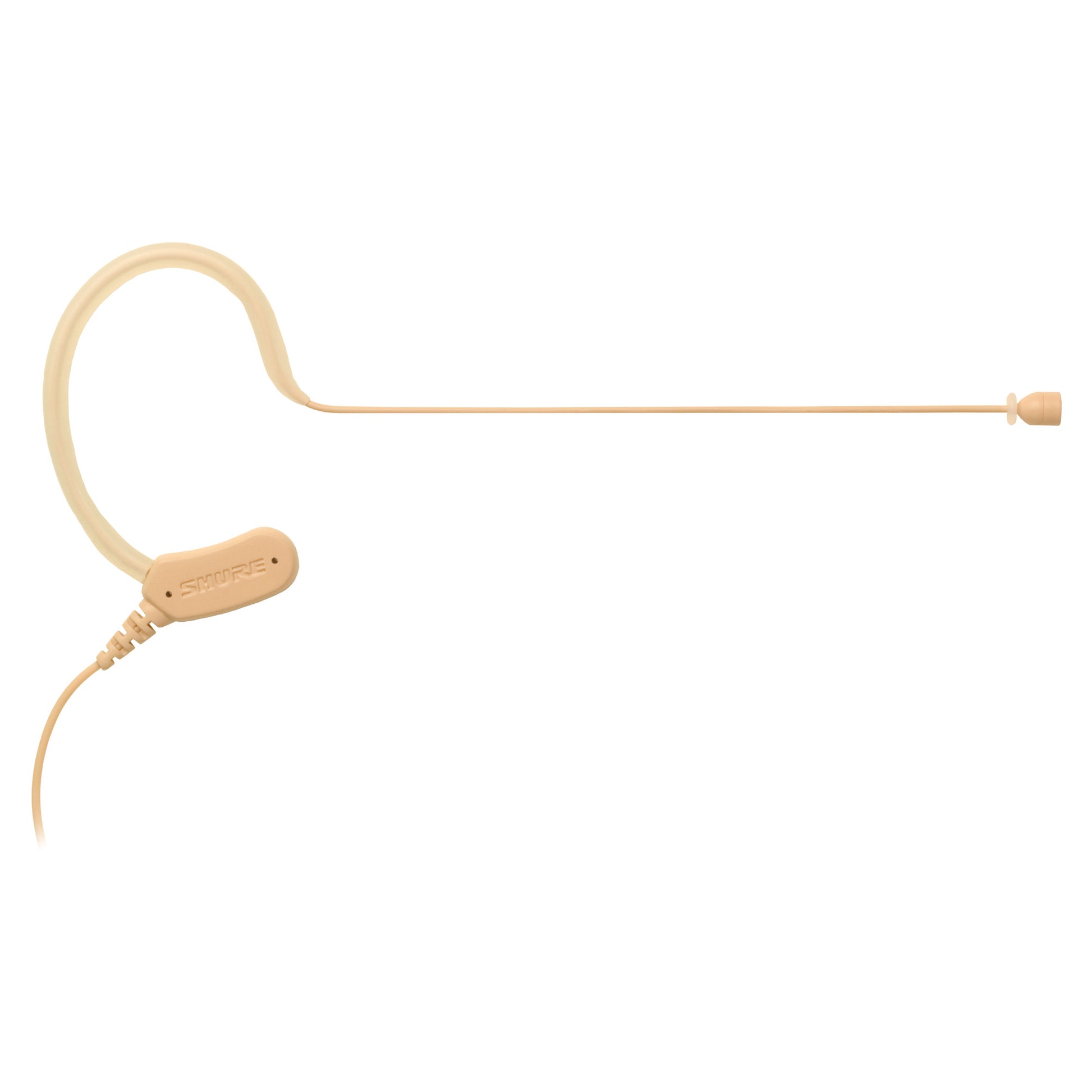

- MX153 HEADWORN MICROPHONE
- Transducer Type: Electret Condenser
- Polar Pattern: Omnidirectional
- Frequency Response: 20 to 20,000 Hz
- Output Impedance: N/A
- Sensitivity (open circuit voltage, @ 1 kHz, typical): -41 dBV/Pa [1] (9 mV/Pa) Maximum SPL (1 kHz at 1% THD [2])
- 2500Ω load: 107 dB SPL
- 1000Ω load: 107 dB SPL
- Signal-To-Noise Ratio [3]: 60 dB Dynamic Range (@ 1 kHz)
- 2500Ω load: 73 dB
- 1000Ω load: 73 dB
- Self Noise (equivalent SPL, A-weighted, typical): 34 dB
- Common Mode Rejection: 20 to 20,000 Hz
- Operating Temperature Range: -18°C (0°F) to 57°C (135°F)
- Polarity: Positive pressure on diaphragm produces negative voltage on pin 3 with respect to pin 1.
- Power Requirements: +1–5V DC (500 µA max.)
- Weight: 19.76 g
- Notes
- 1 Pa=94 dB SPL
- THD of microphone preamplifier when applied input signal level is equivalent to cartridge output at specified SPL
- S/N ratio is the difference between 94 dB SPL and equivalent SPL of self-noise, A-weighted
