Shure GLXD16+ Dual Band Wireless Guitar Pedal System
Shure GLXD16+ Dual Band Wireless Guitar Pedal System
SoundPro Item: 137180 | Part Number: GLXD16+-Z3
In stock and ready to ship
- Dual Band Wireless Technology
- Automatic Frequency Management
- Smart Rechargeability
- Up to 16 Compatible Systems

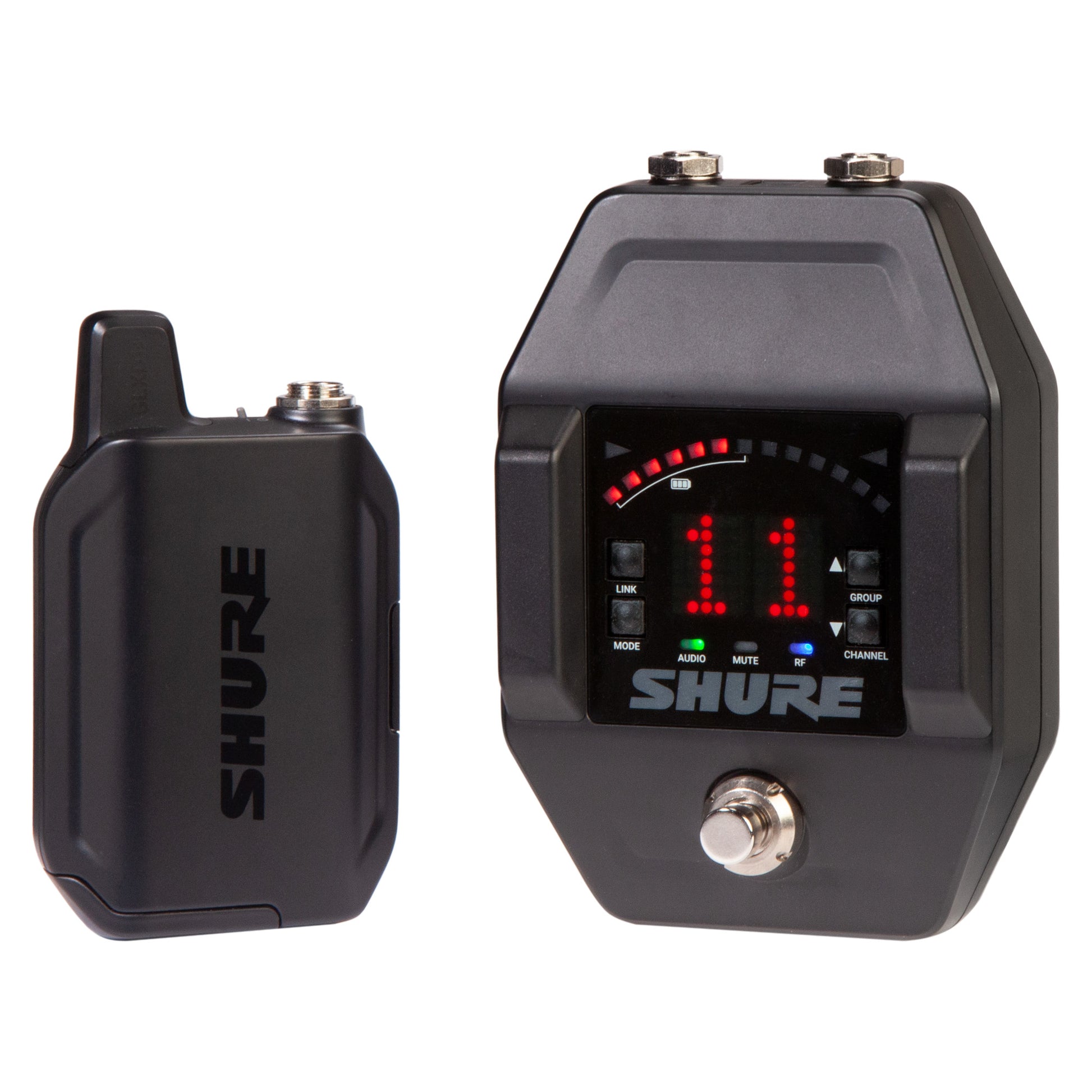

The Shure GLXD16+ Dual Band Wireless Guitar Pedal System includes a GLXD6 guitar pedal receiver, GLXD1 bodypack, guitar cable, rechargeable battery, and more!
Revolutionary Shure GLX-D® Digital Wireless Systems combine leading-edge LINKFREQ Automatic Frequency Management technology with best-in-class intelligent lithium-ion battery rechargeability to define the new standard for seamless operation and digital audio clarity.
- Compatibility
- With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions
- Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
- System Operating Range
- Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions
- Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
- Transmit Mode Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
- Audio Frequency Response 20 Hz – 20 kHz Note: Dependent on microphone type
- Dynamic Range 120 dB, A-weighted
- RF Sensitivity -88 dBm, typical
- Total Harmonic Distortion 0.07%, typical
- RF Output Power 10 mW E.I.R.P. max
- Operating Temperature Range -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
- Storage Temperature Range -29°C (-20°F) to 74°C (165°F)
- PolarityPositive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
- Battery Life Up to 12 hours

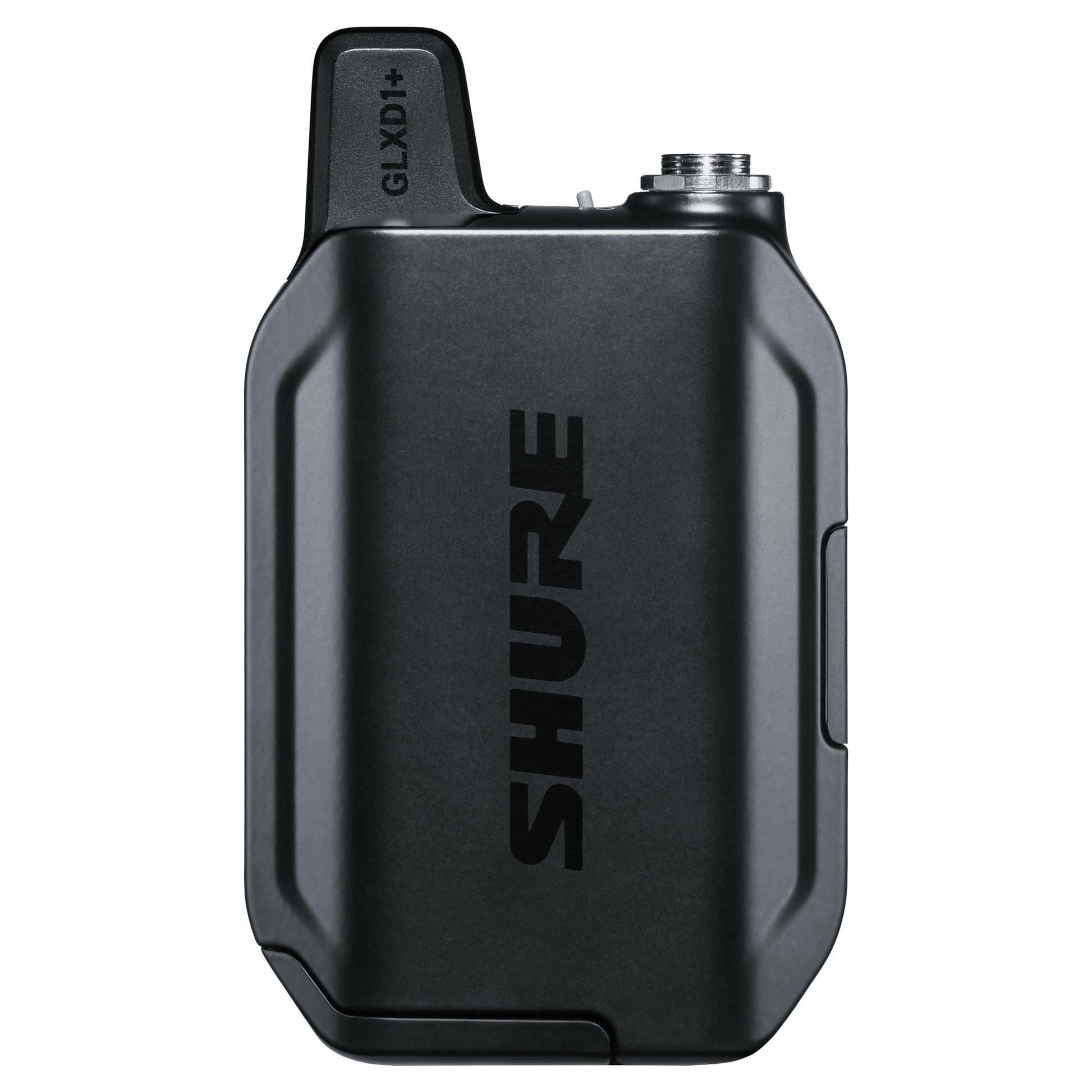

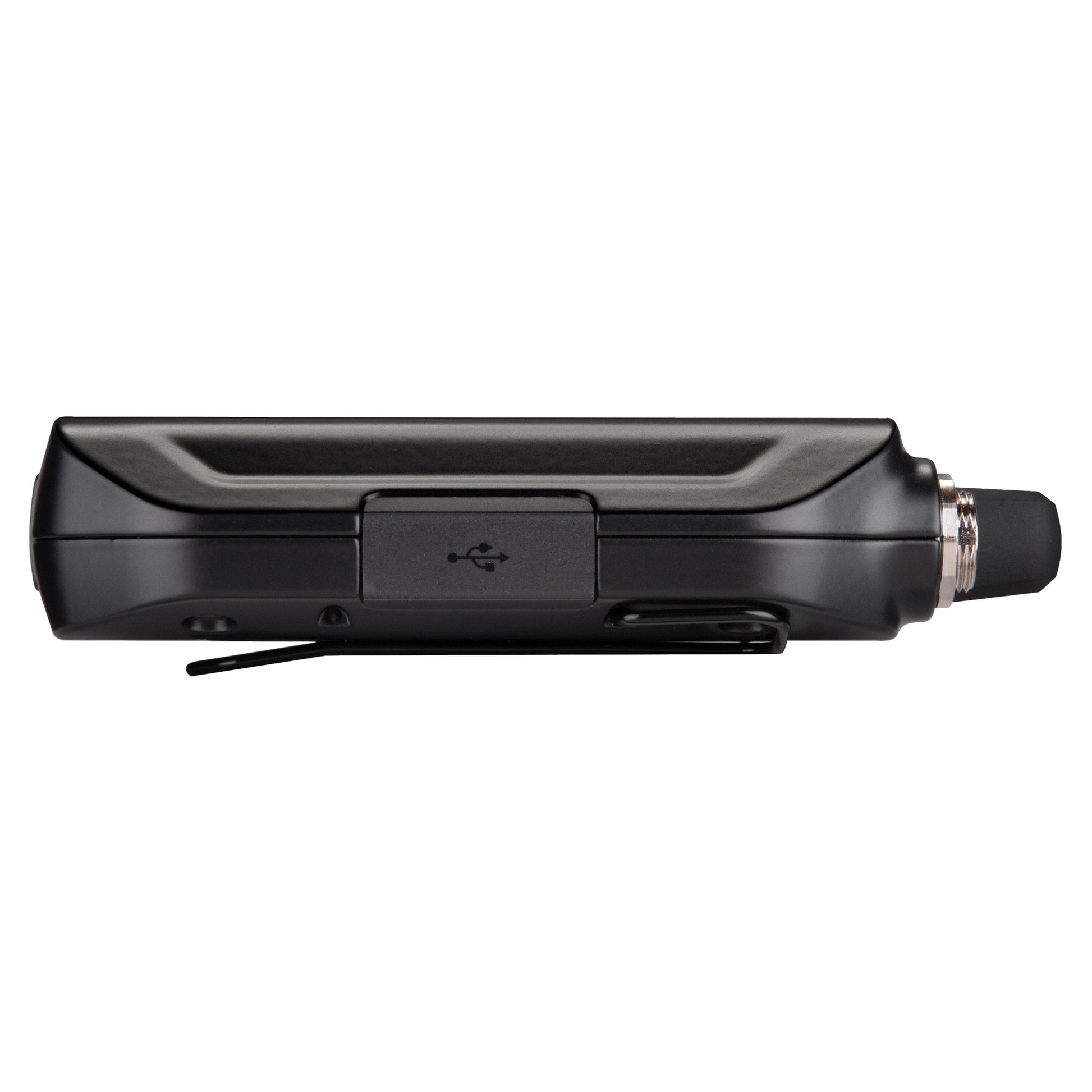

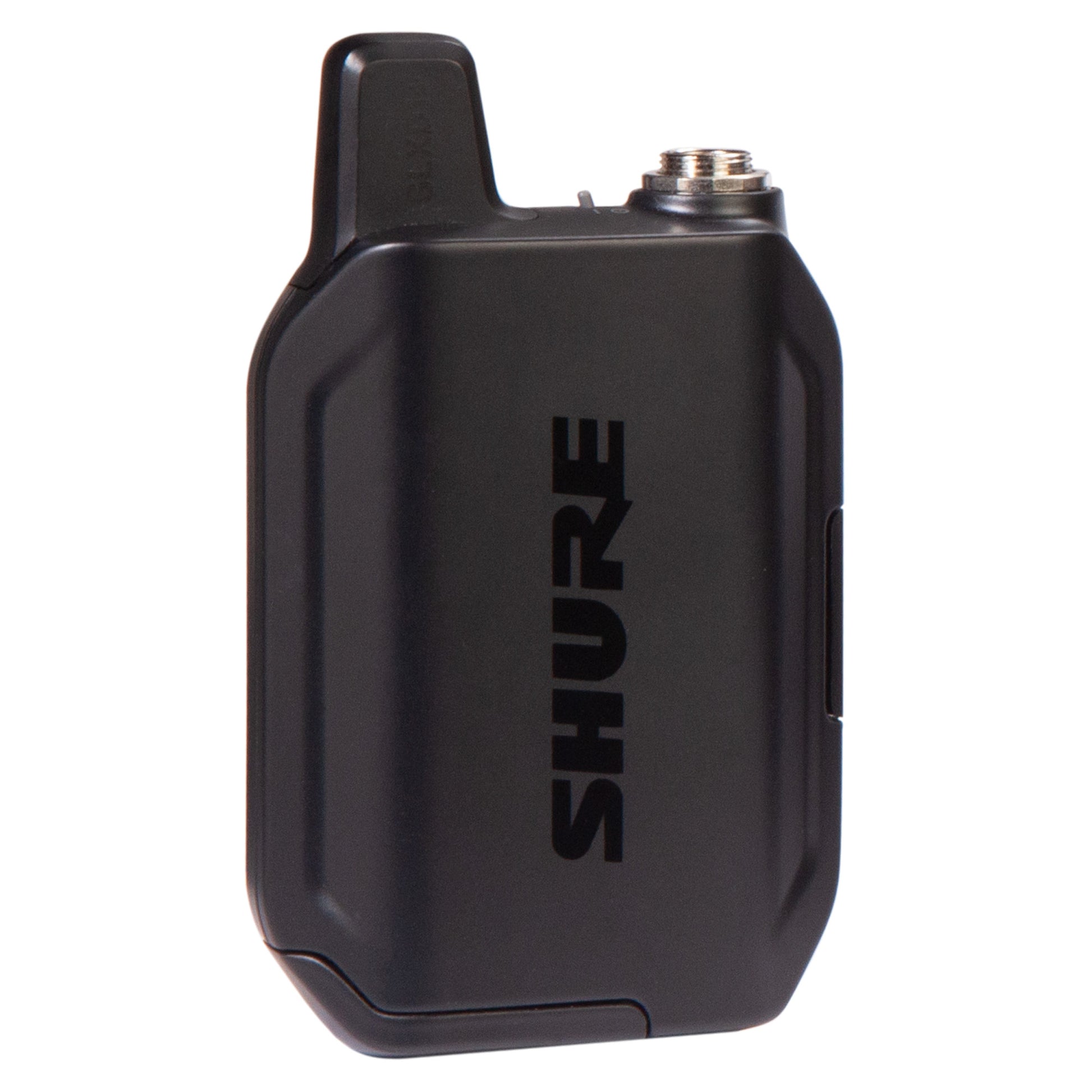

- GLXD1+ DUAL BAND BODYPACK TRANSMITTER
- Dimensions (HxWxD): 4.5x2.6x1.1” (115x66.94x28.51mm), without antenna
- Weight: 5.4 oz (153.1g), without battery
- Power Requirements: 3.7V Rechargeable Li-Ion
- Housing Cast: Metal, Black Powdercoat
- Input Impedance: 900 kΩ RF
- Output Power: 10 mW E.I.R.P. max
- TRANSMITTER INPUT

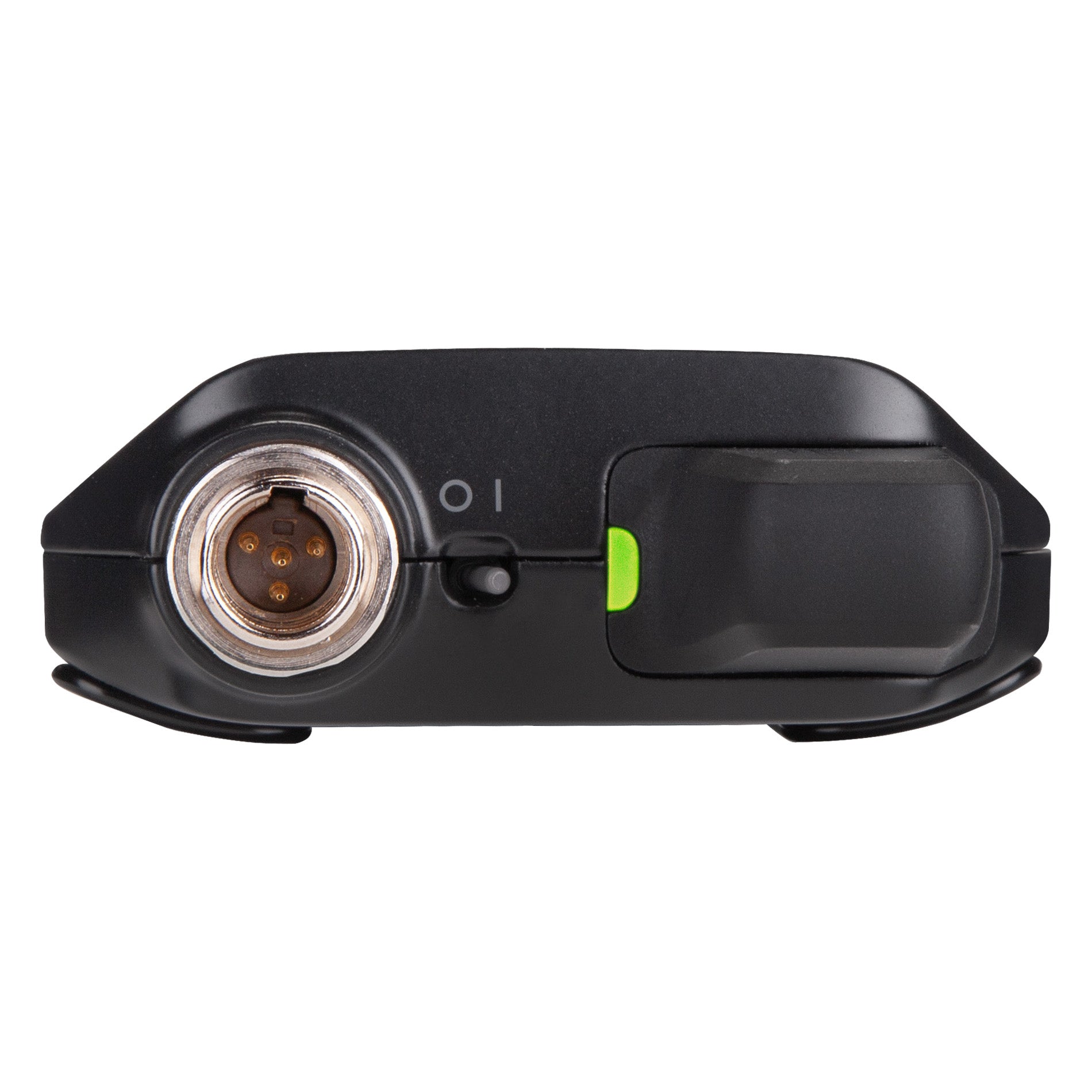

- Connector: 4-Pin male mini connector (TA4M)
- Configuration: Unbalanced
- Maximum Input Level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp-p)
- Antenna Type: Dual Band Internal Monopole
- Pin Assignments TA4M
- 1: Ground (cable shield)
- 2: + 5 V Bias
- 3: Audio
- 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)

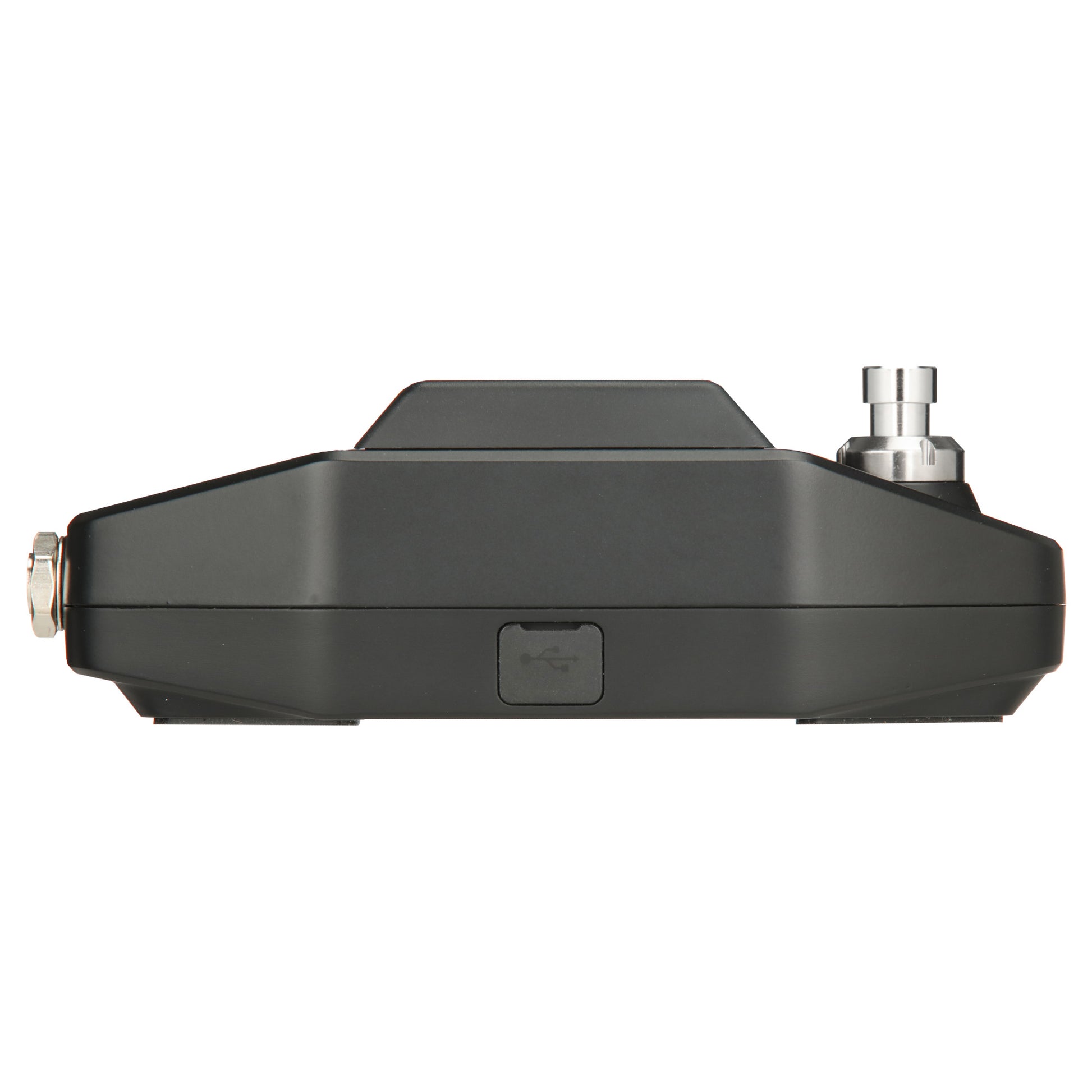

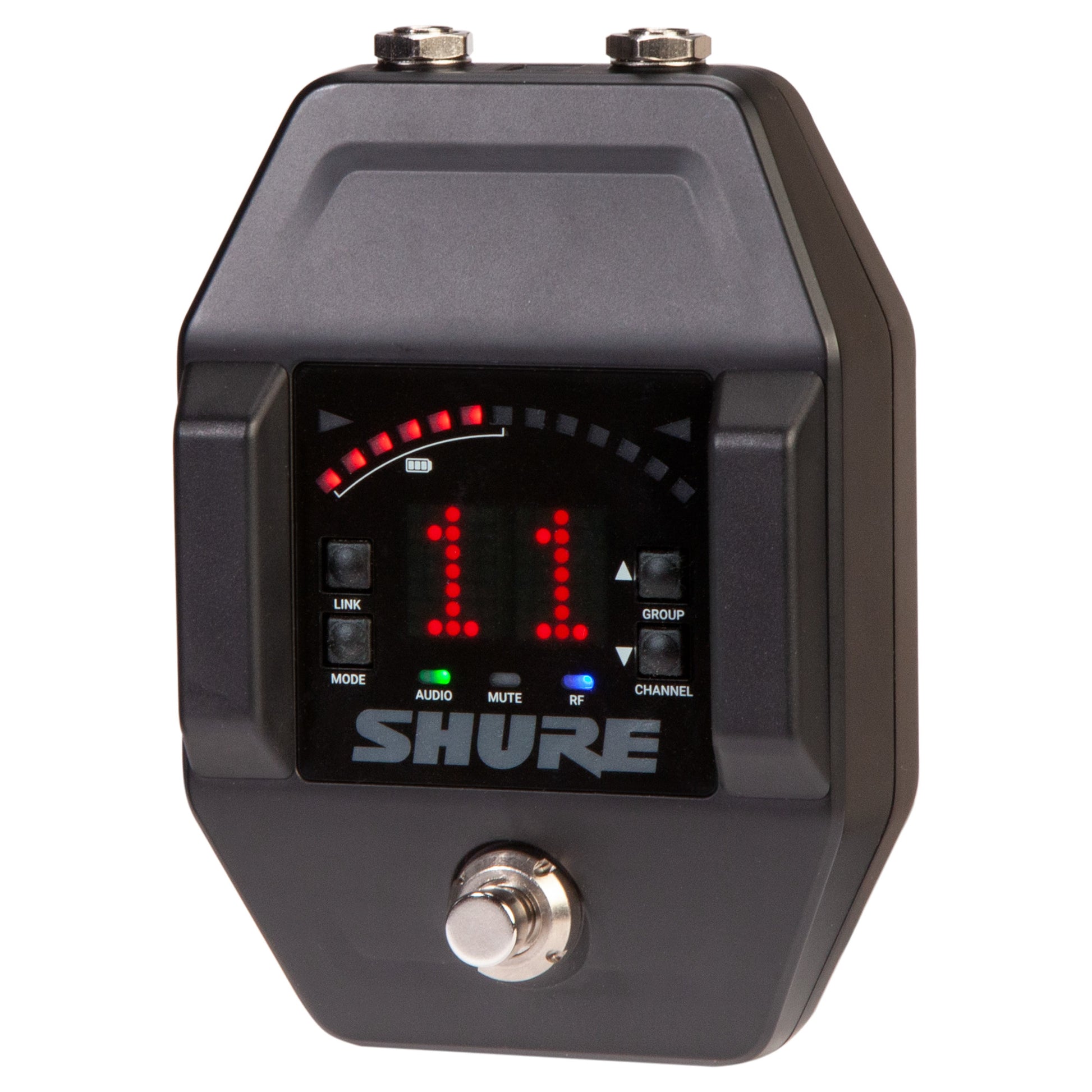

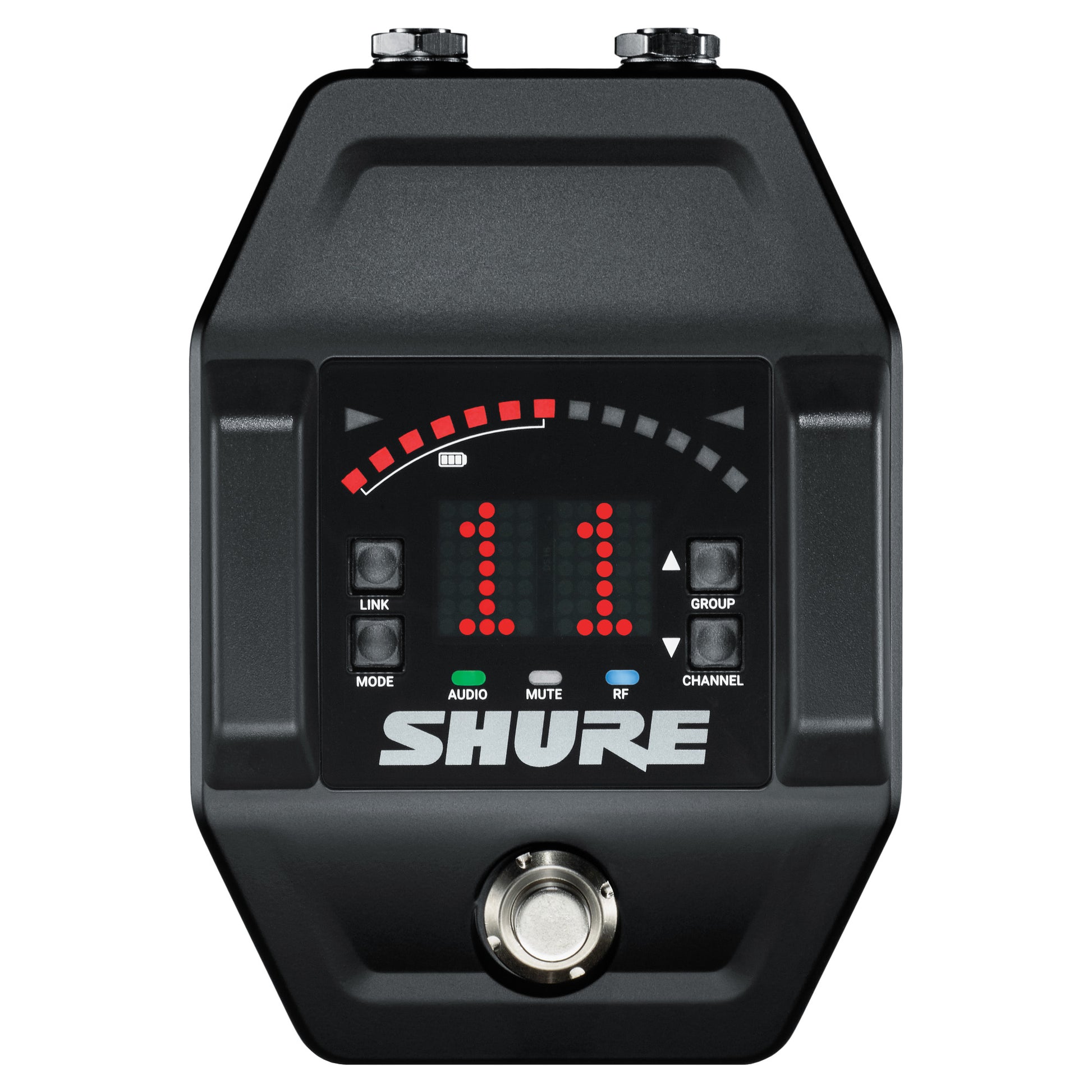

- GLXD6 DUAL BAND GUITAR PEDAL RECEIVER
- Dimensions (HxWxD): 5.4x3.7x1.89" (138x95x48mm)
- Weight : 19.75 oz (560g)
- Housing : Aluminum alloy
- Power Requirements : 9V - 15V, 400mA (efficiency level VI power supply)
- Spurious Rejection: >35 dB, typical
- Gain Adjustment Range : -20 to 40 dB in 1 dB steps

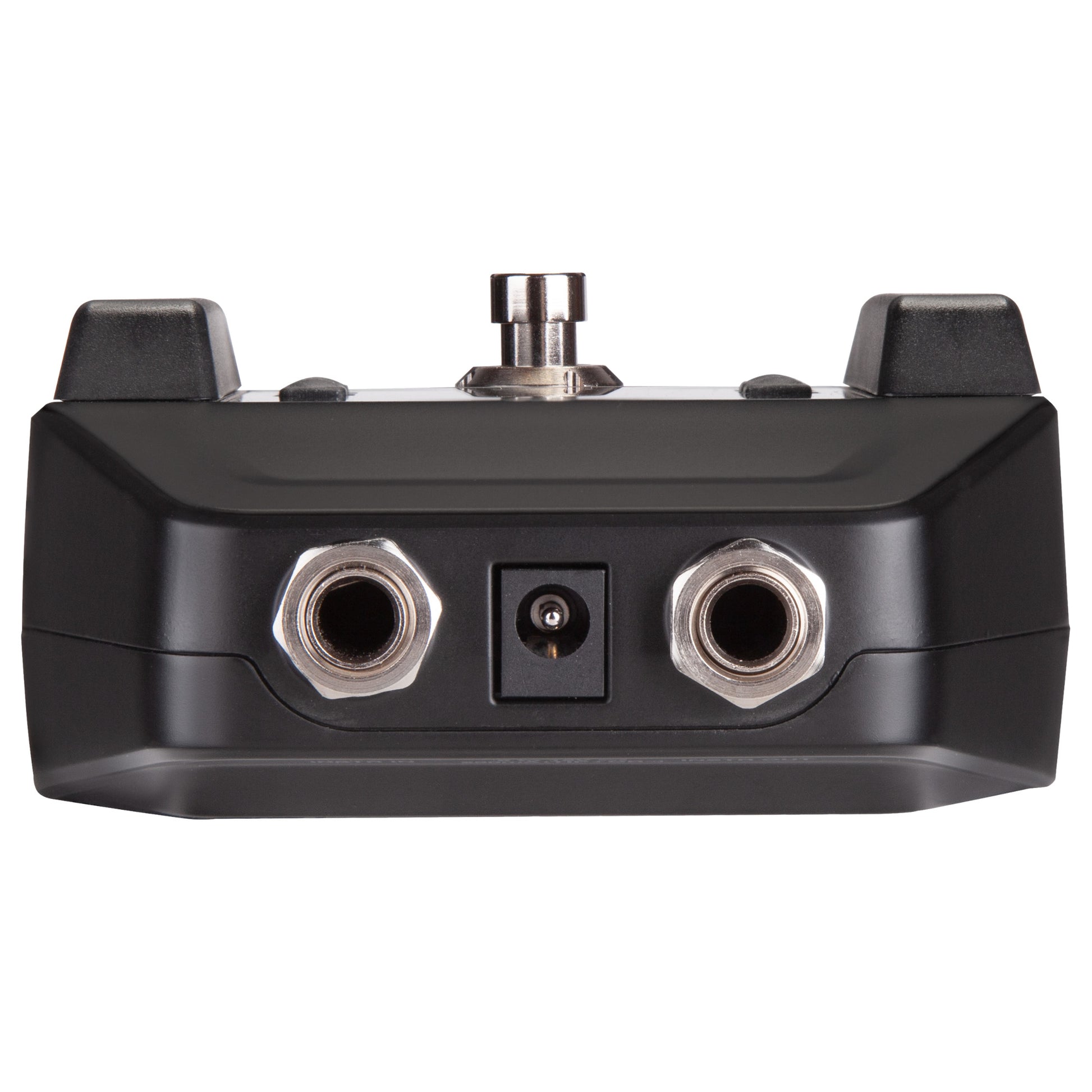

- Configuration : 6.35 mm (1/4") output Impedance balanced
- Impedance : 6.35 mm (1/4") output 100Ω (50Ω, Unbalanced)
- Maximum Audio Output Level: 6.35 mm (1/4") connector (into 3 kΩ load) +8.5 dBV
- Pin Assignments: 6.35 mm (1/4") connector Tip=audio, Ring/Sleeve=ground
- Audio Input Modes : Tuner or True Bypass
- RECEIVER ANTENNA INPUT
- Impedance: 50Ω
- Antenna: Type Dual Band Internal Monopole
- Maximum Input Level: −20 dBm
