Shure IntelliMix Rooms Kit

Shure IntelliMix Rooms Kit

SoundPro Item: 152488 | Part Number: IMXRK70-V

$8,500.00
$8,500.00 $8,500.00
Your Price Sold out

Usually ships in 5-7 business days

  • IntelliMix Room Kits feature zero-touch provisioning including support for Windows Autopilot with Autologin for Teams Rooms.
  • IntelliMix Room® DSP enhances speech and removes distracting sounds ensuring every word is heard clearly and transcribed accurately with Microsoft 365 Copilot.
  • The MXA902 ceiling array and loudspeaker provides unmatched acoustic performance and consistent full room coverage for clear, intelligible speech capture and reproduction.
  • AI-powered cameras from Huddly automatically frame participants and optimize the video experience for visually engaging meetings.
  • Remote and global management streamlines IT workflows via ShureCloud, Teams Admin Center, and Teams Rooms Pro Management Portal.
Log in or register for YOUR best price

Boost collaboration with simple and secure Microsoft Teams Rooms conferencing kits. With zero-touch provisioning, you can effortlessly deliver high-quality audio and video experiences in your small, medium, and large meeting and collaboration spaces, up to 33 x 18 ft (10 x 5.5 m). The component-based systems provide everything you need - automatically. No programming or adjusting of audio and video settings is required. All kits include a powerful Windows-based Teams Rooms compute with Shure’s premium audio signal processing, an intuitive touch panel, a superior all-in-one ceiling array microphone + loudspeaker, and intelligent, high-resolution video.

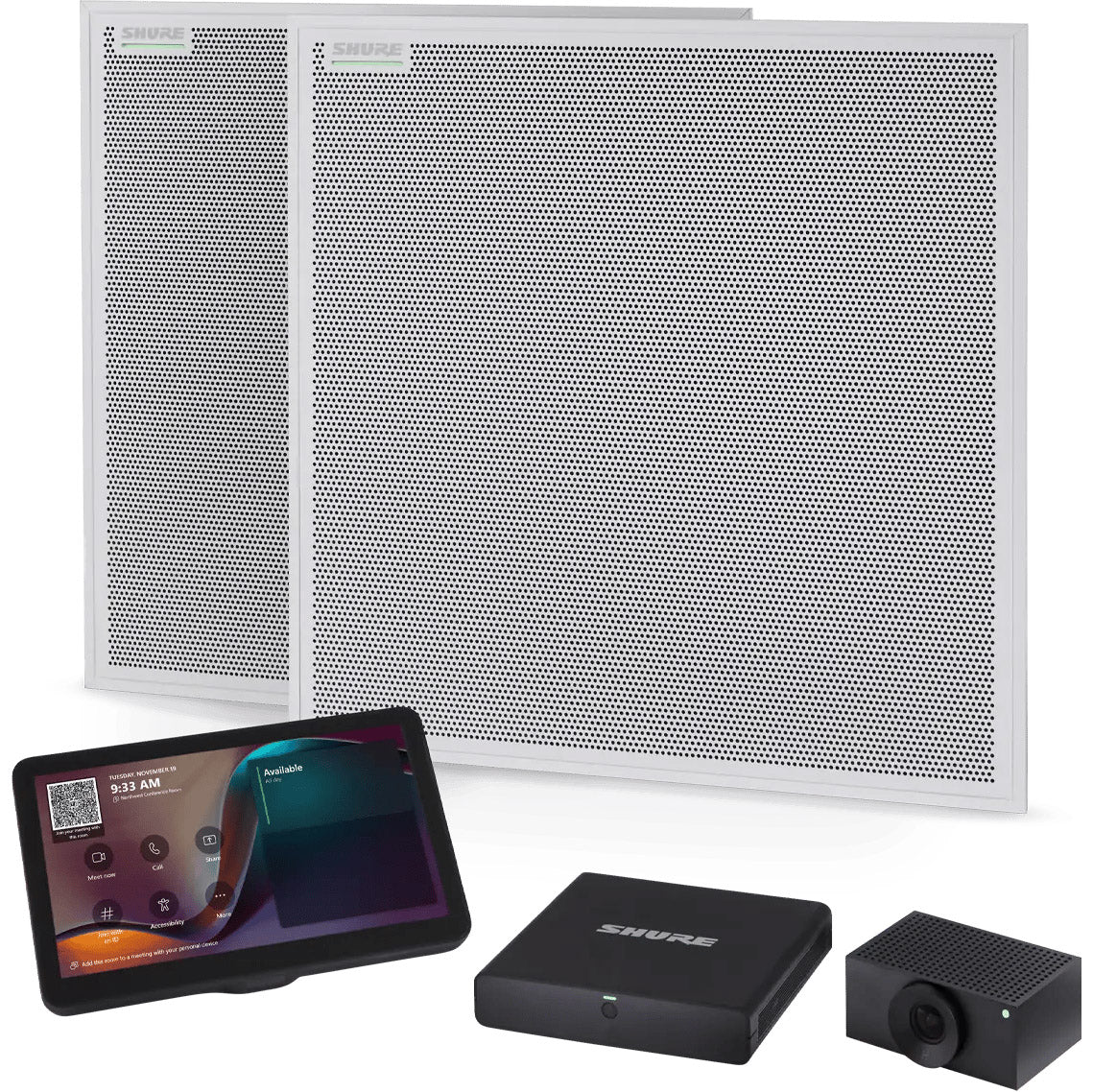

What’s in the box?

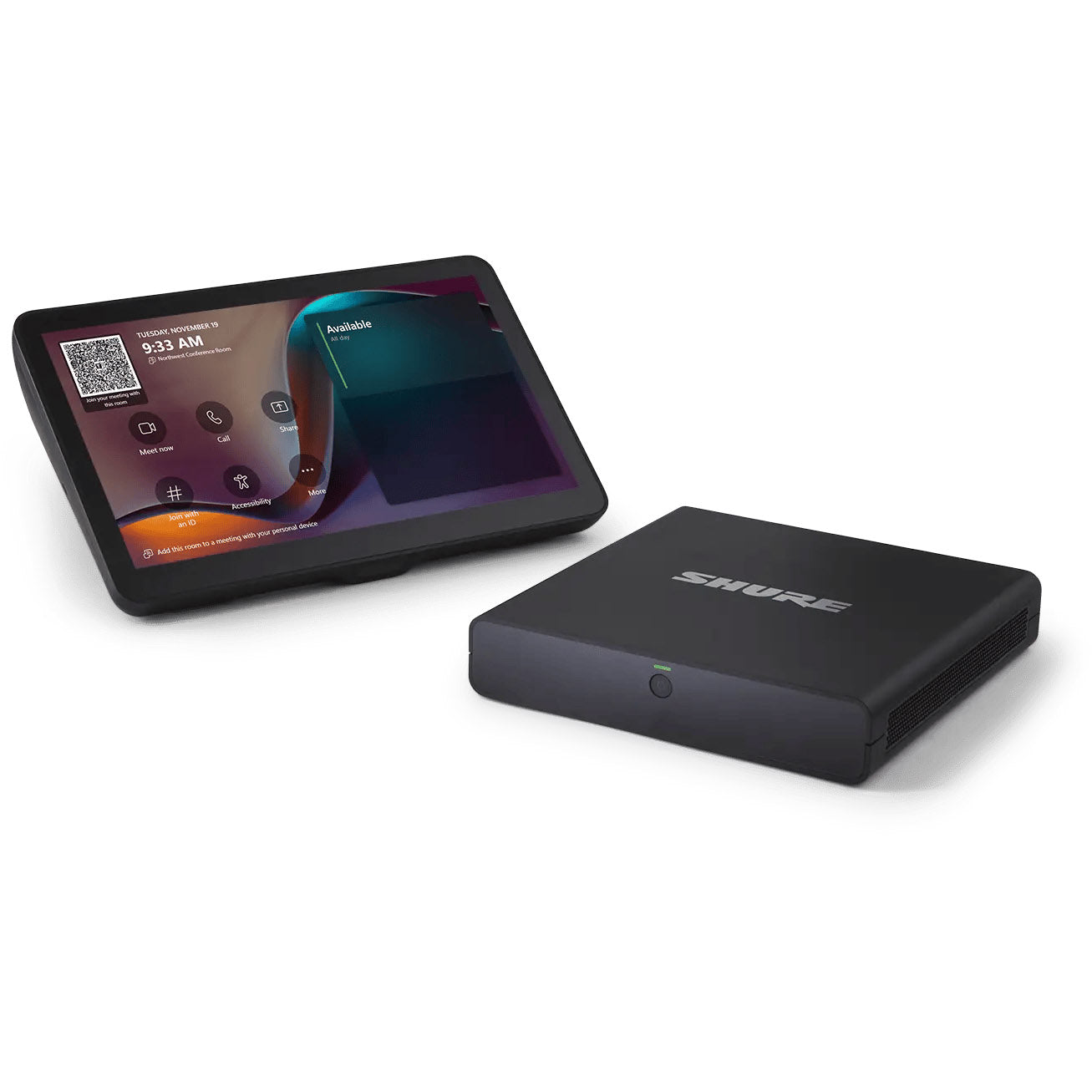

1x IntelliMix Foundation System, includes compute with pre-installed IntelliMix Room DSP Software, touch panel, network switch, cables and accessories for power and connectivity

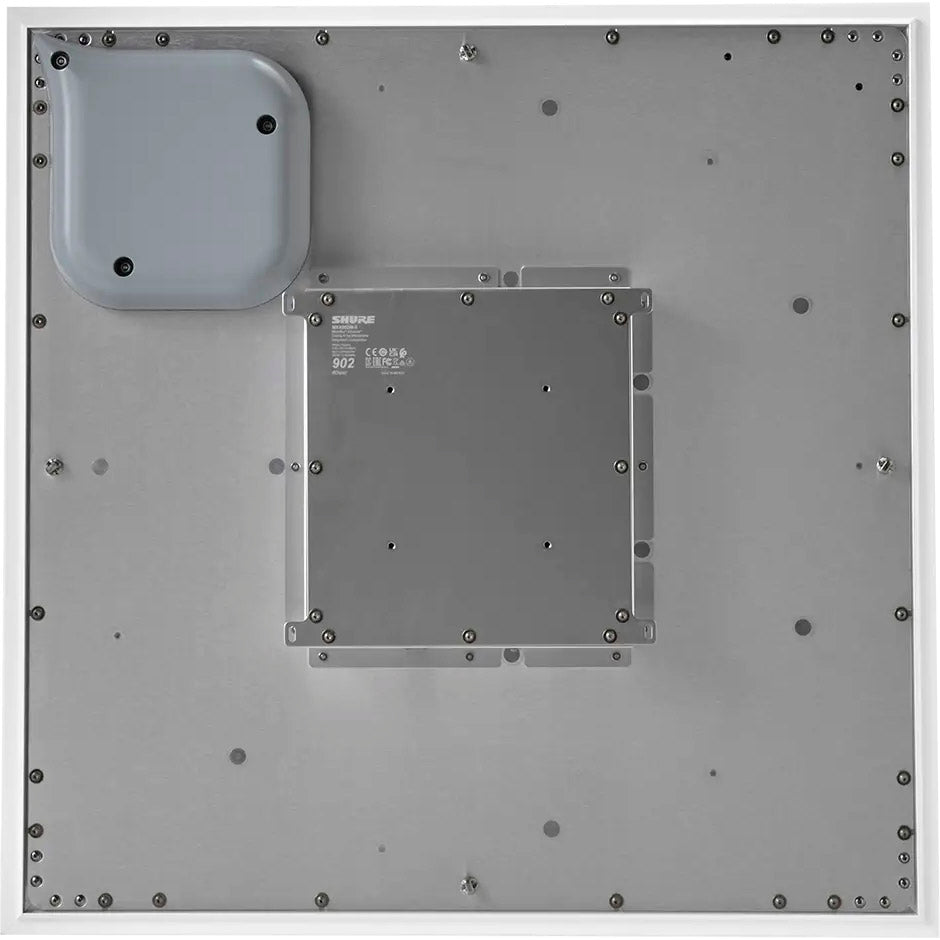

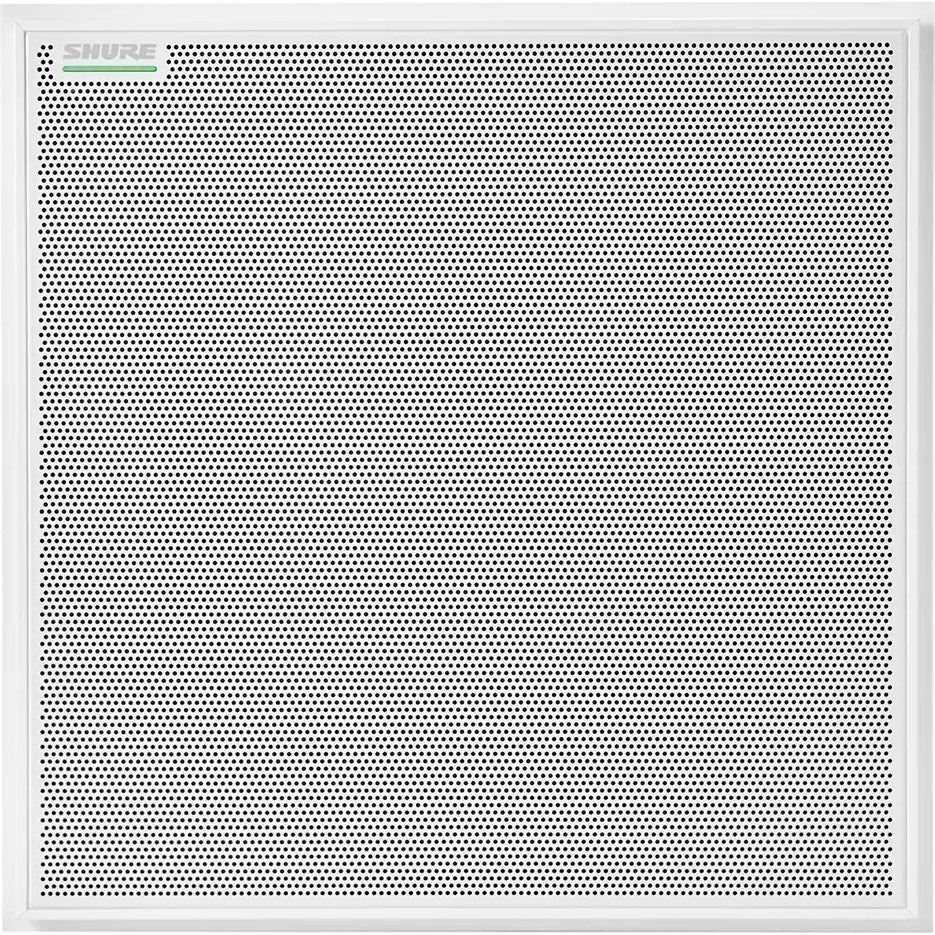

2x MXA902 Integrated Ceiling Array Microphone + Loudspeaker
1x Huddly L1 Networked Camera

View full details

Specifications

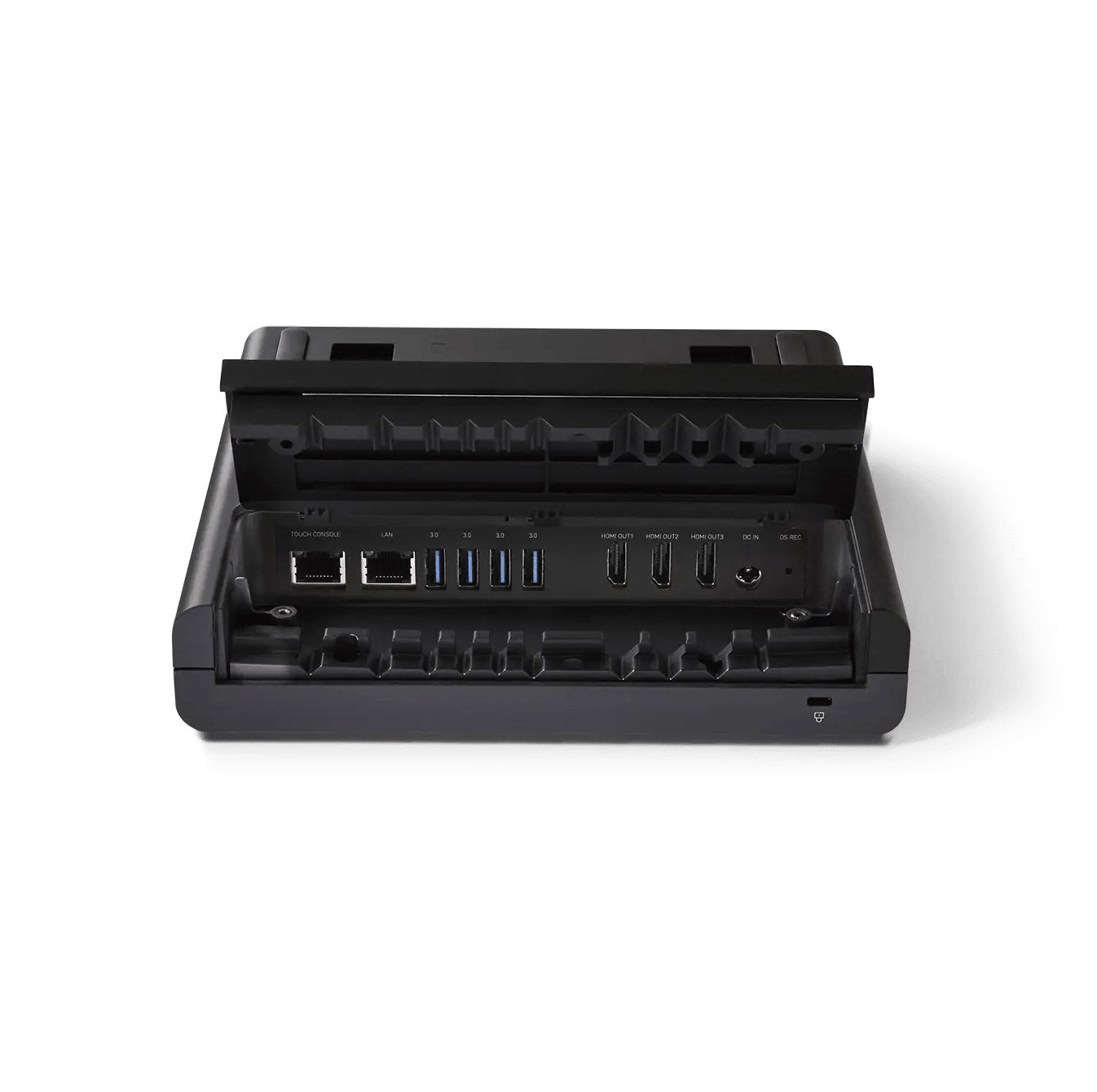

IntelliMix Foundation Compute
CPU
12th Generation Intel® Core™ i5 Processor
Memory
16 GB DDR4
Storage
256 GB
Graphics
Intel® UHD Graphics (12th Gen)
Operating System
Windows 11 IoT Enterprise (x64)
Software
Microsoft Teams Rooms, IntelliMix Room (8-channel)
RJ45 (LAN)
1
RJ45 (Touch Panel)
1
HDMI Output
3
USB-A 3.0
4
DC Power Input
1
Kensington Lock Slot
1
Power Supply
FSP120-ABBN3
Power Consumption
120 W (max)
VESA Mount Kit
1 set (wall bracket, screwdriver, 4x KA3 x 30 screws, 4x expansion anchors)
Power Adapter
1
Power Cords
3–4 × 6 ft (NA, EU, Asia variants)
HDMI Cables
2 × 10 ft
Ethernet Cables
1 × 3 ft,1 × 10 ft,2 × 25 ft,1 × 50 ft

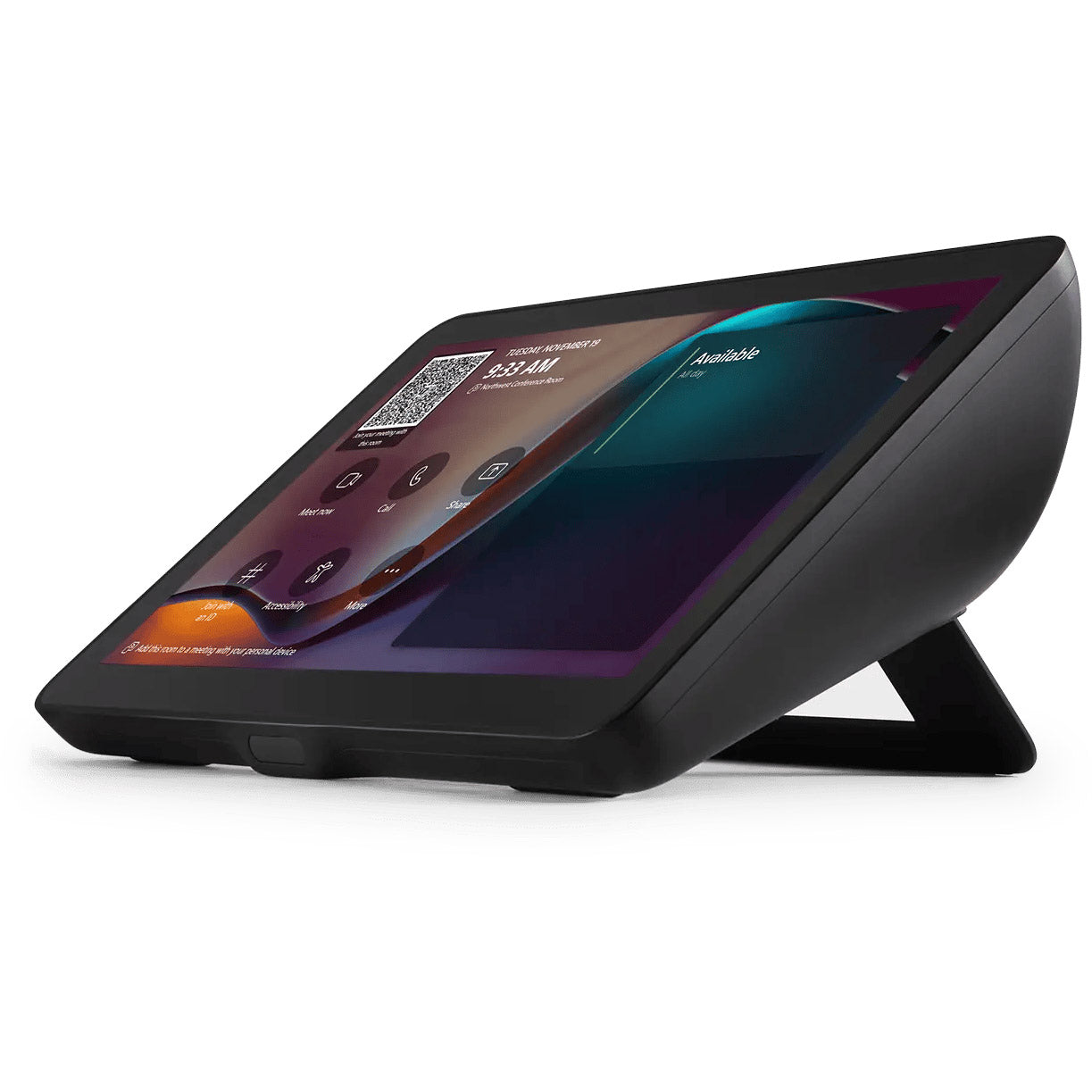

IntelliMix Touch Panel
Resolution
1920 × 1080
Refresh Rate
60 Hz
Motion Sensor
PIR (auto wake)
RJ45 (to Compute)
1
USB-C (Content Sharing)
1
USB-A 2.0
1
Audio Out (3.5 mm)
1
Input Power
52 V DC (0.49 A) via DisplayLink over Cat6
Power Consumption
13 W (max)
Cable Type
Cat6 (shielded recommended)
Max Cable Length (Shielded)
200 ft (60.9 m)
Max Cable Length (Unshielded)
30 ft (9 m)
Network Switch
Model
S1600V2-6P-HPWR
Switching Capacity
12 Gbps
Forwarding Capacity
8.93 Mpps
Port Surge Protection
6 kV
Cooling
Fanless
MTBF
88.6 years
MTTR
1 hour
GE (PoE+)
4
GE (Non-PoE)
1
SFP
1
USB 3.0 to Gigabit Ethernet Adapter
RJ45 (10/100/1000 Mbps)
1
USB 3.0
1
MXA902 Integrated Ceiling Array Microphone/Loudspeaker
Coverage Area
20 × 20 ft (6.1 × 6.1 m)
Coverage Type
Single-zone automatic
Power Requirement
PoE+ (Class 4)
Power Consumption
24 W (max)
Control Software
Shure Designer
Cable Requirement
Cat5e or higher (shielded recommended)
Connector
RJ45
Plenum Rating
UL 2043
Dust Protection
IP5X
Operating Temperature
20°F to 104°F (-6.7°C to 40°C)
Storage Temperature
-20°F to 165°F (-29°C to 74°C)
Microphone Frequency Response
125 Hz–20 kHz
Microphone Digital Output
AES67 or Dante (1 channel,48 kHz,24-bit)
Microphone Sensitivity
-1.74 dBFS/Pa @ 1 kHz
Microphone Max SPL
95.74 dB SPL
Microphone SNR
75.76 dB(A)
Microphone Latency
26.6 ms (excluding Dante)
Microphone Self Noise
18.24 dB SPL-A
Microphone Dynamic Range
77.5 dB
Microphone DSP
Automatic mixing,AEC,noise reduction,AGC,compressor,delay,4-band EQ,mute,gain (140 dB range)
AEC Tail Length
Up to 250 ms
Loudspeaker Digital Input
AES67 or Dante (2 channels)
Loudspeaker Frequency Range
120 Hz–20 kHz (-10 dB)
Loudspeaker Max Output
86 dB SPL (pink noise),88 dB SPL (1 kHz tone)
Loudspeaker Coverage Angle
80°
Loudspeaker DSP
Delay,compressor,signal generator,4-band EQ
Loudspeaker Latency
6.3 ms (excluding Dante)
Huddly L1 Network Camera
Sensor
20.3 MP,1" CMOS
Resolution @ 30 fps
1080p (Full HD),720p (HD)
Field of View
92° H/65° V/103° D
Zoom
Up to 5× digital
RJ45 (PoE + Data)
1
USB-C
USB 3.0 (via USB-to-PoE adapter)
Cable Requirement
Cat5e or higher
Dimensions
4.8 × 3.5 × 2 in (122 × 90 × 53 mm)
Weight
1.3 lb (0.6 kg)
