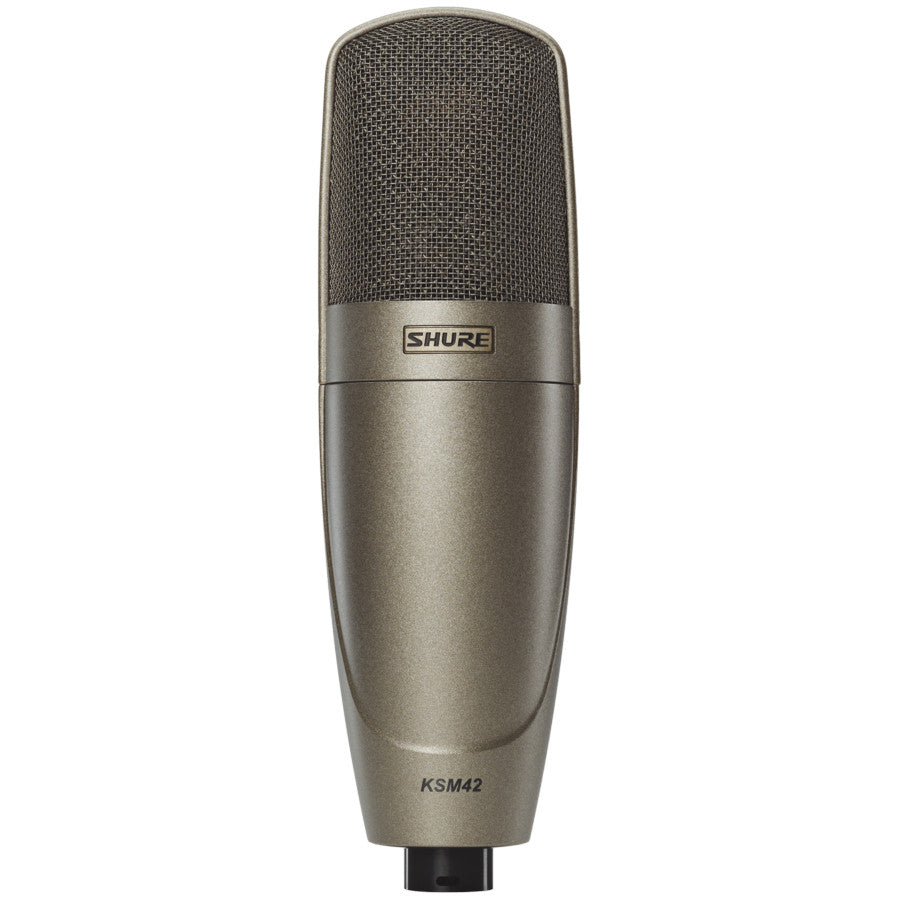

Shure KSM42 Large Dual-Diaphragm Cardioid Condenser Microphone
Shure KSM42 Large Dual-Diaphragm Cardioid Condenser Microphone
Soundpro Item: 23468 | Part Number: KSM42/SG
- Highly consistent cardioid polar pattern creates a broad “sweet spot” and natural off-axis response
- Prethos® Advanced Preamplifier Technology exhibits extremely low self-noise with superior dynamic range, transient response and ultra-low distortion for transparent recording
- Dual-diaphragm design with an active front, ultra thin (2.5 micron) 24-karat gold, low mass, 1-inch Mylar® diaphragm
- Passive back diaphragm delivers exceptional control of low frequency proximity effect
- Tailored low-frequency roll-off minimizes low frequency room noise
- Integrated three-stage mesh grille guards against wind and breath noise

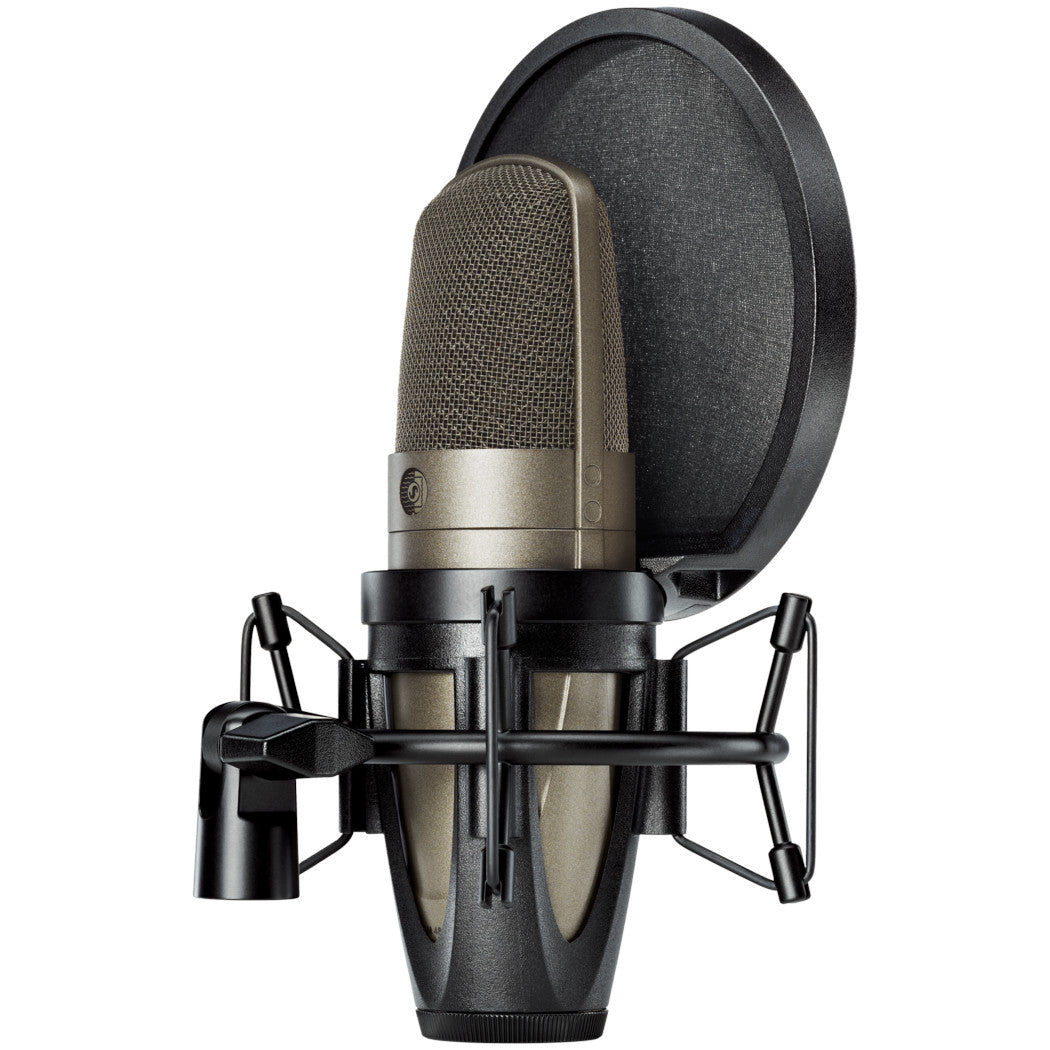

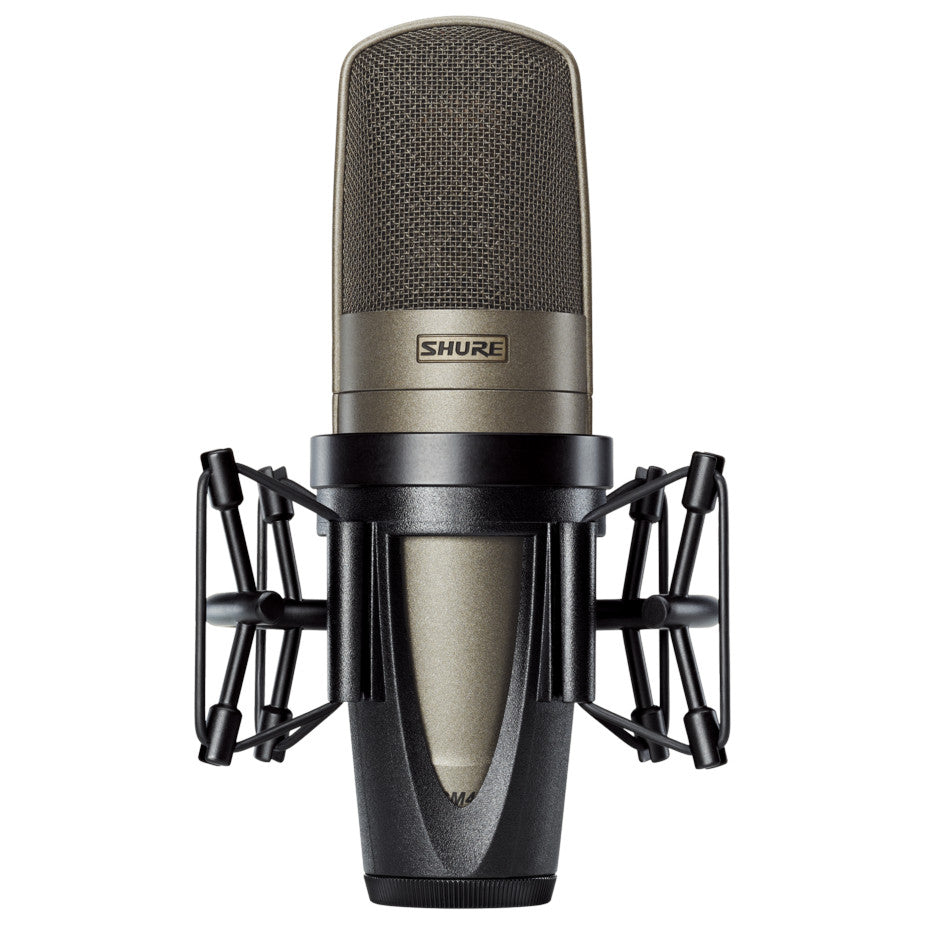

- Open cage ShureLock® rubber suspension shock mount with low-profile Popper Stopper™ magnetic pop filter produces a natural space between performer and microphone
- Extremely low self noise for critical studio vocal recording
- Premium electronic components and gold-plated internal and external connectors
- Durable zinc die-cast housing and hardened low carbon steel grille
- Internal shock mount to reduce unwanted handling and stand noise
Couldn't load pickup availability
Shure's KSM42 is a dual-diaphragm cardioid microphone delivers exceptionally smooth proximity control and ultra-wide dynamic range. It features a natural off-axis response, a dual-diaphragm with a gold Mylar diaphragm, 3-stage grille, and internal shock mount.
This premium side-address, cardioid condenser microphone features a large dual-diaphragm capsule, optimized for world-class vocal recording and performance applications. With a tailored frequency response and extensive internal and external pop filtering, the single-pattern, dual-diaphragm design of the KSM42, featuring Prethos® Advanced Preamplifier Technology exhibits an exceptionally smooth proximity control and ultra-wide dynamic range. The KSM42 is the premier choice for capturing sophisticated, powerful and intimate vocal performances.
A milestone achievement in sound reinforcement, Prethos Advanced Preamplifier Technology employs transparent internal circuitry architectures that enable unprecedented audio quality and performance.
Specifications
- Transducer TypeCondenser
- Polar PatternCardioid
- Frequency Response60 Hz - 20 kHz
- Output Impedance147 ohms
- Sensitivity (at 1 kHz, open circuit voltage)
- −37 dBV/Pa (14.1 mV)
- 1 Pascal=94 dB SPL
- Maximum SPL (1 kHz at 1% THD)
- 1000 ohms load: 139 dB
- 2500 ohms load: 139 dB
- Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz)
- 86 dB
- S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted
- Dynamic Range (at 1 kHz)
- 1000 ohms load: 131 dB
- 2500 ohms load: 131 dB
- Common Mode Rejection (10 Hz to 100 kHz)> 60 dB
- Clipping Level (20Hz-20 kHz at 1% THD)
- 1000 ohms load: 6.5 dBV
- 2500 ohms load: 8 dBV
- Self Noise (typical, equivalent SPL, A-weighted)8.5 dB
- Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
- Weight Net494 g. with shock mount and pop filter: 820 g
- Connector Three-pin professional audio (XLR), male
- Power Requirements 11 to 52 Vdc phantom, 6 mA
