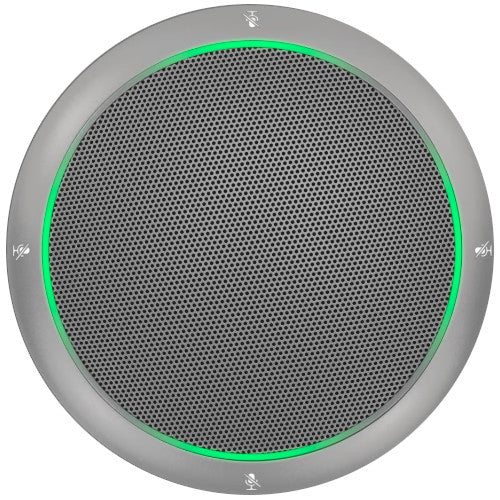

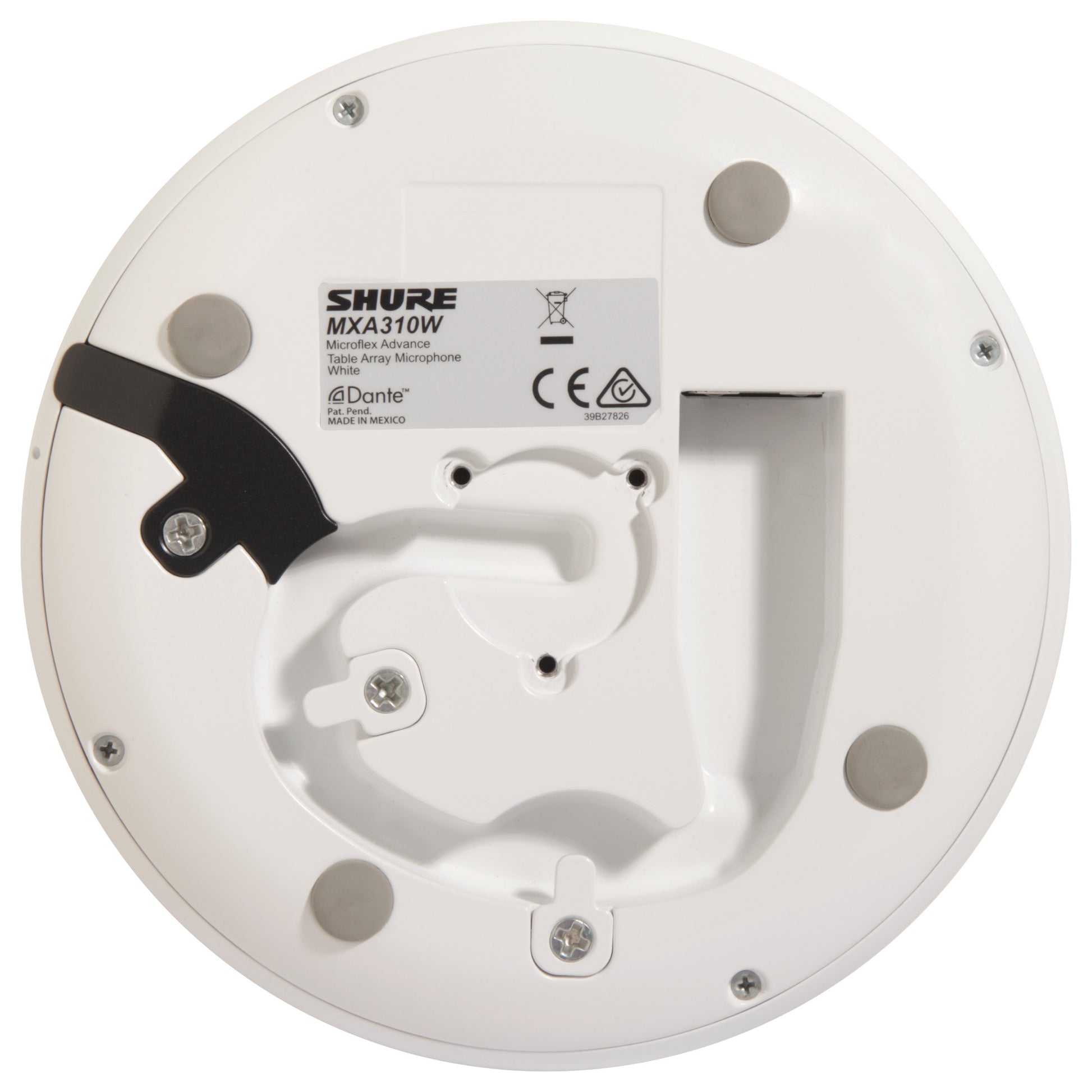

- MXA310
- Polar Pattern
- All channels independently adjustable
- Cardioid, Hypercardioid, Supercardioid, Toroid, Omnidirectional, Bidirectional
- Connector TypeRJ45
- Power RequirementsPower over Ethernet (PoE), Class 0 Power Consumption4W, maximum
- Weight362 g (0.8 lbs)
- Dimensions (HxWxD) 3.6x13.4x13.4 cm (1.4x5.3x5.3”)
- Control applicationHTML5 Browser-based
- Operating Temperature Range−6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range−29°C (-20°F) to 74°C (165°F)
- Audio Frequency Response100 to 20,000 Hz
- AES67 or Dante Digital Output
- Channel Count: 5 total channels ( 4 independent transmit channels, 1 Automatic mixing transmit channel)
- Sampling Rate: 48 kHz
- Bit Depth: 24
- Sensitivity (at 1 kHz, -15 dB Gain Setting) -21 dBFS/Pa
- Maximum SPL (1 kHz at 1% THD, -15 dB Gain Setting) 115.2 dB SPL
- Signal-To-Noise Ratio (Ref. 94 dB SPL at 1 kHz, -15 dB Gain Setting)
- Cardioid: 75 dB
- Toroid: 67 dB
- Latency (Not including Dante latency): <1 ms
- Self Noise (-15 dB Gain Setting)
- Cardioid: 19.2 dB SPL-A
- Toroid 26.8 dB SPL-A
- Dynamic Range (-15 dB Gain Setting)
- Cardioid: 96 dB
- Toroid: 90 dB SPL
- Built-in Digital Signal Processing
- Per Channel: Equalizer (4-band Parametric), Mute, Gain (140 dB range)
- System: Automatic mixing, Low-Cut Filter (-12 dB/octave @ 150 Hz)
- Networking Cable Requirements: Cat 5e or higher (shielded cable recommended)
- Polar Pattern

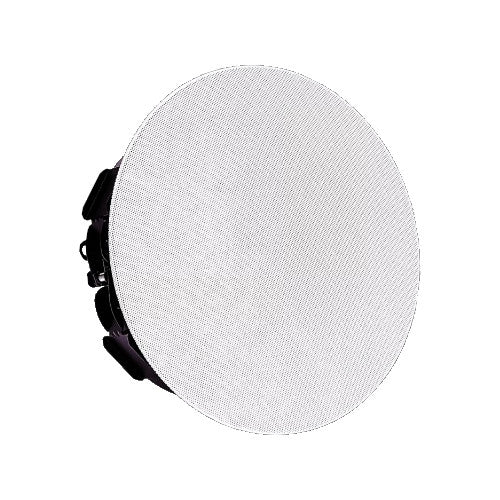

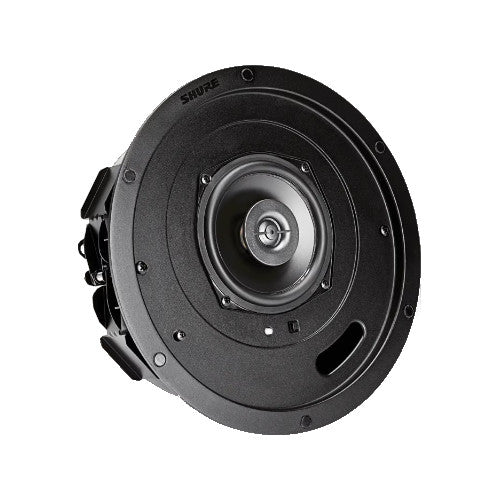

- MXN5W-C + Tile Bridge
- Connector Type: RJ45
- Power Requirements: Power over Ethernet (PoE Class 0) or PoE Plus (Class 4)
- Weight: 6.5 lbs (2.95 kg)
- Product Dimensions (HxWxD): 12x12x4" (304.8x304.8x101.6mm)
- Control Software: Shure Designer
- Plenum Rating: UL 2043 (Suitable for Air Handling Spaces)
- Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range: −29°C (20°F) to 74°C (165°F)
- Frequency Response (-3 dB): 120 Hz to 20 kHz
- Digital Signal Processing: Delay, Limiter, Signal Generator, Equalizer (4-band Parametric)
- Latency: 1.5 ms (Not including Dante latency)
- POWER CONSUMPTION
- Power over Ethernet (PoE): 12W maximum (11W typical)
- PoE Plus: 24W maximum (23W typical)
- MAXIMUM OUTPUT LEVEL COVERAGE ANGLE
- Power over Ethernet (PoE) @ 1 meter: 92 dB SPL -6 dB at 2 kHz 180 degrees
- PoE Plus @ 1 meter: 98 dB SPL -6 dB at 10 kHz 107 degrees
