Shure Microflex Ecosystem 310X AV Conferencing Bundle | Color: Aluminum
Shure Microflex Ecosystem 310X AV Conferencing Bundle | Color: Aluminum
SoundPro Item: 142195 | Part Number: 310X AL-V
In stock and ready to ship
- Shure MXA certifications are required for purchase. Reach out to SoundPro’s 100% Shure MXA Certified Account Managers for more information.
- Steerable Coverage™ of 4 separate polar patterns
- Toroid polar pattern that rejects overhead HVAC and fan noise
- 8 channels of acoustic echo cancellation and noise reduction
- Shure Network Audio Encryption
- Dante (10 in / 2 out), analog (2 in / 2 out)
- USB (1 in / out) and 3.5 mm connectivity options for connecting to room systems, laptops and mobile devices

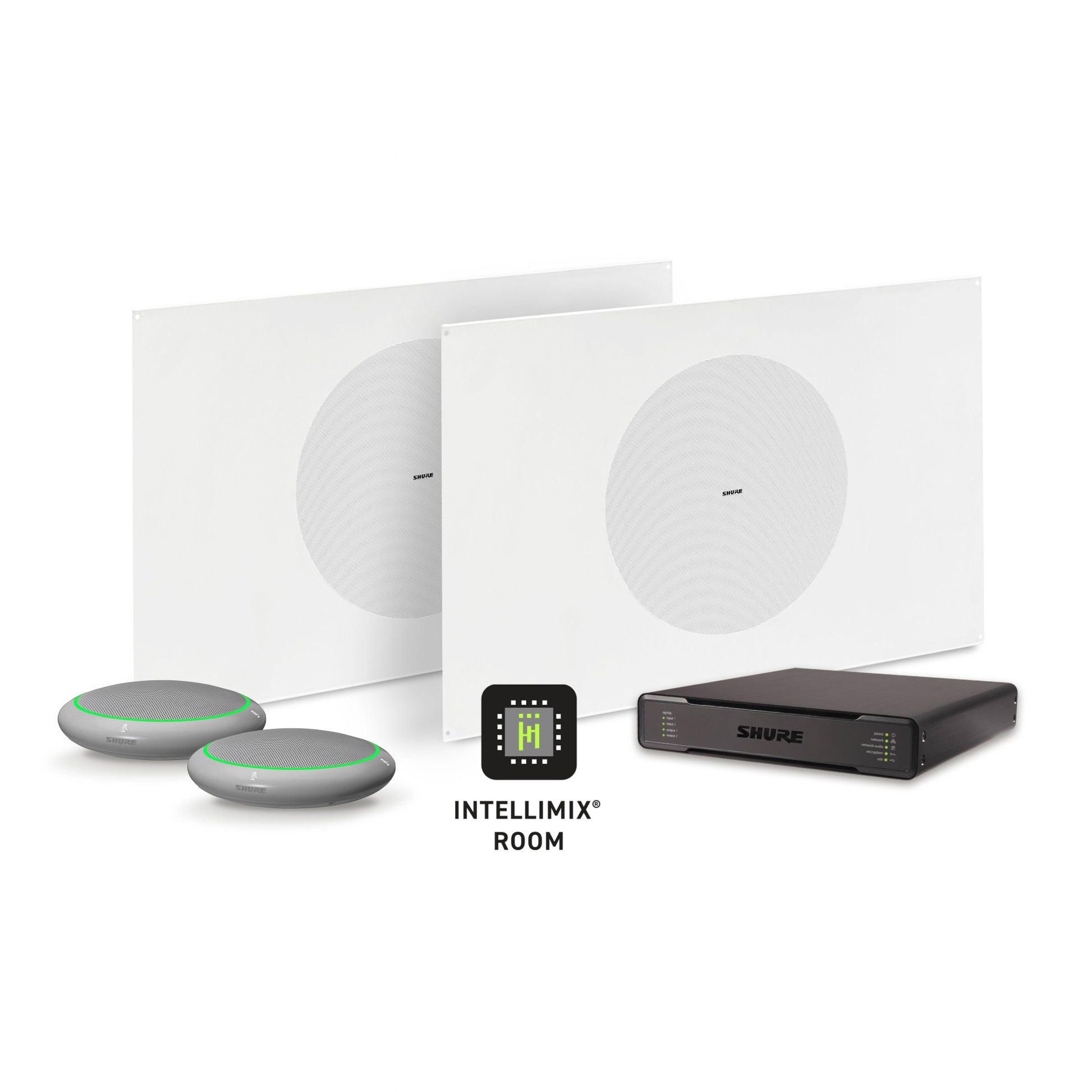

The Shure Microflex Ecosystem 310X AV Conferencing Bundle includes two MXA310 Table Array Microphones, an IntelliMix® P300-IMX Audio Conferencing Processor, and two MXN5W-C + Tile Bridges.
Versatile features and connectivity options provide freedom of choice when joining a room system, a computer running soft codecs like Skype for Business or BlueJeans, or to other all-in-one collaboration devices equipped with a USB or analog audio interface.
The P300-IMX offers multi-channel acoustic echo cancellation and noise reduction plus IntelliMix® automatic mixing optimized for audio/video conferencing applications. A predefined matrix and presets simplify the set up process. With the compact P300-IMX mounted under the table or behind the display, and the compact MXA310 mounted on the table, this bundle provides superior audio and discreetly integrates into boardrooms and meeting spaces.
The Microflex™ MXN5W-C Networked Ceiling Loudspeaker provides high-quality speech reproduction for AV conferencing applications. Gone is the need for a separate amplifier or an outboard DSP, the PoE-powered MXN5 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix® DSP, the full Shure networked systems ecosystem delivers premium audio performance with unmatched ease of deployment, with the added confidence of Shure Audio Encryption and Dante Domain Manager compatibility.

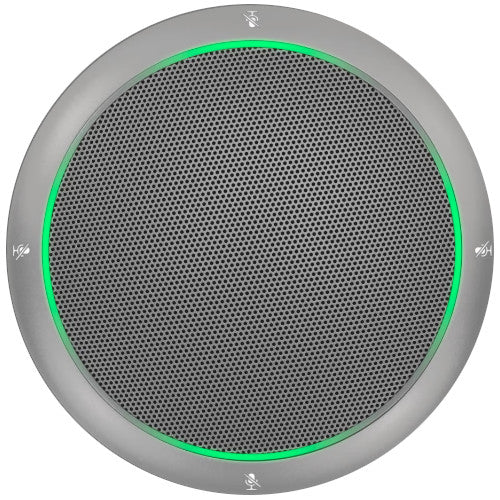

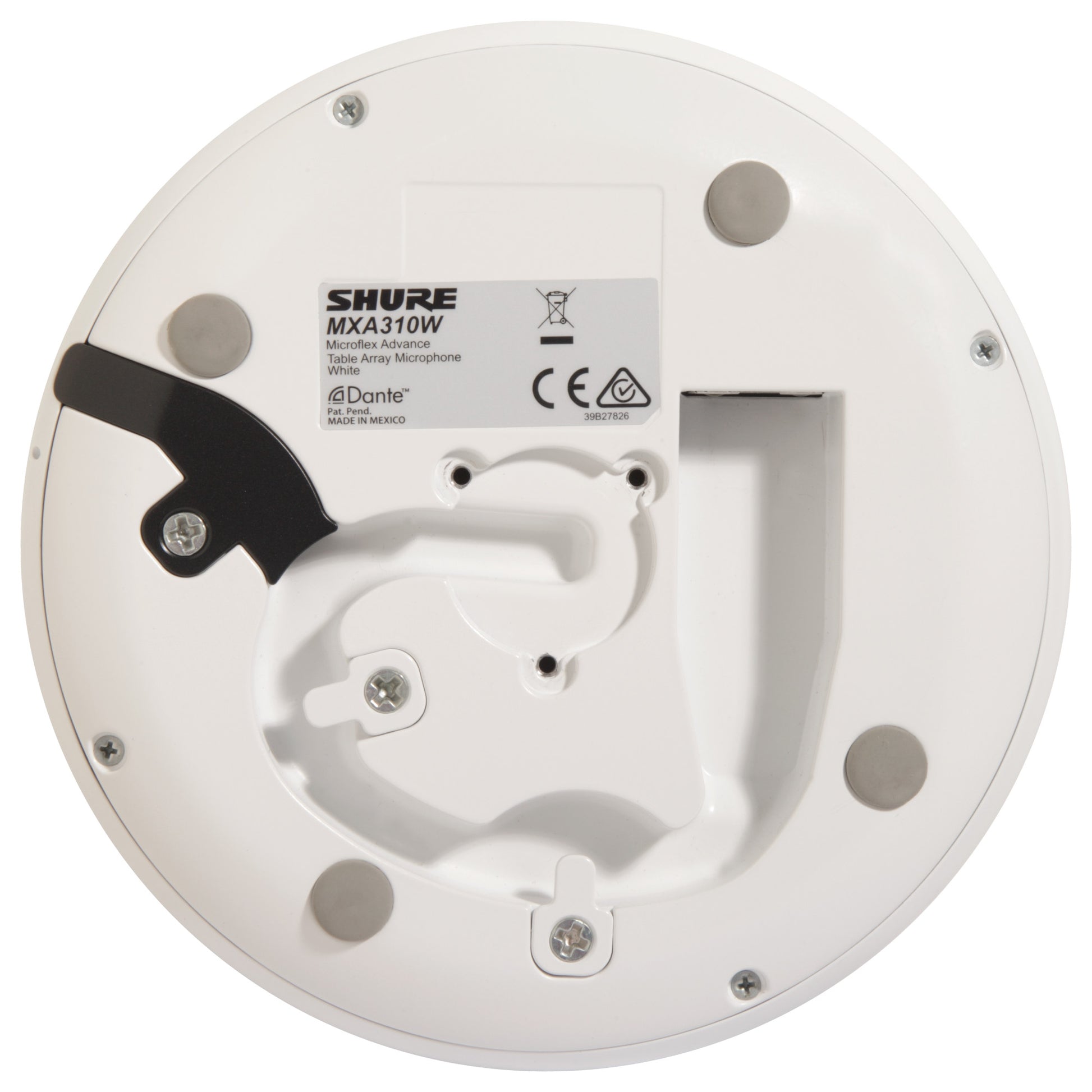

- MXA310
- Polar Pattern
- All channels independently adjustable
- Cardioid, Hypercardioid, Supercardioid, Toroid, Omnidirectional, Bidirectional
- Connector TypeRJ45
- Power RequirementsPower over Ethernet (PoE), Class 0 Power Consumption4W, maximum
- Weight362 g (0.8 lbs)
- Dimensions (HxWxD) 3.6x13.4x13.4cm (1.4x5.3x5.3”)
- Control applicationHTML5 Browser-based
- Operating Temperature Range−6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range−29°C (-20°F) to 74°C (165°F)
- Audio Frequency Response100 to 20,000 Hz
- AES67 or Dante Digital Output
- Channel Count: 5 total channels ( 4 independent transmit channels, 1 Automatic mixing transmit channel)
- Sampling Rate: 48 kHz
- Bit Depth: 24
- Sensitivity (at 1 kHz, -15 dB Gain Setting) -21 dBFS/Pa
- Maximum SPL (1 kHz at 1% THD, -15 dB Gain Setting) 115.2 dB SPL
- Signal-To-Noise Ratio (Ref. 94 dB SPL at 1 kHz, -15 dB Gain Setting)
- Cardioid: 75 dB
- Toroid: 67 dB
- Latency (Not including Dante latency): <1 ms
- Self Noise (-15 dB Gain Setting)
- Cardioid: 19.2 dB SPL-A
- Toroid 26.8 dB SPL-A
- Dynamic Range (-15 dB Gain Setting)
- Cardioid: 96 dB
- Toroid: 90 dB SPL
- Built-in Digital Signal Processing
- Per Channel: Equalizer (4-band Parametric), Mute, Gain (140 dB range)
- System: Automatic mixing, Low-Cut Filter (-12 dB/octave @ 150 Hz)
- Networking Cable Requirements: Cat 5e or higher (shielded cable recommended)
- Polar Pattern

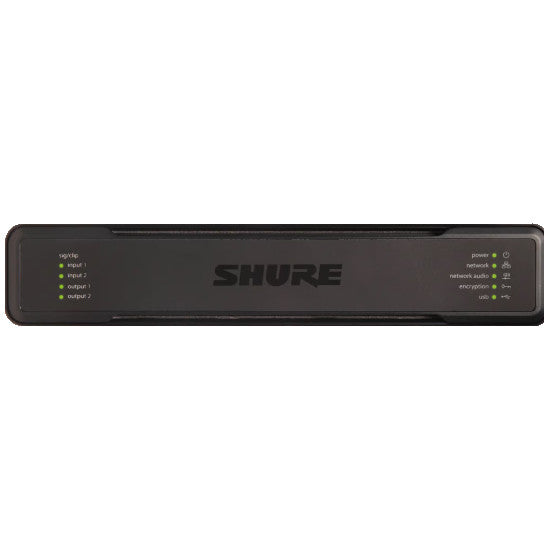

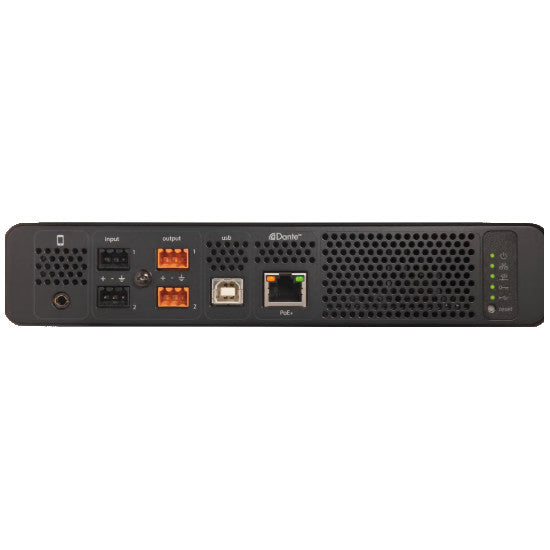

- P300
- General
- Input: (2) 3-pin block connector (Active Balanced)
- Output: (2) 3-pin block connector (Impedance Balanced)
- Mobile: (1) TRRS 3.5 mm (1/8″)
- USB Connections ((1) USB 2.0, Type B): Single port carries 2 input and 2 output channels (Summed mono)
- Network Connections (Dante Digital Audio); ((1) RJ45): 10 Dante Inputs, 8 Dante Outputs
- Polarity: Non-inverting, any input to any output
- Power Requirements: 802.3 at Type 2 (PoE Plus), Class 4
- Power Consumption: 17.5W, maximum
- Weight: 1710g (3.8 lbs)
- Dimensions (HxWxD): 4x21x22.6cm (1.6x8.3x8.9”)
- Control Software: Shure Designer
- Operating Temperature Range: −6.7°C (20°F) to 50°C (122°F)
- Storage Temperature Range: −29°C (20°F) to 74°C (165°F)
- Thermal Power Dissipation
- Maximum 17.5 W (60 BTU/hr)
- typical 14.6 W ( 50 BTU/hr)
- Audio
- Frequency Response (+1, 1.5 dB): 20 to 20,000 Hz
- Dante Digital Audio
- Sampling Rate: 48 kHz
- Bit Depth: 24
- USB Audio
- Sampling Rate: 48 kHz
- Bit Depth: 16, 24
- Latency (Does not include Dante latency)
- Firmware 4.1 and newer
- Dante 1-8 in to Dante out (AEC enabled) 15.4 ms
- Dante 1-8 in to Dante out (AEC disabled) 8.7 ms
- Dante 9-10 in to Dante out 3.4 ms
- Analog in to Analog out 3.8 ms
- Firmware 3.1 and older
- Dante 1-8 in to Dante out (AEC enabled) 12.5 ms
- Dante 1-8 in to Dante out (AEC disabled) 5.8 ms
- Dante 9-10 in to Dante out 1.8 ms
- Analog in to Analog out 2.2 ms
- Firmware 4.1 and newer
- Acoustic Echo Cancellation Tail Length: Up to 300 ms
- Analog Connections (Block Connectors)
- Dynamic Range (20 Hz to 20 kHz, A-weighted, typical)
- Analog-to-Dante: 113 dB
- Dante-to-Analog: 117 dB
- Equivalent Input Noise (20 Hz to 20 kHz, Aweighted, input terminated with 150Ω)
- Line 86 dBV
- Aux 98 dBV
- Total Harmonic Distortion (@ 1 kHz, 0 dBV Input, 0 dB analog gain): <0.05%
- Common Mode Rejection Ratio (150Ω balanced source @ 1 kHz): >50 dB
- Input Impedance: 9.6 kΩ
- Input Clipping Level
- Line: +27 dBV
- Aux: +15 dBV
- Output Impedance: 80 Ω
- Output Clipping Level
- Line: +20 dBV
- Aux: +0 dBV
- Mic: 26 dBV
- Dynamic Range (20 Hz to 20 kHz, A-weighted, typical)
- Mobile Connection (3.5 mm Connector)
- Pin Assignments
- Tip: Audio Input (Left)
- Ring 1: Audio Input (Right)
- Ring 2: Ground
- Sleeve: Audio Output (To Phone)
- Dynamic Range (20 Hz to 20 kHz, A-weighted, typical)
- Analog-to-Dante: 99 dB
- Dante-to-Analog: 90 dB
- Equivalent Input Noise (20 Hz to 20 kHz, Aweighted, input terminated with 20Ω): 95 dBV
- Total Harmonic Distortion (@ 1 kHz, 0 dBV Input, 0 dB analog gain): <0.05%
- Input Impedance: 3.7 kΩ
- Input Clipping Level: +4 dBV
- Output Impedance: 1.4 kΩ
- Output Clipping Level (Output terminated with 2.2 kΩ): 20 dBV
- Pin Assignments
- Networking
- Cable Requirements: Cat 5e or higher (shielded cable recommended)
- Mobile Pin Assignments (TRRS)
- Tip: Audio Input (Left)
- Ring 1: Audio Input (Right )
- Ring 2: Ground
- Sleeve: Audio Output (To Phone)
- Note: The audio input (tip and ring 1) are summed to a mono signal in the P300, to send the signal to any destination on a single channel.
- General

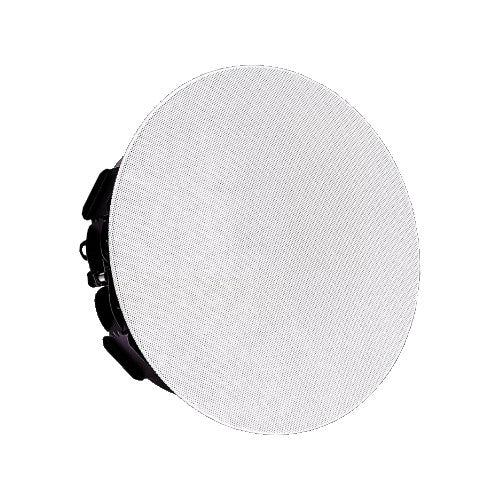

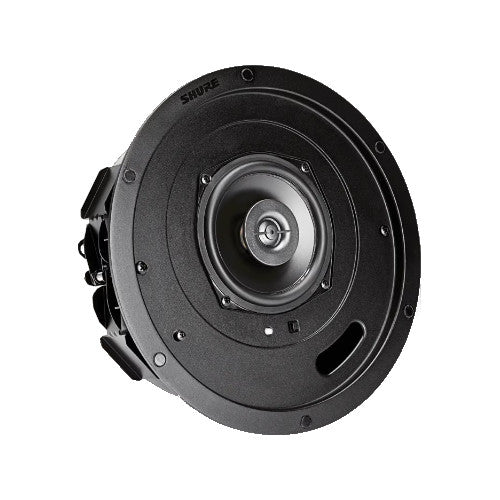

- MXN5W-C
- Connector Type: RJ45
- Power Requirements: Power over Ethernet (PoE Class 0) or PoE Plus (Class 4)
- Weight: 6.5 lbs (2.95 kg)
- Product Dimensions (HxWxD): 12x12x4" (304.8x304.8x101.6mm)
- Control Software: Shure Designer
- Plenum Rating: UL 2043 (Suitable for Air Handling Spaces)
- Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range: −29°C (20°F) to 74°C (165°F)
- Frequency Response (-3 dB): 120 Hz to 20 kHz
- Digital Signal Processing: Delay, Limiter, Signal Generator, Equalizer (4-band Parametric)
- Latency: 1.5 ms (Not including Dante latency)
- POWER CONSUMPTION
- Power over Ethernet (PoE): 12W maximum (11W typical)
- PoE Plus: 24W maximum (23W typical)
- MAXIMUM OUTPUT LEVEL COVERAGE ANGLE
- Power over Ethernet (PoE) @ 1 meter: 92 dB SPL -6 dB at 2 kHz 180 degrees
- PoE Plus @ 1 meter: 98 dB SPL -6 dB at 10 kHz 107 degrees
