Shure Microflex Ecosystem 712L AV Conferencing Bundle | Color: Aluminum

Shure Microflex Ecosystem 712L AV Conferencing Bundle | Color: Aluminum

SoundPro Item: 142503 | Part Number: 712L AL-V

$8,200.00
$11,120.00 $8,200.00
Your Price Sold out
MSRP: $11,120.00 | MAP: $8,200.00

In stock and ready to ship

  • Shure MXA certifications are required for purchase. Reach out to SoundPro’s 100% Shure MXA Certified Account Managers for more information.
  • Ideal for delivering natural speech while eliminating echoes or other distracting noise
  • Ensure complete coverage over an entire room or spotlight specific areas
  • Low-profile design allows integration into all sorts of existing setups
  • AES-256 encryption
  • Certified for use with Microsoft Teams, Zoom, Cisco, and other leading collaboration software
Log in or register for YOUR best price

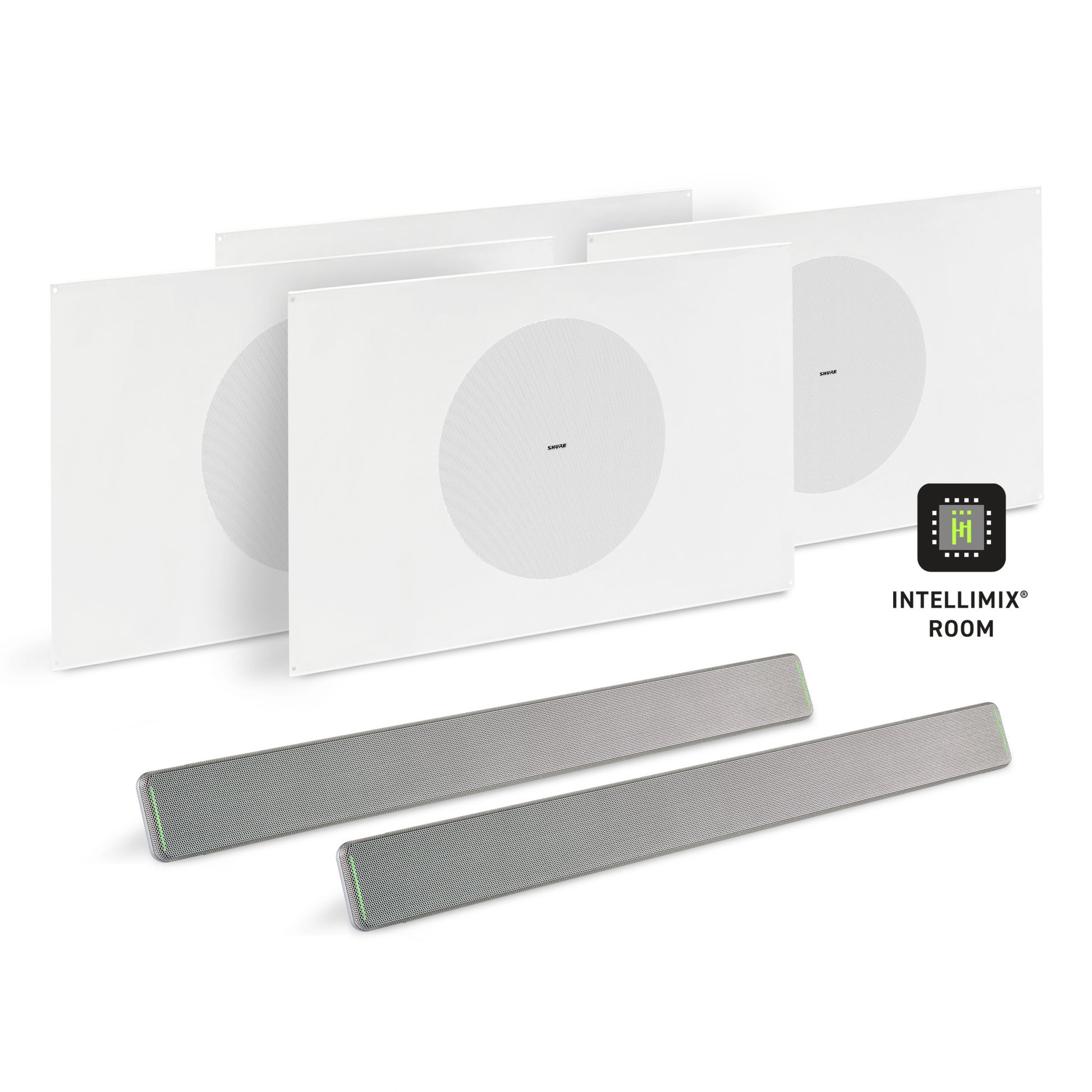

The Shure Microflex Ecosystem 712L AV Conferencing Bundle includes two MXA710 Linear Array Microphones, an IMX-RM8-SUB5, and four MXN5W-C + Tile Bridges.

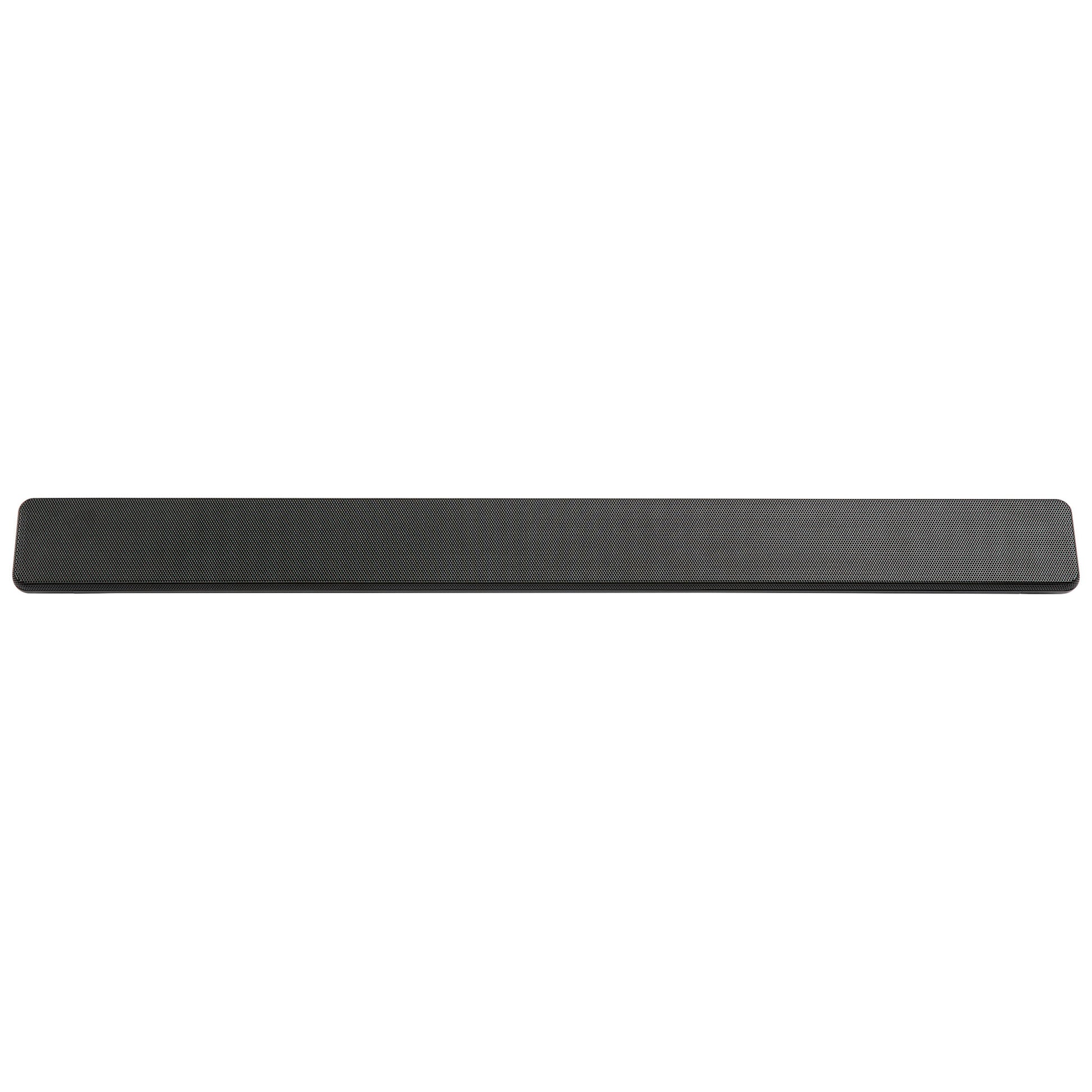

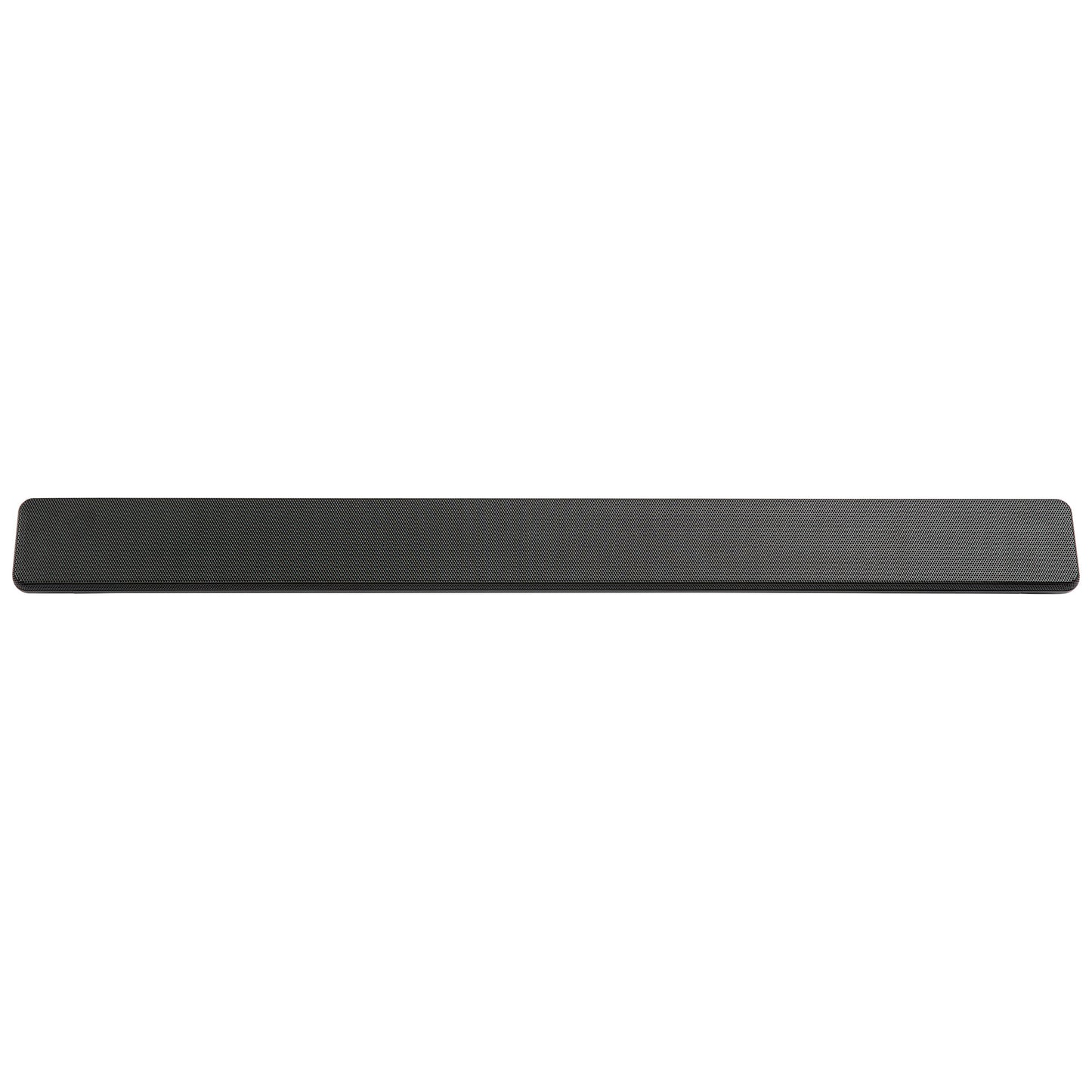

The MXA710 Linear Array Microphone represents the next evolution in Shure array microphone technology, designed for high-quality audio capture in premium AV conferencing environments. The sleek, linear form factor of the MXA710 allows for placement virtually anywhere in a meeting space, including on a wall, around a display, ceiling, or into a conference room table. Available in two lengths and three colors, the MXA710 includes proprietary Shure IntelliMix® DSP and Autofocus™ technology that provides all the processing needed for echo and noise-free conference audio.

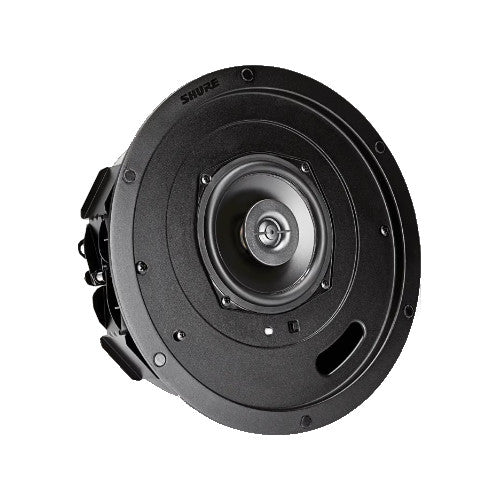

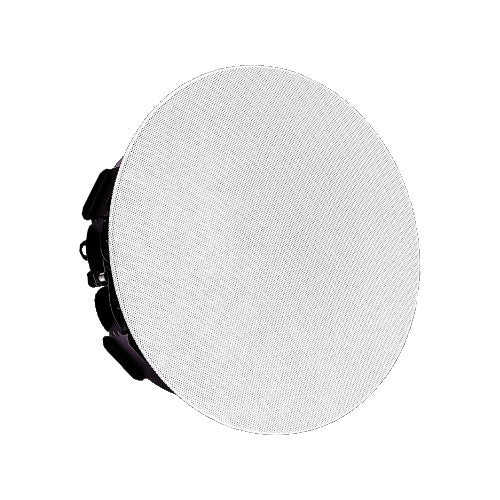

The Microflex™ MXN5W-C Networked Ceiling Loudspeaker provides high-quality speech reproduction for AV conferencing applications. Gone is the need for a separate amplifier or an outboard DSP, the PoE-powered MXN5 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix® DSP, the full Shure networked systems ecosystem delivers premium audio performance with unmatched ease of deployment, with the added confidence of Shure Audio Encryption and Dante Domain Manager compatibility.

View full details
  • 710
    • Adjustable Lobe Width
      • Narrow: 30 degrees
      • Medium: 40 degrees
      • Wide: 70 degrees
    • Connector Type: RJ45
    • Power Requirements: Power over Ethernet (PoE), Class 0
    • Power Consumption: 10W maximum
    • Weight: 2 lbs (0.91 kg)
    • Product Dimensions (HxWxL): 0.87x2.36x25.04" (22.09x60x636mm)
    • Control Software: Shure Designer
    • Plenum Rating: UL2043 (Suitable for Air Handling Spaces)
    • Dust Protection: IEC 60529 IP5X Dust Protected
    • Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
    • Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
    • Audio Frequency Response: 100 Hz to 20 kHz
    • AES67 or Dante Digital Output
      • Channel Count: 6 total channels (4 independent transmit channels, 1 Automix output, 1 AEC reference in channel)
    • Sampling Rate: 48 kHz
    • Bit Depth: 24
    • Sensitivity (at 1 kHz): -7.4 dBFS/Pa
    • Maximum SPL (Relative to 0 dBFS overload): 101.4 dB SPL
    • Signal-To-Noise Ratio (Ref. 94 dB SPL at 1 kHz): 71.2 dB A-weighted
    • Latency (Does not include Dante latency)
      • Direct Outputs: 8.7 ms
      • Automix output (Includes IntelliMix processing): 19.3 ms
    • Self Noise: 22.9 dB SPL-A
    • Dynamic Range: 78.5 dB
    • Built-in Digital Signal Processing: Automatic mixing, Acoustic Echo Cancellation (AEC), Noise Reduction, Automatic Gain Control, Compressor, Delay, Equalizer (4-band Parametric), Mute, Gain (140 dB range)
    • Acoustic Echo Cancellation Tail Length: Up to 250 ms
    • Networking Cable Requirements: Cat 5e or higher (shielded cable recommended)
  • MXN5W-C + Tile Bridge
    • Connector Type: RJ45
    • Power Requirements: Power over Ethernet (PoE Class 0) or PoE Plus (Class 4)
    • Weight: 6.5 lbs (2.95kg)
    • Product Dimensions (HxWxD): 12x12x4" (304.8x304.8x101.6mm)
    • Control Software: Shure Designer
    • Plenum Rating: UL 2043 (Suitable for Air Handling Spaces)
    • Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
    • Storage Temperature Range: −29°C (20°F) to 74°C (165°F)
    • Frequency Response (-3 dB): 120 Hz to 20 kHz
    • Digital Signal Processing: Delay, Limiter, Signal Generator, Equalizer (4-band Parametric)
    • Latency: 1.5 ms (Not including Dante latency)
    • POWER CONSUMPTION
      • Power over Ethernet (PoE): 12W maximum (11W typical)
      • PoE Plus: 24W maximum (23W typical)
    • MAXIMUM OUTPUT LEVEL COVERAGE ANGLE
      • Power over Ethernet (PoE) @ 1 meter: 92 dB SPL -6 dB at 2 kHz 180 degrees
      • PoE Plus @ 1 meter: 98 dB SPL -6 dB at 10 kHz 107 degrees
