Shure Microflex Ecosystem 712P + Huddly Cam AV Conferencing Bundle | Color: Aluminum
Shure Microflex Ecosystem 712P + Huddly Cam AV Conferencing Bundle | Color: Aluminum
SoundPro Item: 142514 | Part Number: 712P AL+HCAM-V
In stock and ready to ship
- Shure MXA certifications are required for purchase. Reach out to SoundPro’s 100% Shure MXA Certified Account Managers for more information.
- Ideal for delivering natural speech while eliminating echoes or other distracting noise
- Ensure complete coverage over an entire room or spotlight specific areas
- Low-profile design allows integration into all sorts of existing setups
- AES-256 encryption
- Certified for use with Microsoft Teams, Zoom, Cisco, and other leading collaboration software

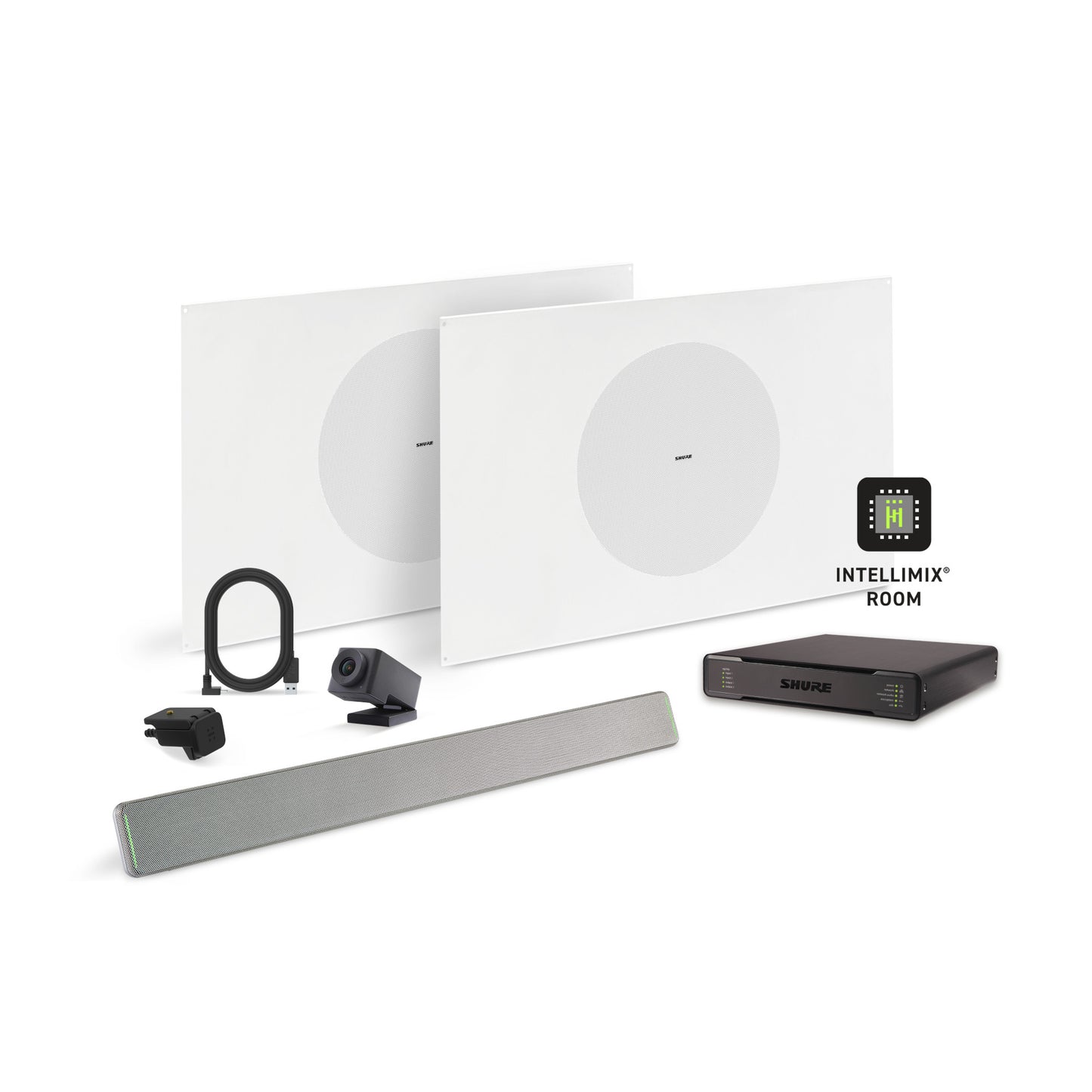

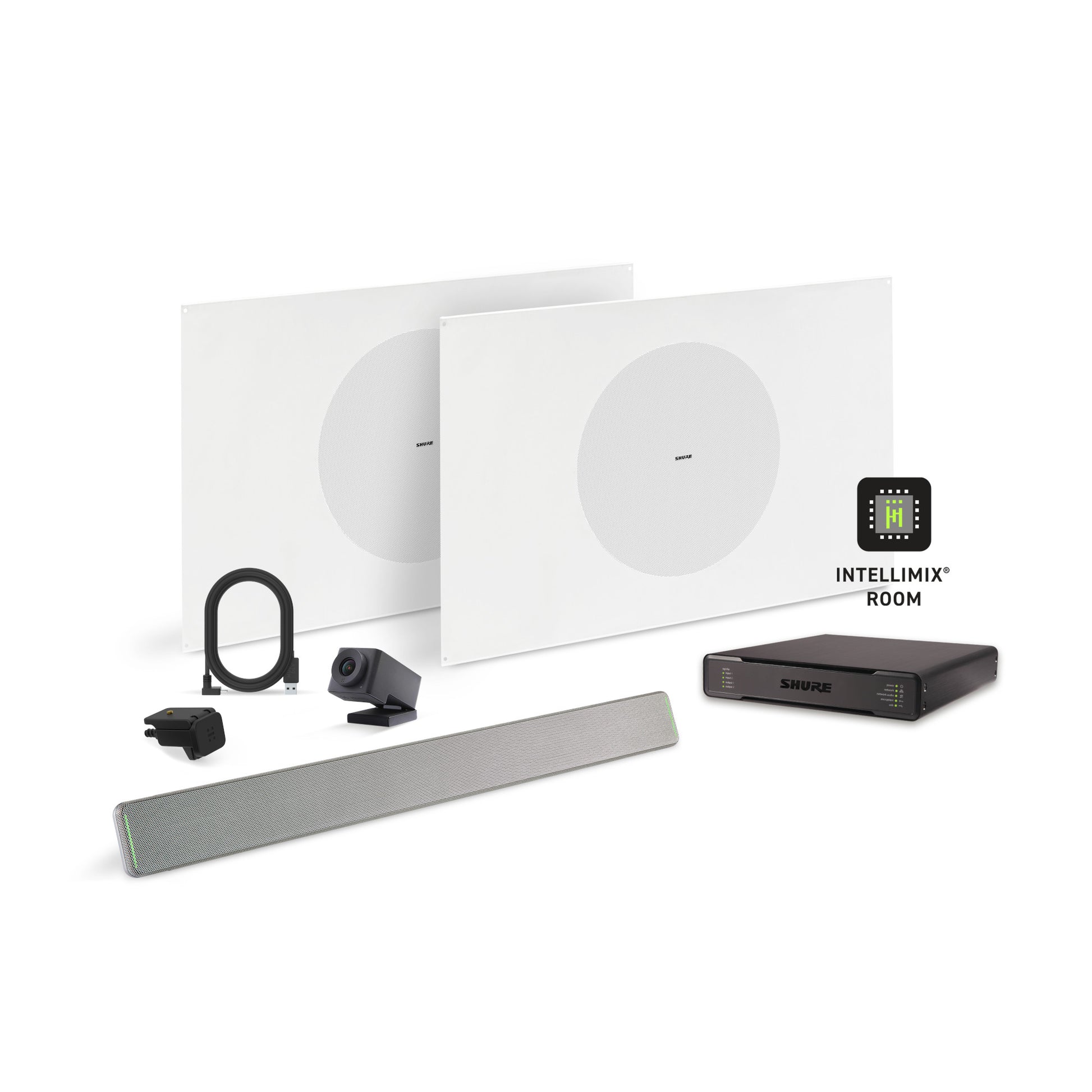

The Shure Microflex Ecosystem 712P + Huddly Cam AV Conferencing Bundle includes a MXA710-2FT Linear Array Microphone, a P300-IMX, two MXN5W-C + Tile Bridges, a Huddly IQ camera, and accessories.

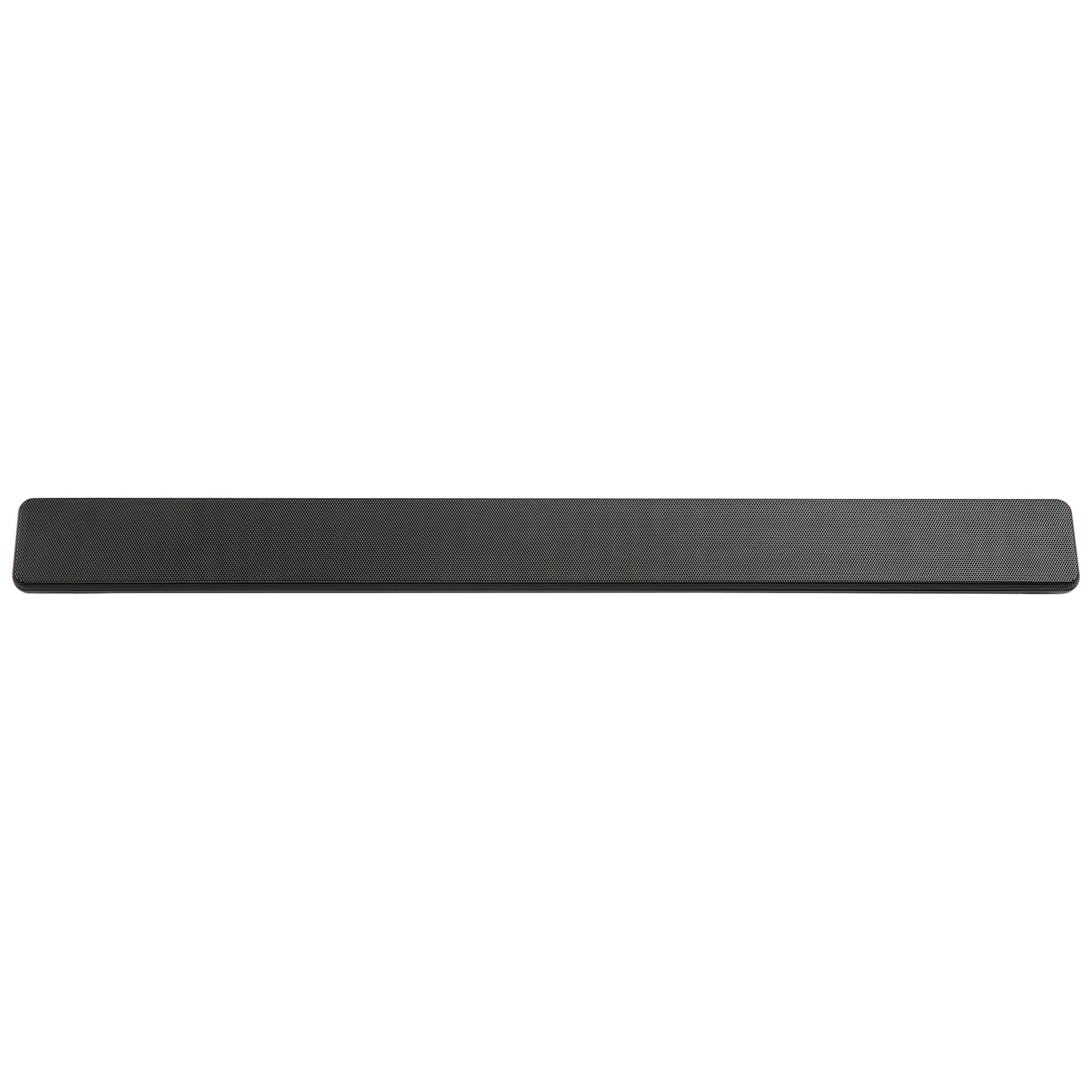

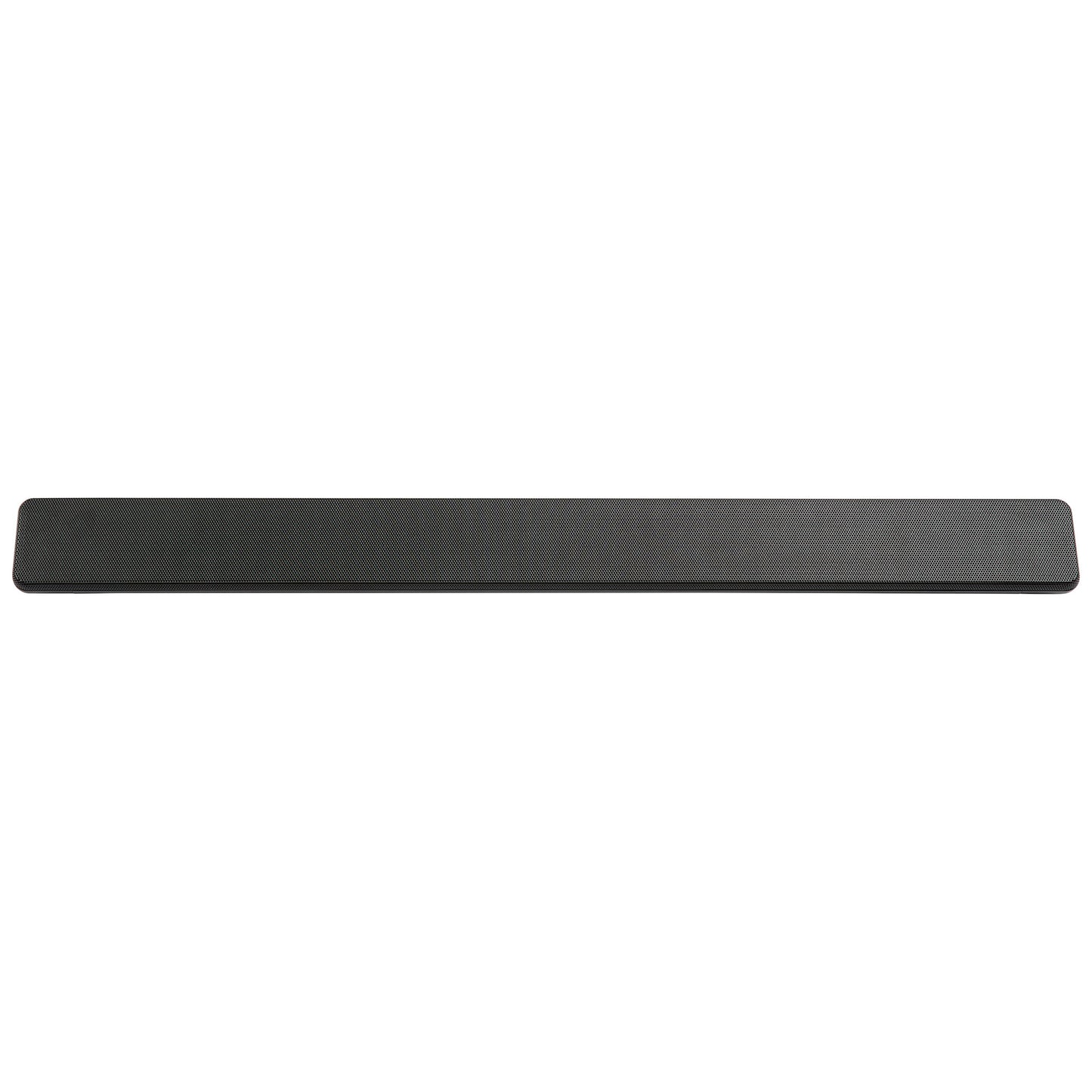

The MXA710 Linear Array Microphone represents the next evolution in Shure array microphone technology, designed for high-quality audio capture in premium AV conferencing environments. The sleek, linear form factor of the MXA710 allows for placement virtually anywhere in a meeting space, including on a wall, around a display, ceiling, or into a conference room table. Available in two lengths and three colors, the MXA710 includes proprietary Shure IntelliMix® DSP and Autofocus™ technology that provides all the processing needed for echo and noise-free conference audio.

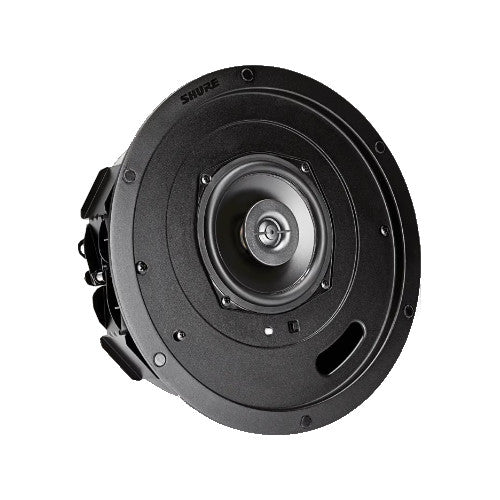

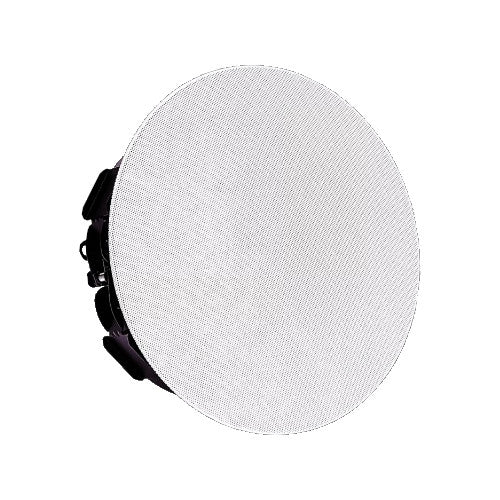

The Microflex™ MXN5W-C Networked Ceiling Loudspeaker provides high-quality speech reproduction for AV conferencing applications. Gone is the need for a separate amplifier or an outboard DSP, the PoE-powered MXN5 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix® DSP, the full Shure networked systems ecosystem delivers premium audio performance with unmatched ease of deployment, with the added confidence of Shure Audio Encryption and Dante Domain Manager compatibility.

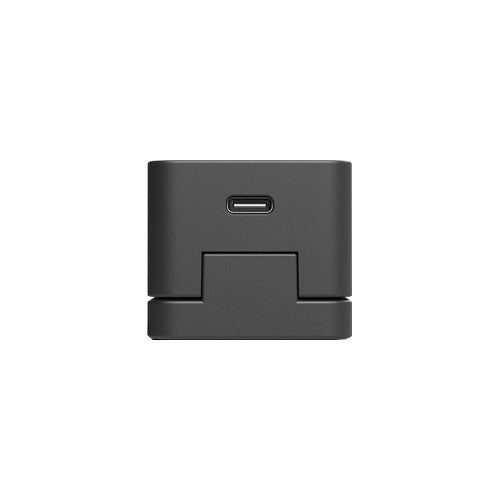

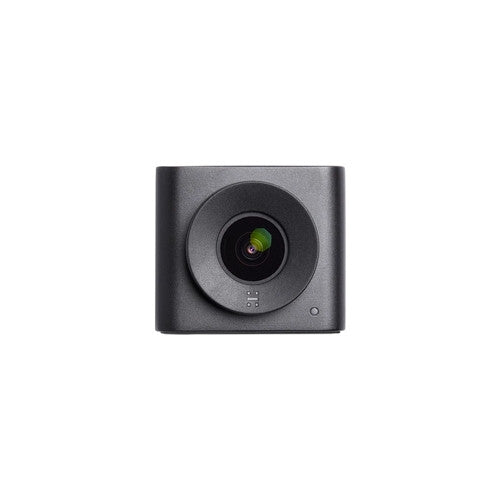

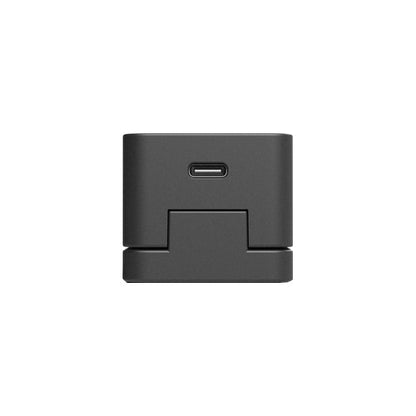

The Huddly IQ 4K wide-angle conference camera with AI functionality includes industry-leading smart framing and advanced room analytics. Features USB plug-and-play. Certified for Microsoft Teams and Zoom. Available with or without microphone array.
- 710
- Adjustable Lobe Width
- Narrow: 30 degrees
- Medium: 40 degrees
- Wide: 70 degrees
- Connector Type: RJ45
- Power Requirements: Power over Ethernet (PoE), Class 0
- Power Consumption: 10W maximum
- Weight: 2 lbs (0.91 kg)
- Product Dimensions (HxWxL): 0.87x2.36x25.04" (22.09x60x636mm)
- Control Software: Shure Designer
- Plenum Rating: UL2043 (Suitable for Air Handling Spaces)
- Dust Protection: IEC 60529 IP5X Dust Protected
- Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
- Audio Frequency Response: 100 Hz to 20 kHz
- AES67 or Dante Digital Output
- Channel Count: 6 total channels (4 independent transmit channels, 1 Automix output, 1 AEC reference in channel)
- Sampling Rate: 48 kHz
- Bit Depth: 24
- Sensitivity (at 1 kHz): -7.4 dBFS/Pa
- Maximum SPL (Relative to 0 dBFS overload): 101.4 dB SPL
- Signal-To-Noise Ratio (Ref. 94 dB SPL at 1 kHz): 71.2 dB A-weighted
- Latency (Does not include Dante latency)
- Direct Outputs: 8.7 ms
- Automix output (Includes IntelliMix processing): 19.3 ms
- Self Noise: 22.9 dB SPL-A
- Dynamic Range: 78.5 dB
- Built-in Digital Signal Processing: Automatic mixing, Acoustic Echo Cancellation (AEC), Noise Reduction, Automatic Gain Control, Compressor, Delay, Equalizer (4-band Parametric), Mute, Gain (140 dB range)
- Acoustic Echo Cancellation Tail Length: Up to 250 ms
- Networking Cable Requirements: Cat 5e or higher (shielded cable recommended)
- Adjustable Lobe Width
- Huddly IQ
- Image
- 12 Megapixels 1/2.3” CMOS sensor
- 1080p Full HD @ 30 fps
- 720p HD @ 30 fps
- 16:9 aspect ratio output
- UVC 1.1 plug-and-play compatible
- Hardware
- 5-element beamforming microphone array (optional)
- Aluminum unibody construction
- High-performance video processing engine
- Neural compute engine
- Embedded mounting hinge
- Camera tripod mount
- Optics
- Ultra-wide angle glass optics
- Horizontal field of view 120
- Vertical field of view 90
- Diagonal field of view 150
- f/2.8 aperture
- Connectivity
- USB Type-C connector
- SuperSpeed USB 3
- Power requirement 5V 900mA
- Color: Matte Black
- Packaging Dimensions (LxWxH): 80x52x50mm
- Image
- MXN5W-C + Tile Bridge
- Connector Type: RJ45
- Power Requirements: Power over Ethernet (PoE Class 0) or PoE Plus (Class 4)
- Weight: 6.5 lbs (2.95 kg)
- Product Dimensions (HxWxD): 12x12x4" (304.8x304.8x101.6mm)
- Control Software: Shure Designer
- Plenum Rating: UL 2043 (Suitable for Air Handling Spaces)
- Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range: −29°C (20°F) to 74°C (165°F)
- Frequency Response (-3 dB): 120 Hz to 20 kHz
- Digital Signal Processing: Delay, Limiter, Signal Generator, Equalizer (4-band Parametric)
- Latency: 1.5 ms (Not including Dante latency)
- POWER CONSUMPTION
- Power over Ethernet (PoE): 12W maximum (11W typical)
- PoE Plus: 24W maximum (23W typical)
- MAXIMUM OUTPUT LEVEL COVERAGE ANGLE
- Power over Ethernet (PoE) @ 1 meter: 92 dB SPL -6 dB at 2 kHz 180 degrees
- PoE Plus @ 1 meter: 98 dB SPL -6 dB at 10 kHz 107 degrees
- P300
- General
- Input: (2) 3-pin block connector (Active Balanced)
- Output: (2) 3-pin block connector (Impedance Balanced)
- Mobile: (1) TRRS 3.5 mm (1/8″)
- USB Connections ((1) USB 2.0, Type B): Single port carries 2 input and 2 output channels (Summed mono)
- Network Connections (Dante Digital Audio); ((1) RJ45): 10 Dante Inputs, 8 Dante Outputs
- Polarity: Non-inverting, any input to any output
- Power Requirements: 802.3 at Type 2 (PoE Plus), Class 4
- Power Consumption: 17.5W, maximum
- Weight: 1710g (3.8 lbs)
- Dimensions (HxWxD): 4x21x22.6cm (1.6x8.3x8.9”)
- Control Software: Shure Designer
- Operating Temperature Range: −6.7°C (20°F) to 50°C (122°F)
- Storage Temperature Range: −29°C (20°F) to 74°C (165°F)
- Thermal Power Dissipation
- Maximum 17.5 W (60 BTU/hr)
- typical 14.6 W ( 50 BTU/hr)
- Audio
- Frequency Response (+1, 1.5 dB): 20 to 20,000 Hz
- Dante Digital Audio
- Sampling Rate: 48 kHz
- Bit Depth: 24
- USB Audio
- Sampling Rate: 48 kHz
- Bit Depth: 16, 24
- Latency (Does not include Dante latency)
- Firmware 4.1 and newer
- Dante 1-8 in to Dante out (AEC enabled) 15.4 ms
- Dante 1-8 in to Dante out (AEC disabled) 8.7 ms
- Dante 9-10 in to Dante out 3.4 ms
- Analog in to Analog out 3.8 ms
- Firmware 3.1 and older
- Dante 1-8 in to Dante out (AEC enabled) 12.5 ms
- Dante 1-8 in to Dante out (AEC disabled) 5.8 ms
- Dante 9-10 in to Dante out 1.8 ms
- Analog in to Analog out 2.2 ms
- Firmware 4.1 and newer
- Acoustic Echo Cancellation Tail Length: Up to 300 ms
- Analog Connections (Block Connectors)
- Dynamic Range (20 Hz to 20 kHz, A-weighted, typical)
- Analog-to-Dante: 113 dB
- Dante-to-Analog: 117 dB
- Equivalent Input Noise (20 Hz to 20 kHz, Aweighted, input terminated with 150Ω)
- Line 86 dBV
- Aux 98 dBV
- Total Harmonic Distortion (@ 1 kHz, 0 dBV Input, 0 dB analog gain): <0.05%
- Common Mode Rejection Ratio (150Ω balanced source @ 1 kHz): >50 dB
- Input Impedance: 9.6 kΩ
- Input Clipping Level
- Line: +27 dBV
- Aux: +15 dBV
- Output Impedance: 80 Ω
- Output Clipping Level
- Line: +20 dBV
- Aux: +0 dBV
- Mic: 26 dBV
- Dynamic Range (20 Hz to 20 kHz, A-weighted, typical)
- Mobile Connection (3.5 mm Connector)
- Pin Assignments
- Tip: Audio Input (Left)
- Ring 1: Audio Input (Right)
- Ring 2: Ground
- Sleeve: Audio Output (To Phone)
- Dynamic Range (20 Hz to 20 kHz, A-weighted, typical)
- Analog-to-Dante: 99 dB
- Dante-to-Analog: 90 dB
- Equivalent Input Noise (20 Hz to 20 kHz, Aweighted, input terminated with 20Ω): 95 dBV
- Total Harmonic Distortion (@ 1 kHz, 0 dBV Input, 0 dB analog gain): <0.05%
- Input Impedance: 3.7 kΩ
- Input Clipping Level: +4 dBV
- Output Impedance: 1.4 kΩ
- Output Clipping Level (Output terminated with 2.2 kΩ): 20 dBV
- Pin Assignments
- Networking
- Cable Requirements: Cat 5e or higher (shielded cable recommended)
- Mobile Pin Assignments (TRRS)
- Tip: Audio Input (Left)
- Ring 1: Audio Input (Right )
- Ring 2: Ground
- Sleeve: Audio Output (To Phone)
- Note: The audio input (tip and ring 1) are summed to a mono signal in the P300, to send the signal to any destination on a single channel.
- General
