- Frequency Response 50-20kHZ +/-1dB
- Dynamic Range (A-Weighted) 100dB
- Equivalent Noise (A-Weighted, Camera Out = Line Level) 31 dBSPL
- Equivalent Input Noise (A-Weighted, Direct to phone) 26 dBSPL
- Max Sound Pressure Level (SPL) 130dBSPL
- Sensitivity when used with MV-LAV (Mic Gain = 0dB) -45dBV @94dBSPL (1 Pascal RMS)
- Bit Depth 24 Bit
- Sampling Rate 48ksps or 44.1ksps (Host dependent)
- Gain Adjustment Range 0 - 60 dB
- Minimum Load Impedance - HP 16 ohms
- Maximum Headphone Output Level26.4mW @1% THD
- Minimum Load Impedance - Camera Out 2k ohms
- Maximum Camera Output Level (Mic Setting) -26dBV
- Maximum Camera Output Level (Line Setting) -8.3dBV
- Latency to 3.5mm (without NR) 15.33 ms (within 1 frame @60fps)
- Latency to 3.5mm (with NR) 17.33 ms
- Latency to USB: Device Dependent Host Device Dependent
- Range Up to 100ft (30m) line of sight
- Notes* Direct to phone is only recommended for use with the MOTIV Video and Audio App(s) only. Shure recommends using the MoveMic Receiver for additional compatibility with third party apps on mobile

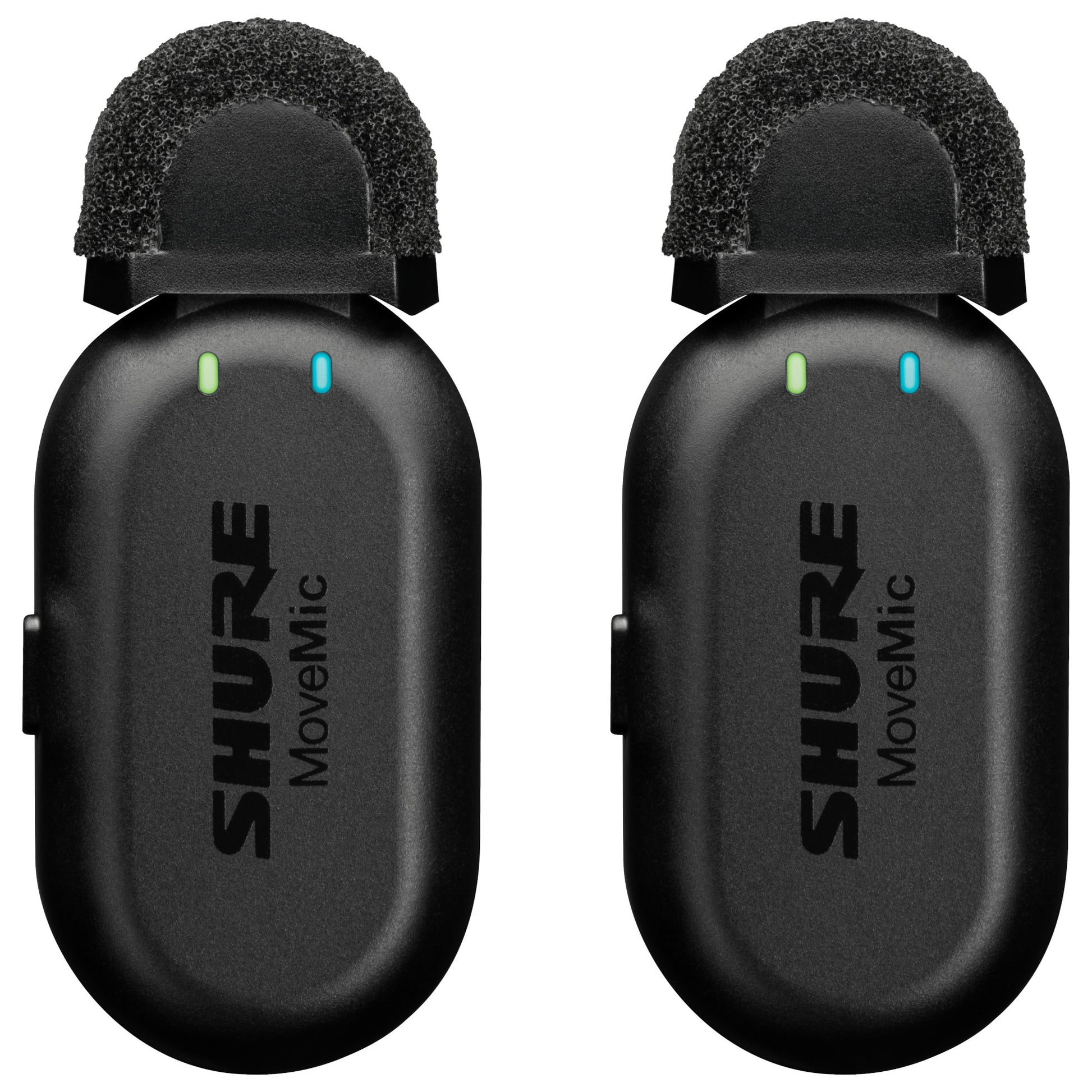

- PHYSICAL SPECIFICATIONS (MICROPHONES)
- Overall Dimensions (w/o windscreen): 46x22x15mm [1.81x0.87x0.59"]
- Weight (w/o windscreen): 8.2g [0.29 oz]
- Housing Black: PC/ABS Thermoplastic
- Antenna: Sheet metal with copper-nickel-zync alloy

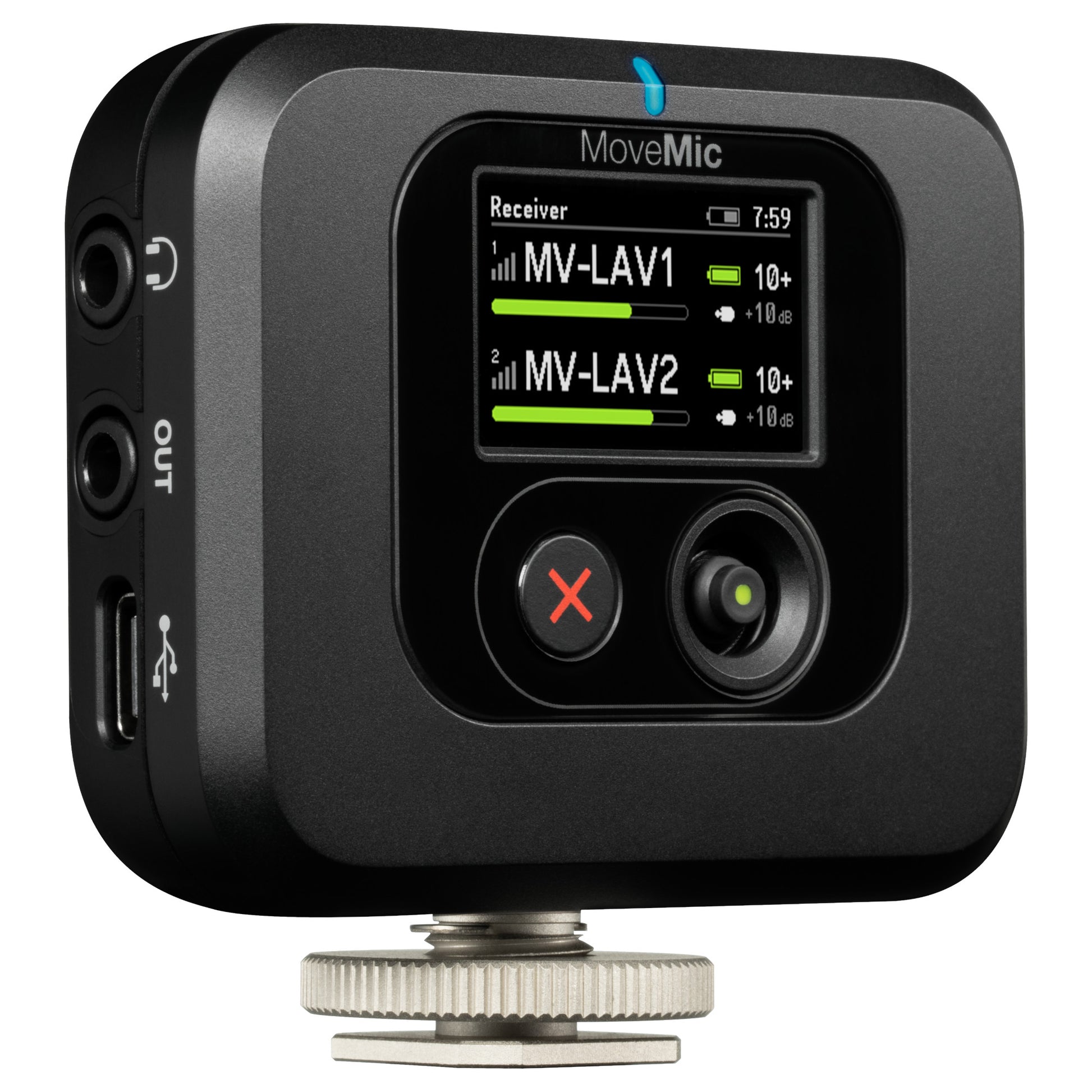

- PHYSICAL SPECIFICATIONS (RECEIVER)
- Overall Dimensions (with cold shoe mount fully extended): 65 mm x 67 mm x 19 mm [2.55x2.64x0.75"]
- Weight (w/o windscreen): 81 g [2.86 oz]
- Housing: Black PC/ABS Thermoplastic
- Antenna: Sheet metal (tin-plated steel)
