Shure MX415 15-Inch Gooseneck Microphone | Model: MX415/C
Shure MX415 15-Inch Gooseneck Microphone | Model: MX415/C
SoundPro Item: 23569 | Part Number: MX415/C
In stock and ready to ship
- Gooseneck length: 15" (38.1cm)
- Low profile, aesthetic design
- Wide dynamic range and smooth frequency response
- RF filtering with CommShield™ technology
- Status indicator: Bi-Color LED at gooseneck bottom or red light ring on gooseneck top

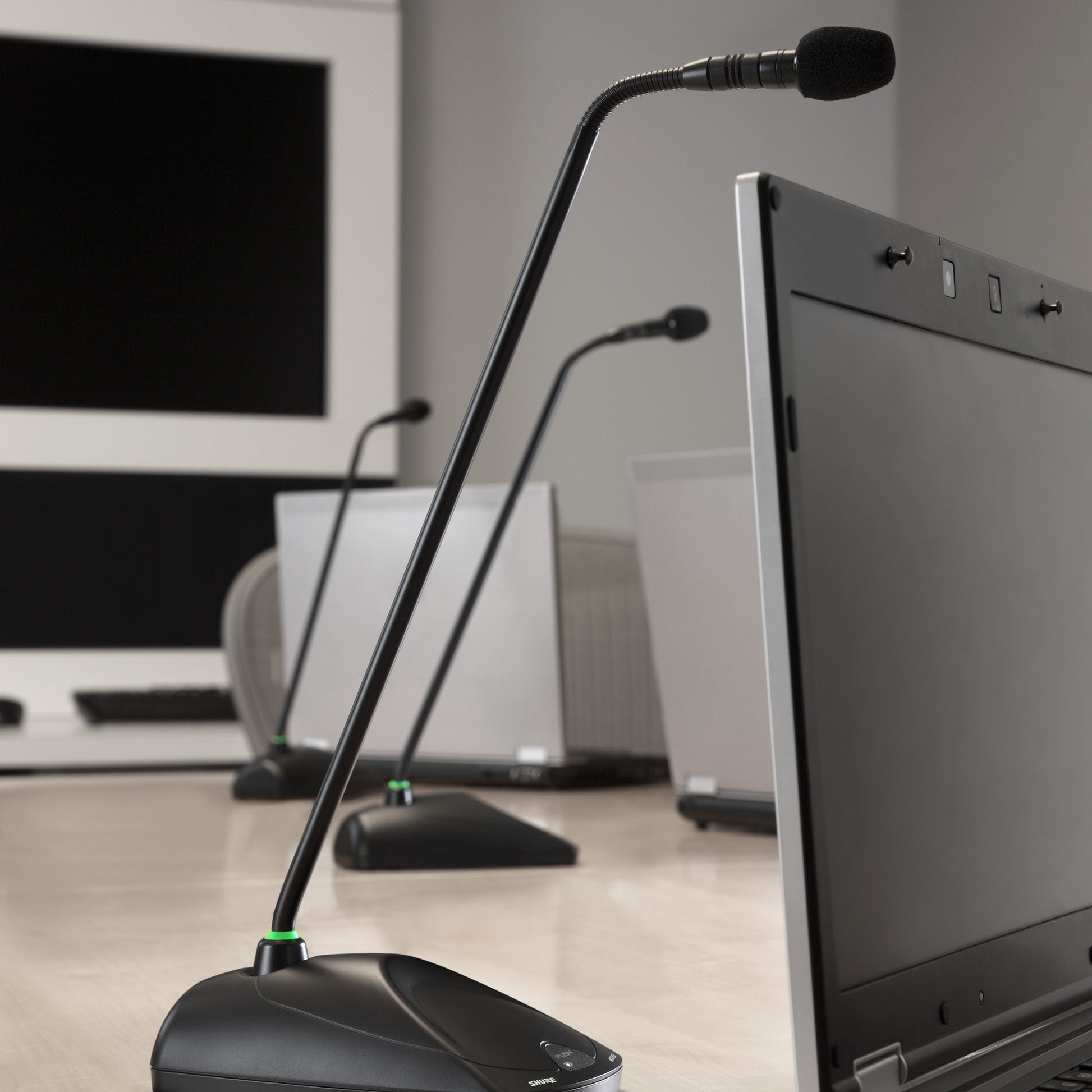

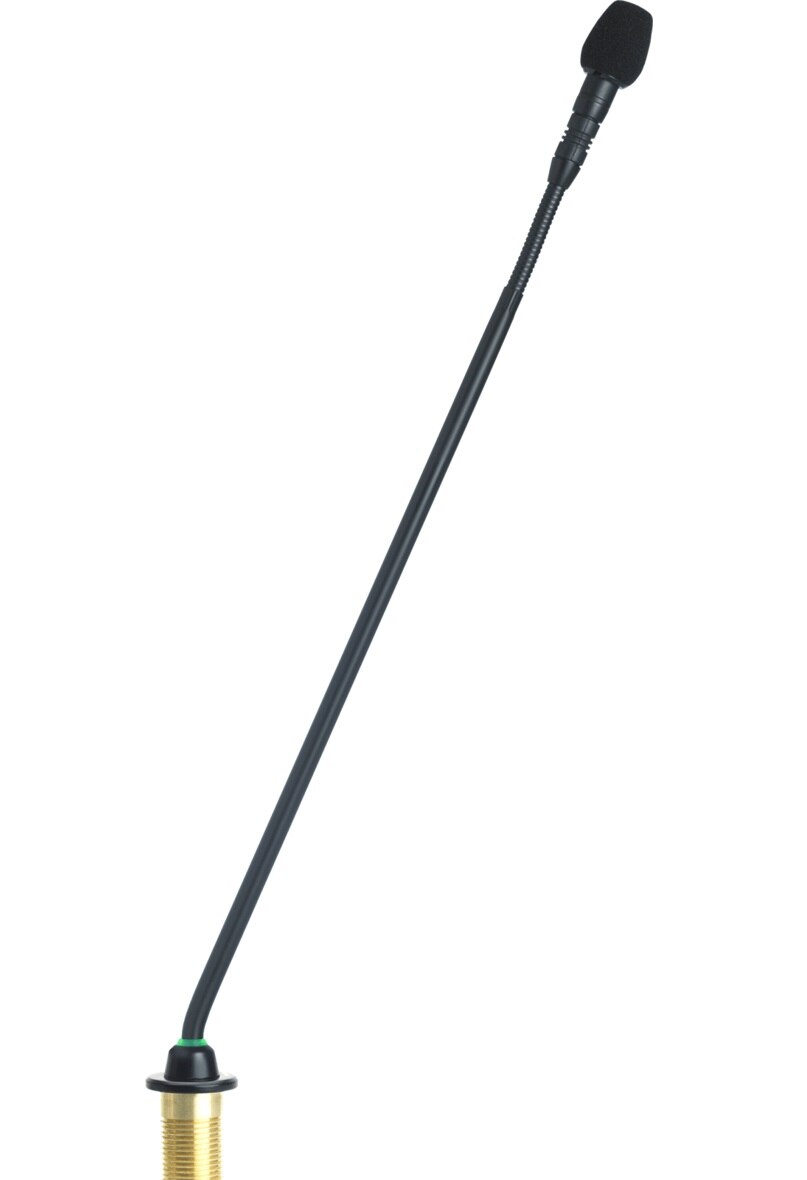

The MX415 surface mount version is a gooseneck microphone with a Bi-Color LED or light ring status display. It has a 15" gooseneck and is suitable for boardrooms and other sites where aesthetics are important.
- Transducer TypeCondenser
- Polar PatternsCardioid (MX415/C), Supercardioid (MX415/S)
- Frequency Response50 Hz - 17 kHz
- Output Impedance170 ohms
- Output ConfigurationActive Balanced
- Sensitivity @ 1 kHz, open circuit voltage
- Cardioid −35 dBV/Pa (18 mV) vSupercardioid −34 dBV/Pa (21 mV)
- Mini-shotgun -33 dBV/Pa (22 mV)
- 1 Pa=94 dB SPL
- Maximum SPL 1 kHz at 1% THD, 1 kΩ load
- Cardioid 121 dB
- Supercardioid 120 dB
- Mini-shotgun 121 dB
- Self Noise, A-weighted
- Cardioid 28 dB SPL
- Supercardioid 27 dB SPL
- Mini-shotgun 26 dB SPL
- Signal-to-Noise Ratio (Ref. 94 dB SPL at 1 kHz)
- Cardioid: 66 dB
- Supercardioid: 68 dB
- Mini-shotgun: 68 dB
- Dynamic Range (1 kΩ load, @ 1 kHz)93 dB
- Common Mode Rejection (10 to 100,000 kHz) 45 dB, minimum
- Clipping Level at 1% THD −8 dBV (0.4 V)
- Weight
- MX405 0.054 kg (0.119 lbs)
- MX410 0.068 kg (0.150 lbs)
- MX415 0.07 kg (0.154 lbs)
- MX400DP 0.516 kg (1.138 lbs)
- MX400SMP 0.125 kg (0.275 lbs)
- Logic Connections
- LED IN Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
- LOGIC OUT Active low (≤1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kΩ).
- Mute Switch Attenuation -50 dB minimum
- Cable (MX400DP) 6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control
- Power Requirements (Phantom Power) 48–52V DC, 8.0 mA
