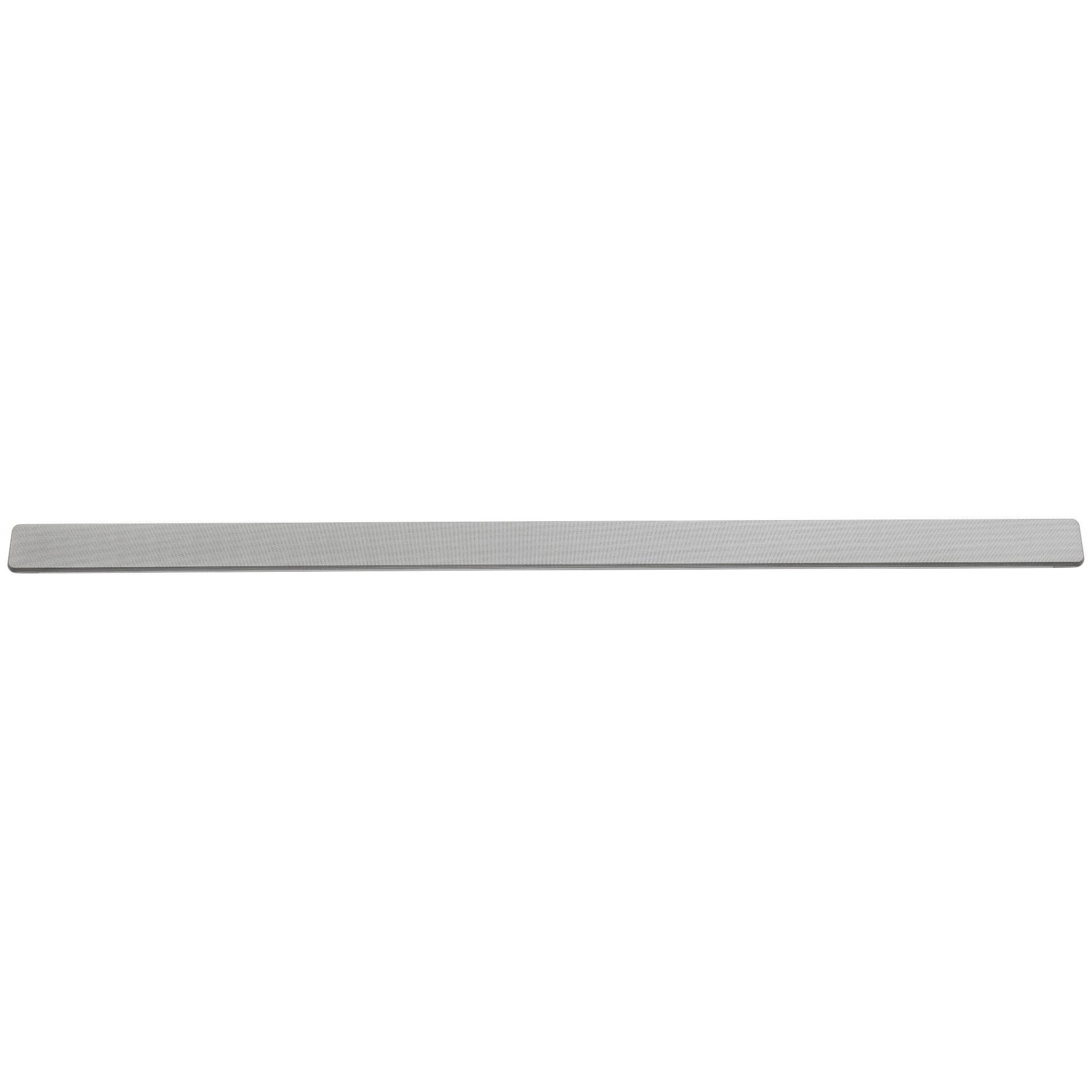

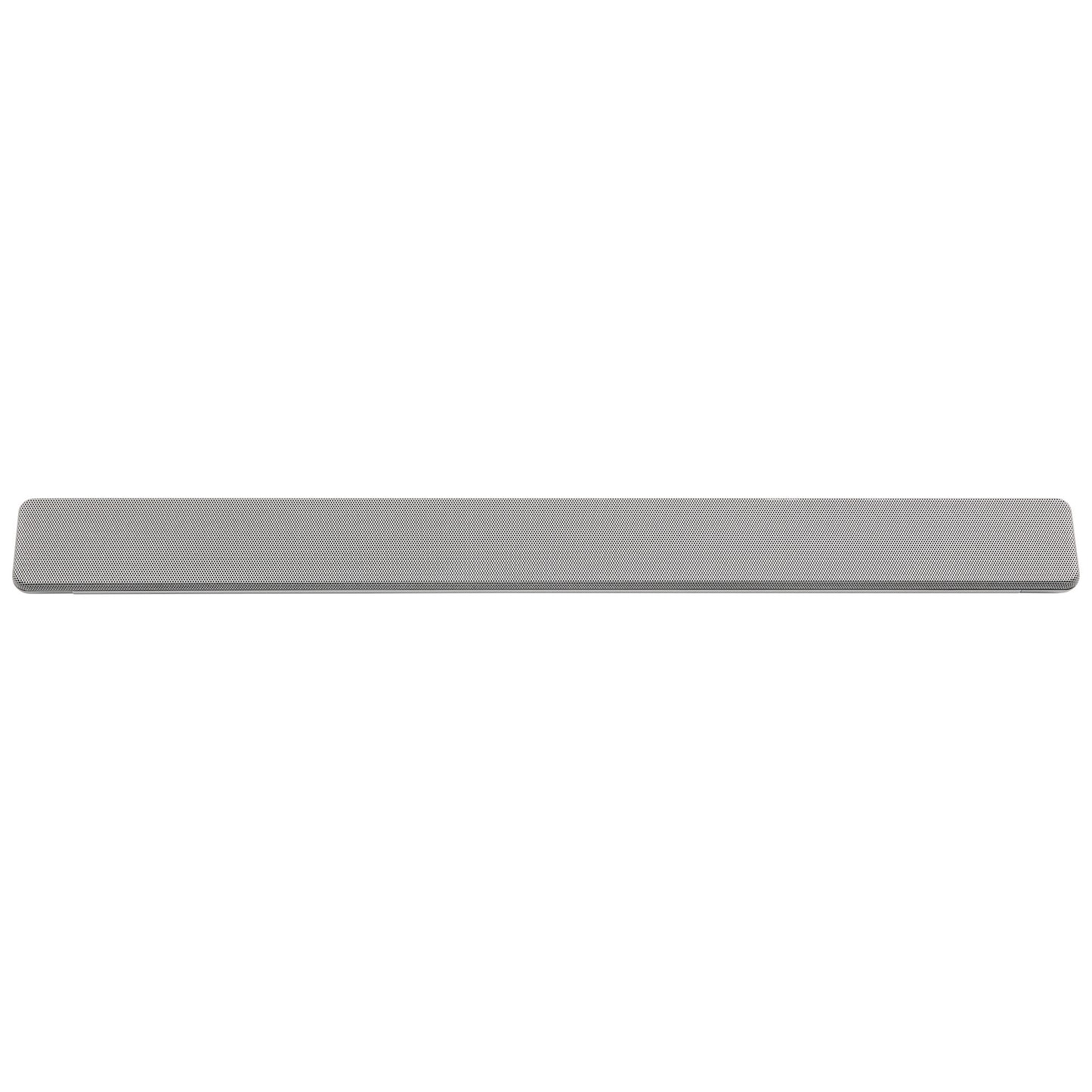

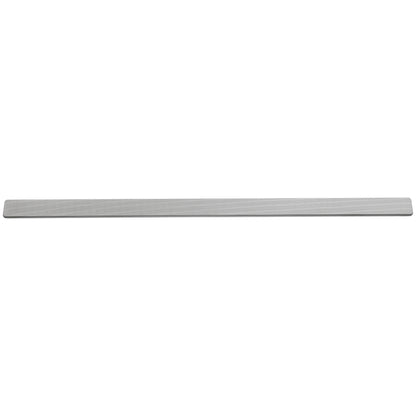

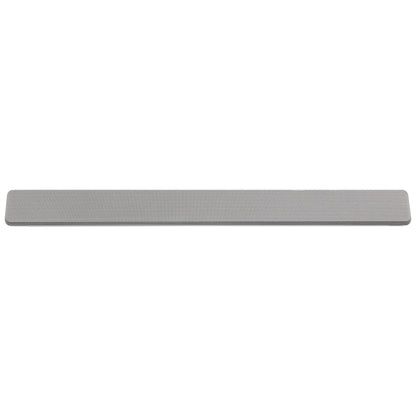

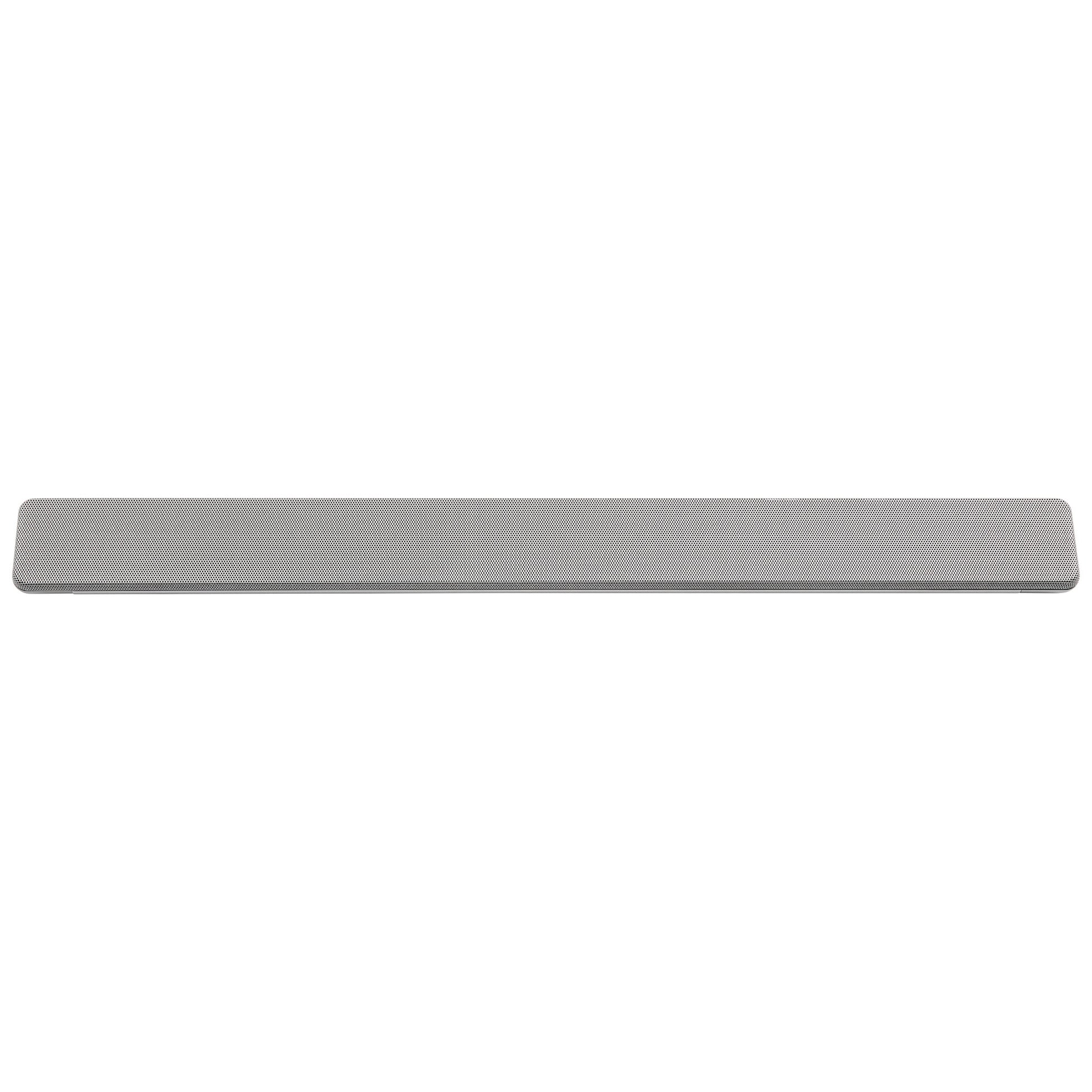

Shure MXA710 Linear Array Microphone, Length: 2 feet | Color: Aluminum
Shure MXA710 Linear Array Microphone, Length: 2 feet | Color: Aluminum
SoundPro Item: 142157 | Part Number: MXA710AL-2FT
Pricing available upon request
Pricing available upon request
In stock and ready to ship
- Shure MXA certifications are required for purchase. Reach out to SoundPro’s 100% Shure MXA Certified Account Managers for more information.
- Wide variety of available installation accessories for flexible mounting
- A710-DS desktop stand for placement on credenza or shelf
- A710-MSA mic stand adapter for use with microphone stand
- Available in two sizes - 2 ft (60 cm) and 4 ft (120 cm) and three colors (white, black, aluminum)
- Dante Domain Manager / Device Lock compatible
- UL 2043 plenum rated and IP5X rated
- Dual LED status bars with configurable colors and brightness

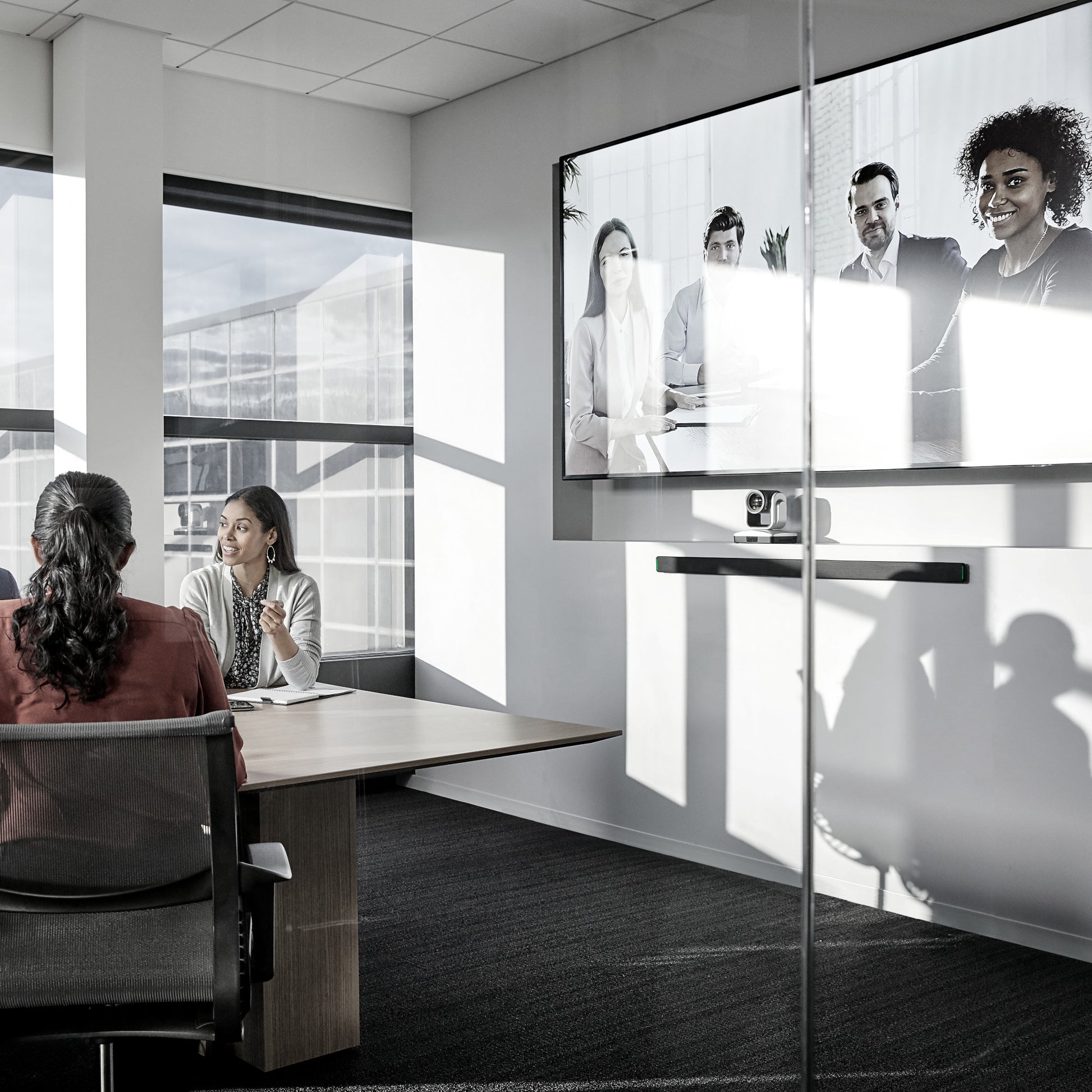

The MXA710 Linear Array Microphone represents the next evolution in Shure array microphone technology, designed for high-quality audio capture in premium AV conferencing environments. The sleek, linear form factor of the MXA710 allows for placement virtually anywhere in a meeting space, including on a wall, around a display, ceiling, or into a conference room table. Available in two lengths and three colors, the MXA710 includes proprietary Shure IntelliMix® DSP and Autofocus™ technology that provides all the processing needed for echo and noise-free conference audio.
With a sleek design available in two sizes and three colors, the MXA710 linear array provides high quality audio capture for AV conferencing without sacrificing aesthetics of today’s modern spaces. Time-saving deployment with seamless connectivity to the broader Shure networked systems product ecosystem.
- Adjustable Lobe Width
- Narrow: 30 degrees
- Medium: 40 degrees
- Wide: 70 degrees
- Connector TypeRJ45
- Power RequirementsPower over Ethernet (PoE), Class 0
- Power Consumption10W maximum
- Weight
- MXA710-2FT: 2 lbs (0.91 kg)
- MXA710-4FT: 3.7 lbs (1.67 kg)
- Product Dimensions (HxWxL)
- MXA710-2FT: 0.87x2.36x25.04" (22.09x60x636mm)
- MXA710-4FT: 0.87x2.36x49.12" (22.09x60x1247.76mm)
- Control SoftwareShure Designer
- Plenum RatingUL2043 (Suitable for Air Handling Spaces)
- Dust ProtectionIEC 60529 IP5X Dust Protected
- Operating Temperature Range−6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range−29°C (-20°F) to 74°C (165°F)
- Audio Frequency Response100 Hz to 20 kHz
- AES67 or Dante Digital Output
- Channel Count
- MXA710-2FT: 6 total channels (4 independent transmit channels, 1 Automix output, 1 AEC reference in channel)
- MXA710-4FT: 10 total channels (8 independent transmit channels, 1 Automix output, 1 AEC reference in channel)
- Sampling Rate: 48 kHz
- Bit Depth: 24
- Channel Count
- Sensitivity (at 1 kHz)
- MXA710-2FT: -7.4 dBFS/Pa
- MXA710-4FT: -7.9 dBFS/Pa
- Maximum SPL (Relative to 0 dBFS overload)
- MXA710-2FT: 101.4 dB SPL
- MXA710-4FT: 101.9 dB SPL
- Signal-To-Noise Ratio (Ref. 94 dB SPL at 1 kHz)71.2 dB A-weighted
- Latency (Does not include Dante latency)
- Direct Outputs: 8.7 ms
- Automix output (Includes IntelliMix processing): 19.3 ms
- Self Noise
- MXA710-2FT: 22.9 dB SPL-A
- MXA710-4FT: 22.8 dB SPL-A
- Dynamic Range
- MXA710-2FT: 78.5 dB
- MXA710-4FT: 79.1 dB
- Built-in Digital Signal ProcessingAutomatic mixing, Acoustic Echo Cancellation (AEC), Noise Reduction, Automatic Gain Control, Compressor, Delay, Equalizer (4-band Parametric), Mute, Gain ( 140 dB range)
- Acoustic Echo Cancellation Tail LengthUp to 250 ms
- Networking Cable RequirementsCat 5e or higher (shielded cable recommended)
