Shure MXA920 + ANIUSB-MATRIX AV Conferencing Bundle | Color: Aluminum
Shure MXA920 + ANIUSB-MATRIX AV Conferencing Bundle | Color: Aluminum
Soundpro Item: 142165 | Part Number: MXA920AL-R+USB-V
Usually ships in 5-7 business days
- Shure MXA certifications are required for purchase. Reach out to SoundPro’s 100% Shure MXA Certified Account Managers for more information.
- White, black, and aluminum finishes to complement your interior design; all paintable for custom needs
- Certified for use with Microsoft Teams and compatible with popular collaboration tools Audio, PoE power, and control signals connect via Dante/AES67 digital audio networking over a single cable
- Shure Audio Encryption keeps meeting content secure between the MXA920 and other Microflex ecosystem devices in the room
- LED status bar with configurable colors and brightness
- Command strings enable seamless integration with third-party camera and room control systems
Couldn't load pickup availability

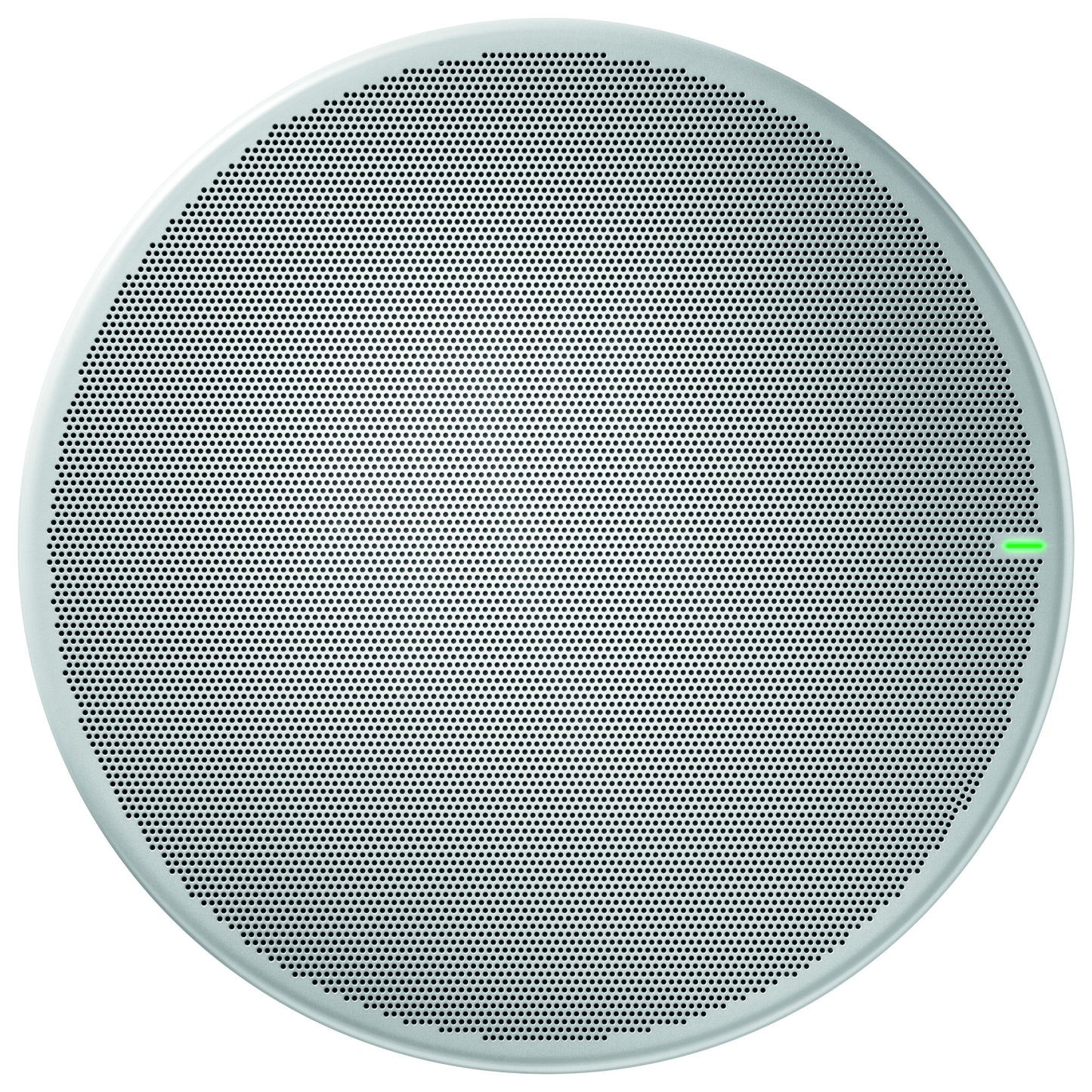

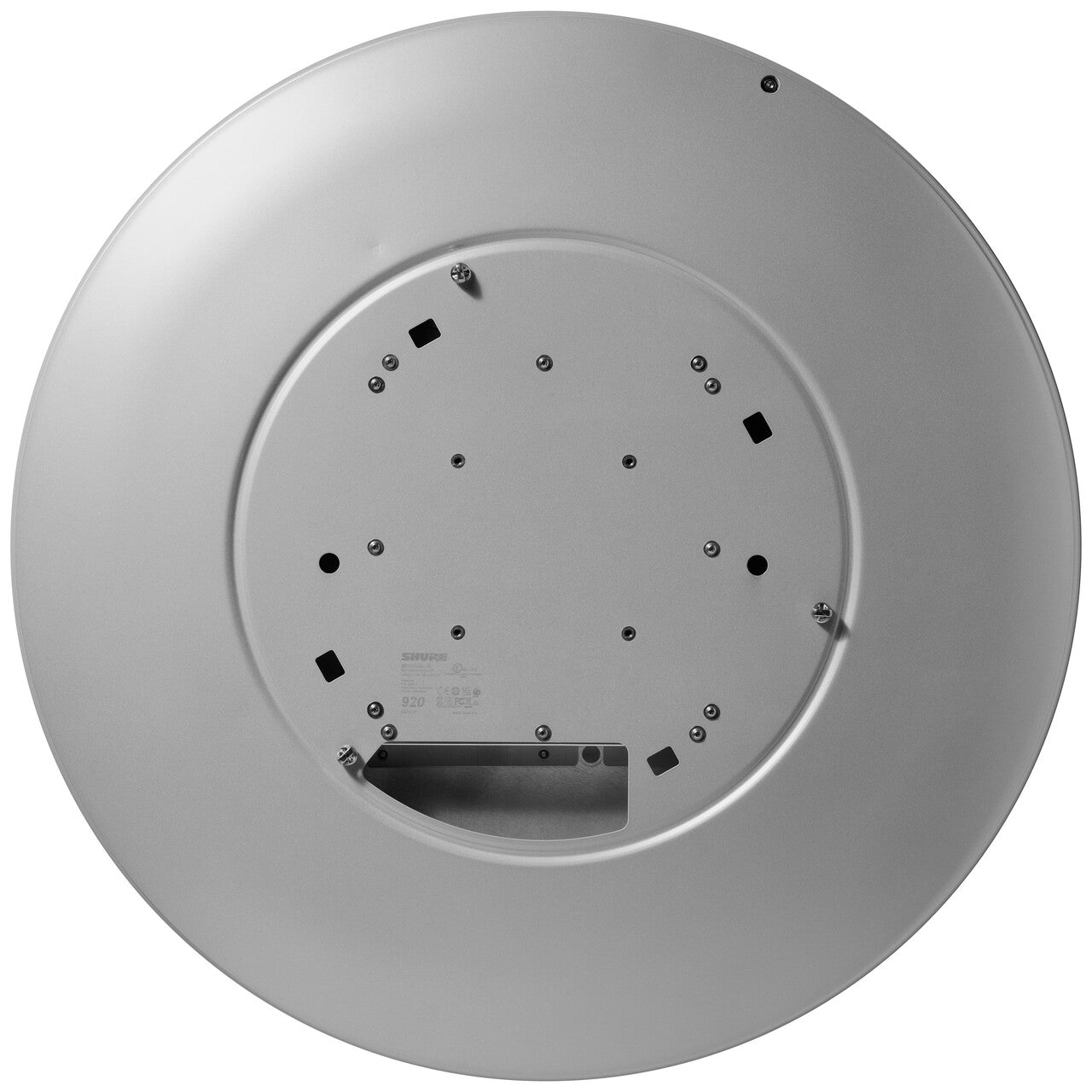

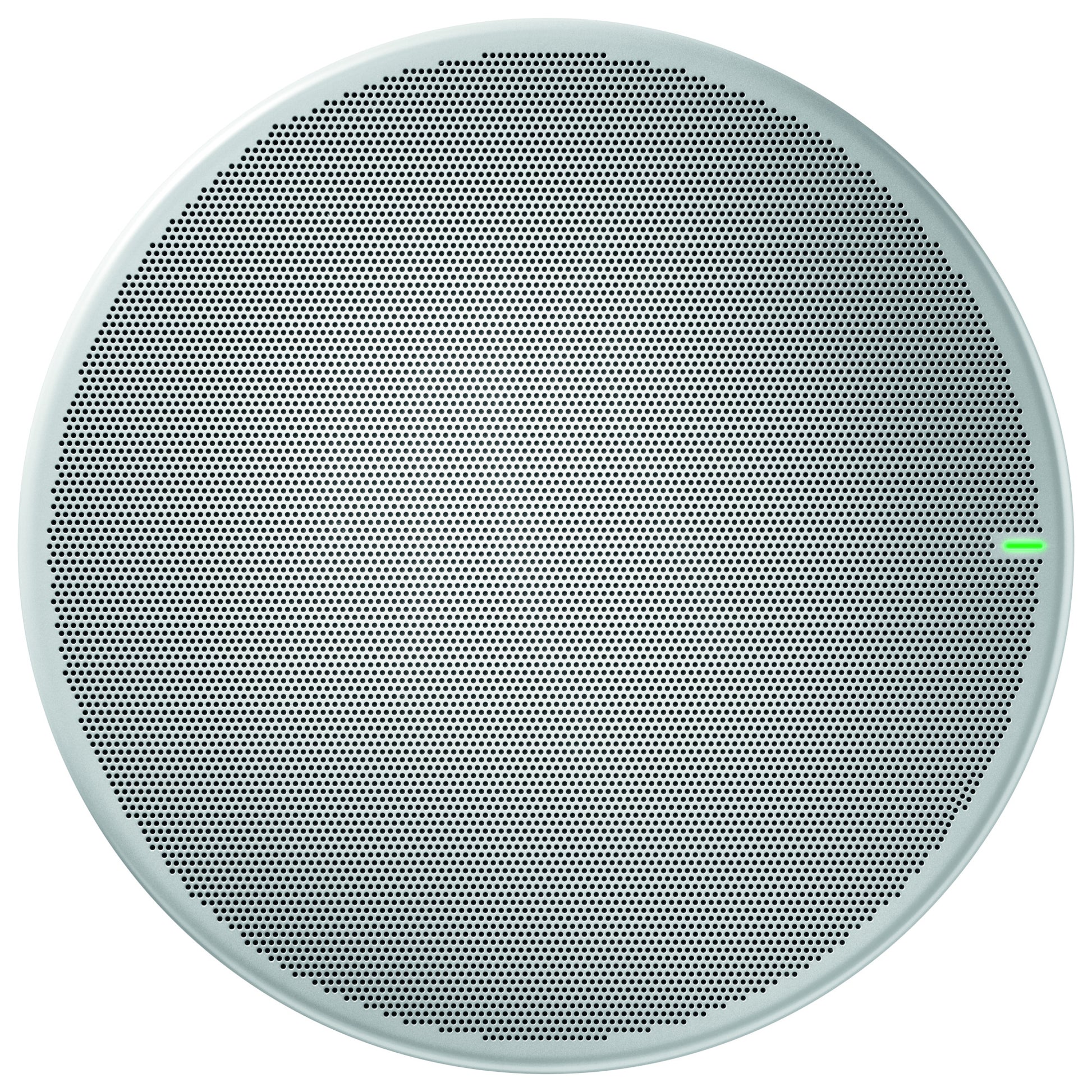

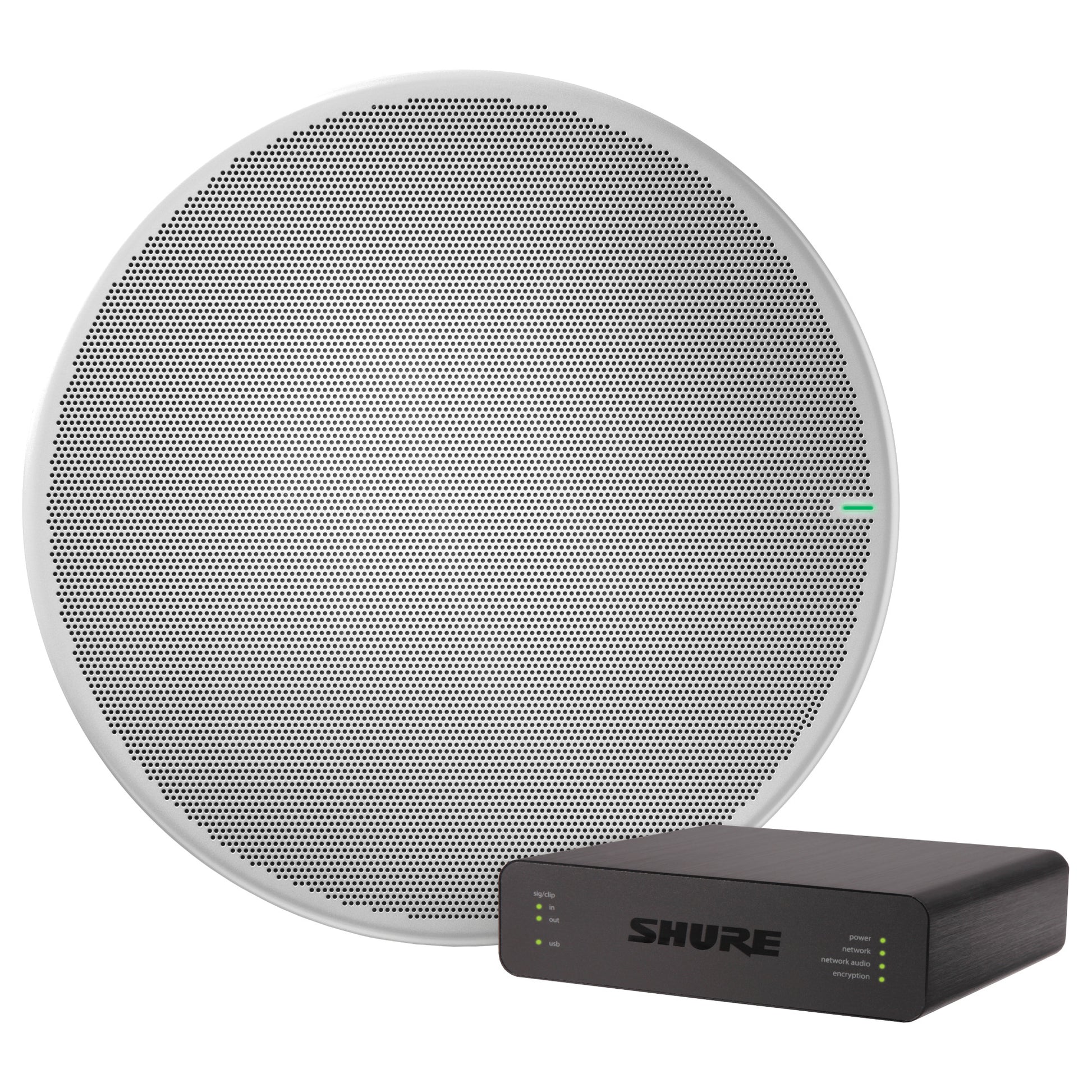

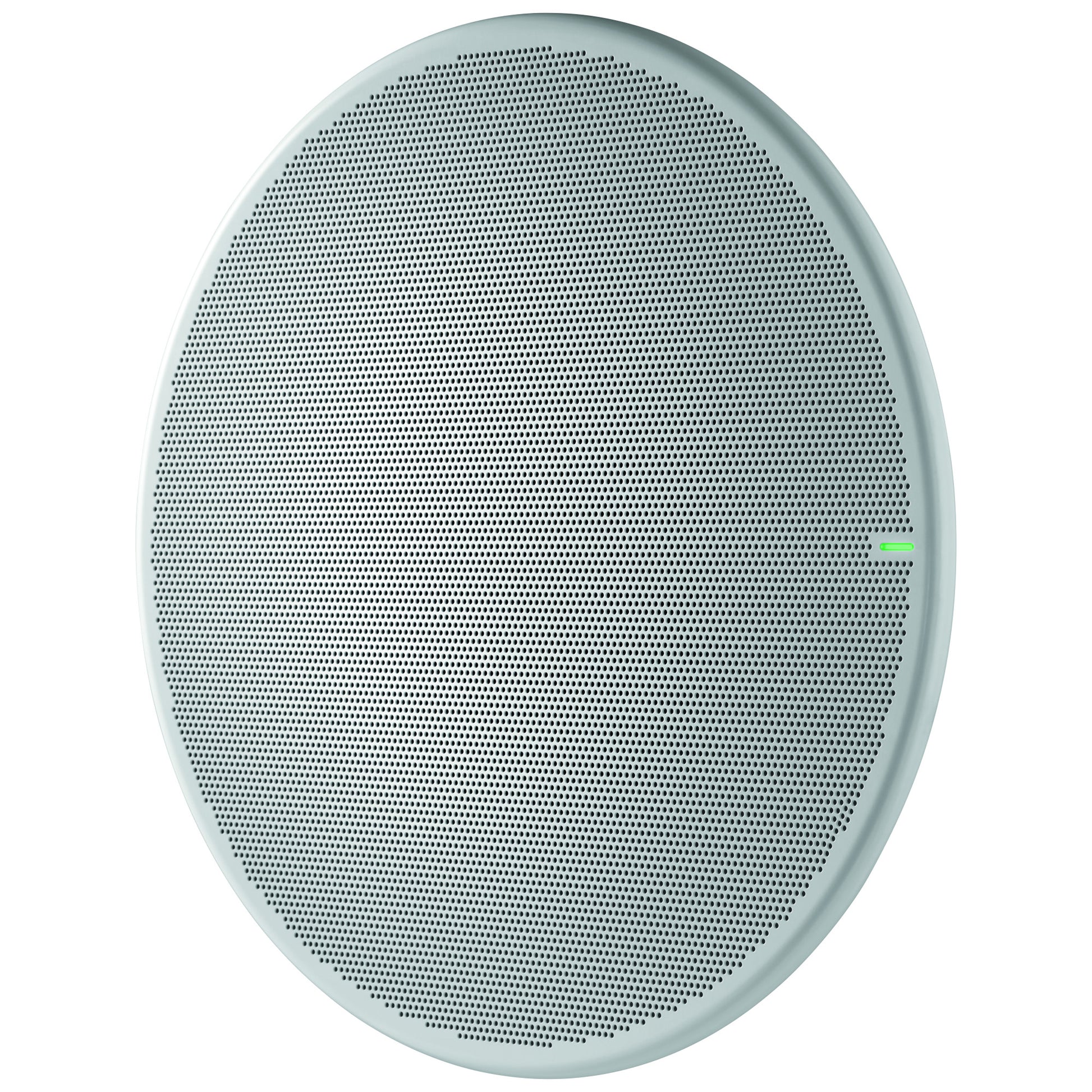

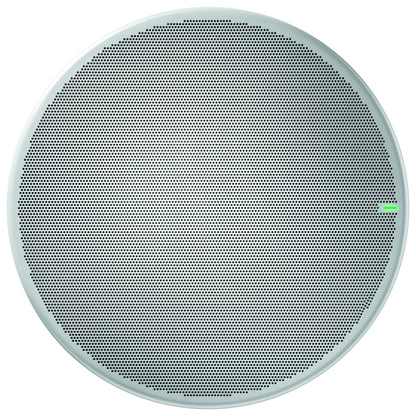

The MXA920 + ANIUSB-MATRIX from Shure is an AV Conferencing Bundle comprised of an MXA920 Ceiling Array Microphone and an ANIUSB-MATRIX USB Audio Network Interface with Matrix Mixing.

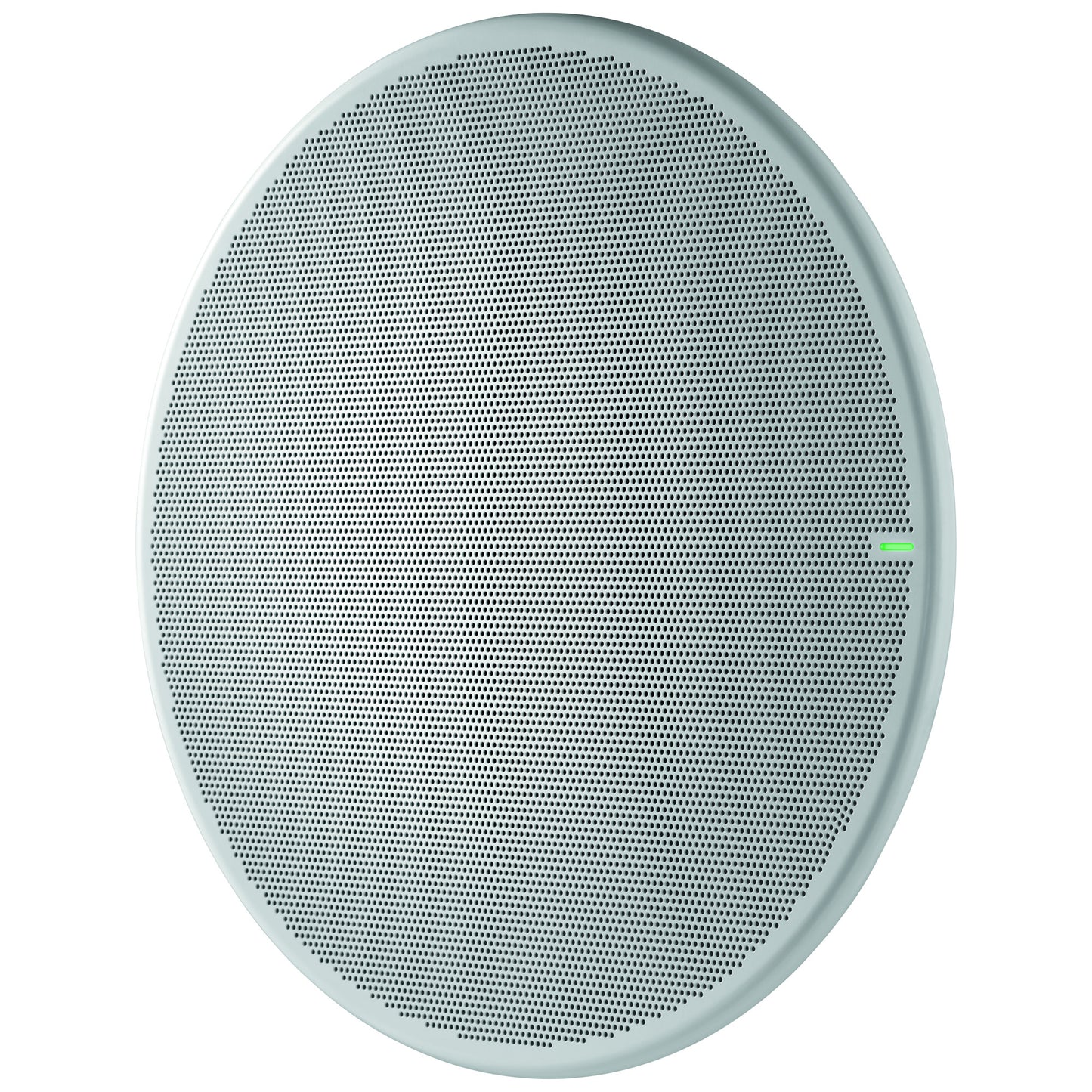

Automatic Coverage™ technology requires no setup yet gives you precise control of audio capture if desired. With next-generation array architecture for enhanced directional pickup and more natural speech, the MXA920 ceiling array microphone is easy to use and quick to deploy for AV conferencing, camera tracking, voice lift, or sound reinforcement.

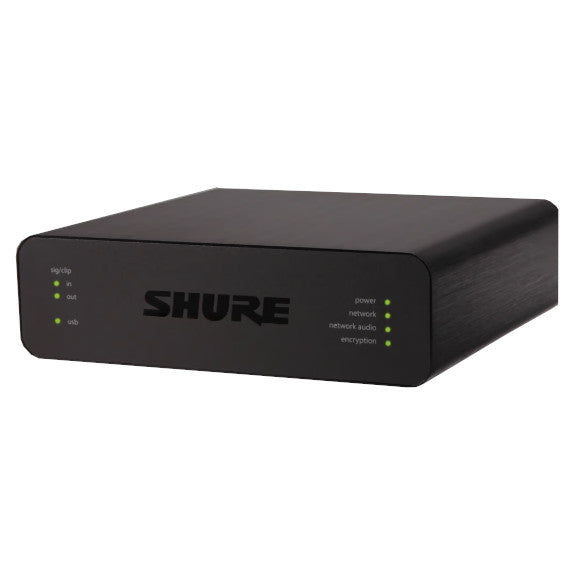

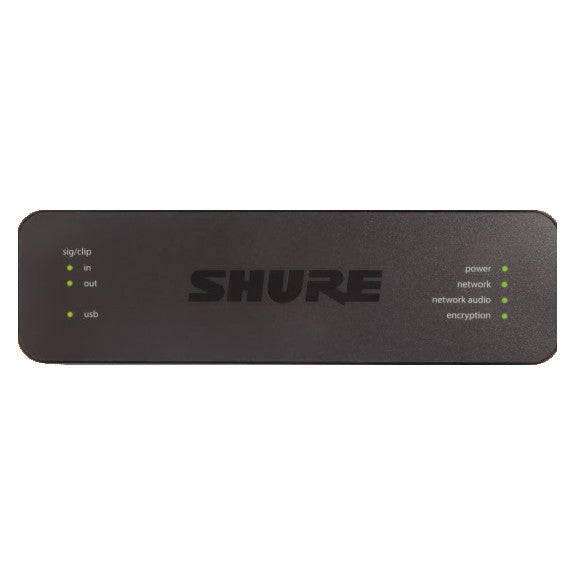

The ANIUSB-MATRIX USB Audio Network Interface complements the existing ANI4IN, ANI4OUT, and ANI22 products. It offers the ideal performance, connectivity, and affordability for audio/video conferencing installations in small and medium-size meeting rooms when a premium microphone solution is desired, and acoustic echo cancellation of an A / V conferencing codec will be used. The ANIUSB-MATRIX connects 4 Microflex® Advance™ or Microflex® Wireless microphone channels via Dante (4 in / 2 out), and provides analog connectivity (1 block in / 1 block out) to a room audio / video conferencing system or a PC-based A / V conferencing application via USB (1 in / out). An internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analog and USB outputs.
Specifications
- MXA920
- Coverage Type: Automatic or steerable
- Power Requirements: Power over Ethernet (PoE), Class 0
- Power Consumption: 10.1 W maximum
- Control Software: Designer or web application
- Plenum Rating: Not rated
- Dust Protection: IEC 60529 IP5X Dust Protected
- Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range: −29°C (−20°F) to 74°C (165°F)
- Networking Cable Requirements: Cat5e or higher (shielded cable recommended)
- Connector Type: RJ45
- AES67 or Dante Digital Output
- Channel Count
- Automatic coverage on: 2 total channels (1 output, 1 AEC reference in channel) Shure Incorporated
- Automatic coverage off: 10 total channels (8 independent transmit channels, 1 automix output, 1 AEC reference in channel)
- Sampling Rate: 48 kHz
- Bit Depth: 24
- Channel Count
- Sensitivity (at 1 kHz) : −1.74 dBFS/Pa
- Maximum SPL (Relative to 0 dBFS overload) : 95.74 dBSPL
- Signal-to-Noise Ratio (Ref. 94 dBSPL at 1 kHz) : 75.76 dB Aweighted
- Latency (Does not include Dante latency)
- Direct outputs (Automatic coverage off): 15.9 ms
- Automix output (Includes IntelliMix processing): 26.6 ms
- Self Noise: 18.24 dB SPLA
- Dynamic Range: 77.5 dB
- Digital Signal Processing: Automatic mixing, acoustic echo cancellation (AEC), noise reduction, automatic gain control, compressor, delay, equalizer (4band parametric), mute, gain (140 dB range)
- Acoustic Echo Cancellation Tail Length: Up to 250 ms
- Frequency Response: 125 Hz to 20,000 Hz - Frequency response measured directly on-axis from a distance of 6 feet (1.83 m).
- Weight: 12.7 lbs (5.8kg)
- ANIUSB MATRIX

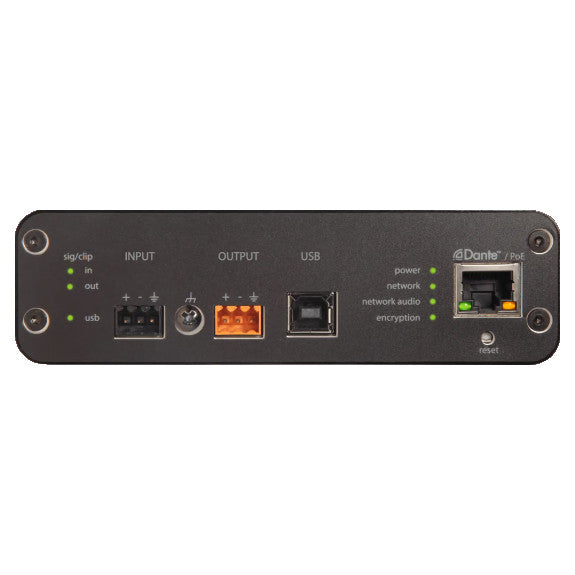

- Analog Connections
- Input (1) 3-pin block connector (Active Balanced)
- Output (1) 3-pin block connector (Impedance Balanced)
- USB Connections
- (1) USB 2.0, Type B
- Single port carries 1 input and 1 output channel (Summed mono)
- Network Connections (Dante Digital Audio)
- (1) RJ45
- 4 input channels, 2 output channels
- Polarity: Non-inverting, any input to any output
- Power Requirements: Power over Ethernet (PoE), Class 0. (PoE Plus compatible).
- Power Consumption: 6.5W, maximum
- Weight: 668 g (1.5 lbs)
- Dimensions (HxWxD): 4x14x12.8cm (1.6x5.5x5”)
- Control Software: Shure Designer
- Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
- Thermal Power Dissipation
- Maximum 6.8W ( 23.0BTU/hr)
- typical 6.0W ( 20.8BTU/hr)
- Audio
- Frequency Response (+1, -1.5 dB): 20 to 20,000 Hz
- Dante Digital Audio
- Sampling Rate: 48 kHz
- Bit Depth: 24
- USB Audio
- Sampling Rate: 48 kHz
- Bit Depth: 16, 24
- Latency (Does not include Dante latency)
- Analog to Analog: 0.98 ms
- Analog to Dante: 0.39 ms
- Dante to Analog: 0.72 ms
- Dante to Dante: 0.14 ms
- Dynamic Range (20 Hz to 20 kHz, A-weighted, typical)
- Analog-to-Dante: 113 dB
- Dante-to-Analog: 117 dB
- Equivalent Input Noise (20 Hz to 20 kHz, A-weighted, input terminated with 150Ω)
- Line -86: dBV
- Aux -98: dBV
- Total Harmonic Distortion (@ 1 kHz, 0 dBV Input, 0 dB analog gain): <0.05%
- Common Mode Rejection Ratio (150Ω balanced source @ 1 kHz): >70 dB
- Impedance: 10.6 kΩ
- Input Clipping Level
- Line: +27 dBV
- Aux: +15 dBV
- Output Clipping Level
- Line: +20 dBV
- Aux: +0 dBV
- Mic: -26 Dbv
- Built-in Digital Signal Processing
- Per Channel: Equalizer (4-band Parametric, Analog and USB output channels only), Mute, Limiter, Gain (140 dB range)
- System: Matrix mixer
- Networking Cable Requirements: Cat 5e or higher (shielded cable recommended)
- Analog Connections
