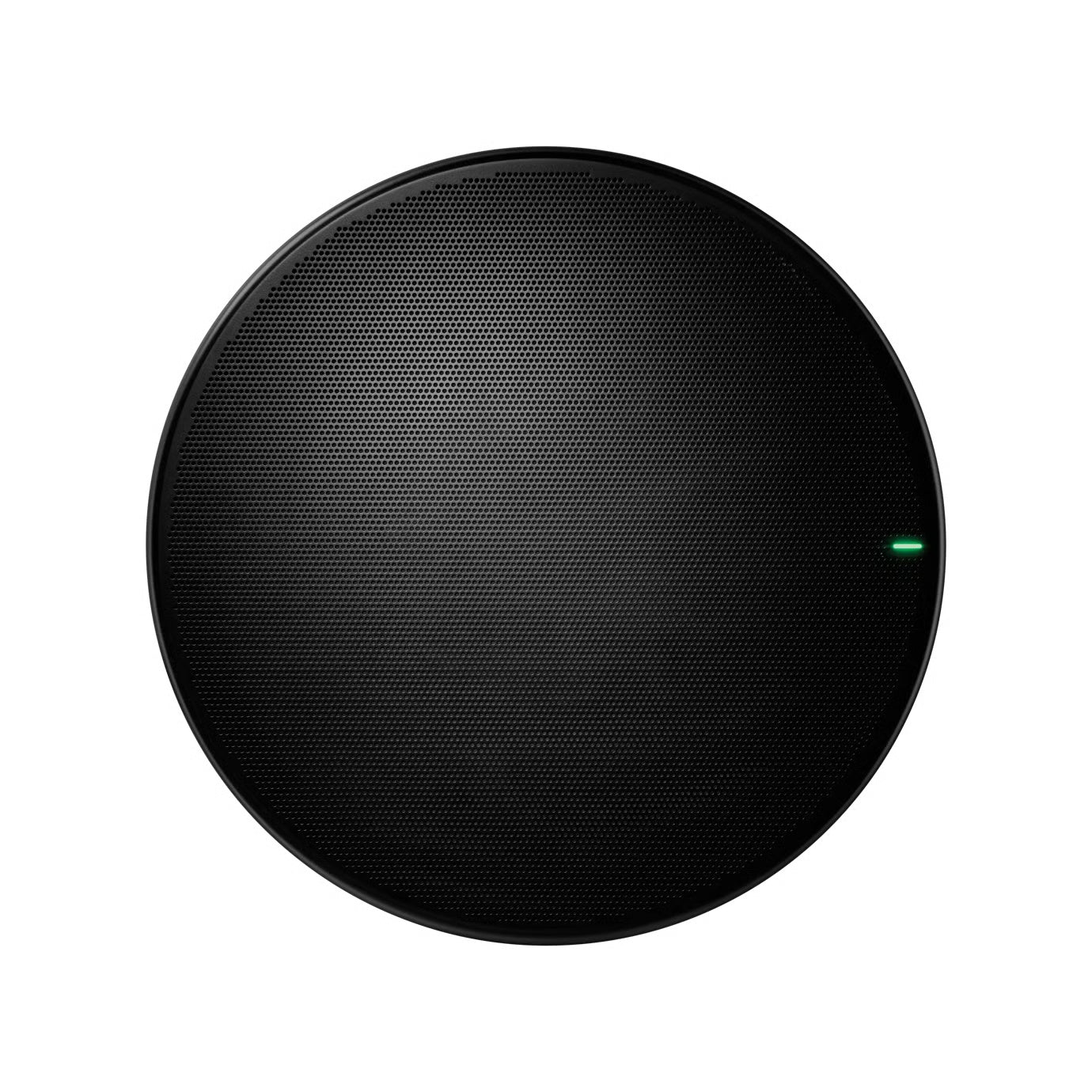

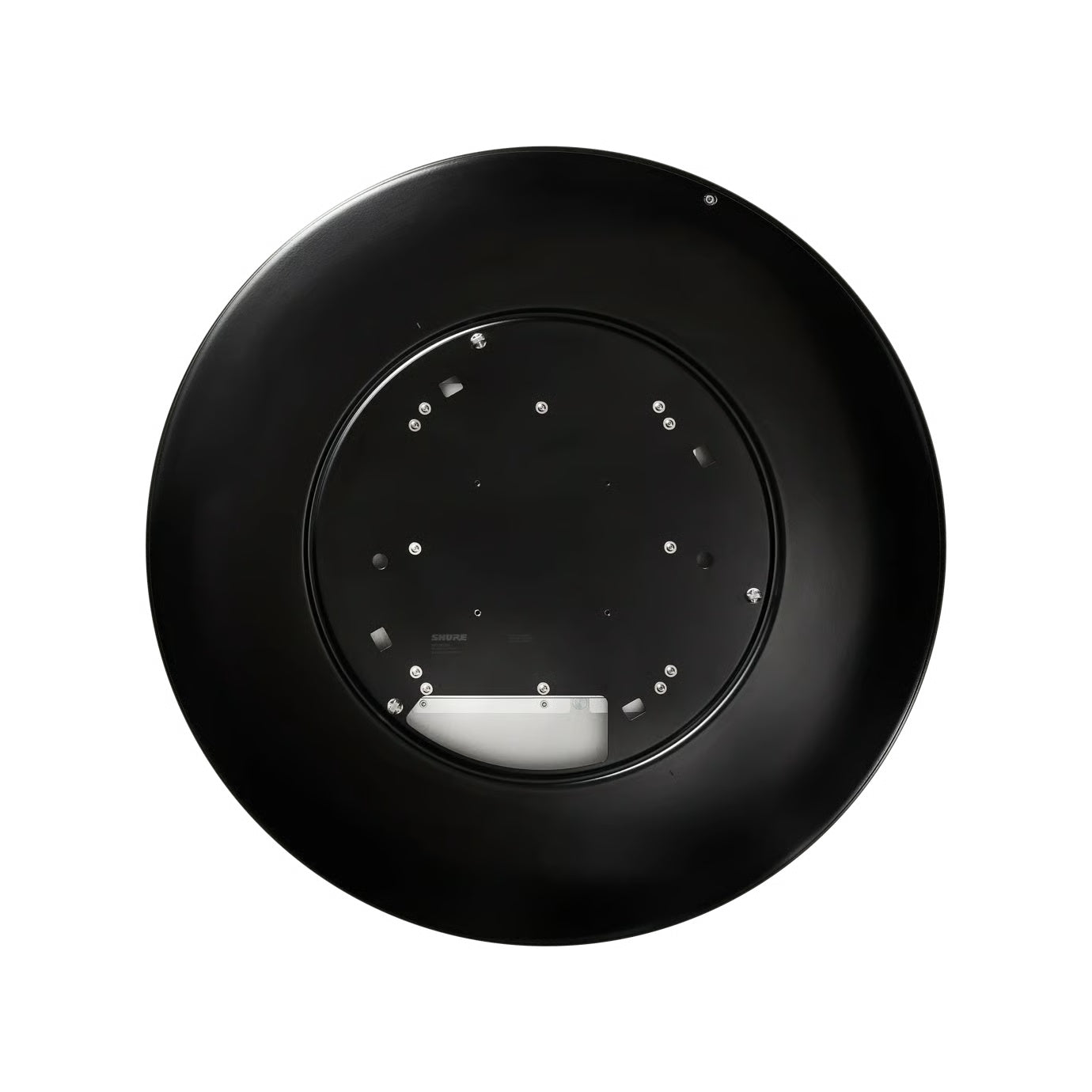

Shure MXA925 Microflex Ceiling Array Microphone | Round | Black

Shure MXA925 Microflex Ceiling Array Microphone | Round | Black

SoundPro Item: 205987 | Part Number: MXA925B-R

Regular price $5,000.00
Regular price $5,000.00 Sale price $5,000.00
Your Price Sold out
MSRP: $5,000.00 | MAP: $5,000.00

Usually ships in 5-7 business days

  • Proprietary Autofocus Technology Dynamically Steers Eight Independent Lobes To Active Speakers
  • Software-Defined Coverage Zones Enable Post-Installation Reconfiguration Without Physical Access
  • Dante Network Audio Integration Delivers Both Signal And Control Over Single Cable
  • IntelliMix Room DSP Provides Automixing And Acoustic Echo Cancellation From Central Platform
  • Flush-Mount Ceiling Design Maintains Architectural Aesthetics In Executive Environments
  • Remote Diagnostics And Firmware Management Reduce Service Calls For Distributed Installations

The Shure Microflex Ceiling Array Microphone transforms high-stakes meeting environments with proprietary Autofocus technology that automatically tracks and prioritizes active speakers throughout the room. Designed for executive boardrooms, legislative chambers, and broadcast studios where speech intelligibility cannot be compromised, this networked solution eliminates the need for table microphones while maintaining pristine audio capture from ceiling-mounted positions up to 30 feet from participants.

Integrators gain unprecedented flexibility through software-defined coverage zones that can be reconfigured post-installation without physical repositioning. The array's beamforming engine dynamically steers eight independent lobes to follow talkers while rejecting ambient noise, HVAC interference, and competing conversations. Dante connectivity streamlines system architecture by carrying both audio and control over a single network cable, reducing wire runs and enabling centralized DSP management through IntelliMix Room software.

Built for commercial-grade reliability, the flush-mount design meets architectural requirements in premium spaces while providing integrators with diagnostic tools and remote firmware updates. The system scales seamlessly from single-room deployments to enterprise-wide installations using standard IT infrastructure, making it the logical choice for organizations standardizing on network audio platforms.

Downloads

View full details

Specifications

Connector Type
Dual RJ45 connectors
Power Requirements
Power over Ethernet (PoE), Class 0
Weight MXA925-S
11.8 lbs (5.4 kg)
Weight MXA925-R
12.7 lbs (5.8 kg)
Dimensions MXA925-S
23.77in. (603.8mm) X 23.77in. (603.8mm) x 2.15 in. (54.69 mm)
Dimensions MXA925-S-60CM
23.38 in. (593.8 mm) x 23.38 in. (593.8 mm) x 2.15 in. (54.69 mm)
Dimensions MXA925-R
25 in. (635.4 mm) x 2.4 in. (61.3 mm)
Control Software
Web Application or Shure Designer
Cable Requirements
Cat5e or higher (shielded cable recommended)
Temperature Range
−6.7°C (20°F) to 40°C (104°F)
Plenum Rating
MXA925-S UL2043 (Suitable for Air Handling Spaces), MXA925-R Not rated
Dust Protection
IEC 60529 IP5X Dust Protected
Frequency Response
125 Hz to 20 kHz
Polar Pattern
Array
Microphone Elements
113 MEMS
Coverage Type
Automatic Coverage / Steerable Coverage
Coverage Size
30 x 30 feet (9.1 x 9.1 meters)
Latency Direct outputs
(Automatic coverage off) 13 ms
Automix output
(Includes IntelliMix processing) 47 ms
Dynamic Range
77.5 dB
