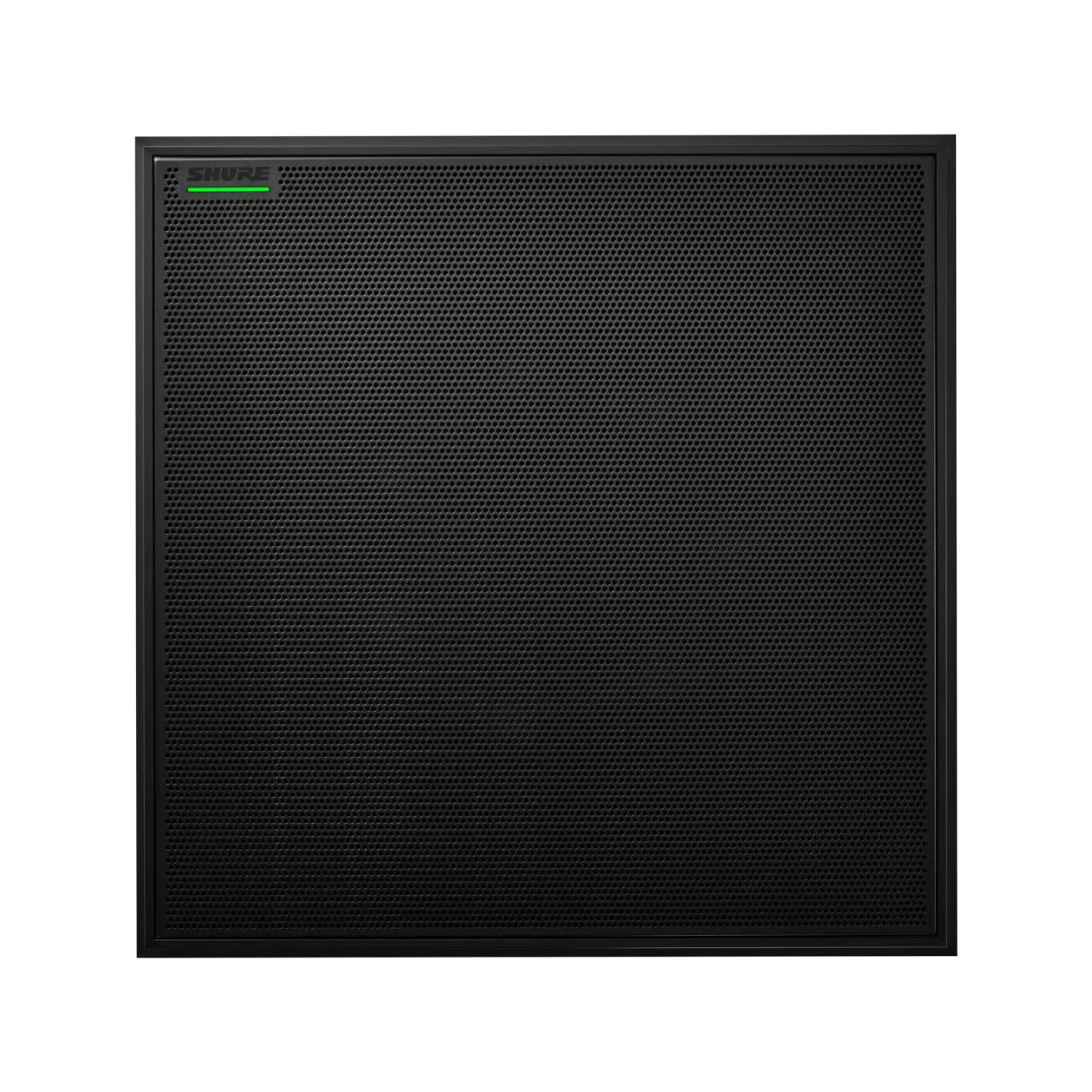

Shure MXA925 Microflex Ceiling Array Microphone | Square (24") | Black

Shure MXA925 Microflex Ceiling Array Microphone | Square (24") | Black

SoundPro Item: 205988 | Part Number: MXA925B-S

Regular price $5,000.00
Regular price $5,000.00 Sale price $5,000.00
Your Price Sold out
MSRP: $5,000.00 | MAP: $5,000.00

Usually ships in 5-7 business days

  • Automatic Coverage Technology Dynamically Steers Lobes To Active Talkers Without Manual Adjustment
  • Proprietary Beamforming Architecture Isolates Voices While Suppressing Reverberation And Background Noise
  • Dante Audio Networking Provides Low-Latency Integration With Enterprise AV Infrastructures
  • Browser-Based Configuration Interface Enables Remote Zone Tuning And System Commissioning
  • PoE+ Powered Operation Eliminates Dedicated Power Circuits For Streamlined Installation

The Microflex Ceiling Array Microphone brings intelligent audio capture to boardrooms, council chambers, and hybrid collaboration spaces where ceiling mounting is preferred. Engineered for AV integrators working in corporate, government, and higher education facilities, it uses proprietary beamforming algorithms to automatically track and prioritize active speakers throughout the room.

Designed for demanding installed sound applications, this array integrates seamlessly into Dante networks and provides integrators with browser-based configuration tools for zone shaping and acoustic tuning. Its low-profile form factor and professional finish ensure discreet deployment in architecturally sensitive environments where microphone visibility must be minimized.

Ideal for large meeting rooms, lecture halls, and courtroom proceedings, this platform delivers consistent pickup across wide coverage areas while maintaining natural voice reproduction. PoE+ powering simplifies installation by eliminating separate power drops, and Shure's ecosystem compatibility allows coordination with wireless systems and DSP processors already deployed in the signal chain.

Downloads

View full details

Specifications

Connector Type
Dual RJ45 connectors
Power Requirements
Power over Ethernet (PoE), Class 0
Weight MXA925-S
11.8 lbs (5.4 kg)
Weight MXA925-R
12.7 lbs (5.8 kg)
Dimensions MXA925-S
23.77in. (603.8mm) X 23.77in. (603.8mm) x 2.15 in. (54.69 mm)
Dimensions MXA925-S-60CM
23.38 in. (593.8 mm) x 23.38 in. (593.8 mm) x 2.15 in. (54.69 mm)
Dimensions MXA925-R
25 in. (635.4 mm) x 2.4 in. (61.3 mm)
Control Software
Web Application or Shure Designer
Cable Requirements
Cat5e or higher (shielded cable recommended)
Temperature Range
−6.7°C (20°F) to 40°C (104°F)
Plenum Rating
MXA925-S UL2043 (Suitable for Air Handling Spaces), MXA925-R Not rated
Dust Protection
IEC 60529 IP5X Dust Protected
Frequency Response
125 Hz to 20 kHz
Polar Pattern
Array
Microphone Elements
113 MEMS
Coverage Type
Automatic Coverage / Steerable Coverage
Coverage Size
30 x 30 feet (9.1 x 9.1 meters)
Latency Direct outputs
(Automatic coverage off) 13 ms
Automix output
(Includes IntelliMix processing) 47 ms
Dynamic Range
77.5 dB
