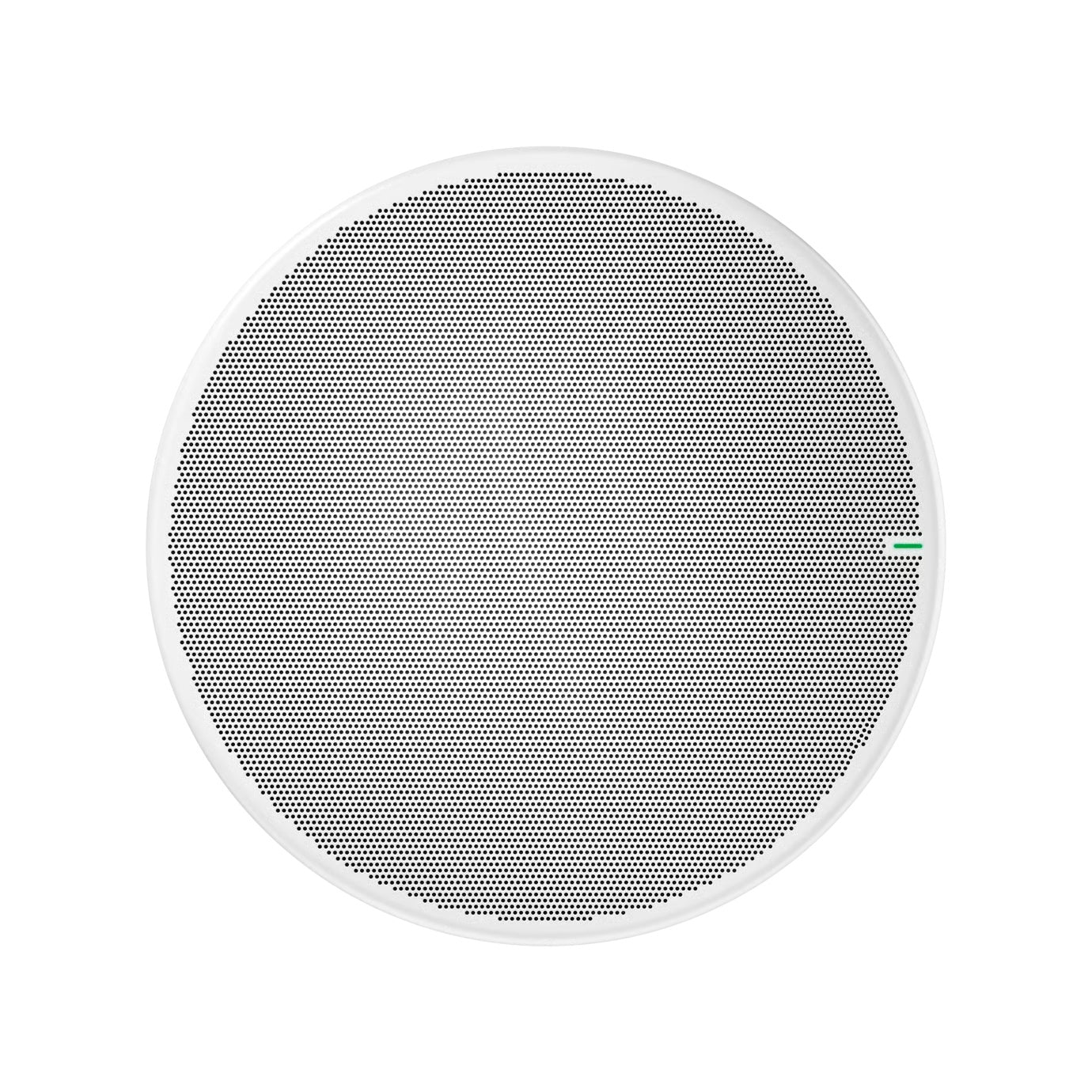

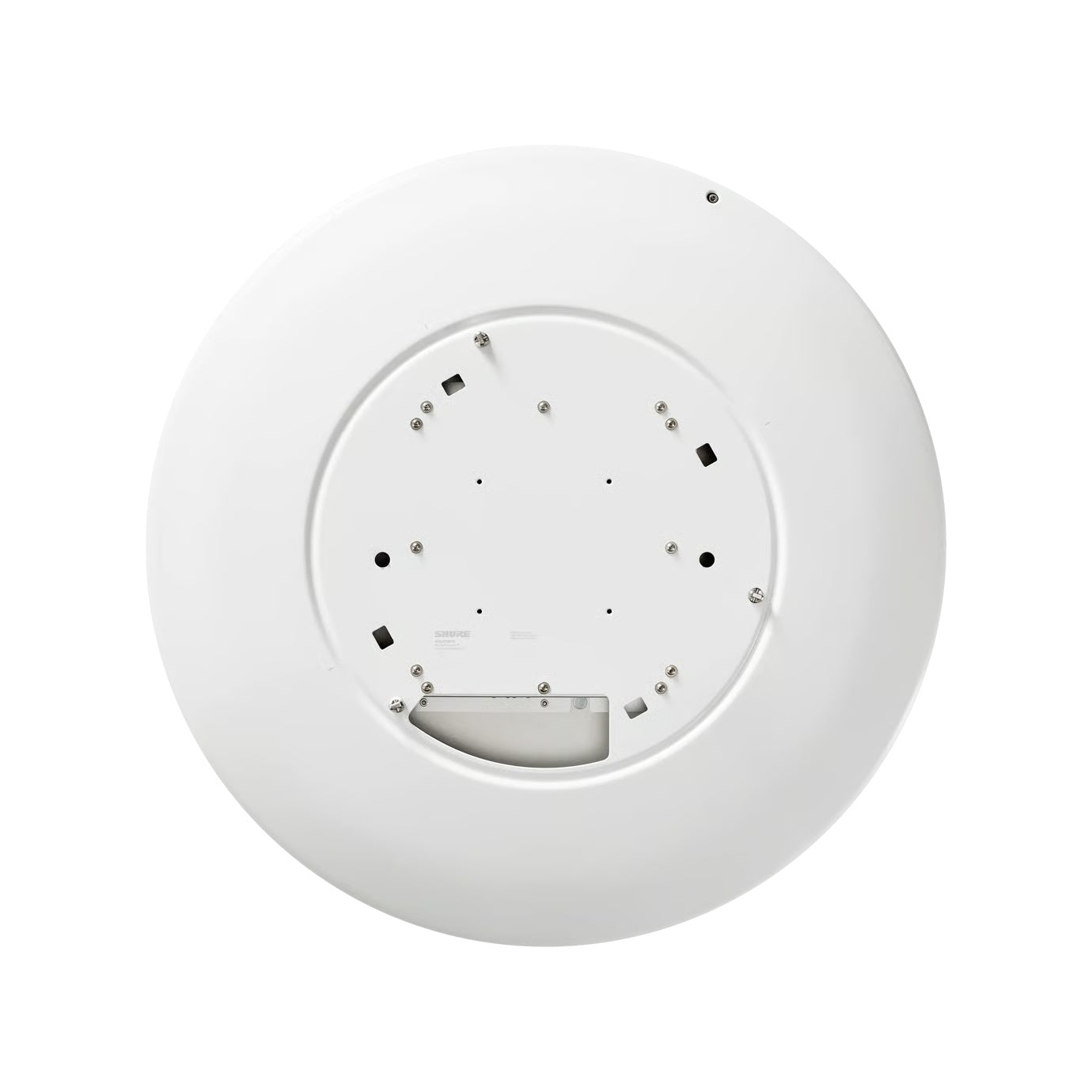

Shure MXA925 Microflex Ceiling Array Microphone | Round | White

Shure MXA925 Microflex Ceiling Array Microphone | Round | White

SoundPro Item: 205990 | Part Number: MXA925W-R

$5,000.00
$5,000.00 $5,000.00
Your Price Sold out
MSRP: $5,000.00 | MAP: $5,000.00

Usually ships in 5-7 business days

  • Steerable Coverage Technology Enables Dynamic Speaker Tracking Across Multiple Zones
  • Integrated Dante Audio Networking Simplifies IT Infrastructure Integration
  • Onboard DSP Processing Optimizes Speech Intelligibility Without External Hardware
  • Flush-Mount Design Maintains Ceiling Aesthetics In Executive Environments
  • Remote Configuration Capability Reduces Site Visits For Distributed Deployments
Log in or register for YOUR best price

The Microflex Ceiling Array delivers professional-grade conferencing audio for corporate meeting rooms, boardrooms, and hybrid collaboration environments. Steerable Coverage technology enables dynamic tracking of multiple speakers across defined zones without installation complexity or visible microphones disrupting room aesthetics.

Integrated Dante audio networking provides IT-friendly deployment in modern enterprise AV systems, while onboard DSP ensures consistent intelligibility across varied room geometries. The flush-mount form factor maintains architectural integrity in executive spaces and videoconferencing installations where premium finish standards apply.

Built for integrators managing large-scale unified communications deployments, this platform supports remote configuration and monitoring through Designer software, reducing truck rolls and enabling centralized system management across distributed facilities.

Downloads

View full details

Specifications

Connector Type
Dual RJ45 connectors
Power Requirements
Power over Ethernet (PoE), Class 0
Weight MXA925-S
11.8 lbs (5.4 kg)
Weight MXA925-R
12.7 lbs (5.8 kg)
Dimensions MXA925-S
23.77in. (603.8mm) X 23.77in. (603.8mm) x 2.15 in. (54.69 mm)
Dimensions MXA925-S-60CM
23.38 in. (593.8 mm) x 23.38 in. (593.8 mm) x 2.15 in. (54.69 mm)
Dimensions MXA925-R
25 in. (635.4 mm) x 2.4 in. (61.3 mm)
Control Software
Web Application or Shure Designer
Cable Requirements
Cat5e or higher (shielded cable recommended)
Temperature Range
−6.7°C (20°F) to 40°C (104°F)
Plenum Rating
MXA925-S UL2043 (Suitable for Air Handling Spaces), MXA925-R Not rated
Dust Protection
IEC 60529 IP5X Dust Protected
Frequency Response
125 Hz to 20 kHz
Polar Pattern
Array
Microphone Elements
113 MEMS
Coverage Type
Automatic Coverage / Steerable Coverage
Coverage Size
30 x 30 feet (9.1 x 9.1 meters)
Latency Direct outputs
(Automatic coverage off) 13 ms
Automix output
(Includes IntelliMix processing) 47 ms
Dynamic Range
77.5 dB
