Shure MXCWNCS Networked Charging Station

Shure MXCWNCS Networked Charging Station

SoundPro Item: 37435 | Part Number: MXCWNCS

$1,338.00
$1,872.00 $1,338.00
Your Price Sold out
MSRP: $1,872.00 | MAP: $1,338.00

Usually ships in 5-7 business days

  • Accommodates up to 10 SB930 rechargeable batteries
  • 5-segment LEDs on the unit display charge status individually for every battery
  • RJ-45 Ethernet connection enables remote monitoring of battery charge status in hours and minutes via Microflex Complete Wireless graphical user interface
  • Charges 10 batteries to 50% charge in 1.5 hours, 100% charge in 4 hours
  • Selectable storage mode partially discharges batteries for long-term storage or shipment
  • Includes hardware for wall and rack mounting
  • Includes IEC power cable
Log in or register for YOUR best price

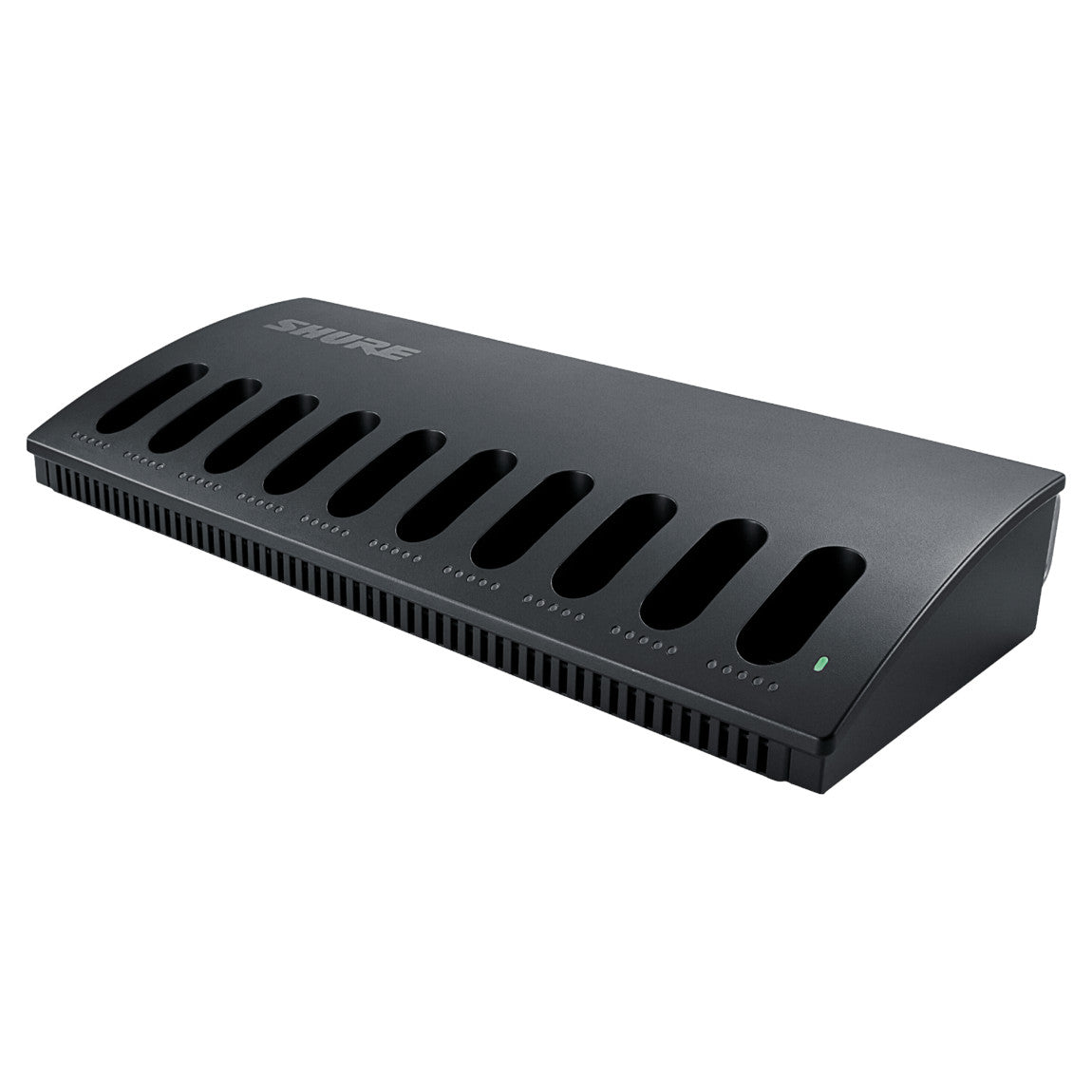

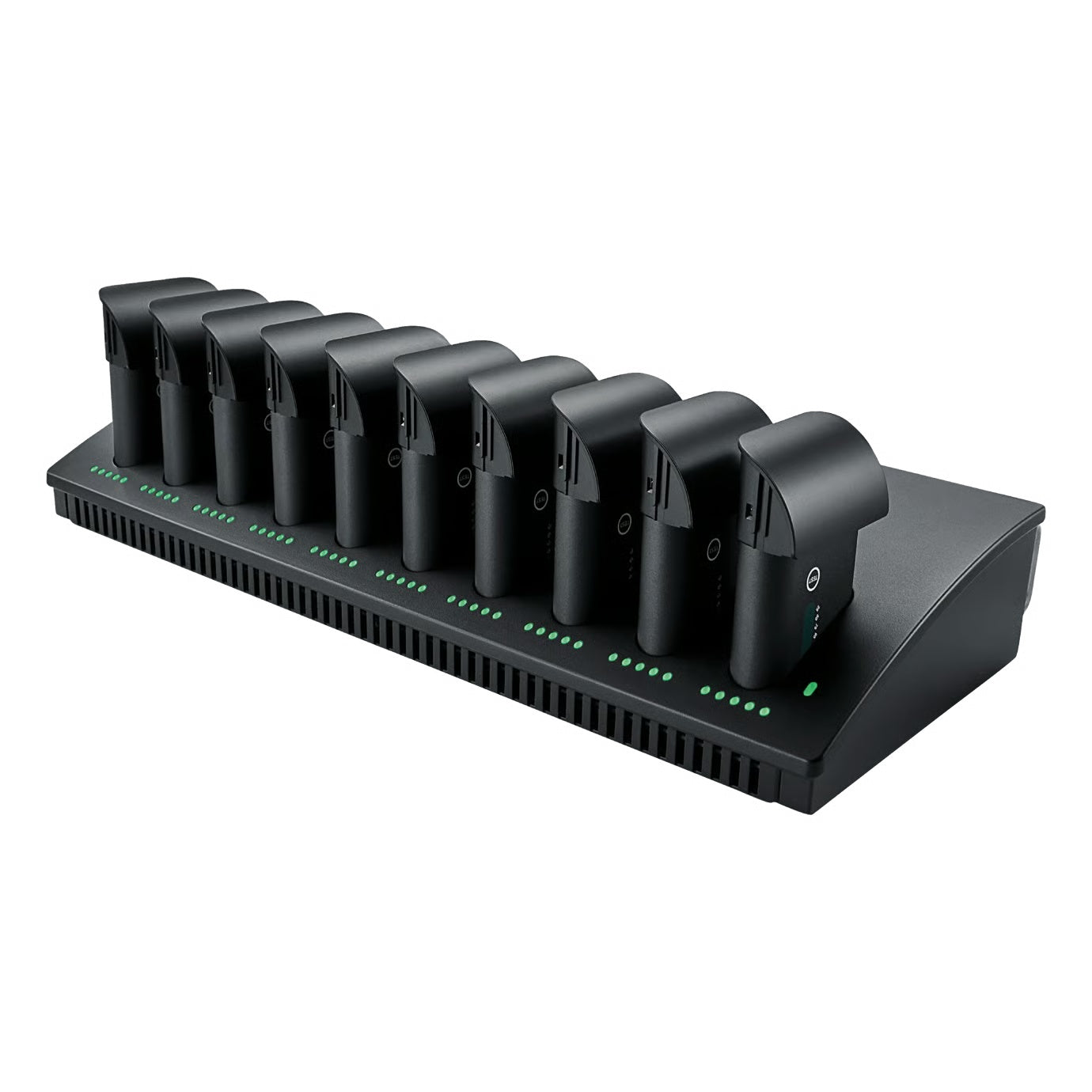

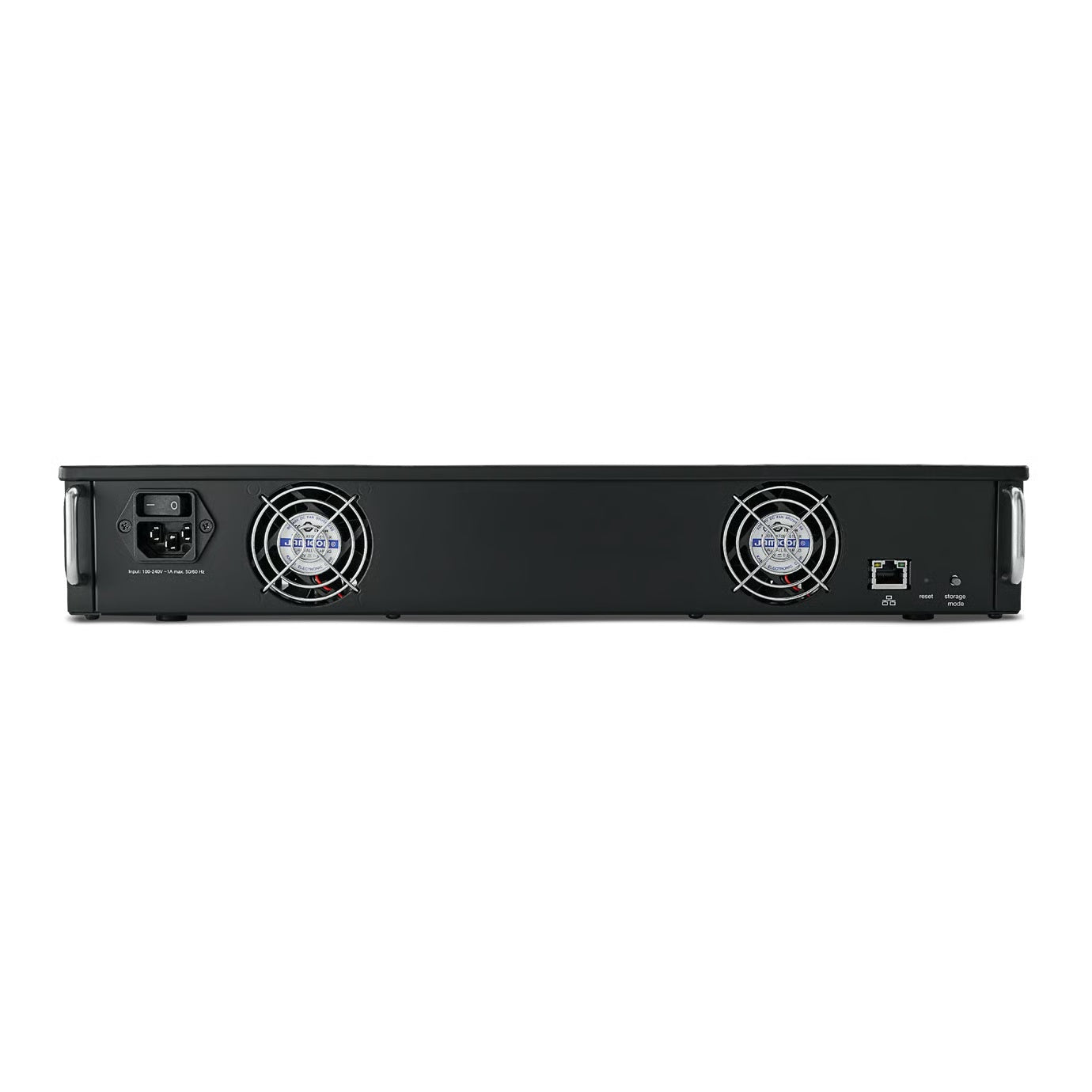

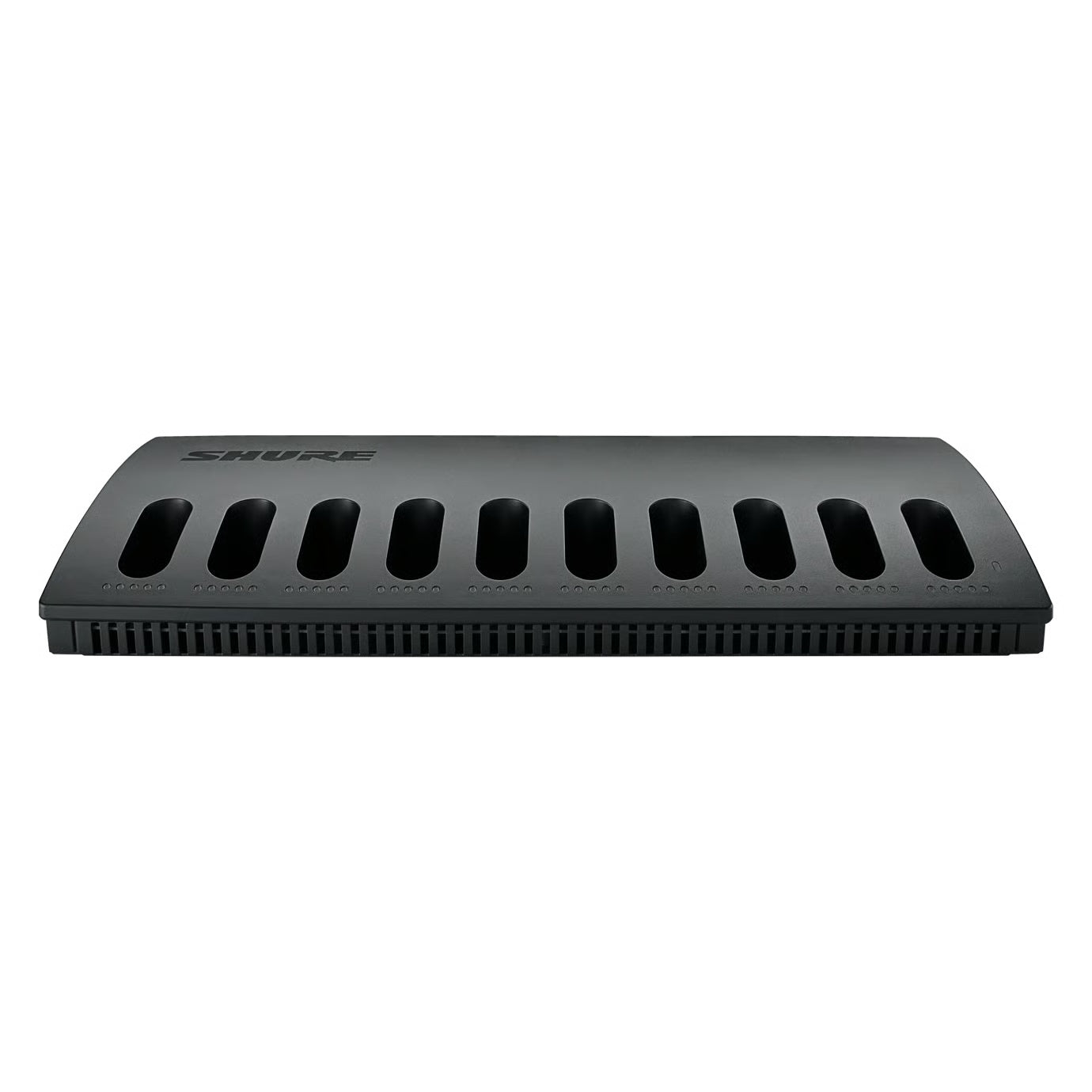

The MXCWNCS Networked Charging Station charges 10 SB930 batteries in 4 hours. LED indicators display charge status, and a RJ-45 Ethernet connection enables battery levels to be monitored remotely. Includes IEC power cable and mounting hardware for wall or rack mounting.

The MXCWNCS Networked Charging Station is designed to blend into conference room aesthetics, keeping SB930 rechargeable batteries for the MXCW640 Wireless Conference Unit at the ready. It accommodates up to 10 SB930 rechargeable batteries, and LED indicators display the charge status for each battery. The MXCWNCS charges 10 batteries to 50% charge in 1.5 hours, and to 100% charge in 4 hours.

The RJ-45 Ethernet connection enables remote monitoring of battery charge status via the Microflex Complete Wireless graphical user interface. A storage mode partially discharges batteries for long-term storage or shipment.

The MXCWNCS includes an IEC power cable and hardware for mounting to a wall or in a standard 19-inch equipment rack.

View full details
  • System
    • Latency
      • Microphone Input to Speaker/Headphone Output: 16 ms
      • Microphone Input to Analog Output: 9.2 ms
      • Analog Input to Speaker/Headphone Output: 7.7 ms
    • Frequency Response
      • Headphone Output: 100 Hz-20 kHz (+0.5 dB/-3 dB)
      • Speaker Output: 220 Hz-15 kHz (±10 dB)
    • Total Harmonic Distortion
      • Headphone Output: 0.06%, typical
      • Speaker Output: 1%, typical
    • Dynamic Range
      • Headphone Output: 100 dB (A-weighted), 97 dB (Unweighted), typical
      • Speaker Output (unweighted), typical: 94 dB (A-weighted), 91 dB (Unweighted), typical
    • Digital Signal Processing: 24-bit, 48 kHz
    • Audio Polarity: Positive pressure on MXCW640 microphone diaphragm produces positive voltage on pin 2 of MXCWAPT XLR output
    • Working Range
      • 8 m (Low), 15 m (Medium), 30 m (High), 45 m (Maximum )
      • Line-of-sight to the MXCWAPT. Actual range depends on RF signal absorption, reflection, and interference.
    • Security: AES Encryption (Dante and 802.11 a, g)
  • MXCWNCS
    • Battery Type
      • Shure
      • Rechargeable Li-Ion
    • Battery Connector: Proprietary blade
    • Charge Time: 50% = 1.5 hours; 100% = 4 hours
    • Charge Current: 3.6 A
    • Power Requirements
      • Input: 100 to 240 V AC, 50/60 Hz, 2 A maximum
      • Output: 4.2 V DCmaximum, 160W maximum
    • Network Connections: RJ45 (Ethernet)
    • Other Connections: IEC (power)
    • Network Addressing Capability: DHCP or Manual IP address
    • Network Interface: 10/100 Mbps Ethernet
    • Cable Length: 100 m maximum
    • Cable Requirements: Cat 5e or higher
    • Housing: Molded Plastic, steel
    • Mounting Type: Tabletop, rack, or wall
    • Dimensions: 2.9 x 17.3 x 7.6 in (72.4 x 438.9 x 193.5 mm)
    • Weight: 2825 g
    • Operating Temperature Range: −20 °C (−4 °F) to 35 °C (95 °F)
    • Discharging Temperature Range: −20 °C (−4 °F) to 35 °C (95 °F) (Discharging may occur when storage mode is enabled.)
    • Charging Temperature Range: 0 °C (32 °F) to 35 °C (95 °F)
    • Storage Temperature Range: −29 °C (20.2 °F) to 60 °C (140 °F) (Related to the storage of the charger, not storage mode.)
    • Relative Humidity: <95%
