Specifications
Dimensions
Dimensions
6.18 x 5 x 5 in. (157 x 127 x 127 mm)
Audio
Frequency Response
~120Hz - 20kHz
Sensitivity (at 2.83 V)
85 dB SPL 1W/1 meter
Connectivity
Connector Type

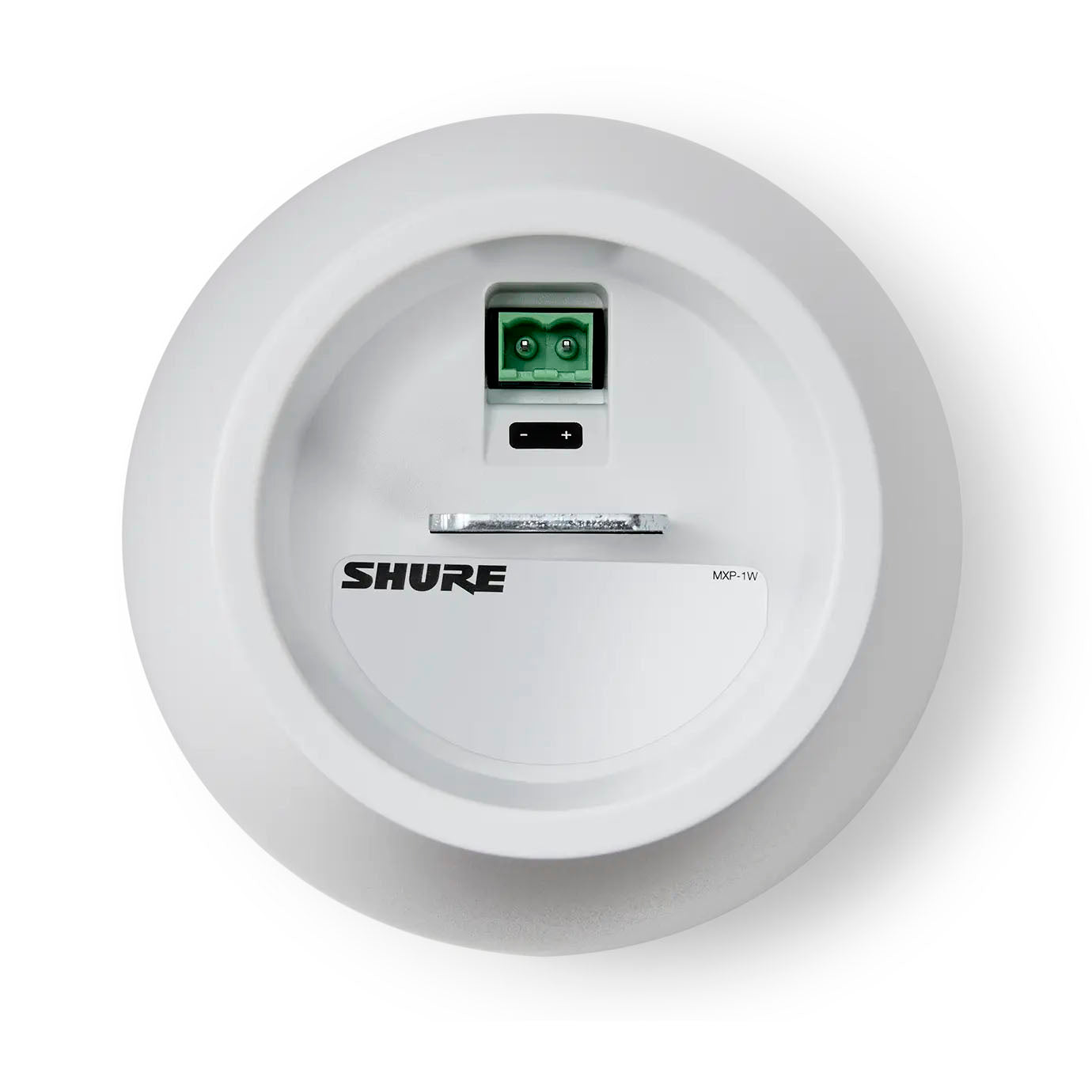

2-pin connector, 0.2 in. (5.08 mm) pitch, Jiekle 2EDG-5.08 V/R
Maximum Input Power
20 W
Environmental
Operating Temperature Range
-7 to 40°C (19.4 to 104°F)
Storage Temperature Range
-29 to 74°C (-20 to 165°F)
Shipping
Weight
1.48 lbs (0.67 kg)
General
Coverage Angle (Average of 1 Octave Band Centered on 4 Khz, IEC Standard 60268-5 23.4)
88°
Nominal Impedance
8Ω
Maximum SPL
at an RMS input level of 28 dBV, IEC standard 60268-5
AES75 Max Linear Sound Levels
93 dBZ, 111 dBZpk, 93 dBA
