Shure MXW1 Hybrid Wireless Bodypack Transmitter
Shure MXW1 Hybrid Wireless Bodypack Transmitter
SoundPro Item: 23601 | Part Number: MXW1/O=-Z10
Usually ships in 5-7 business days
- Compact, low-profile design: Fits comfortably into a shirt pocket or attached to clothing
- Integrated omnidirectional mic: Clearly captures full range audio without connecting an external microphone
- External microphone input: For connecting multiple styles of ear-worn or lavalier condenser microphones
- Bi-directional wireless: Enables return channel audio and real time remote control of all wireless microphone settings
- Earphone output: Listen to audio from a return channel for translation, cueing, or program material
- Programmable mute button: Customize local or remote muting behavior per application, with options including push-to-talk, push-to-mute, and external control.
- Standby mode: Enabled remotely during breaks or periods of inactivity to significantly extend battery life when not in use
- Wide working range: Reliable wireless coverage extends up to 160 feet
- Out of range alert: Emits beeping sound when range limit is exceeded
- Wide frequency response: Captures full range audio for clear voice transmission
- Easy transmitter linking: Assign the microphone to an Access Point channel by simply docking it into a Networked Charging Station and pressing "link"
- Encrypted wireless: AES 256-bit encryption for secure transmission
- Advanced Li-ion batteries: Smart lithium-ion internal batteries provide up to 9 hours of continuous use, charge to full in 2 hours, and enable remote monitoring over the network of remaining runtime and charge status in hours and minutes
- USB charging: Connects to any standard USB power source for "always on" usage

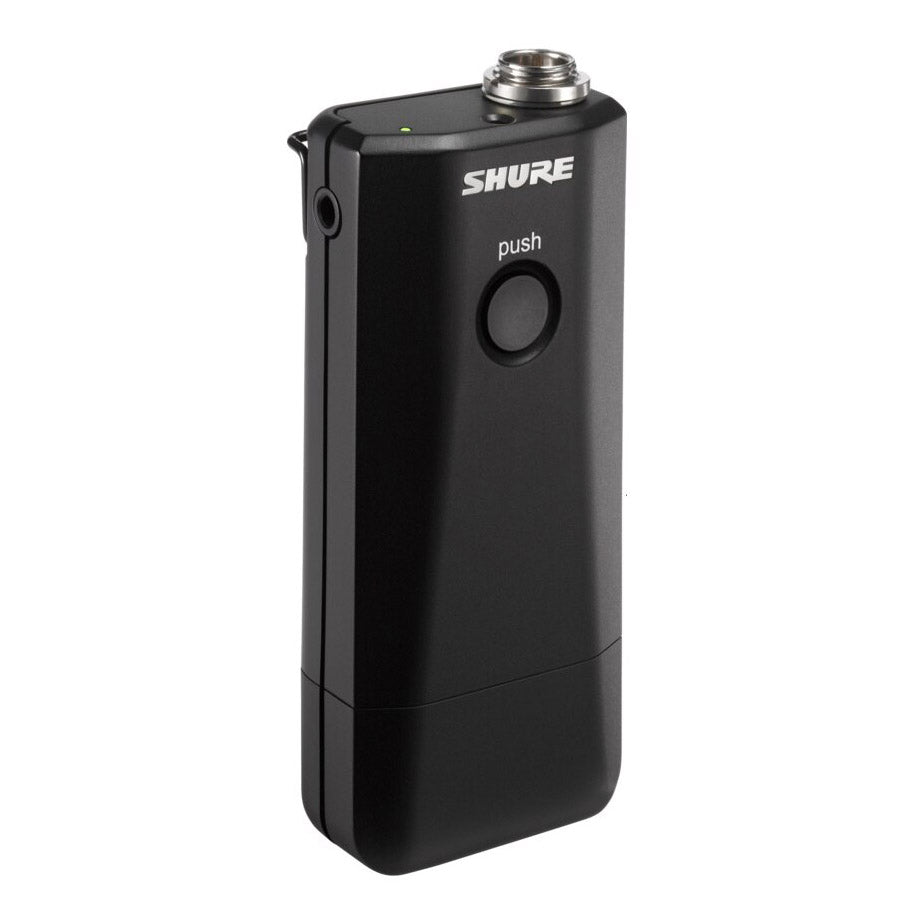

The MXW1 is a hybrid bodypack transmitter compatible with Microflex Wireless systems. It offers both an integrated omnidirectional microphone and an input jack for connecting an ear-worn or lavalier style microphone. The integrated microphone is perfect for picking up speech while the bodypack is on a lanyard or tucked into a shirt pocket, and a belt clip is included for attachment to clothing. All Microflex Wireless transmitters deliver vivid lifelike sound, intelligent wireless performance, encrypted transmission, and advanced rechargeability for conferencing and presentation applications.
- Gain Adjustment Range -25 to +15 dB (in 1 dB steps)
- Maximum Input Level (Mic gain @ -16 dB) −9 dBV
- Headphone Output 3.5 mm (1/8"), dual mono (will drive stereo phones)
- Maximum Headphone Output Power (1kHz @ 1% distortion, peak power, @16Ω) 17.5 mW
- Antenna Type Internal, Spacial Diversity, Linear Polarization
- Battery Type Rechargeable Li-Ion
- Battery Life (Calculated with a new battery. Runtimes vary depending on battery health.) Up to 9 hours
- Charge Connector USB 3.0 Type A
- Housing Molded Plastic
- Recommended Storage Temperature Range 0 °C (32 °F) to 25 °C (77 °F)
- Microphone Connector 4-Pin male mini connector (TA4M), See drawing for details
- Input Impedance (@ 1 kHz) >20 kΩ
- Internal Microphone Omnidirectional (20 Hz – 20 kHz)
- Dimensions (HxWxD) 0.9x1.8x3.9" (22x45x99mm)
- Weight 3 oz (85g) with batteries, without microphone
