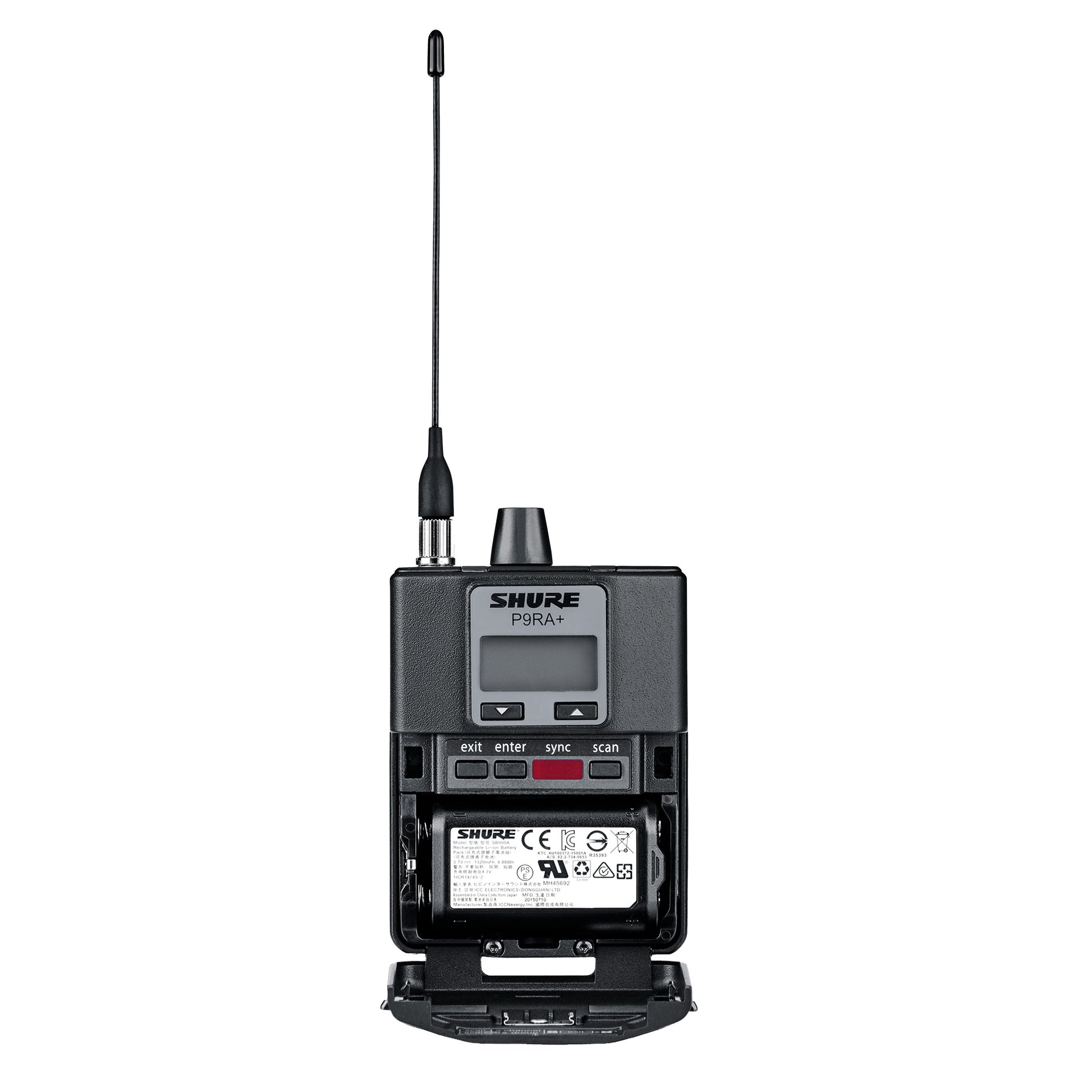

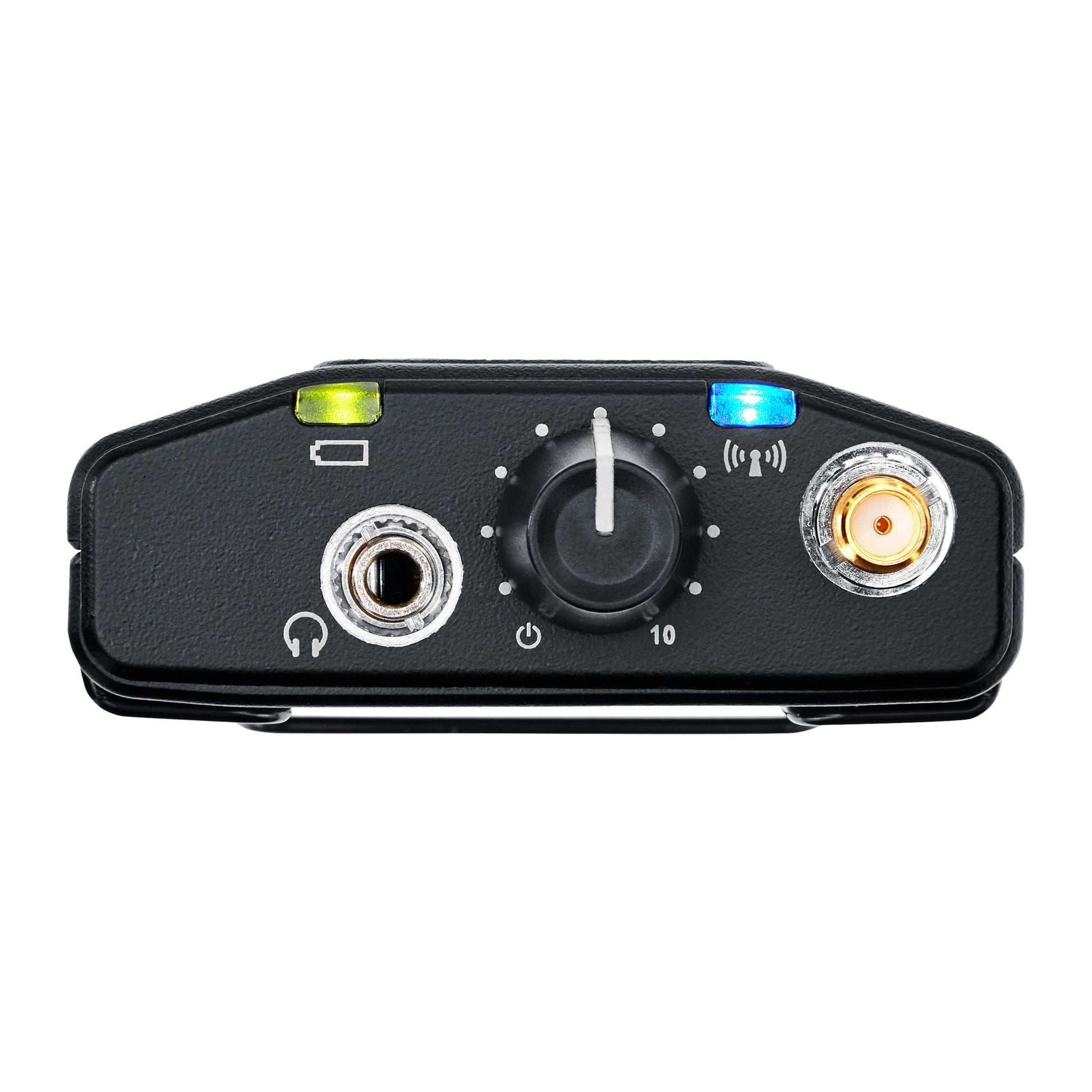

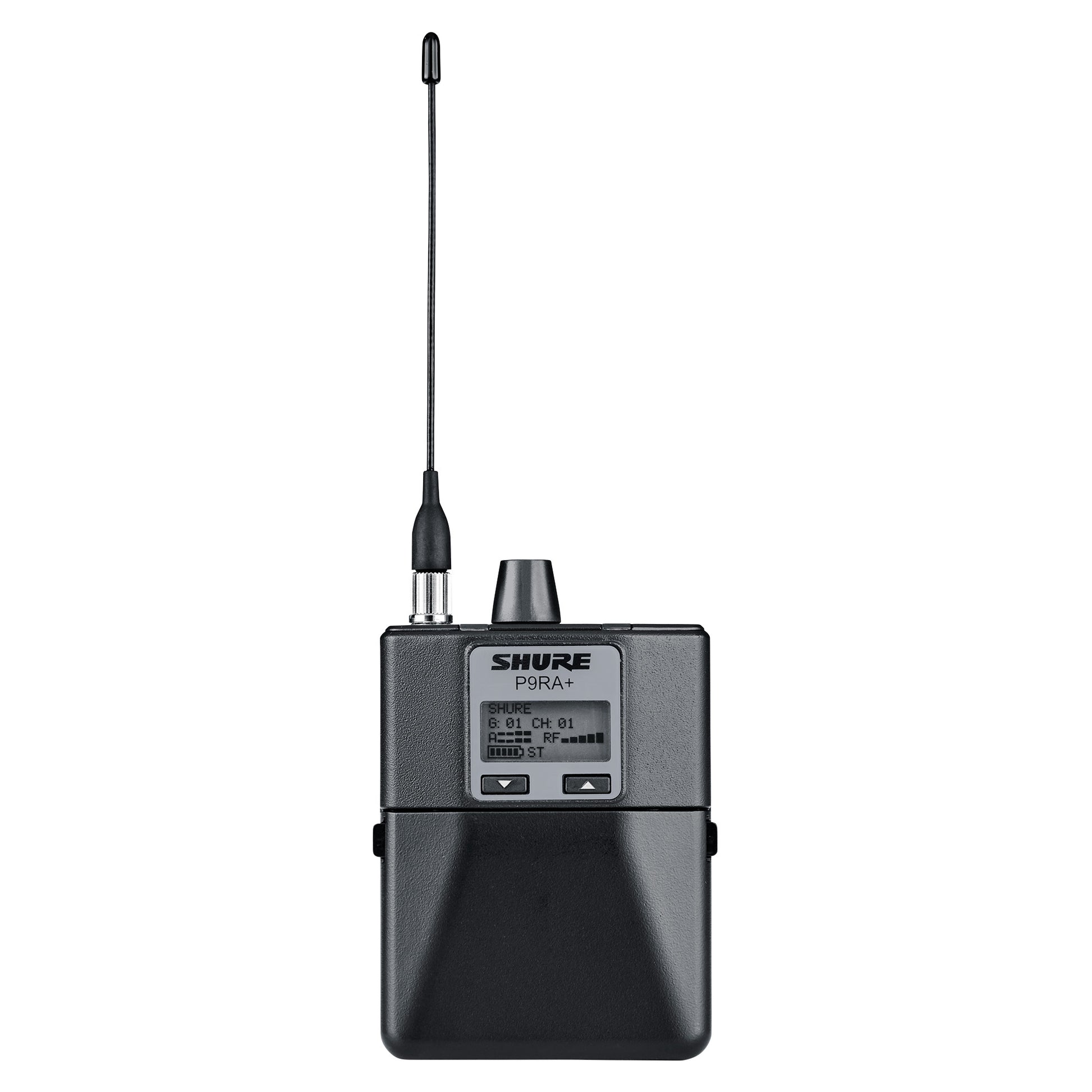

Shure P9RA+ Bodypack Receiver | Frequency: H21 (542-578 MHz)
Shure P9RA+ Bodypack Receiver | Frequency: H21 (542-578 MHz)
SoundPro Item: 115210 | Part Number: P9RA+=-H21
In stock and ready to ship
Shure's P9RA+ is a compact, stereo bodypack receiver for use with the PSM ®900 Wireless Personal Monitor System. With a hybrid analog/digital architecture, the P9RA+ Bodypack Receiver offers unparalleled audio quality with more headroom, better stereo separation, and higher fidelity, along with reliable RF performance for increased RF signal strength to meet the needs of professional audio applications of all sizes, including IEM and IFB applications.
- Front-End RF Filtering–3 dB at 30.5 MHz from the center frequency of each band
- Active RF Gain Control 31 dB
- RF Sensitivity (at 20 dB SINAD) 2.2 µV
- Image Rejection >90 dB
- Adjacent Channel Rejection >70 dB
- Latency 0.37ms
- Squelch Threshold
- 22 dB
- SINAD (±3 dB)
- Intermodulation Attenuation >70 dB
- Blocking >80 dB
- Audio Output Power (1kHz @ 1% distortion, peak power, @16Ω) 100 mW (per output)
- 4-band Parametric EQ 9.5 Ω
- High Boost
- Low Shelf Selectable Gain: ±2 dB, ±4 dB, ±6 dB @ 100 Hz
- Low Mid Selectable Gain: ±2 dB, ±4 dB, ±6 dB at 160 Hz, 250 Hz, 400 Hz, 500 Hz, 630 Hz SelectableQ: 0.7, 1.4, 2.9, 5.0, 11.5
- High Mid Selectable Gain: ±2 dB, ±4 dB, ±6 dB at 1 kHz, 1.6 kHz, 2.5 kHz, 4 kHz, 6.3 kHz SelectableQ: 0.7, 1.4, 2.9, 5.0, 11.5
- High Shelf Selectable Gain: ±2 dB, ±4 dB, ±6 dB @ 10 kHz
- Volume Limiter SelectableOFF (0 dB) to -48 dB in 3 dB steps
- Volume Lock Selectable0 dB to -70 dB
- Net Weight154 g (Without Battery)
- Dimensions (H x W x D) 83 x 65 x 22 mm
- Battery Life4–6 hours (continuous use) AA batteries
