Shure P9T PSM900 Half-Rack Wireless Transmitter | Frequency: H21 (542-578 MHz)
Shure P9T PSM900 Half-Rack Wireless Transmitter | Frequency: H21 (542-578 MHz)
SoundPro Item: 115209 | Part Number: P9T=-H21
In stock and ready to ship

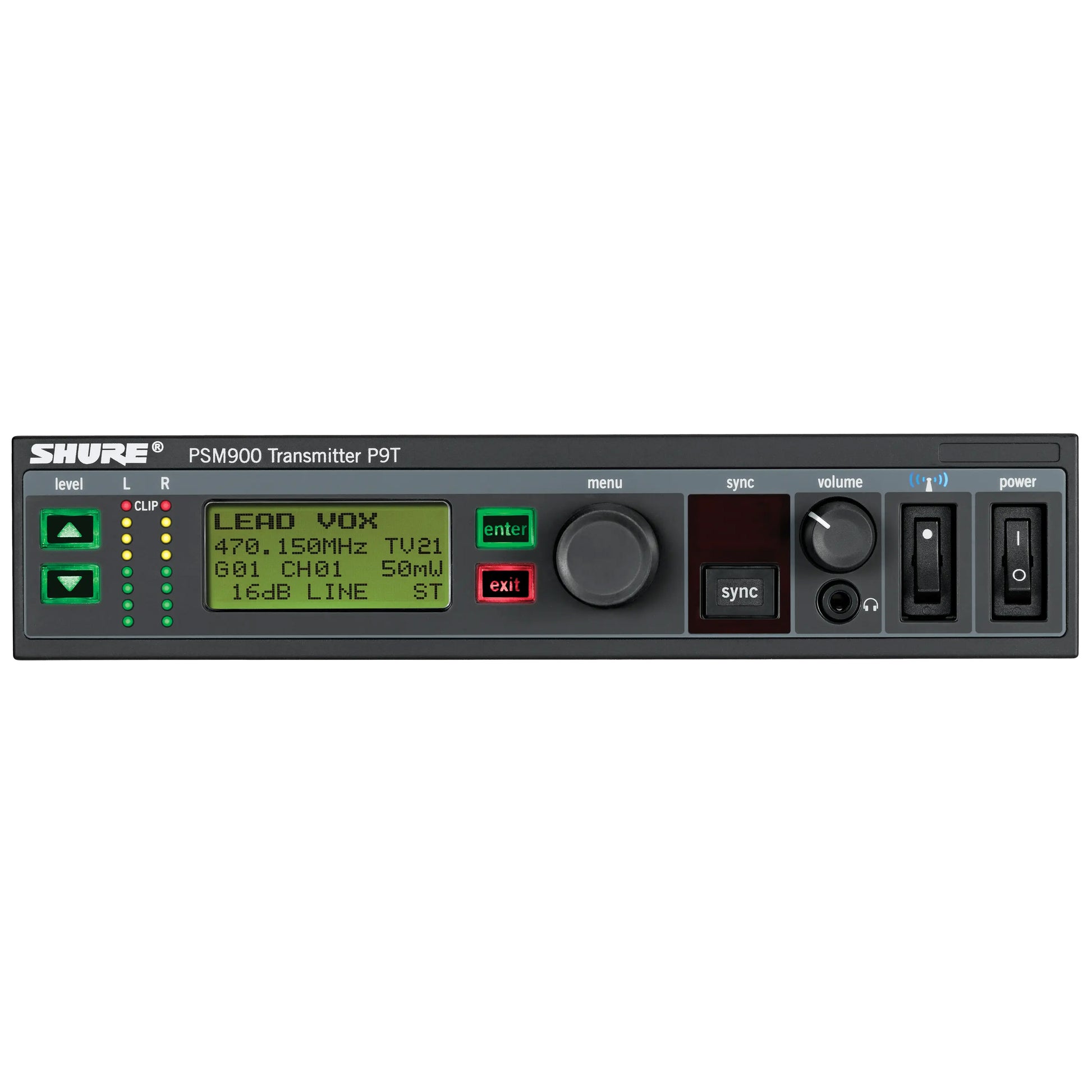

The P9T is a half-rack wireless transmitter used in conjunction with the P9R Bodypack receiver as part of the PSM®900 Wireless Personal Monitor System.
It offers state-of-art technology like CueMode (patent pending), Scan and Sync, and RF mute switch for easy setup and operation.

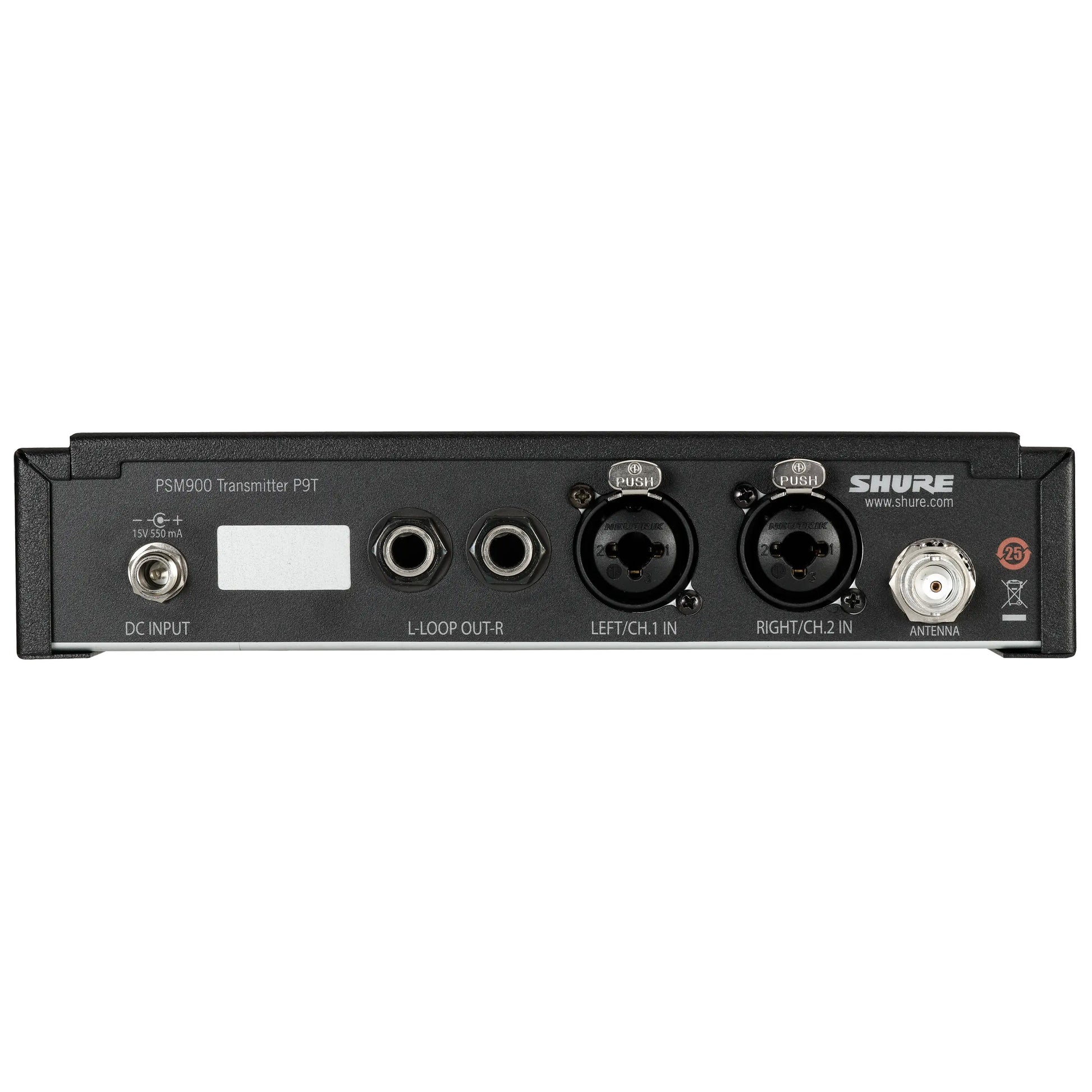

Connections include balanced ¼" and XLR, loop out, and headphone out. Includes rack-mounting kit, front or back mountable antennas, and power supply.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation
- RF Output Power Selectable10, 50, 100 mW (regionally dependent)
- RF Output Impedance50 Ω (typical)
- Power Requirement415 mA typical @ 120VAC (with RF on 100 mW power mode, no audio)
- Net Weight850 g
- Dimensions7.75" x 6.55" x 1.65"
- Audio Input
- Connector Type: Combination XLR and 6.35 mm (1/4”) TRS
- Polarity
- XLR: Non-inverting (pin 2 positive with respect to pin 3)
- 6.35 mm (1/4”) TRS: Tip positive with respect to ring
- Configuration: Electronically balanced
- Impedance: 70.2 kΩ (actual)
- Nominal Input Level (switchable): +4 dBu, –10 dBV
- Maximum Input Level
- +4 dBu: +23.3 dBu
- –10 dBV: +12.5 dBu
- Pin Assignments
- XLR: 1=ground, 2=hot, 3=cold
- 6.35 mm (1/4”) TRS: Tip=hot, Ring=cold, Sleeve=ground
- Phantom Power Protection: up to 60 V DC
- Audio Output
- Connector Type: 6.35 mm (1/4”) TRS
- Configuration: Electronically balanced
- Impedance: Connected directly to inputs
