Shure SLXD14/DL4B Digital Wireless Bodypack System | Frequency: G58 (470-514 MHz)
Shure SLXD14/DL4B Digital Wireless Bodypack System | Frequency: G58 (470-514 MHz)
SoundPro Item: 85427 | Part Number: SLXD14/DL4B-G58
Usually ships in 5-7 business days
- 24-bit digital audio
- Operate up to 32 compatible systems per 44 MHz band
The DL4 IP57-rated waterproof subminiature lavalier microphone and the SLXD1 transmitter provides transparent digital audio and rock-solid RF stability for lecture halls and live performances.

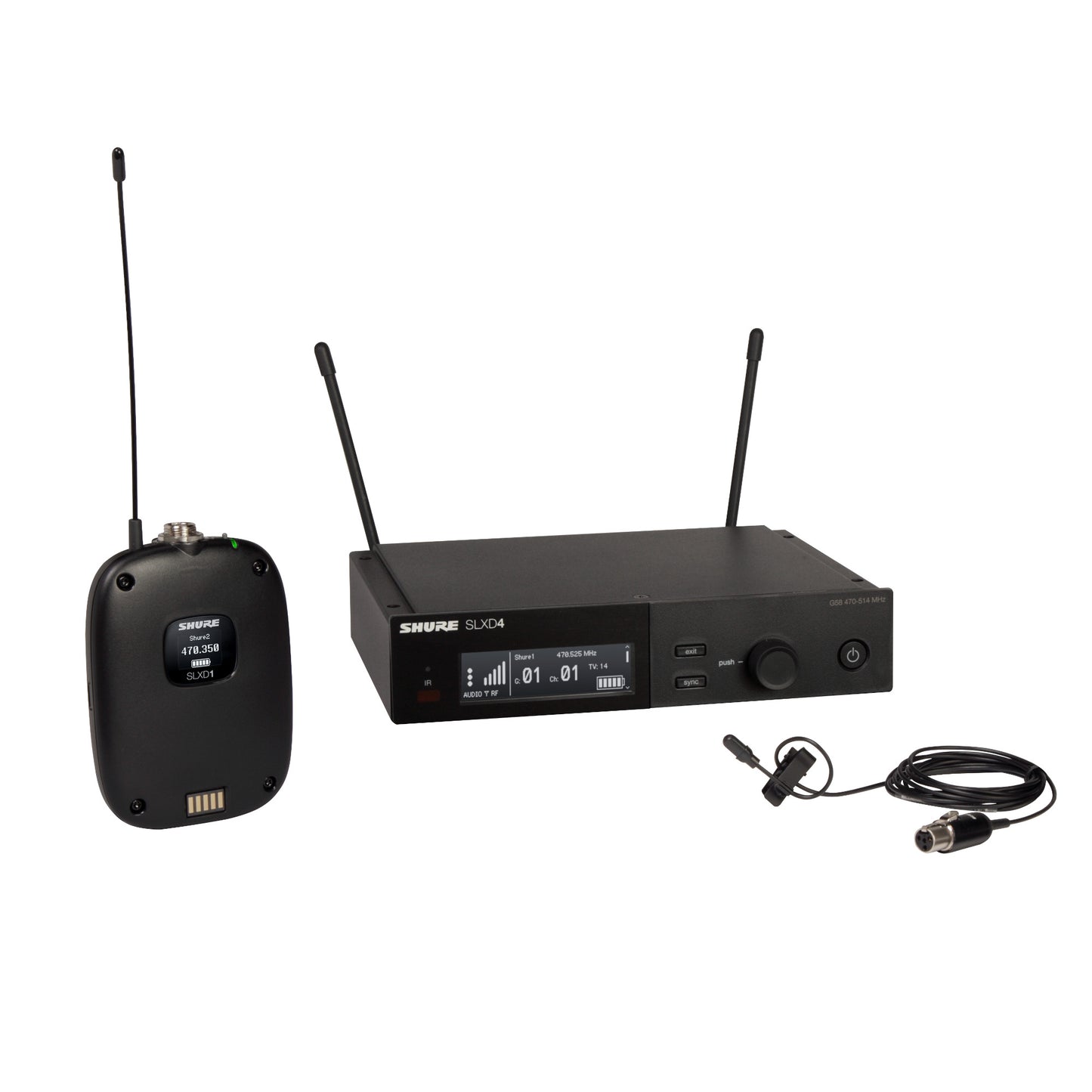

The SLXD14/DL4 Digital Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver, SLXD1 bodypack transmitter and DL4 IP57-rated waterproof subminiature omnidirectional lavalier microphone (black) with lavalier, antenna and rackmount accessories, and 2 AA batteries.
- SLXD1
- Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
- Dimensions (H x W x D): 3.86 x 2.68 x 1 inches (98 x 68 x 25.5 mm)
- Weight: 89 g
- Housing: PC/ABS
- Audio Input
- Connector: 4-Pin male mini connector (TA4M)
- Impedance: 1 MΩ
- Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
- Preamplifier Equivalent Input Noise (EIN): 118 dBV
- RF Output
- Antenna Type: 1/4 wave
- Occupied Bandwidth: <200 kHz
- Modulation Type: Shure proprietary digital
- Power: 1 mW or 10 mW
- SLXD4
- Dimensions: 42 x 197 x 152 mm (1.65 x 7.76 x 5.98 in.), H x W x D
- Weight: 816 g, without antennas
- Housing: Galvanized Steel
- Power Requirements: 15 V DC @ 600 mA, supplied by external power supply (tip positive)
- RF Input
- 1/4" (6.35 mm): Yes
- XLR: Yes
- Spurious Rejection: >75 dB, typical
- Connector Type: BNC
- Impedance: 50 Ω
- Phantom Power Protection
- Audio Output
- 1/4" (6.35 mm): Balanced (Tip = audio +, Ring = audio -, Sleeve = ground )
- XLR: Balanced (1=ground, 2=audio +, 3=audio −)
- 1/4" (6.35 mm): 1.3 kΩ (670 ΩUnbalanced)
- XLR (line): 400 Ω (200 ΩUnbalanced)
- XLR (mic): 150 Ω
- 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single)
- XLR: LINE setting= +15 dBV, MIC setting= 15 dBV
- Gain Adjustment Range: 18 to +42 dB in 1 dB steps
- Configuration
- Impedance
- Full Scale Output
- Mic/Line Switch: 30 dB pad
- Networking
- Network Interface: Single Port Ethernet 10/100 Mbps
- Network Addressing Capability: DHCP or Manual IP address
- Maximum Cable Length: 100 m (328 ft)
- DL4
- Microphone Capsule: MEMS
- Polar Pattern: Omnidirectional
- Frequency Response: 20 Hz - 20 kHz
- Sensitivity: –42.5 dBV (7.5 mVRMS) @ 1 kHz
- Self-Noise: 31 dB SPL-A (A-weighted, Equivalent Acoustical)
- Signal-to-Noise Ratio: 63 dB
- Maximum SPL: 132.0 dB SPL (1 kHz @ 1% THD, typical)
- Dynamic Range: 101 dB (Typical)
- Microphone Current Draw: 220 µA, maximum
- Bias Voltage (Recommended Operating Voltage): 5 VDC
- Cable Diameter: 1.6 mm
- Cable Length: 66 in (1.67 m)
- Net Weight: 15g (0.53 oz)
- Capsule Dimensions (L×D): 14.5×5.2 mm
